DRIVE SHAFT SYSTEM

4C–47

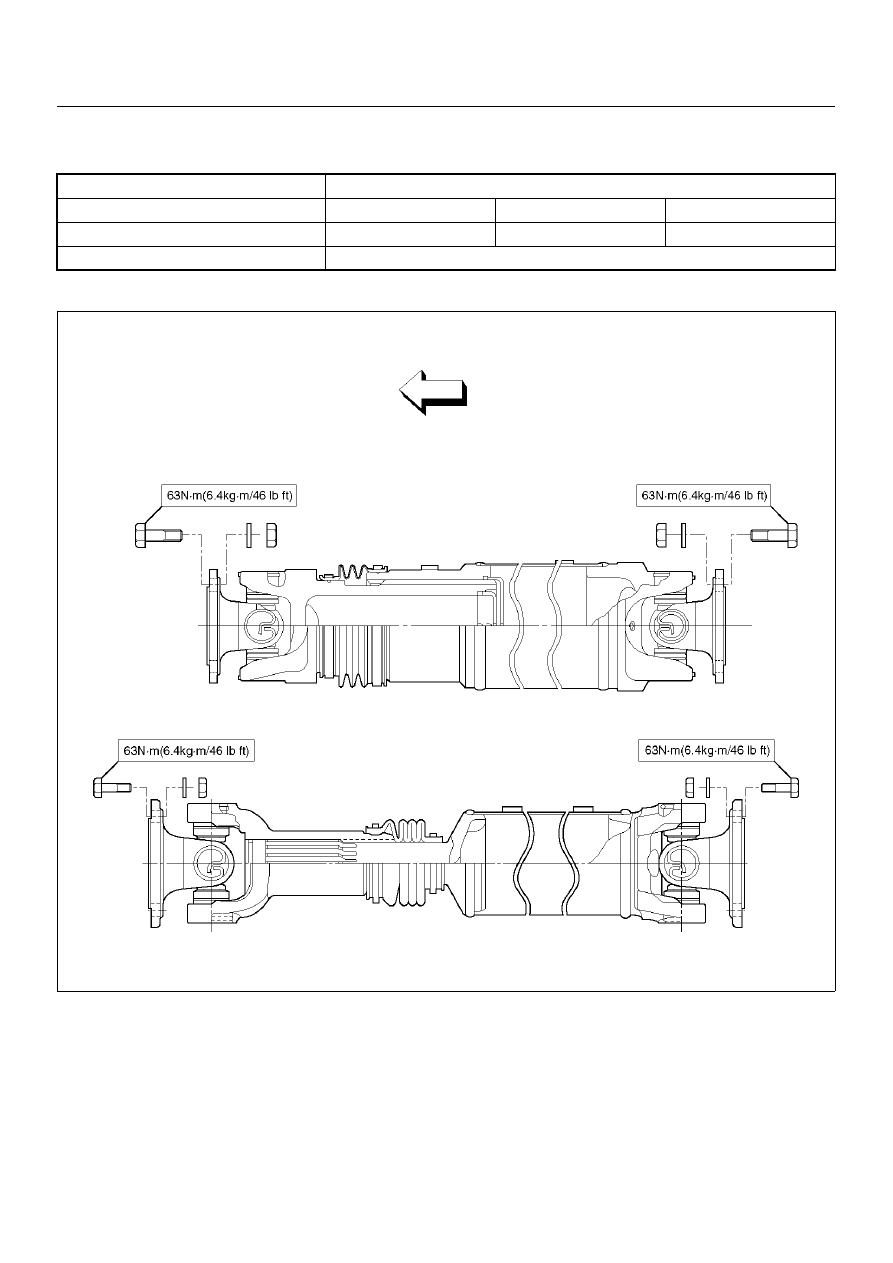

Main Data and Specifications

General Specifications

Torque Specifications

E04RX013

4WD Model

Engine

X22SE

6VD1 (M/T)

6VD1 (A/T)

Length (between two spiders center)

989.0mm (38.94in)

1212.5mm (47.73in)

1043.0mm (41.06in)

Universal joint type

Cardan type

TRANSFER CASE

4D–1

DRIVELINE/AXLE

TRANSFER CASE

CONTENTS

Service Precaution

4D–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

4D–2

. . . . . . . . . . . . . . . . . . . . .

Transfer Rear Oil Seal

4D–4

. . . . . . . . . . . . . . . . . . .

Transfer Rear Oil Seal and
 Associated Parts

4D–4

. . . . . . . . . . . . . . . . . . . . . .

Removal

4D–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

4D–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Transfer Case Assembly (A/T)

4D–6

. . . . . . . . . . . .

Transfer Case Assembly (A/T) and
 Associated Parts

4D–6

. . . . . . . . . . . . . . . . . . . . . .

Removal

4D–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

4D–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Transfer Rear Case Assembly (A/T)

4D–11

. . . . . . .

Transfer Rear Case Assembly (A/T) and
 Associated Parts

4D–11

. . . . . . . . . . . . . . . . . . . . . .

Removal

4D–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

4D–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Transfer Rear Cover Assembly

4D–16

. . . . . . . . . .

Disassembly

4D–16

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

4D–17

. . . . . . . . . . . . . . . . . .

Reassembly

4D–17

. . . . . . . . . . . . . . . . . . . . . . . . . .

Detent, Shift Arm, and Interlock Pin
 (Transfer Case Assembly)

4D–19

. . . . . . . . . . . . . . .

Disassembled View

4D–19

. . . . . . . . . . . . . . . . . . . .

Disassembly

4D–20

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

4D–21

. . . . . . . . . . . . . . . . . .

Reassembly

4D–21

. . . . . . . . . . . . . . . . . . . . . . . . . .

Transfer Case Assembly

4D–23

. . . . . . . . . . . . . . . . .

Disassembled View

4D–23

. . . . . . . . . . . . . . . . . . . .

Disassembly

4D–24

. . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

4D–27

. . . . . . . . . . . . . . . . . .

Reassembly

4D–30

. . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

4D–37

. . . . . . . . . . . . .

Special Tools

4D–40

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

4D–2

TRANSFER CASE

General Description

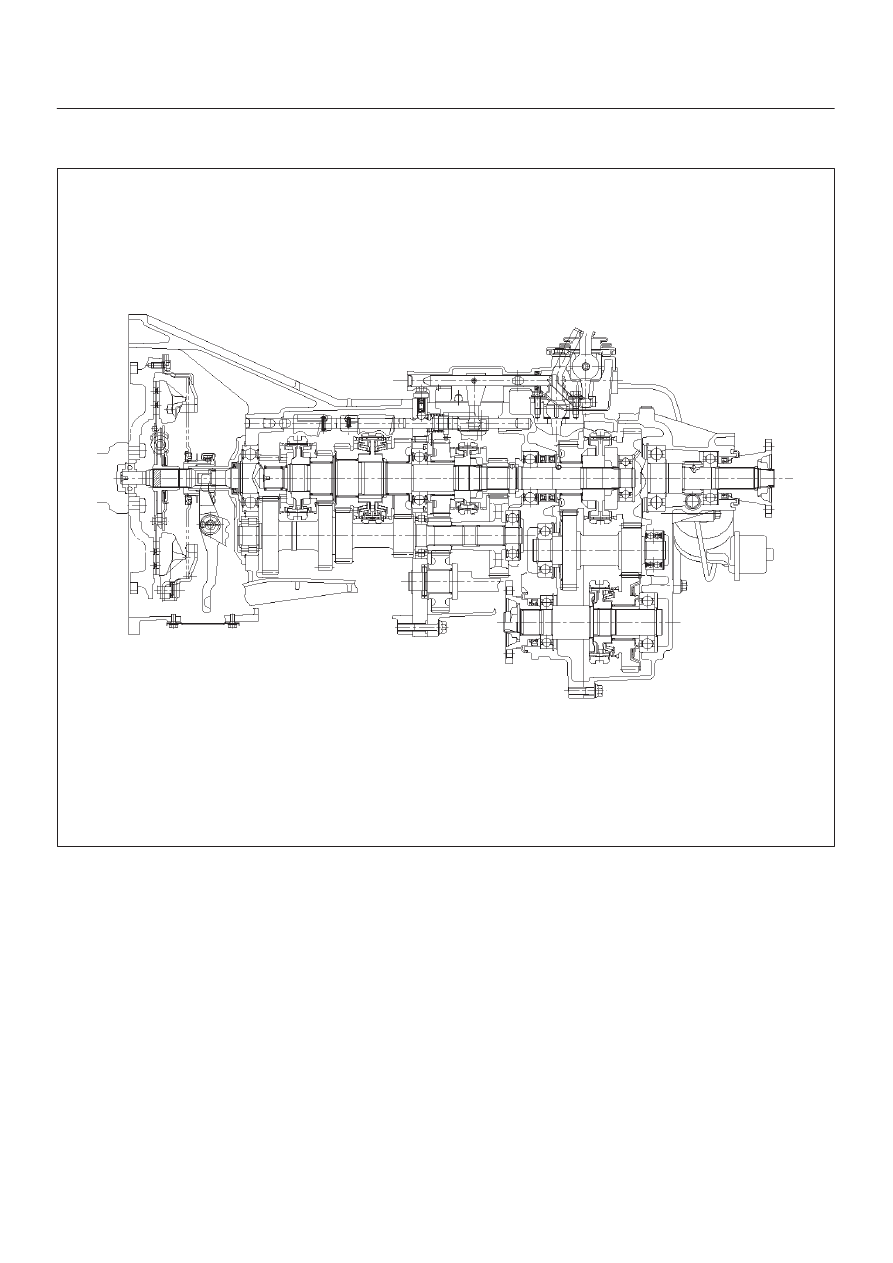

Transfer Case (for Manual Transmission)

A07RX005

TRANSFER CASE

4D–3

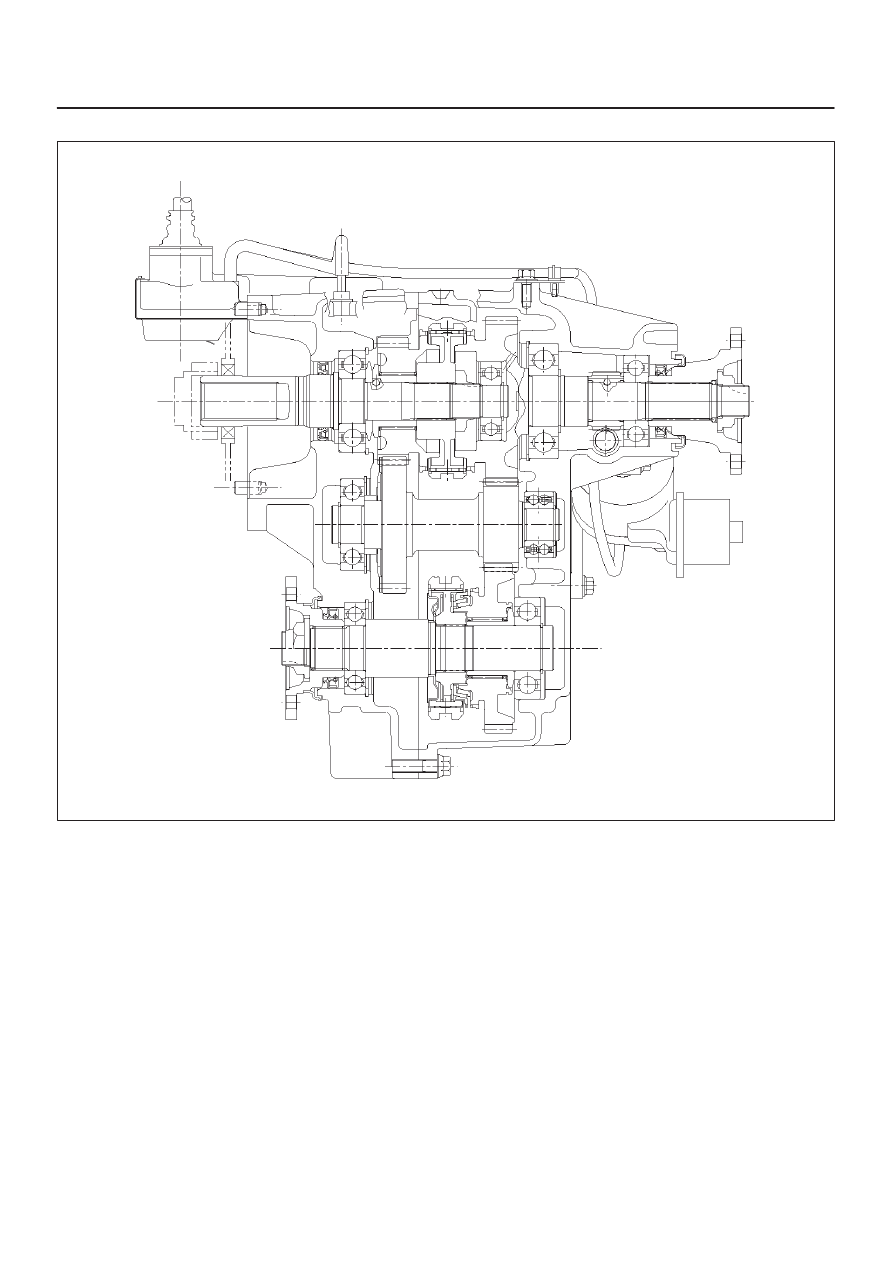

Transfer Case (for Automatic Transmission)

A07RW001–1

The transfer case is used to provide a means of providing
power flow to the front axle. The transfer case also
provides a means of disconnecting the front axle,
providing better fuel economy and quieter operation when
the vehicle is driven on improved roads where four wheel
drive is not required. In addition, the transfer case
provides an additional gear reduction when placed in low
range, which is useful when difficult off–road conditions
are encountered.
A floor mounted shift lever is used to select the high–low
range. When four wheel drive switch has been turned on,
the four wheel drive indicator light is designed to come on
and the front axle has been engaged.
