DRIVE SHAFT SYSTEM

4C–39

Main Data and Specifications

General Specifications

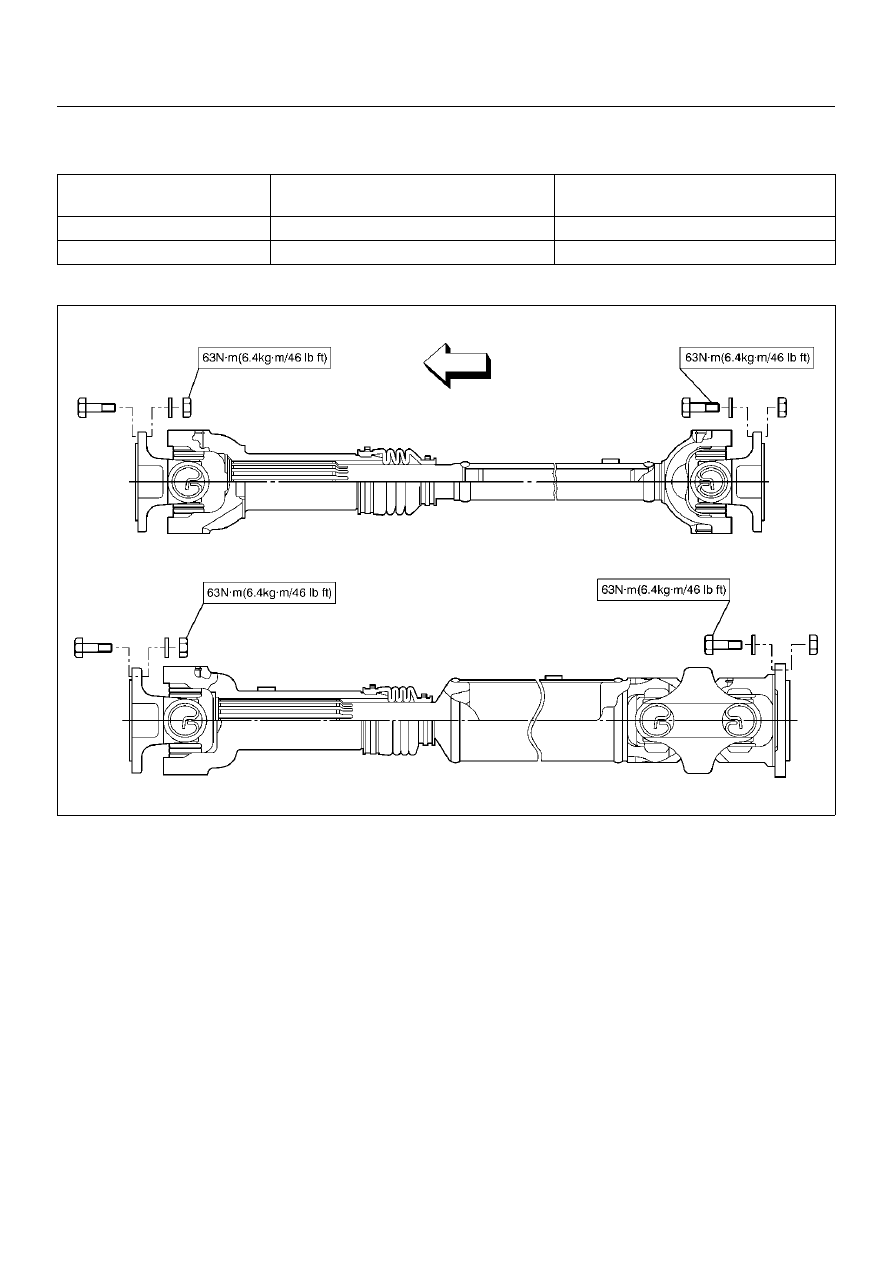

Torque Specifications

401RX027

Length (between two spiders
center)

M/T

A/T

6VD1

376 mm (14.80 in)

542 mm (21.34 in)

X22SE

294 mm (11.57 in)

—

4C–40

DRIVE SHAFT SYSTEM

Rear Propeller Shaft

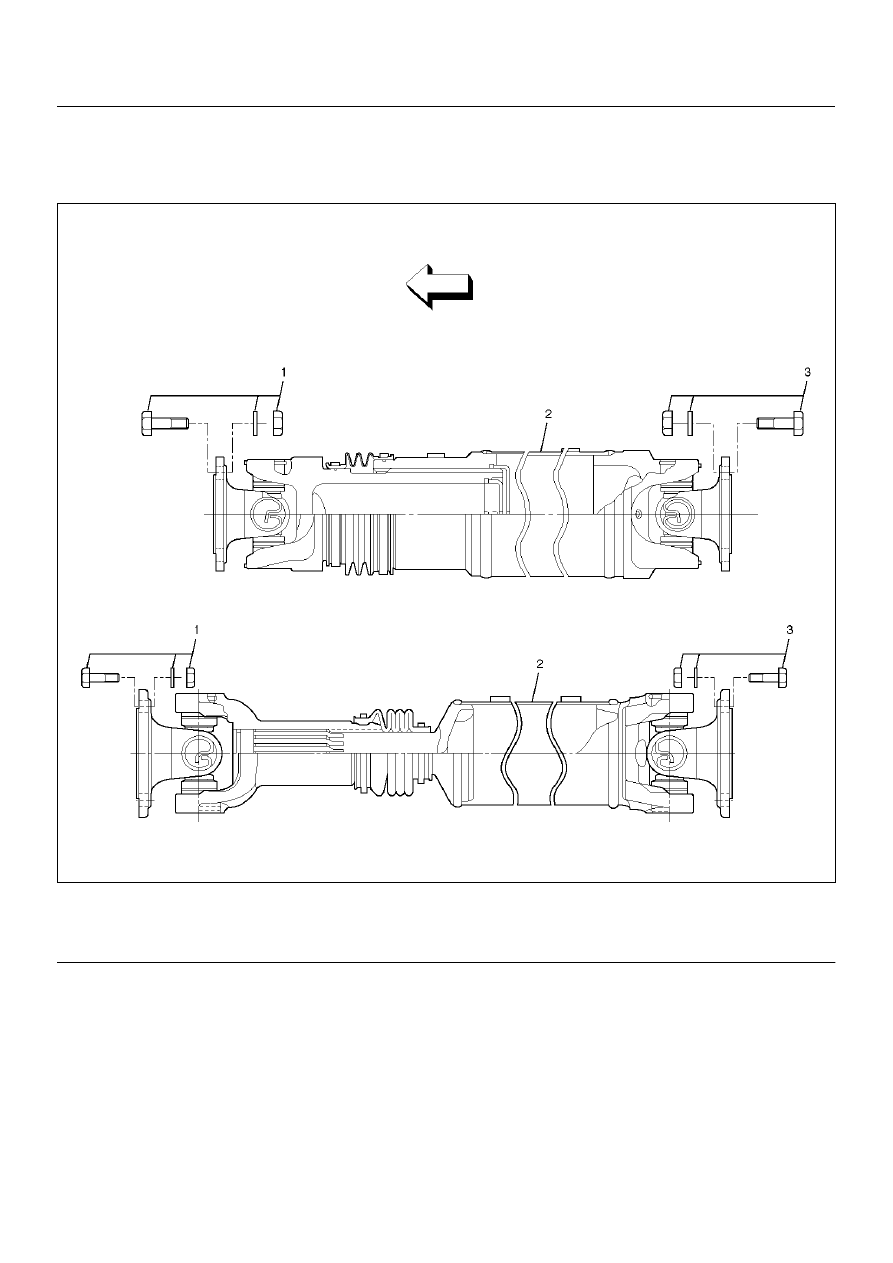

Rear Propeller Shaft and Associated Parts

401RX028

Legend

EndOFCallout

Removal

1. Raise the vehicle on a hoist.

NOTE:  Apply alignment marks on the flange at the rear
propeller shaft both front and rear side.

2. Remove transfer side bolt, nut and washer.

3. Remove rear axle side bolt, nut and washer.

4. Remove rear propeller shaft.

Installation

NOTE:  Never install the shaft assembly backwards.
Never insert bar between yoke lugs when tightening or
removing bolts.
Completely remove the dust or foreign matter from the
connecting surface of flange coupling on each end of
the propeller shaft.

1. Align the mark which is applied at removal.

2. Install rear propeller shaft and tighten the bolts to

the specified torque.

Torque:63 N·m(6.4kg·m/46lbft)

(1) Bolt, Nut and Washer (Transfer Side)
(2) Rear Propeller Shaft

(3) Bolt, Nut and Washer (Rear Axle Side)

DRIVE SHAFT SYSTEM

4C–41

Slip Joint Disassembly

401RX004

Legend

EndOFCallout

1. Lay the shaft horizontally on a bench and secure.

2. Indicate the original assembled position by marking

the phasing of the shaft prior to disassembly.

3. Using the flat blade of a screwdriver, pry the loose

end of the boot clamp upwards and away from the
propeller shaft boot. Be careful not to damage the
boot.

4. When boot clamps becomes loose, remove by

hand.

5. Repeat for the other boot clamp.

6. Remove the slip yoke assembly from the driveshaft,

by securing the boot with one hand and pulling on
the slip yoke.

7. Remove the boot from the shaft assembly.

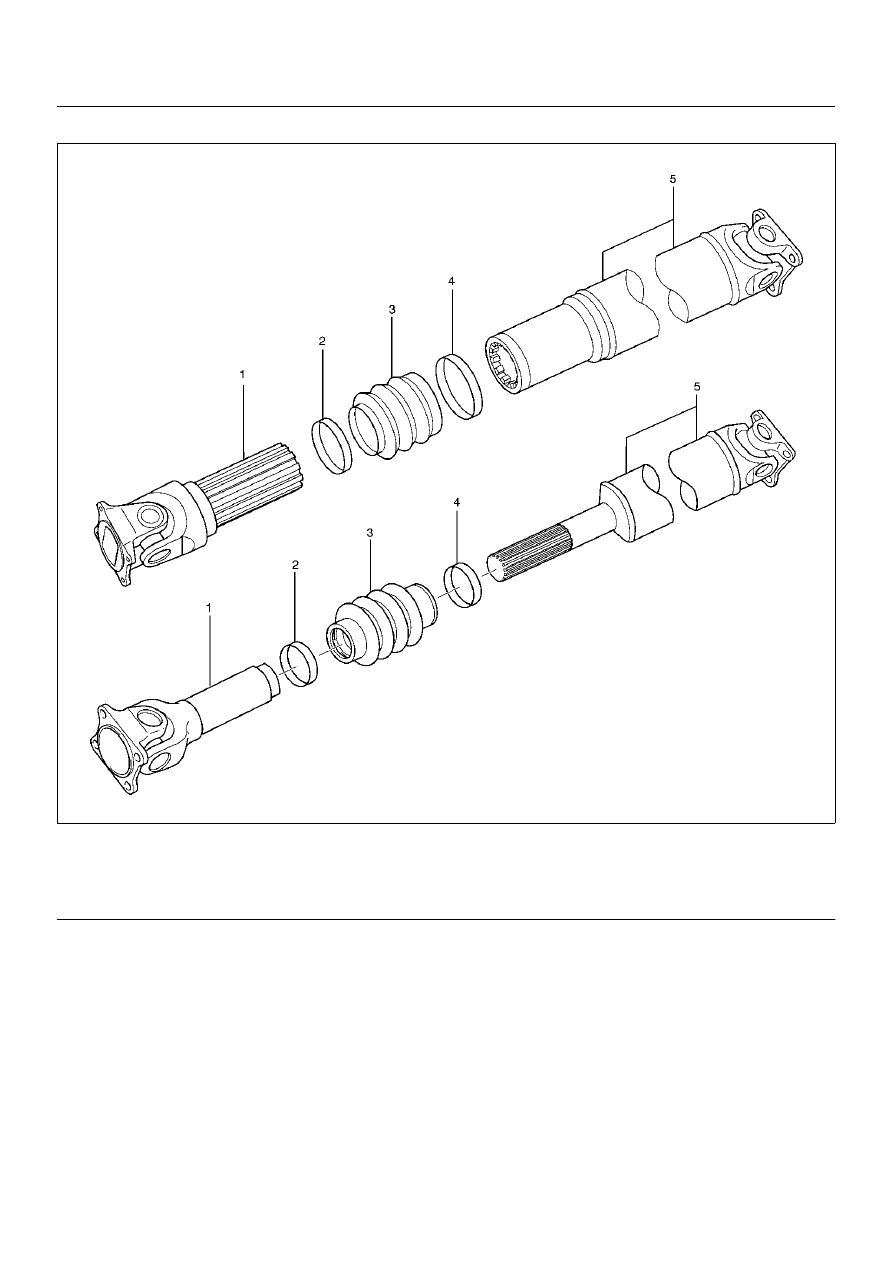

(1) Spline Yoke and Universal Joint Assembly
(2) Clamp
(3) Boot

(4) Clamp
(5) Tube and Universal Joint Assembly

4C–42

DRIVE SHAFT SYSTEM

Universal Joint Disassembly

401RX022

Legend

EndOFCallout

NOTE:  Aluminum is softer than steel.  Care must be
taken not to remove excessive material or damage
bearing holes.
If the vehicle has aluminum tube type propeller shaft,
flange yoke, boot kit, journal kit can be replaced. If other
parts are damaged, replace propeller shaft as assembly.

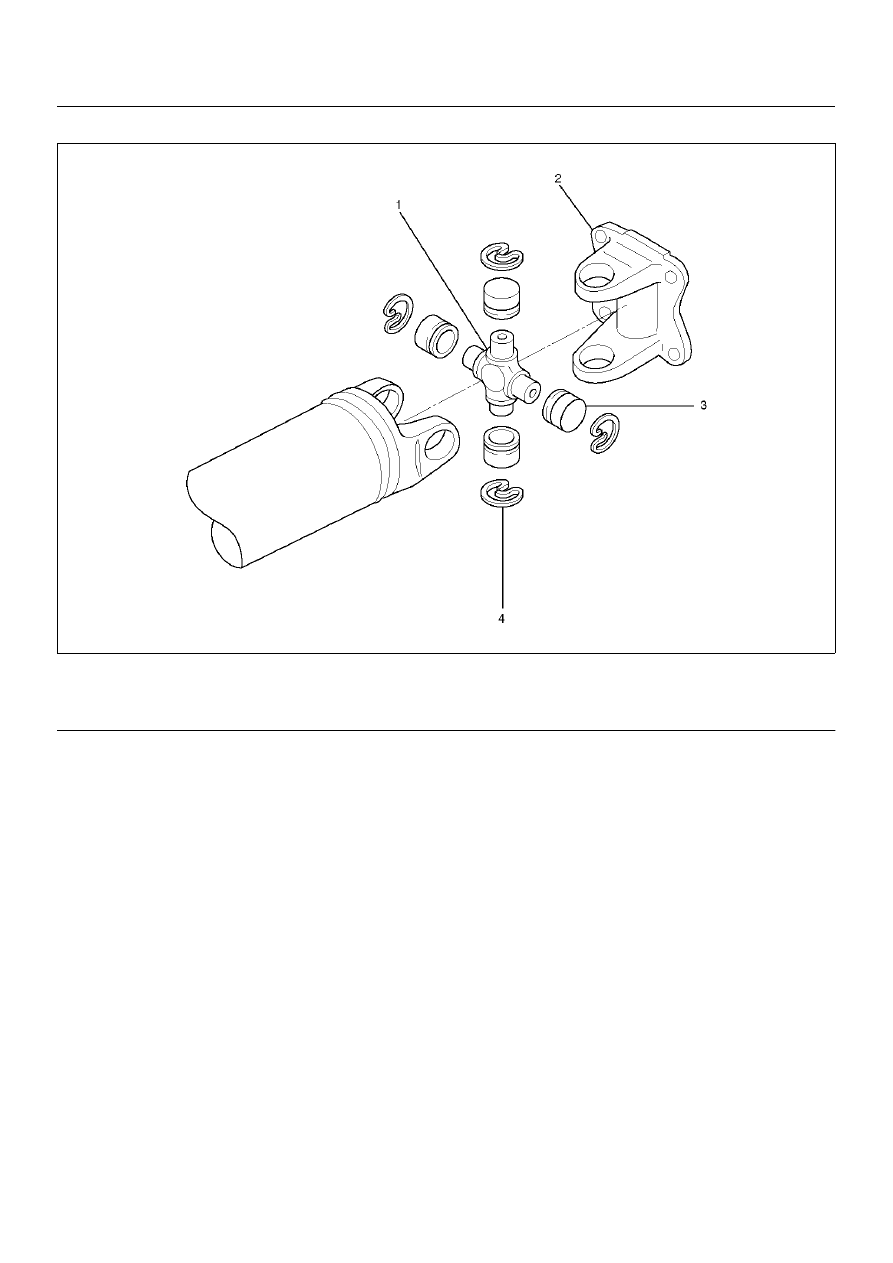

(1) Spider
(2) Flange Yoke

(3) Bearing
(4) Snap Ring
