Opel Frontera UE. Manual - part 692





4B–10

DRIVELINE CONTROL SYSTEM

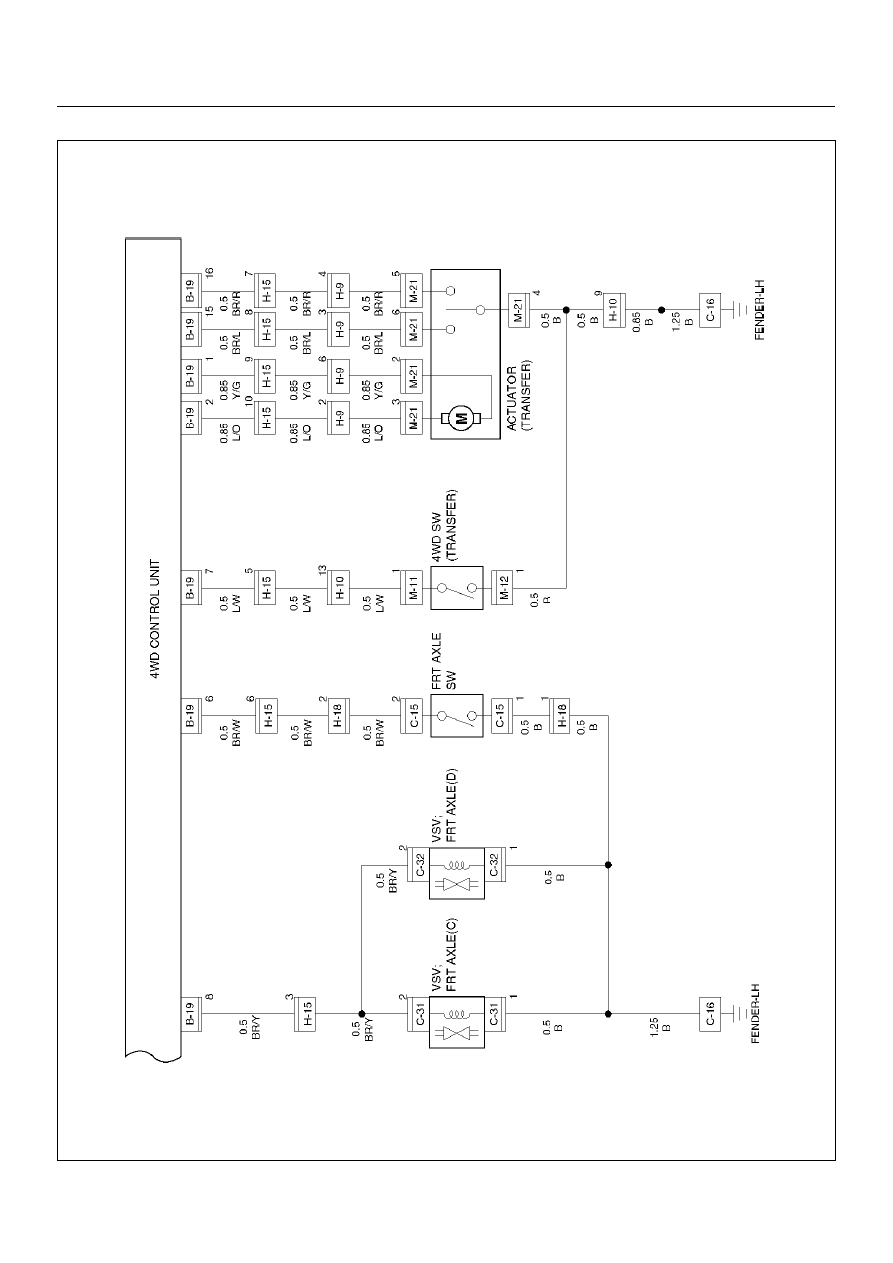

Wiring Diagram – 2 (6VD1)

D08RX274

DRIVELINE CONTROL SYSTEM

4B–11

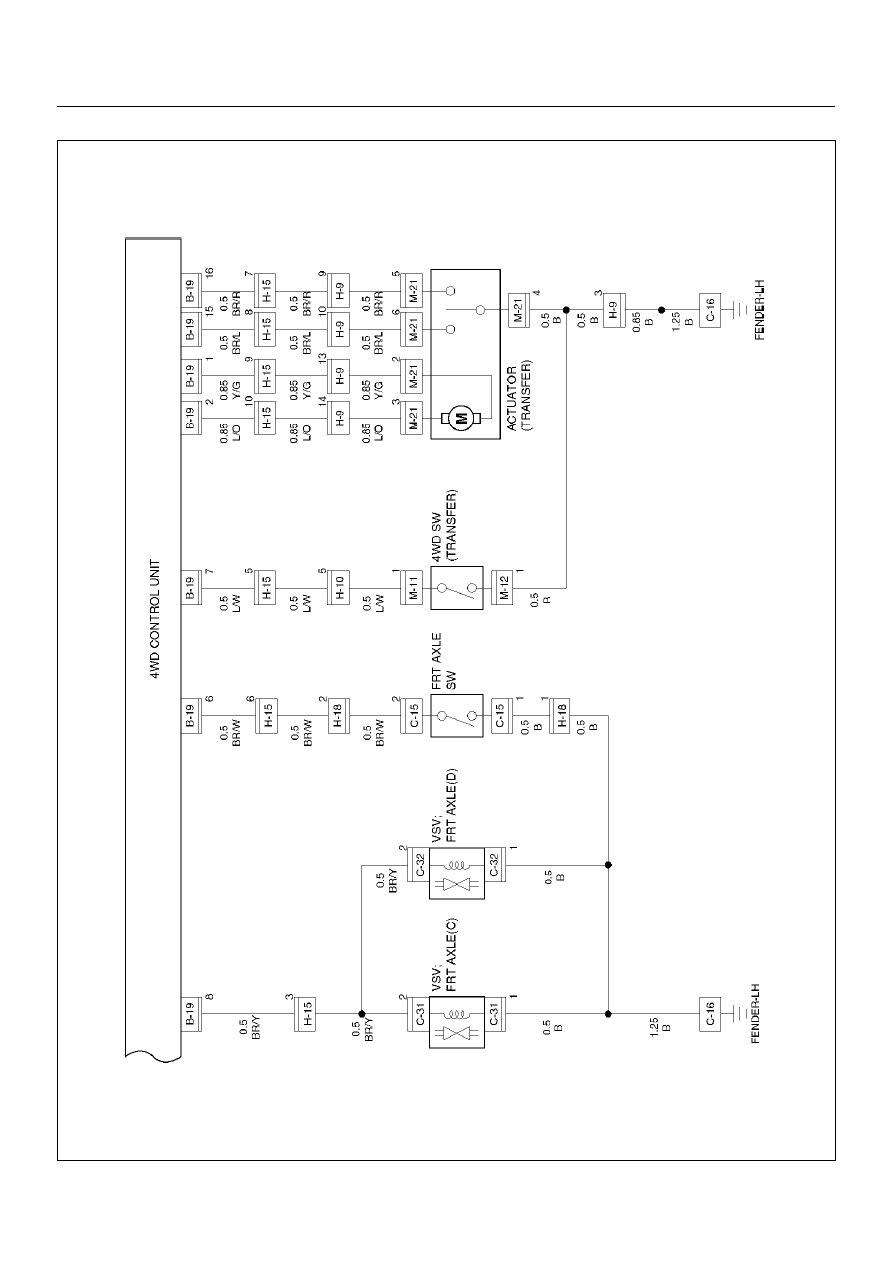

Wiring Diagram – 2 (X22SE)

D08RX273

4B–12

DRIVELINE CONTROL SYSTEM

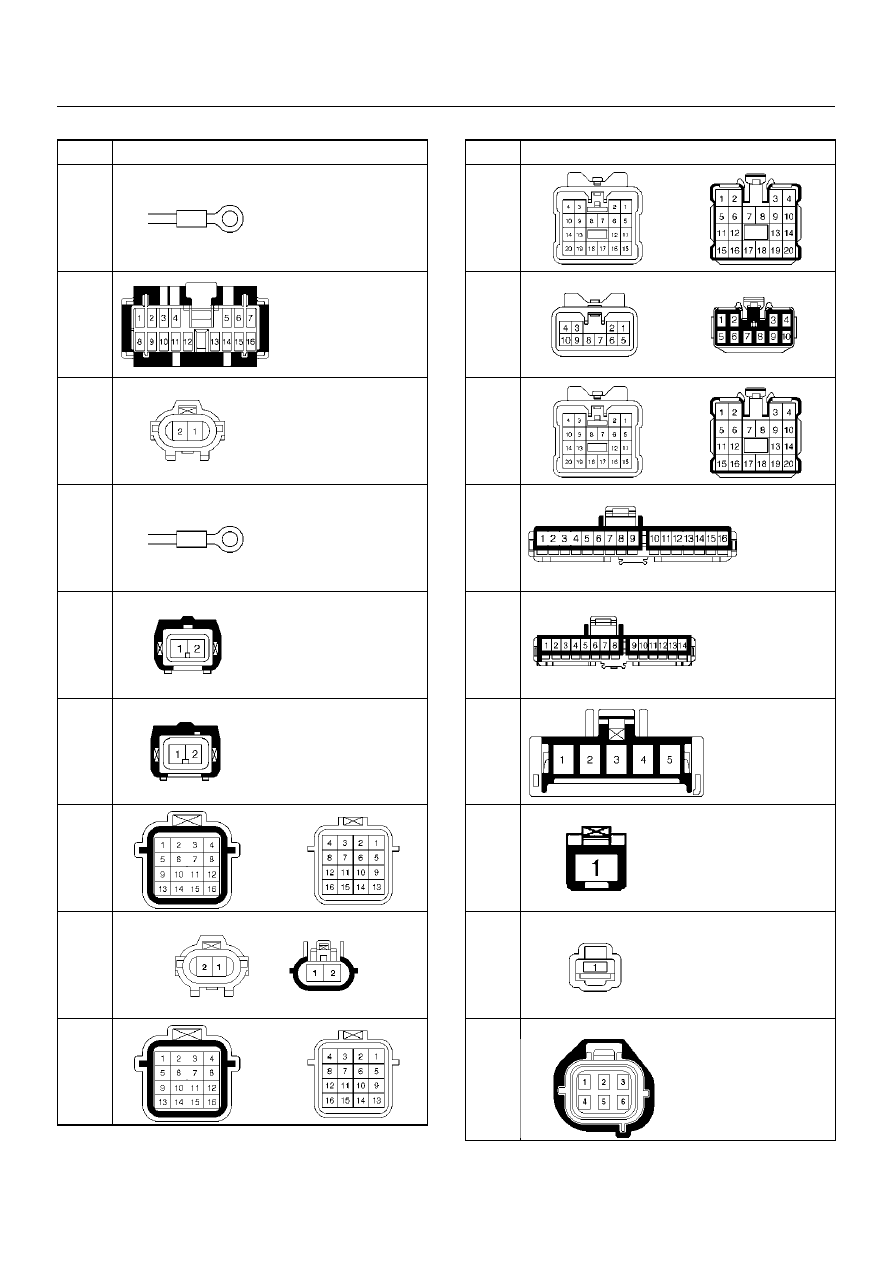

Connector List

No.

Connector face

B-8

B-19

C-15

C-16

C-31

C-32

H-9

H-10

(6VD1

)

H-10

(X22S

E)

H-15

H-18

H-32

I-1

I-2

I-19

M-11

M-12

M-21

No.

Connector face

DRIVELINE CONTROL SYSTEM

4B–13

Diagnosis of The Faults Based on the
Status of 4WD Indicator Lamp, 4WD Switch
and T/F Change Lever

Diagnosis charts are shown on below.  If troubles can
not be solved after every chart was traced, troubles may
occur in the ECU.  In this case, replace the ECU and
trace every chart again.

Fault on Switching from 2WD to 4WD

1. In case that 4WD indicator's blinking changes

from 2Hz to 4Hz after Solution 1 is carried out.
Faults occur in the motor actuator or the transfer
case assembly. Remove the motor actuator and
check function. If problem was found and it was
repaired, try Solution 1 again.  After that,
disassemble the transfer case assembly for check
and repair or replace. If incident is not improved
after above mentioned actions were  taken, replace
the ECU.

2. In case that 4WD indicator does not blink nor

light, when switching from 2WD to 4WD.

Step

Action

Yes

No

Is ignition turned on?

Go to Step 2

Turn on the ignition

and trace this chart

from start.

Does the indicator light during two seconds initialization after
ignition is turned on?

Go to Step 3

Burning out of

indicator lamp or

disconnection of

harness wire.

Trace this chart

from the start after

repair or replace.

Is the 4WD switch turned from 2WD to 4WD?

Short-circuit

(body short) on

harness of the

4WD switch.

Fault of the

4WD switch
(holding the

closed

condition).

Trace this chart

from the start

after repair or

replace.

Push the 4WD

switch to 4WD.
