4A1–26

DIFFERENTIAL (FRONT)

E04RX014

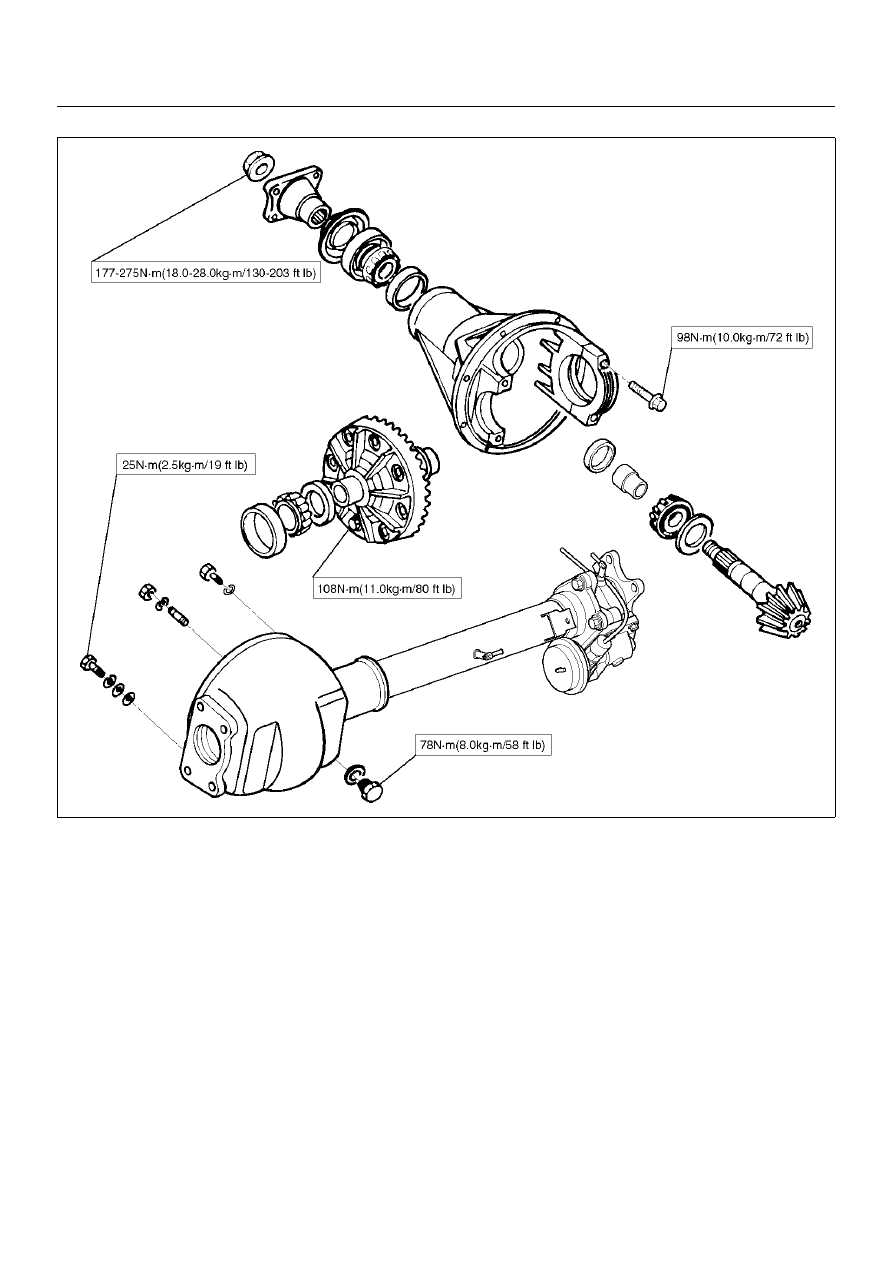

DIFFERENTIAL (FRONT)

4A1–27

Special Tools

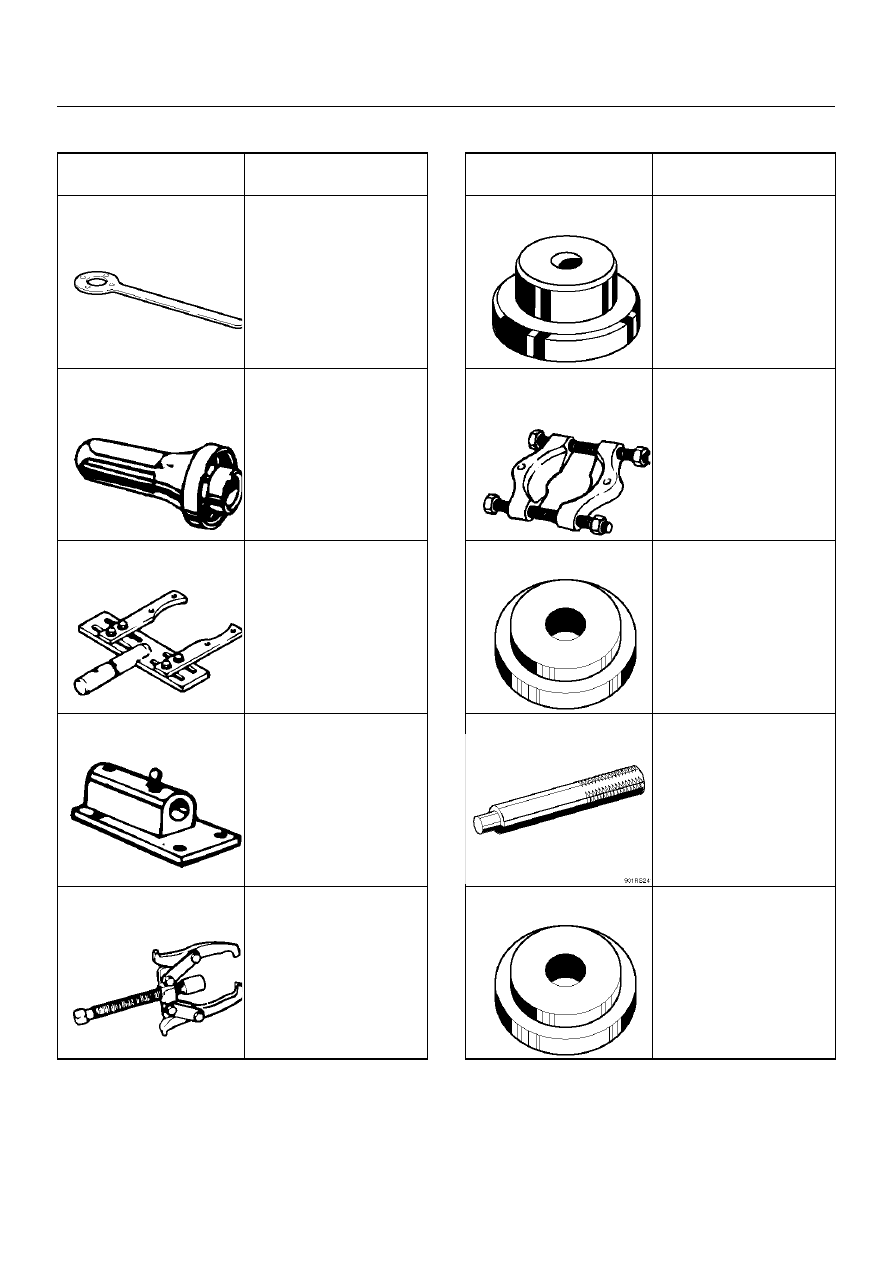

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2157–0

(J–37221)

Holder; Pinion flange

9–8522–1275–0

(J–24250)

Installer; Oil seal

5–8840–0275–0

(J–37264)

Differential holding fixture

(Use with 5–8840–0003–

0 base)

5–8840–0003–0

(J–3289–20)

Holding fixture base

5–8840–0013–0
5–8840–0014–0

(J–22888)

Puller; Side bearing

9–8521–1743–0

(J–8107–2)

Adapter; Side bearing

plug

5–8840–0015–0

(J–22912–01)

Separator

9–8522–1141–0

(J–24256)

Installer; Outer bearing

outer race

5–8840–0007–0

(J–8092)

Driver handle

9–8522–1274–0

(J–24252)

Installer; Inner bearing

outer race

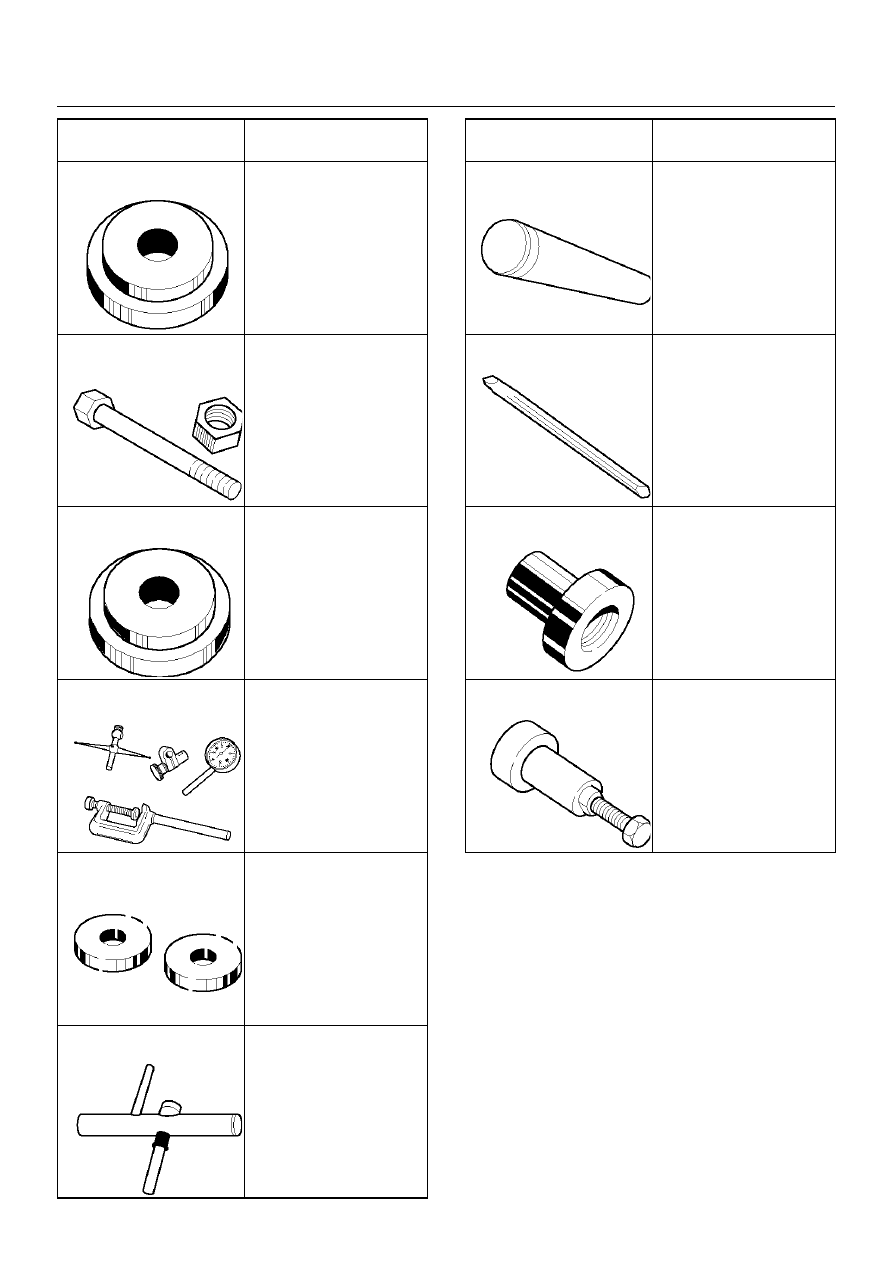

ILLUSTRATION

TOOL NO.

TOOL NAME

4A1–28

DIFFERENTIAL (FRONT)

5–8840–2085–0

(J–21777–42)

Pilot

5–8840–2089–0

(J–23597–9)

Nut and bolt

5–8840–2087–0

(J–23597–7)

Gauge plate

5–8840–0126–0

(J–8001)

Dial indicator

5–8840–2088–0

(J–23597–8)

Disc

5–8840–0128–0

(J–23597–1)

Arbor

ILLUSTRATION

TOOL NO.

TOOL NAME

9–8522–1165–0

(J–6133–01)

Installer; Pinion bearing

5–8840–2293–0

(J–39209)

Punch; End nut lock

9–8522–1164–0

(J–24244)

Installer; Side bearing

5–8840–2323–0

(J–39602)

Remover; Outer bearing

ILLUSTRATION

TOOL NO.

TOOL NAME

DIFFERENTIAL (REAR)

4A2–1

DRIVELINE/AXLE

DIFFERENTIAL (REAR)

CONTENTS

Service Precaution......................................... 4A2 - 1
General Description ....................................... 4A2 - 2

Diagnosis .................................................... 4A2 - 3

Axle Housing ................................................. 4A2 - 5

Axle Housing and Associated Parts ........... 4A2 - 5
Removal ..................................................... 4A2 - 5
Installation .................................................. 4A2 - 7

Axle Shaft, Oil Seal and Bearing ................... 4A2 - 7

Axle Shaft and Associated Parts ................ 4A2 - 7
Removal ..................................................... 4A2 - 7
Inspection ................................................... 4A2 - 8
Installation .................................................. 4A2 - 8

Pinion Oil Seal............................................... 4A2 - 10

Pinion Oil Seal and Associated Parts ......... 4A2 - 10
Removal ..................................................... 4A2 - 10
Inspection and Repair................................. 4A2 - 11
Installation .................................................. 4A2 - 11

Differential Assembly .................................... 4A2 - 13

Disassembled View .................................... 4A2 - 13
Inspecting the Axle Before Disassembly .... 4A2 - 14
Disassembly ............................................... 4A2 - 14

Inspection and Repair................................. 4A2 - 16
Reassembly ................................................ 4A2 - 17
Side Bearing Preload Adjustment............... 4A2 - 21
Pinion Installation........................................ 4A2 - 22
Determination of Backlash

& Preload Shims ..................................... 4A2 - 23

Backlash Adjustment .................................. 4A2 - 24
Gear Tooth Pattern Check.......................... 4A2 - 25
Adjustments Affecting Tooth Contact ......... 4A2 - 26

Differential Case Assembly ........................... 4A2 - 27

Disassembled View .................................... 4A2 - 27
Disassembly ............................................... 4A2 - 28
Inspection and Repair................................. 4A2 - 28
Reassembly ................................................ 4A2 - 28

Limited Slip Differential Assembly ................. 4A2 - 29

Disassembled View .................................... 4A2 - 29
Disassembly ............................................... 4A2 - 29
Inspection and Repair................................. 4A2 - 31
Reassembly ................................................ 4A2 - 31

Main Data And Specifications........................ 4A2 - 33
Special Tools ................................................. 4A2 - 35
