POWER-ASSISTED STEERING SYSTEM

2A–13

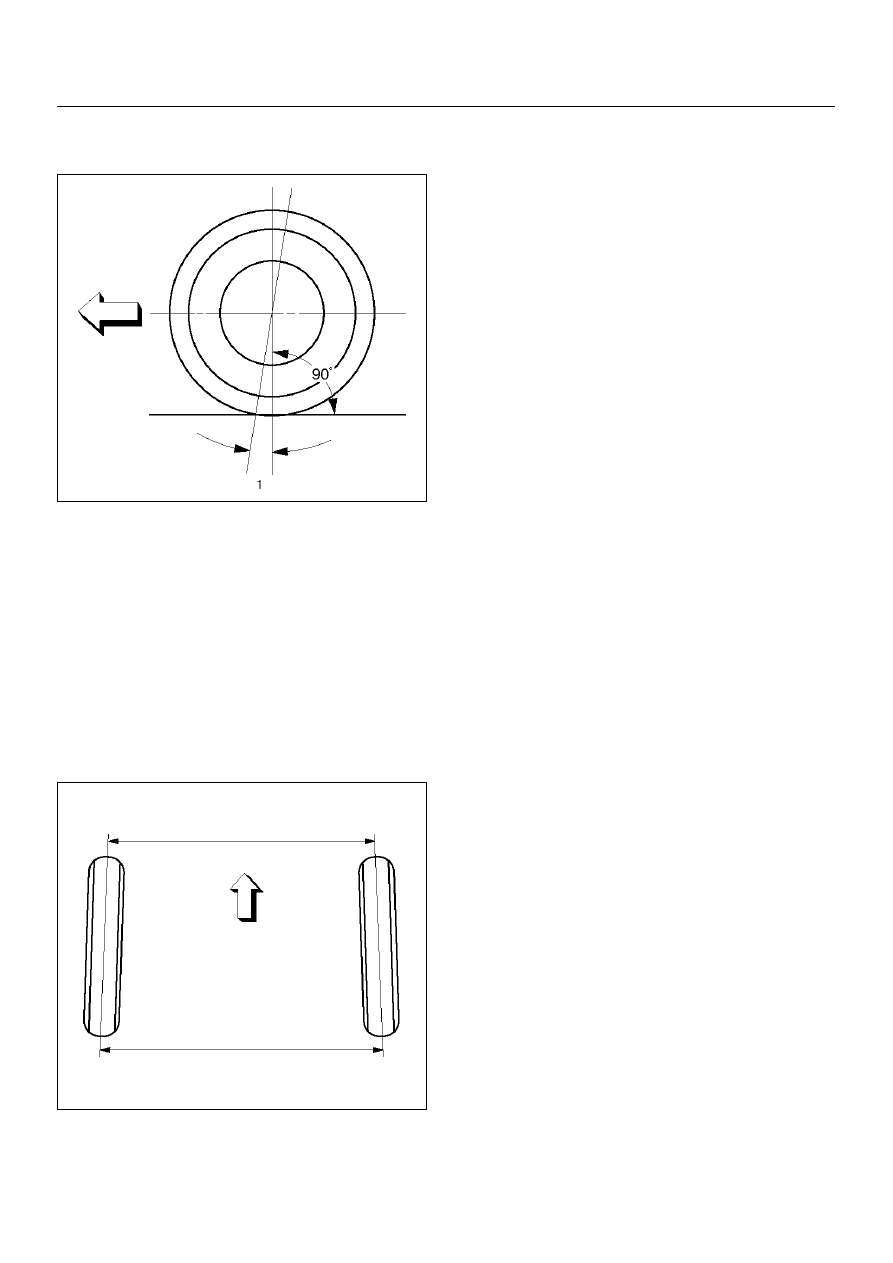

Caster:

This illustration shows view from the side of the vehicle.

480RS005

Caster (1) is the vertical tilting of the wheel axis either
forward or backward  (when viewed from the side of the
vehicle).  A backward tilt is positive (+) and a forward tilt
is negative (-).  On the short and long arm type
suspension you cannot see a caster angle without  a
special instrument, but if you look straight down from the
top of the upper control arm to the ground,  the ball
joints do not line up (fore and aft) when a caster angle
other than 0 degree is present.   With a positive angle,
the lower ball joint would be slightly ahead (toward the
front of the vehicle)  of the upper ball joint center line.

Toe-in:

This illustration shows view from the top of the vehicle.

480RS003

Toe-in is the measured amount the front wheels are turn
in.  The actual amount of toe-in is normally a fraction of
a degree.   Toe-in is measured from the center of the tire
treads or from the inside of the tires.   The purpose of
toe-in is to insure parallel rolling of the front wheels and
to offset any small deflections  of the wheel support
system which occurs when the vehicle is rolling forward.
Incorrect toe-in results in excessive toe-in and unstable
steering.   Toe-in is the last alignment to be set in the
front end alignment procedure.

Inspection

Before making any adjustments affecting caster, camber
or toe-in, the following  front end inspection should be
made.

1. Inspect the tires for proper inflation pressure.  Refer

to Main Data and Specifications in Wheel and Tire
System section.

2. Make sure that the vehicle is unladen condition

(With no passenger or loading).

3. Make sure that the spare tire is installed at the

normal position.

4. Inspect the front wheel bearings for proper

adjustment.   Refer to Front Hub and Disc in
Driveline section.

5. Inspect the ball joints and tie rod ends. If excessive

looseness is noted, correct before adjusting. Refer
to Steering Linkage in this section.

6. Inspect the wheel and tires for run-out.  Refer to

Wheel Replacement in Wheel and Tire System
section.

7. Inspect the trim height.  If not within specifications,

the correction must be made before  adjusting
caster.

8. Inspect the steering unit for looseness at the frame.

9. Inspect shock absorbers for leaks or any noticeable

noise. Refer to Shock Absorber in Suspension
section.

10. Inspect the control arms or stabilizer bar attachment

for looseness.  Refer to Suspension section .

11. Inspect the front end alignment using alignment

equipment. Follow the manufacturer's instructions.

12. Park the vehicle must be on a level surface.

2A–14

POWER-ASSISTED STEERING SYSTEM

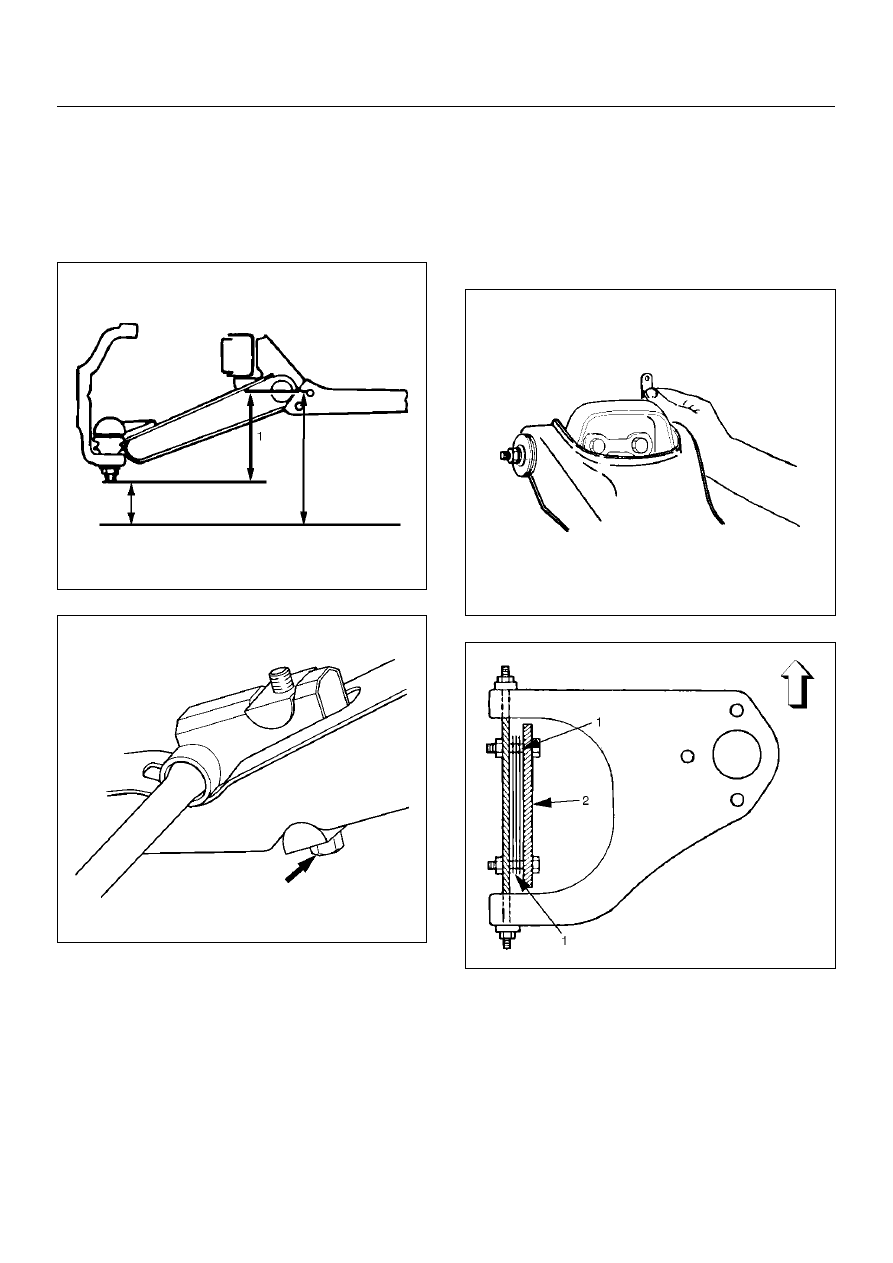

Trim Height Adjustment

Adjust the trim height (1) by means of the adjusting bolt
on the height control arms.

CAUTION:  When adjusting front end alignment,  be
sure to begin with trim height first, as it may change
other adjusted alignments.

450RS003

410RS001

1. Check and adjust the tire inflation pressures.

2. Park the vehicle on a level ground and move the

front of the vehicle up and  down several times to
settle the suspension.

3. Make necessary adjustment with the adjusting bolt

on the height control arms.

Trim height: 119

±

±

±

±

5mm (4.69

±±±±

 0.2in)

Caster Adjustment

The caster angle can be adjusted by means of the
caster shims (1) installed between  the chassis frame
(2) and fulcrum pins.

Caster angle: 2

°°°°

30'

±±±±

 1

°°°°

CAUTION:  Left and right side must be equal within
30'.

450RW006

450RS002

NOTE:  Difference of the caster shim front/rear
thickness should be 3.6mm (0.142in) or less.  Overall
thickness of caster shim and camber shim should be
10.8mm (0.425in) or less.
Tighten the fulcrum pin bolt to the specified torque.

Torque: 152N·m (15.5kg·m/112lbft)

POWER-ASSISTED STEERING SYSTEM

2A–15

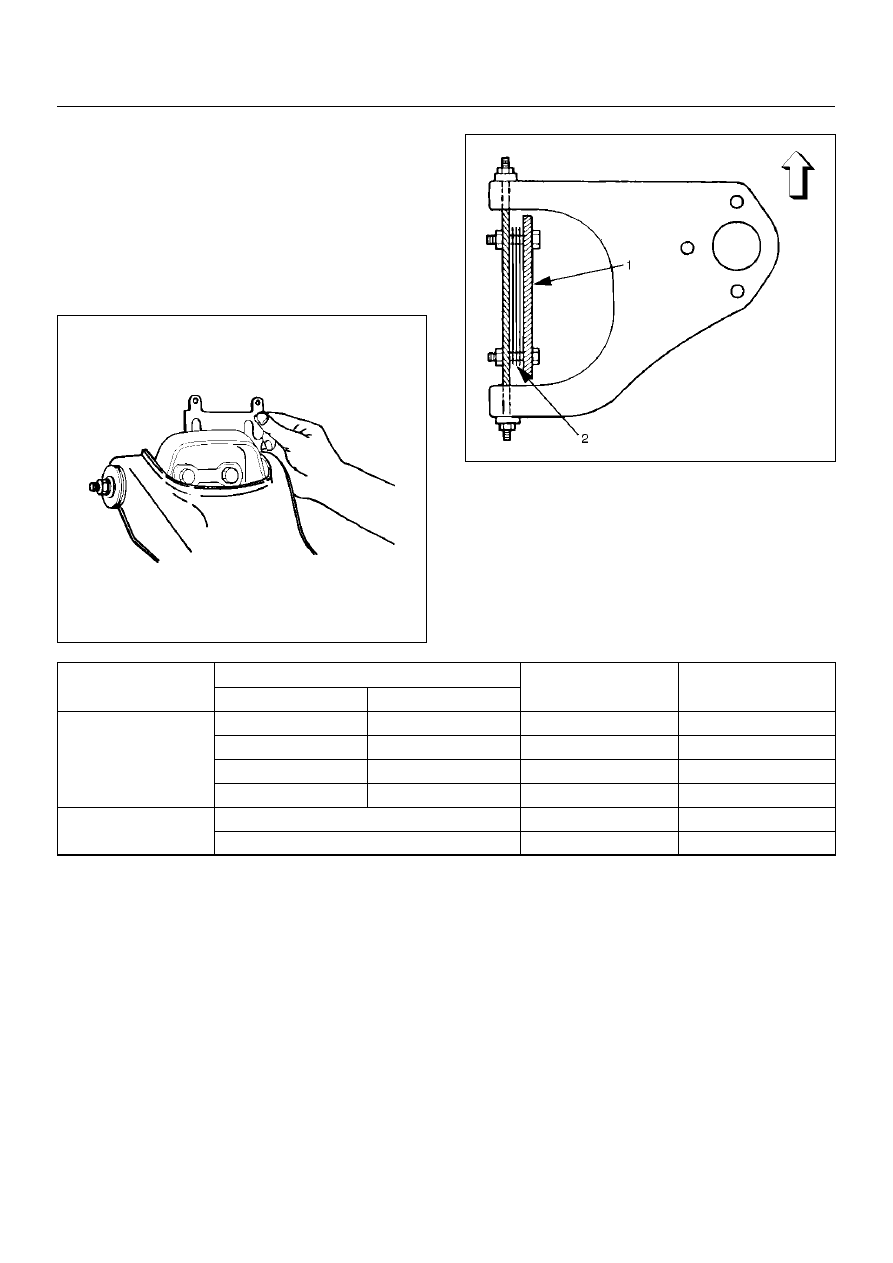

Camber Adjustment

The camber angle can be adjusted by means of the
camber shims (2) installed in  position between the
chassis frame (1) and fulcrum pins

Camber angle: 0

°°°°



±±±±

 30'

King pin inclination: 12

°°°°

30'

±±±±

 30'

CAUTION:  Left and right side must be equal within
30'.

450RW007

450RS005

NOTE:  Overall thickness of caster shim and camber
shim should be 10.8mm (0.425 in) or less.
Tighten the fulcrum pin bolt to the specified torque.

Torque: 152N·m (15.5kg·m/112lbft)

Position of shims

Camber angle

Caster angle

Front side

Rear side

Caster shim

When added

When removed

Decreases

Decreases

When removed

When added

Increases

Increases

When removed

Unchanged

Decreases

When added

Unchanged

Increases

Camber shim

When added

Decreases

Unchanged

When removed

Increases

Unchanged

2A–16

POWER-ASSISTED STEERING SYSTEM

Toe-in Adjustment

1. To adjust the toe-in angle, loosen the lock nuts (2)

on the tie rod (1) and turn the tie rod.  Turn both rods
the same amount, to keep the steering wheel
centered .

Toe-in: 0 to +2mm (0 to +0.08in)

433RW006

2. Tighten the lock nut to the specified torque.

Torque: 98N·m (10.0kg·m/72lbft)

Main Data and Specifications

General Specification

Caster

2

°

30'

±

 1

°

Camber

0

°



±

 30'

King pin inclination

12

°

30'

±

 30'

Toe-in

0 to



+2mm (0 to +0.08in)

Max. steering angle

inside

32.6

°

 (+0

°

30' to –2

°

30' )

outside

31.8

°
