Opel Frontera UE. Manual - part 616





HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–21

Removal

1. Disconnect the battery ground cable.

2. Discharge and recover refrigerant (with air

conditioning).

• Refer to Refrigerant Recovery in this section.

3. Remove instrument panel assembly.

• Refer to Instrument Panel Assembly in Body

structure section.

4. Disconnect resistor harness connector.

5. Remove evaporator assembly.

• Refer to Evaporator Assembly in this section.

6. Disconnect blower motor harness connector.

7. Remove blower assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Adjust the control cables.

• Refer to Control Lever Assembly in this section.

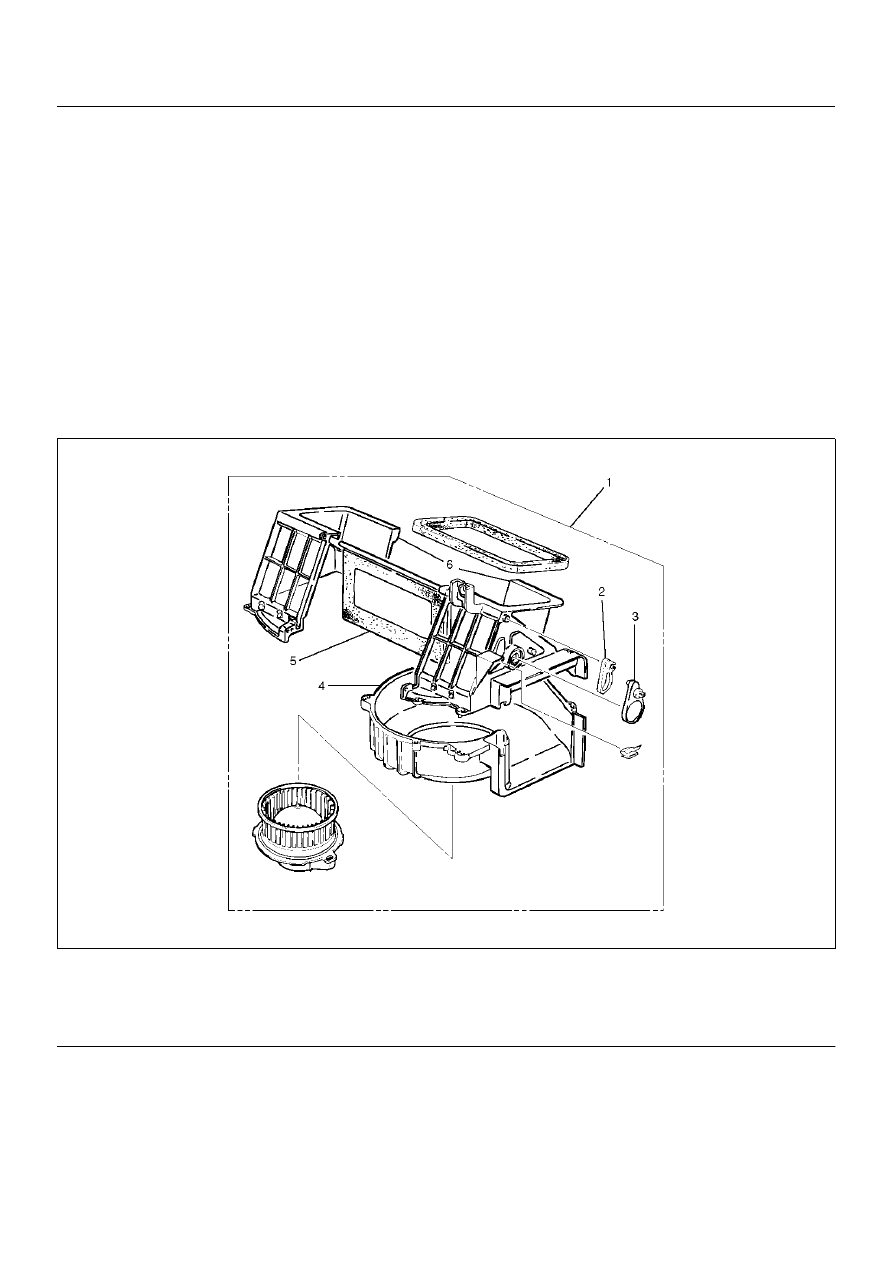

Blower Link Unit and / or Mode door

Disassembled View

873RX002

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Discharge and recover refrigerant (with air

conditioning).

• Refer to Refrigerant Recovery in this section.

3. Remove blower assembly.

• Refer to Blower Assembly in this section.

4. Remove lower case.

Legend

(1) Blower Assembly
(2) Door Lever
(3) Sub Lever

(4) Lower Case
(5) Mode Door
(6) Upper Case

1A–22

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

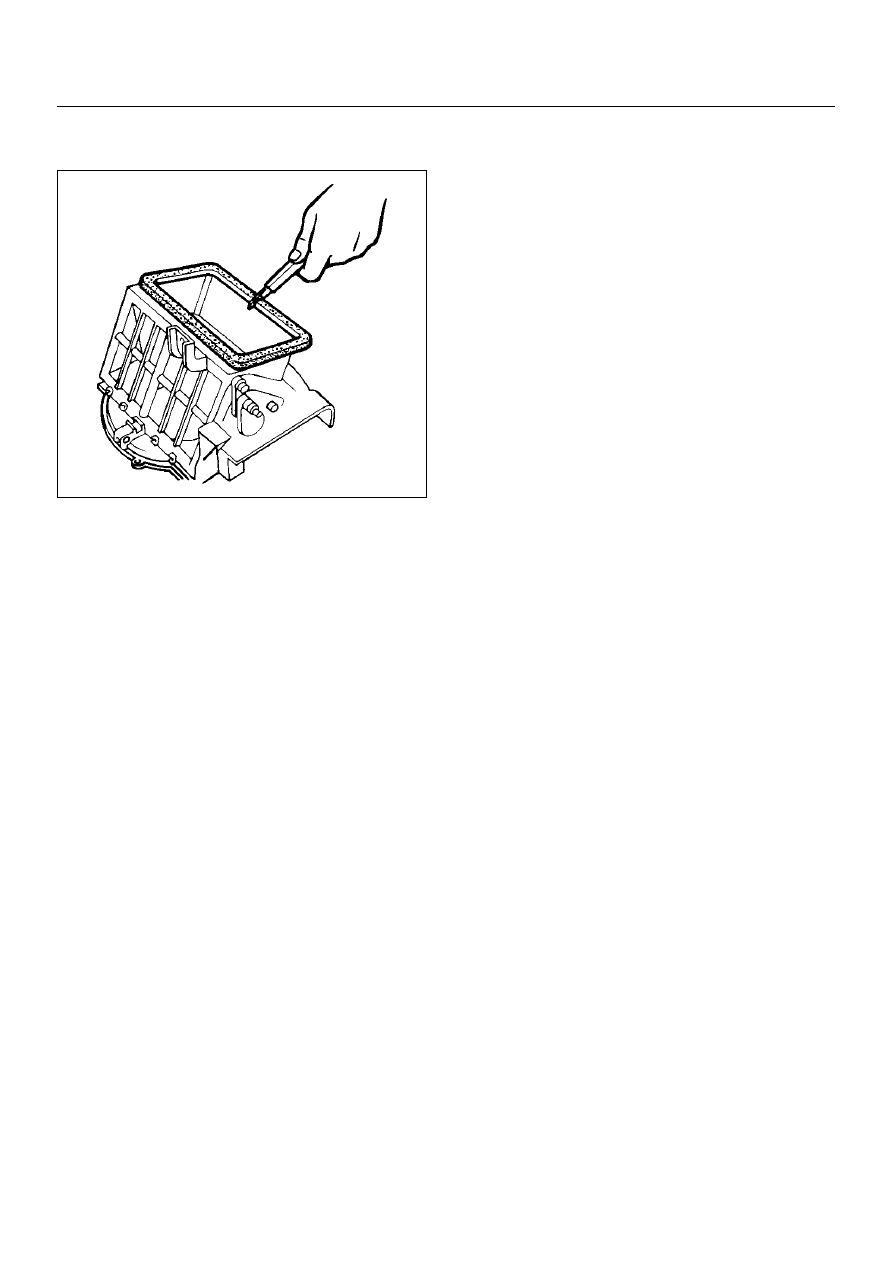

5. Separate the upper case and slit the lining parting

face with a knife.

873RW006

6. Pull out the mode door while raising up the catch of

door lever.

7. Remove sub-lever.

8. Remove door lever.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Apply grease to the door lever and to the abrasive

surface of the upper case.

2. Apply an adhesive to the parting face of the lining

when assembling the upper case.

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–23

Blower Motor

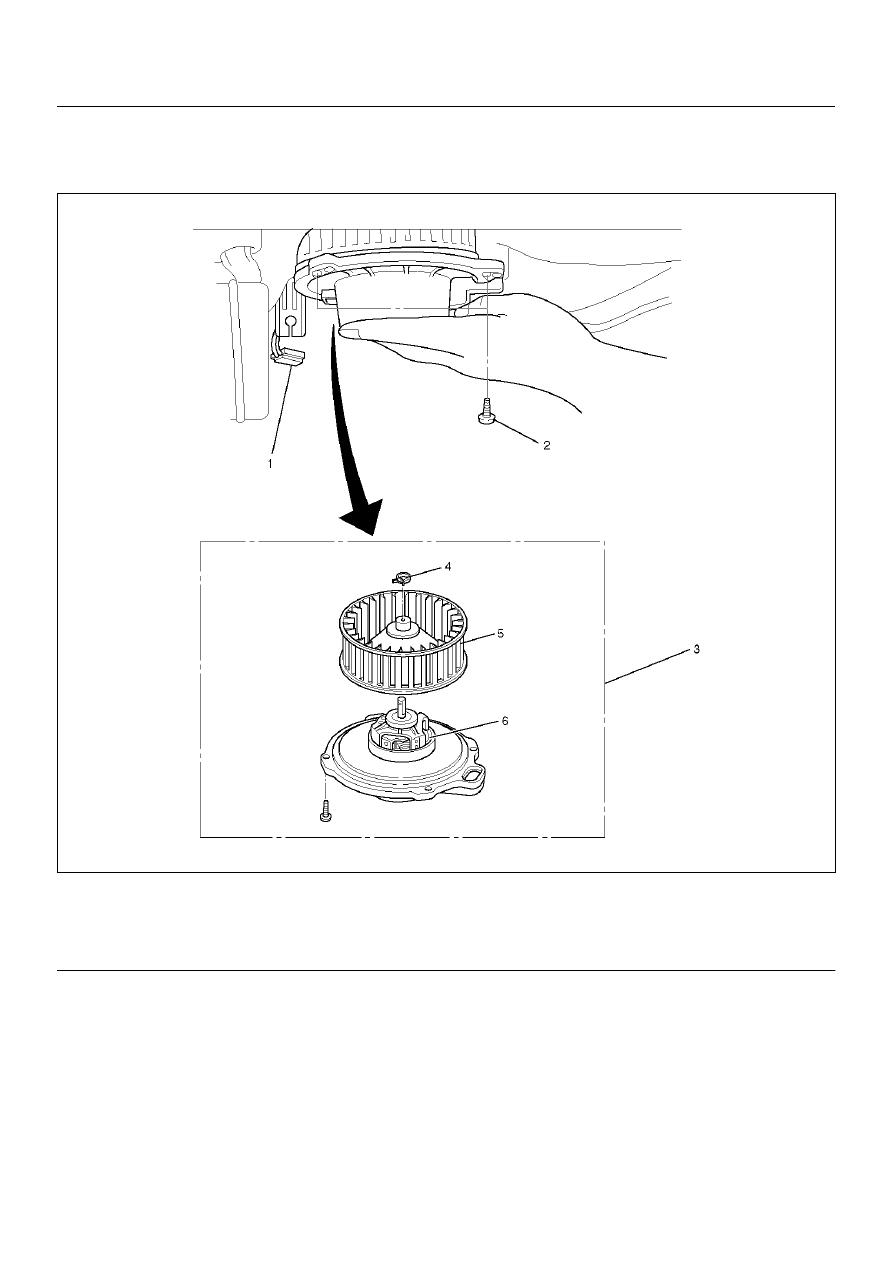

Blower Motor and Associated Parts

873RX001

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove blower motor connector.

3. Remove attaching screw.

4. Remove blower motor assembly.

5. Remove clip.

6. Remove fan.

7. Remove blower motor.

Installation

To install, follow the removal steps in the reverse order.

Legend

(1) Blower Motor Connector
(2) Attaching Screw
(3) Blower Motor Assembly

(4) Clip
(5) Fan
(6) Blower Motor

1A–24

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Rear Heater Duct, Defroster Nozzle and Ventilation Duct

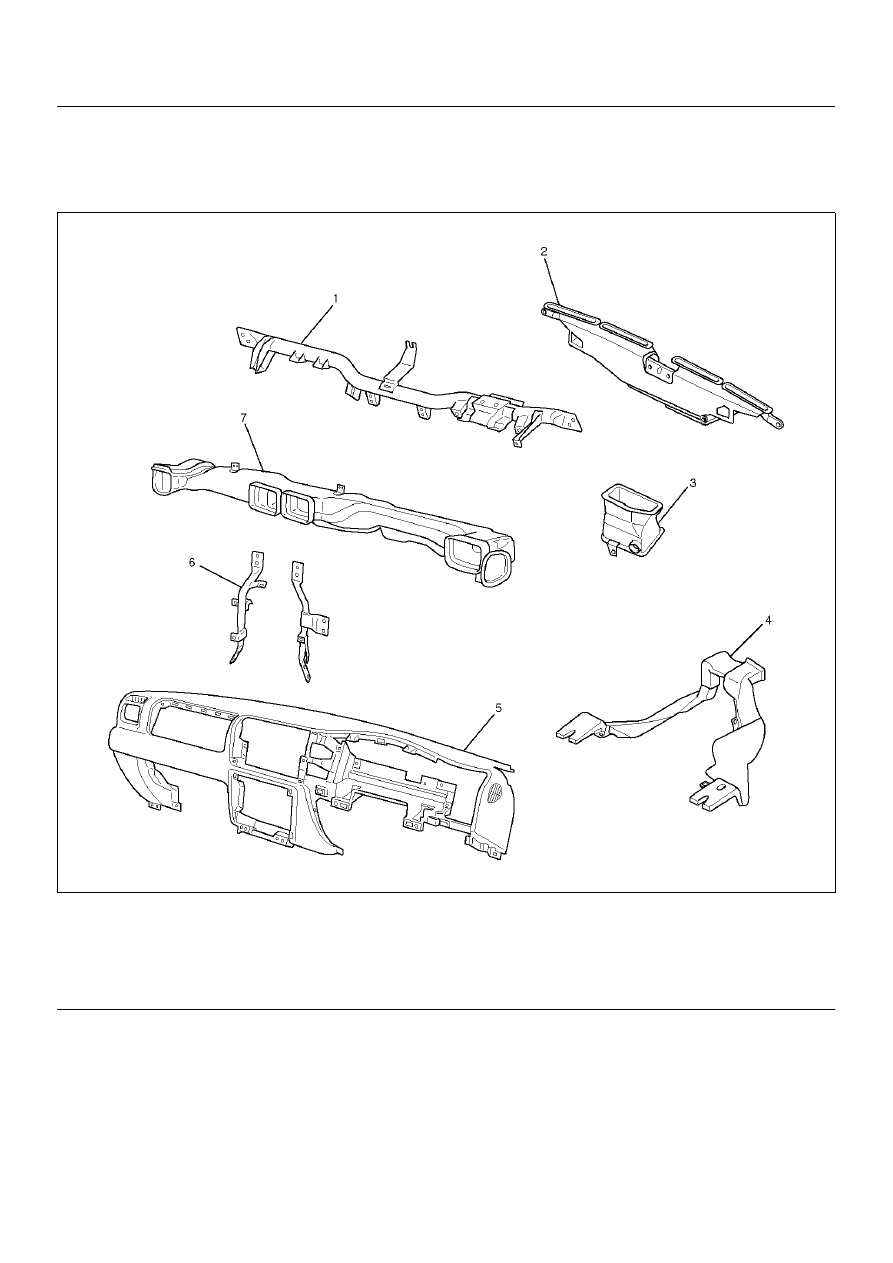

Rear Heater Duct, Defroster Nozzle, Ventilation Duct and Associated Parts

840RY00047

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove instrument panel assembly.

• Refer to Instrument Panel Assembly in Body

Structure section.

3. Remove center ventilation duct and side defroster

duct.

• Remove 5 screws.

4. Remove instrument panel Stay.

5. Remove cross beam assembly.

6. Remove ventilation lower duct.

7. Remove rear heater duct.

Legend

(1) Cross Beam Assembly
(2) Defroster Nozzle
(3) Ventilation Lower Duct
(4) Rear Heater Duct

(5) Instrument Panel Assembly
(6) Instrument Panel Stay
(7) Center Ventilation Duct and Side Defroster
