0A–10

GENERAL INFORMATION

MAP — Manifold Absolute Pressure
Max — Maximum
MC — Mixture Control
MFI — Multiport Fuel Injection
MIL — Malfunction Indicator Lamp
Min — Minimum
mm — Millimeter
MPG — Miles Per Gallon
MPH — Miles Per Hour
M/T — Manual Transmission/Transaxle
MV — Millivolt
N — Newtons
NA — Natural Aspirated
NC — Normally Closed
N·M — Newton Meters
NO — Normally Open
NOX — Nitrogen, Oxides of
OBD — On-Board Diagnostic
OD — Outside Diameter
O/D — Over Drive
OHC — Overhead Camshaft
OL — Open Loop
O2 — Oxygen
O2S — Oxygen Sensor
PAIR — Pulsed Secondary Air Injection System
P/B — Power Brakes
PCM — Powertrain Control Module
PCV — Positive Crankcase Ventilation
PRESS — Pressure
PROM — Programmable Read Only Memory
PNP — Park/Neutral Position
P/S — Power Steering
PSI — Pounds per Square Inch
PSP — Power Steering Pressure
Pt. — Pint
Pri — Primary
PWM — Pulse Width Modulate
Qt. — Quart
REF — Reference
RF — Right Front
RFI — Radio Frequency Interference
RH — Right Hand
RPM — Revolutions Per Minute
RPM Sensor — Engine Speed Sensor
RPO — Regular Production Option
RR — Right Rear
RS — Right Side
RTV — Room Temperature Vulcanizing
RWAL — Rear Wheel Antilock Brake
RWD — Rear Wheel Drive
SAE — Society of Automotive Engineers
Sec — Secondary
SFI — Sequential Multiport Fuel Injection
SI — System International
SIR — Supplemental Inflatable Restraint System
SOHC — Single Overhead Camshaft
Sol — Solenoid
SPEC — Specification
Speedo — Speedometer
SRS — Supplemental Restraint System

ST — Start / Scan Tool
Sw — Switch
SWB — Short Wheel Base
SYN — Synchronize
Tach — Tachometer
TB — Throttle Body
TBI — Throttle Body Fuel Injection
TCC — Torque Converter Clutch
TCM — Transmission Control Module
TDC — Top Dead Center
Term — Terminal
TEMP — Temperature
TOD— Torque On Demand
TP — Throttle Position
TRANS — Transmission/Transaxle
TURBO — Turbocharger
TVRS — Television & Radio Suppression
TVV — Thermal Vacuum Valve
TWC — Three Way Catalytic Converter
3 A/T — Three Speed Automatic Transmission/
Transaxle
2WD — Two Wheel Drive
4 x 2 — Two Wheel Drive
U–joint — Universal Joint
V — Volt(s)
VAC — Vacuum
VIN — Vehicle Identification Number
VRRRE — Vehicle Refrigerant Recovery and Recycling
Equipment
V–ref — ECM Reference Voltage
VSS — Vehicle Speed Sensor
VSV — Vacuum Switch Valve
V–6 — Six Cylinder “V" Engine
V–8 — Eight Cylinder "V" Engine
W — Watt(s)
w/ — With
w/b — Wheel Base
w/o — Without
WOT — Wide Open Throttle

GENERAL INFORMATION

0A–11

Service Parts Identification Plate

The Vehicle Information Plate (Service Parts ID plate) is
provided on all vehicle models.
It is located on the center dash wall inside the engine
compartment.  The plate lists  the VIN (Vehicle
Identification Number), paint information  and all
production options and special equipment on the
vehicle when it was shipped from the factory.

905RY00010

MAINTENANCE AND LUBRICATION

0B–1

GENERAL INFORMATION

MAINTENANCE AND LUBRICATION

CONTENTS

Maintenance Schedule List............................ 0B - 1
Service and Maintenance .............................. 0B - 2
Recommended Fluids and Lubricants ........... 0B - 9
Lubricant Viscosity Chart ............................... 0B - 10

Recommended Liquid Gasket .................... 0B - 12
Recommended Thread Locking Agents ..... 0B - 13

Maintenance Service Data............................. 0B - 14

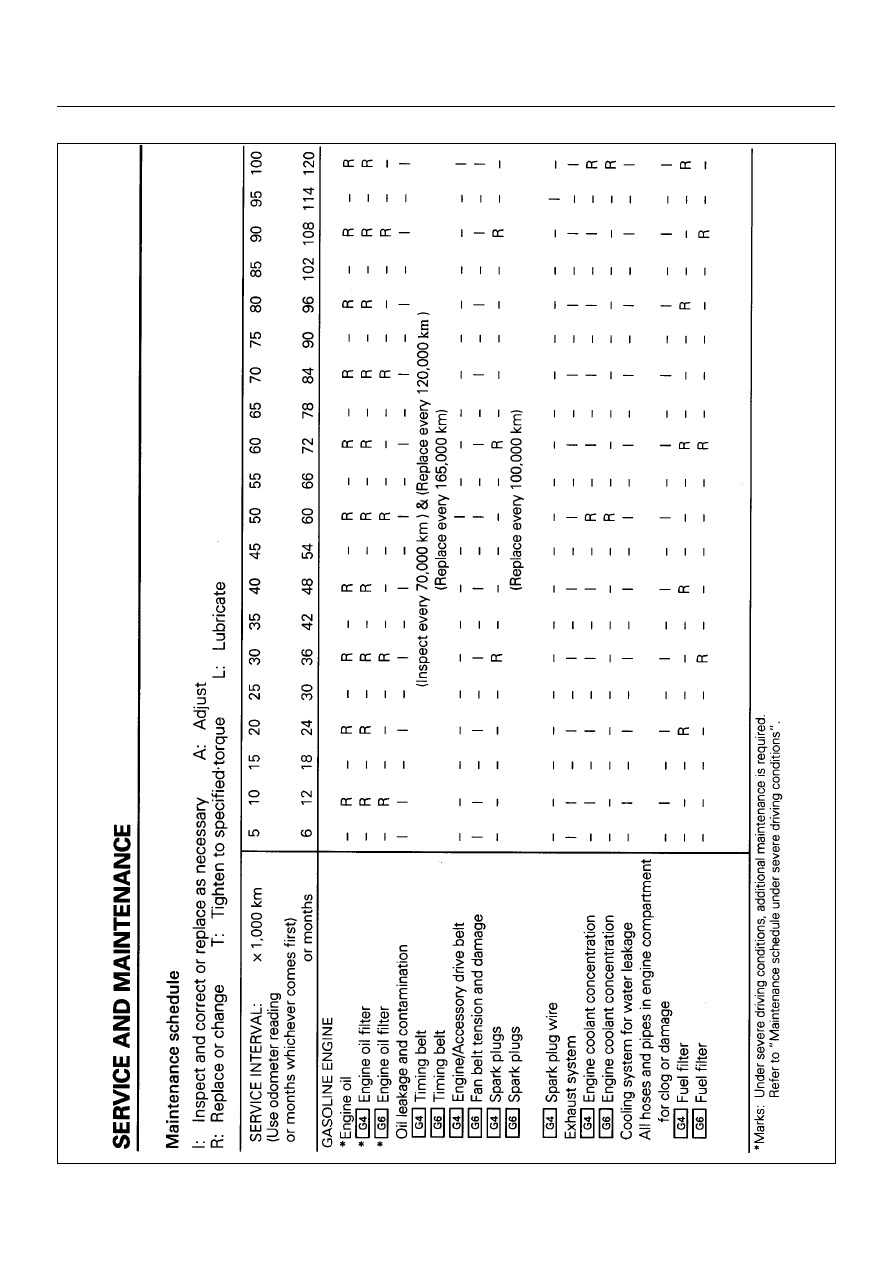

Maintenance Schedule List

Normal Vehicle Use

The maintenance instructions in this Maintenance
Schedule are based on the assumption that the vehicle
will be used as designed:

• to carry passengers and cargo within the limitations

specified on the tire placard located on the inside of
the glove compartment door;

• to be driven on reasonable road surfaces within legal

operating limits;

• to be driven on a daily basis, as a general rule, for at

least several miles/kilometers;

• to be driven on unleaded fuel
Unusual or severe operating conditions will require more
frequent vehicle maintenance, as specified in the
following sections.

SECTION

0B–2

MAINTENANCE AND LUBRICATION

Service and Maintenance
