Opel Frontera UE. Manual - part 586





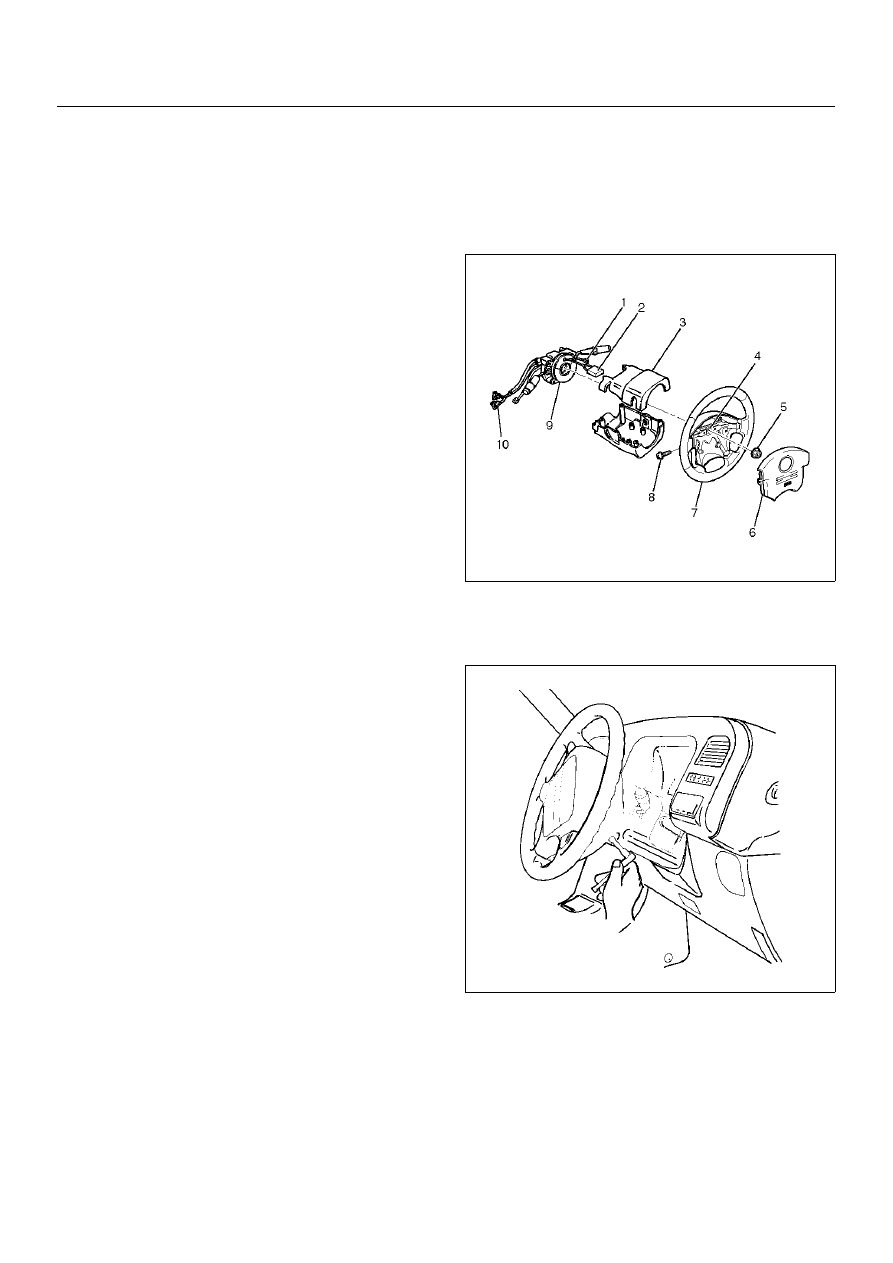

9J–40

SUPPLEMENTAL RESTRAINT SYSTEM

SRS Coil Assembly

Service Precaution

WARNING:  SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A SMALL
AMOUNT OF SODIUM HYDROXIDE, A BY-PRODUCT
OF THE DEPLOYMENT REACTION, THAT IS
IRRITATING TO THE SKIN AND EYES. MOST OF THE
POWDER ON THE AIR BAG ASSEMBLY IS
HARMLESS. AS A PRECAUTION, WEAR GLOVES
AND SAFETY GLASSES WHEN HANDLING A
DEPLOYED AIR BAG ASSEMBLY, AND WASH YOUR
HANDS WITH MILD SOAP AND WATER
AFTERWARDS.

WARNING:  WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVER
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE. IN
THE CASE OF AN ACCIDENTAL DEPLOYMENT, THE
BAG WILL THEN DEPLOY WITH MINIMAL CHANCE
OF INJURY. WHEN PLACING A LIVE AIR BAG
ASSEMBLY ON A BENCH OR OTHER SURFACE,
ALWAYS FACE BAG AND TRIM COVER UP, AWAY
FROM THE SURFACE. NEVER REST A STEERING
COLUMN ASSEMBLY ON THE STEERING WHEEL
WITH THE AIR BAG ASSEMBLY FACE DOWN AND
COLUMN VERTICAL. THIS IS NECESSARY SO THAT
A FREE SPACE IS PROVIDED TO ALLOW THE AIR
BAG ASSEMBLY TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY COULD RESULT.

NOTE:  In the event deployment has occurred, inspect
coil assembly wire for any signs of scorching, melting or
any other damage due to excessive heat. If the coil has
been damaged, replace it.

Removal

1. Disable the SRS. (Refer to "Disabling the SRS" in

this section.)

825RX047

2. Remove the air bag assembly (6) from steering

wheel (7) by removing two bolts (8). Lift air bag
assembly out of steering wheel.

827RX036

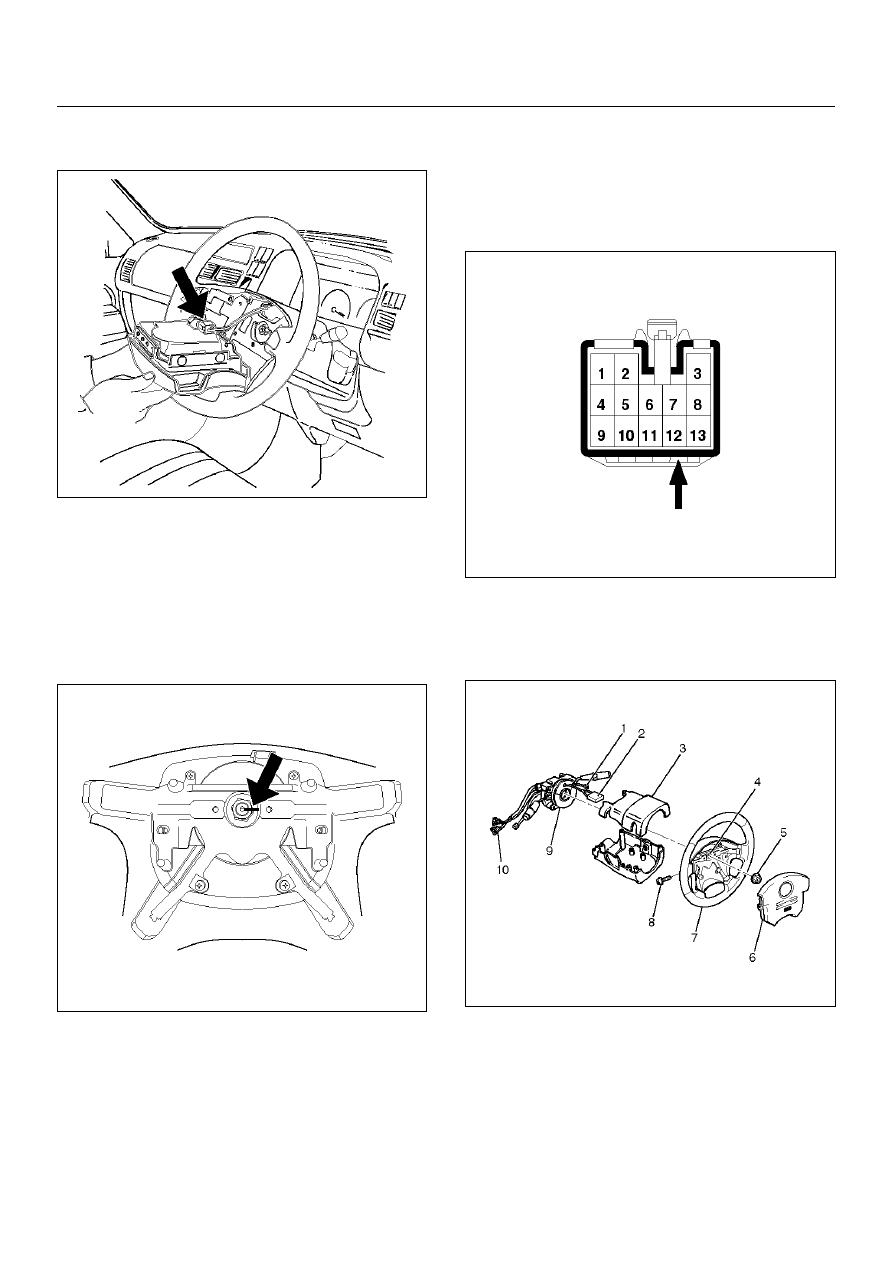

SUPPLEMENTAL RESTRAINT SYSTEM

9J–41

4. Disconnect the 2–pin yellow connector (2) and

remove air bag assembly.

827RX035

3. Disconnect horn lead connector (1).

4. Remove the steering wheel attachment nut (5).

5. Move the tires to the straight ahead position before

removing the steering wheel and remove wheel with
5–8521–0016–0.

6. Apply a setting mark (4) across the steering wheel

and shaft so parts can be reassembled in their
original position.

827RW063

7. Feed wiring though the wheel and remove wheel.

CAUTION:  Never apply force to the steering wheel
in the direction of the shaft by using a hammer or
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as an
energy absorbing unit.

8. Remove the steering lower cover.

9. Remove the driver knee bolster assembly.

10. Remove the steering column cover (3).

11. Disconnect the wiring harness connectors (10)

located at the base of steering column.

12. Disconnect the horn terminal NO.2 from connector

and remove the tape binding harness. (Refer to How
to Disconnect the horn terminal in this section.)

827RX029

13. Remove four bolts of combination switch assembly

(9) attached to steering lock and remove the
combination switch assembly (with SRS coil) from
steering shaft.

825RX047

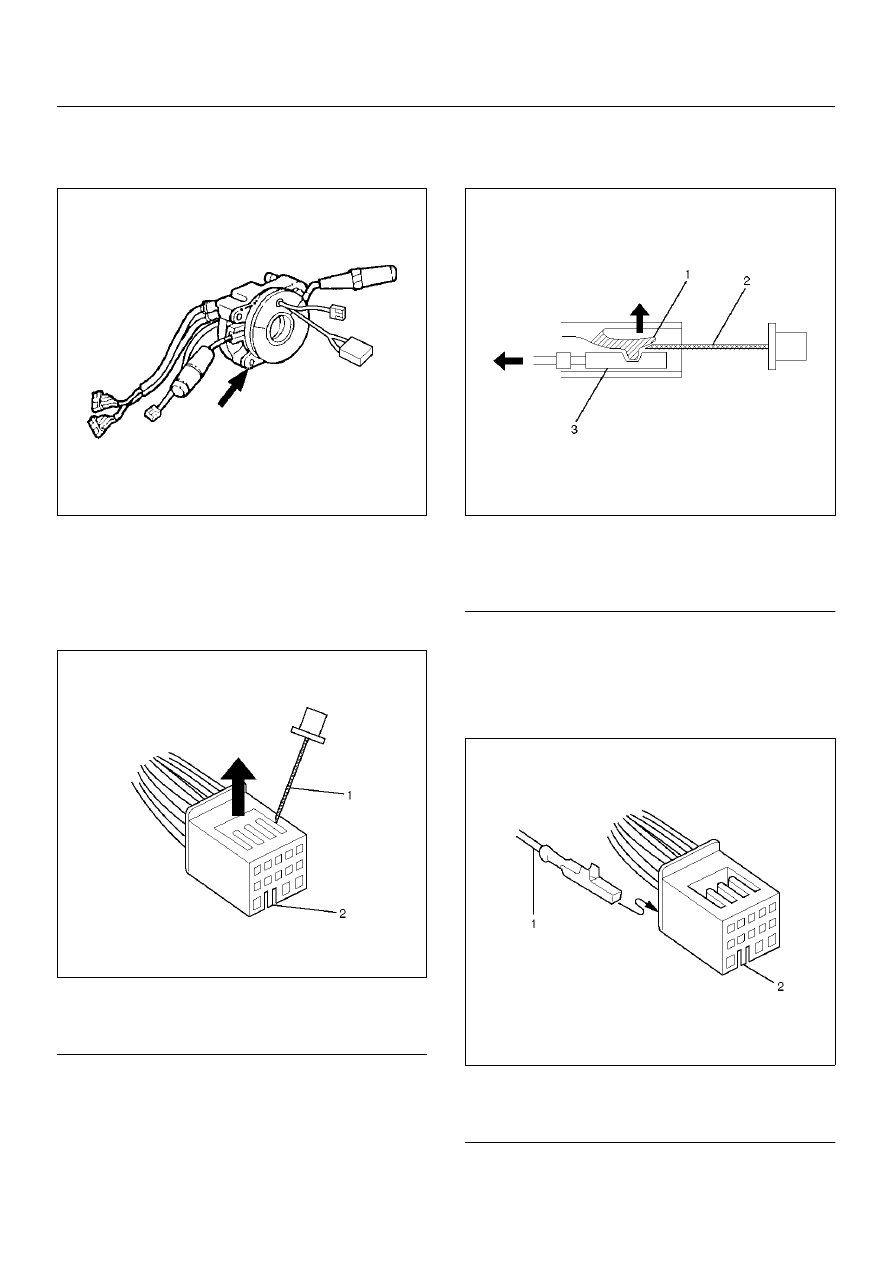

9J–42

SUPPLEMENTAL RESTRAINT SYSTEM

5. Remove four bolts of SRS coil assembly and

remove the SRS coil assembly from the combination
switch.

825RX033

How to Disconnect the horn terminal

1. Lift the white part of black connector with a

minitenes screw driver (-) and release connector
terminal lock.

827RX045

Legend

EndOFCallout

6. Pull out the terminal of lead wire coming to black

connector NO.12 while lifting the lock part with a
minitenes screw driver (-).

827RX046

Legend

EndOFCallout

How to Connect  Horn Terminal

1. Insert horn terminal from behind black connector

NO.12 until connector lock works.

827RX047

Legend

EndOFCallout

(1) Minitenes screw driver (-)
(2) Connector lock knob

(1) Lock
(2) Minitenes screw driver (-)
(3) Terminal

(1) Terminal
(2) Connector lock knob

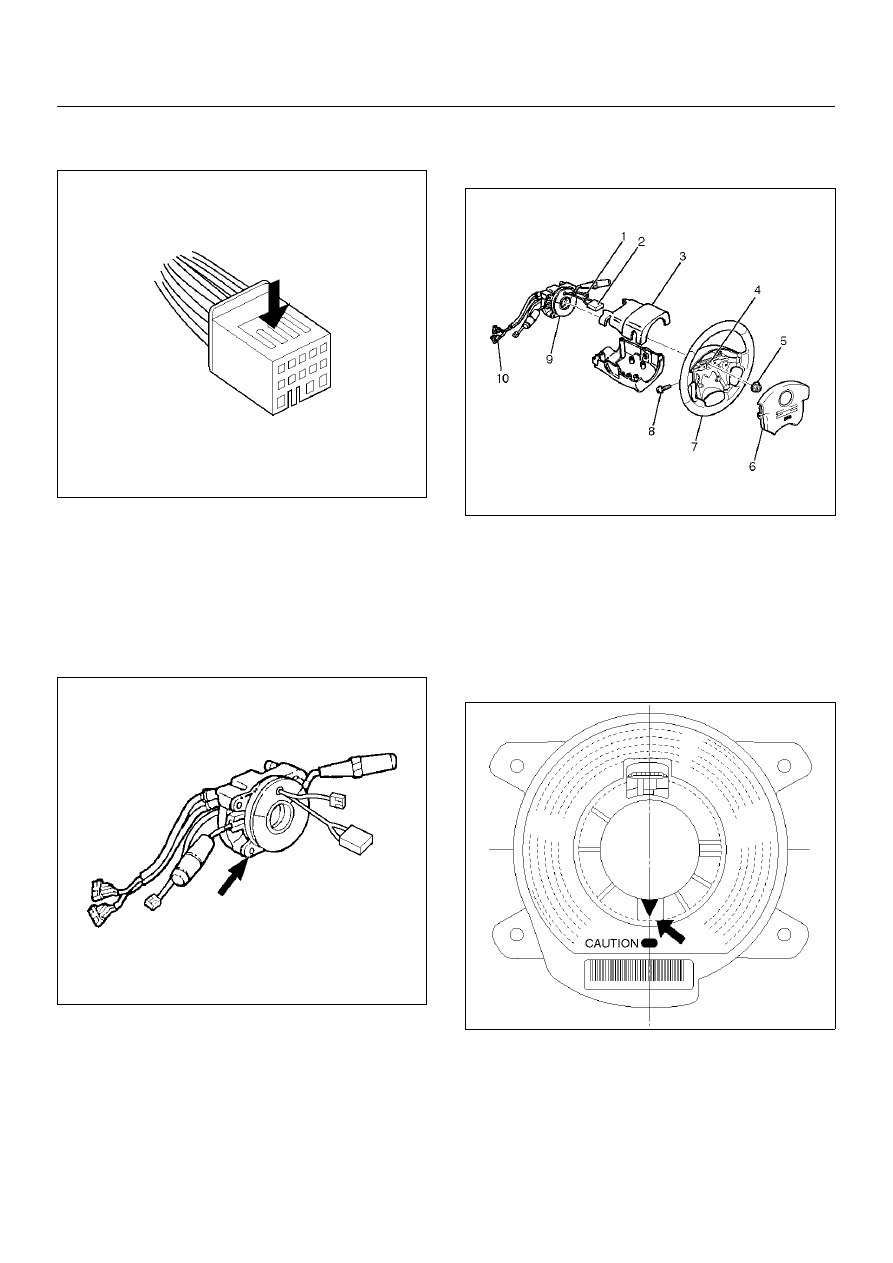

SUPPLEMENTAL RESTRAINT SYSTEM

9J–43

7. Push white connector into the black connector for a

double lock.

827RX048

Installation

1. Set cancel cam and SRS coil in position and install

the SRS coil to combination switch by tightening the
four bolts to a specified tightening torque with four
bolts.

Torque: 0.5 N·m (0.05 kg·m/0.4 lb ft)

825RX033

2. Insert the horn terminal into the connector NO.12

and bind the combination switch harness and SRS
coil harness with a tape.(Refer to How to Connect
the horn terminal in this section.)

8. Install the combination switch assembly (with SRS

coil) to steering lock of steering shaft and tighten the
four bolts to a specified tightening torque.

825RX047

3. Connect the wiring harness connectors (10) located

at the base of steering column.

4. Turn the SRS coil clockwise to full, return about 3

turns and align the neutral mark.

NOTE:  Whenever installing the new combination switch
with SRS coil, be sure to tear off the lock pin for aligning
the neutral position before it is installed to the base of
steering column.

825RX032

CAUTION:  When turning the SRS coil clockwise to
full, stop turning if resistance is felt. Forced further
turning may damage the cable in the SRS coil.
