SEAT BELT SYSTEM

9A–11

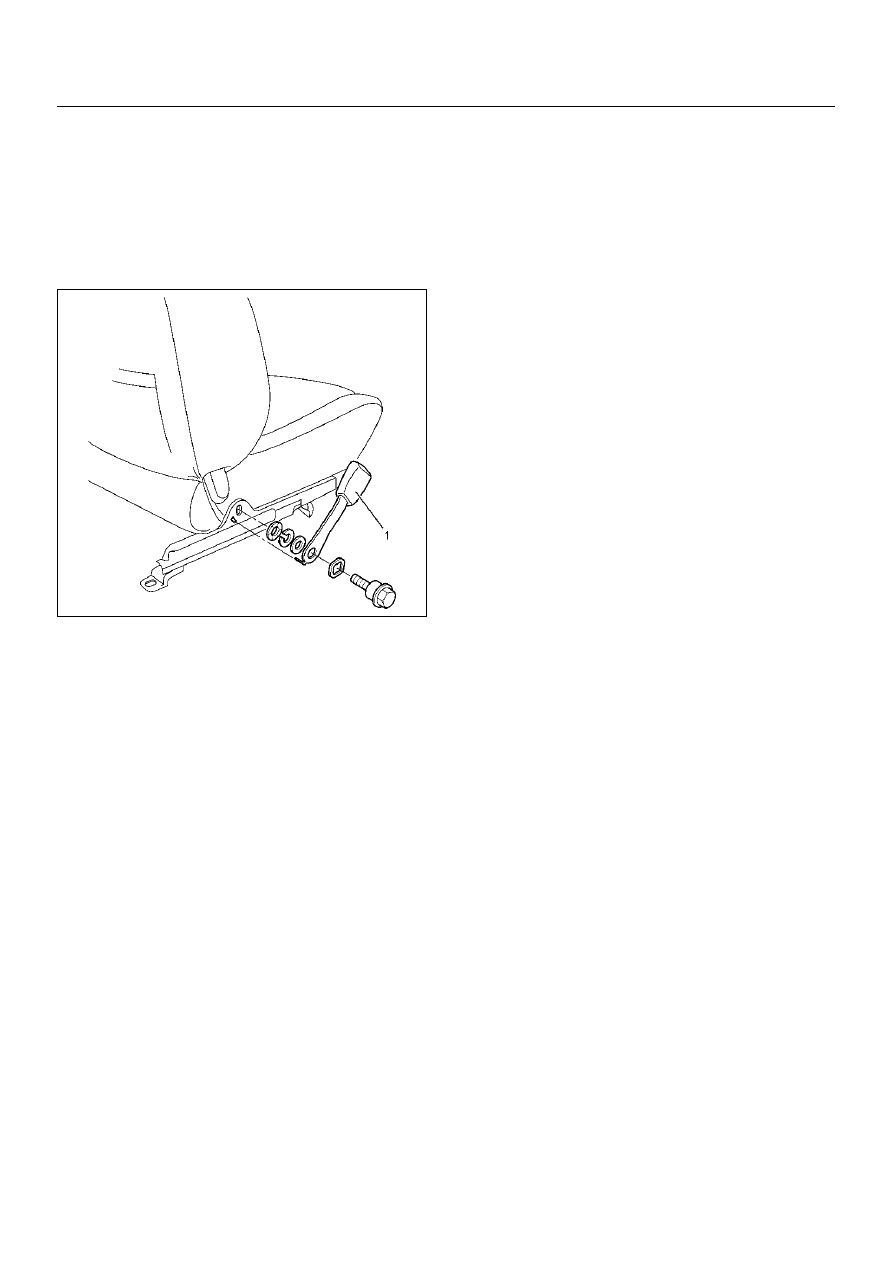

Front Seat Buckle Assembly

Removal

1. Disconnect the battery ground cable.

2. Disconnect the seat belt warning connector (driver's

side) and remove a clip.

3. Remove the front seat buckle assembly (1).

760RW043

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the buckle anchor bolt to the specified

torque.

Torque: 39N·m (4.0 kg·m/29lbft)

9A–12

SEAT BELT SYSTEM

Rear Center Seat Belt / Buckle Assembly

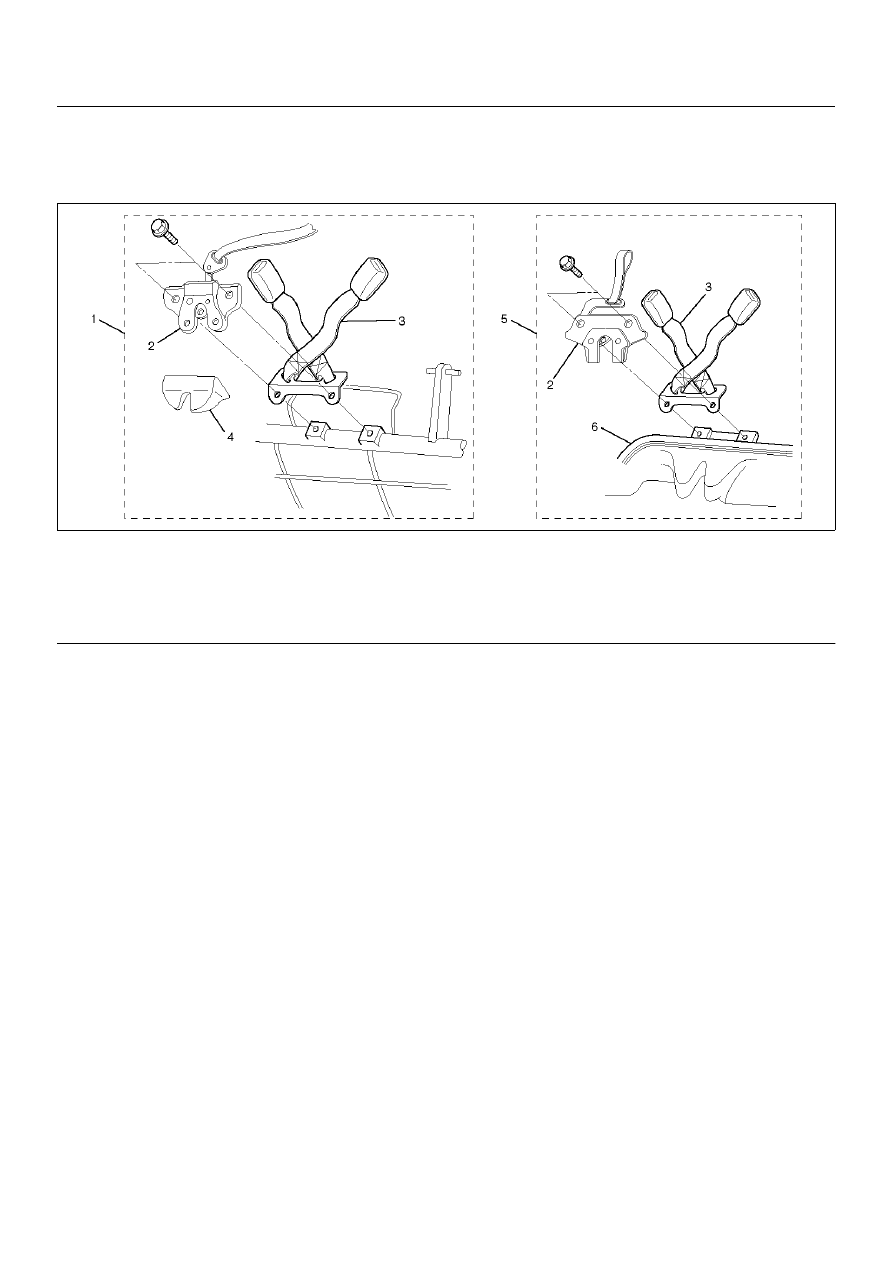

Rear Center Seat Belt / Buckle Assembly and Associated Parts

755RX029

Legend

EndOFCallout

Removal

1. Remove the seat lock cover (SWB).

2. Remove the rear cushion frame assembly (LWB).

• Refer to Rear Seat Assembly in Seats section.

3. Remove the rear seat lock assembly and rear seat

belt buckle assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the rear seat lock assembly and rear seat

belt buckle assembly fixing bolts to the specified
torque.

Torque: 39N·m (4.0 kg·m/29lbft)

NOTE:  Removal and installation procedure of rear
center seat belt assembly same as rear seat belt buckle
assembly procedures.

(1) SWB
(2) Rear Seat Lock Assembly
(3) Rear Seat Belt Buckle Assembly

(4) Seat Lock Cover
(5) LWB
(6) Rear Cushion Frame Assembly

SEAT BELT SYSTEM

9A–13

Child Seat Tether Anchor Bracket (Child Restraint)

General Description

Plastic plug is provided at two or three places on the
luggage floor panel.
LWB
Remove the center plug fom the floor panel.
SWB
Remove the right plug from the floor panel.

Install the bracket to the hole where the plug is
removed.
Alternatively, the bracket may be installed in the
right-hand or left-hand plug hole.

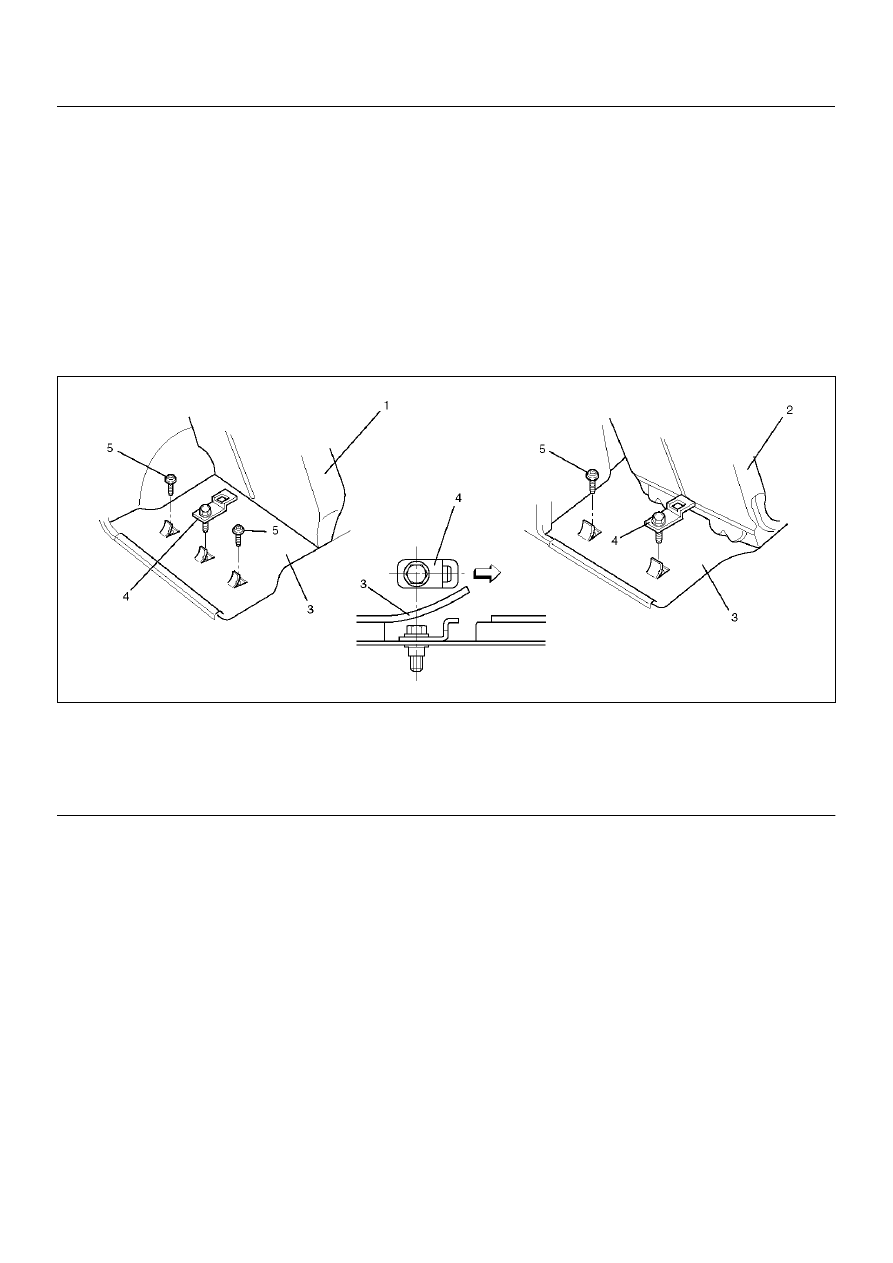

Child Seat Tether Anchor Bracket and Associated Parts

760RX019

Legend

EndOFCallout

Installation

1. Turn the plug counterclockwise to remove it.

2. Install the bracket such that its tether belt hook hole

is facing toward the front of the vehicle.

3. Tighten the fixing bolt to the specified torque.

Torque: 20N·m (2.0kg·m/14lbft)

(1) Rear Seat (LWB)
(2) Rear seat (SWB)
(3) Luggage Floor carpet

(4) Child Seat Tether Anchor Bracket
(5) Tether Anchor Plug

9A–14

SEAT BELT SYSTEM

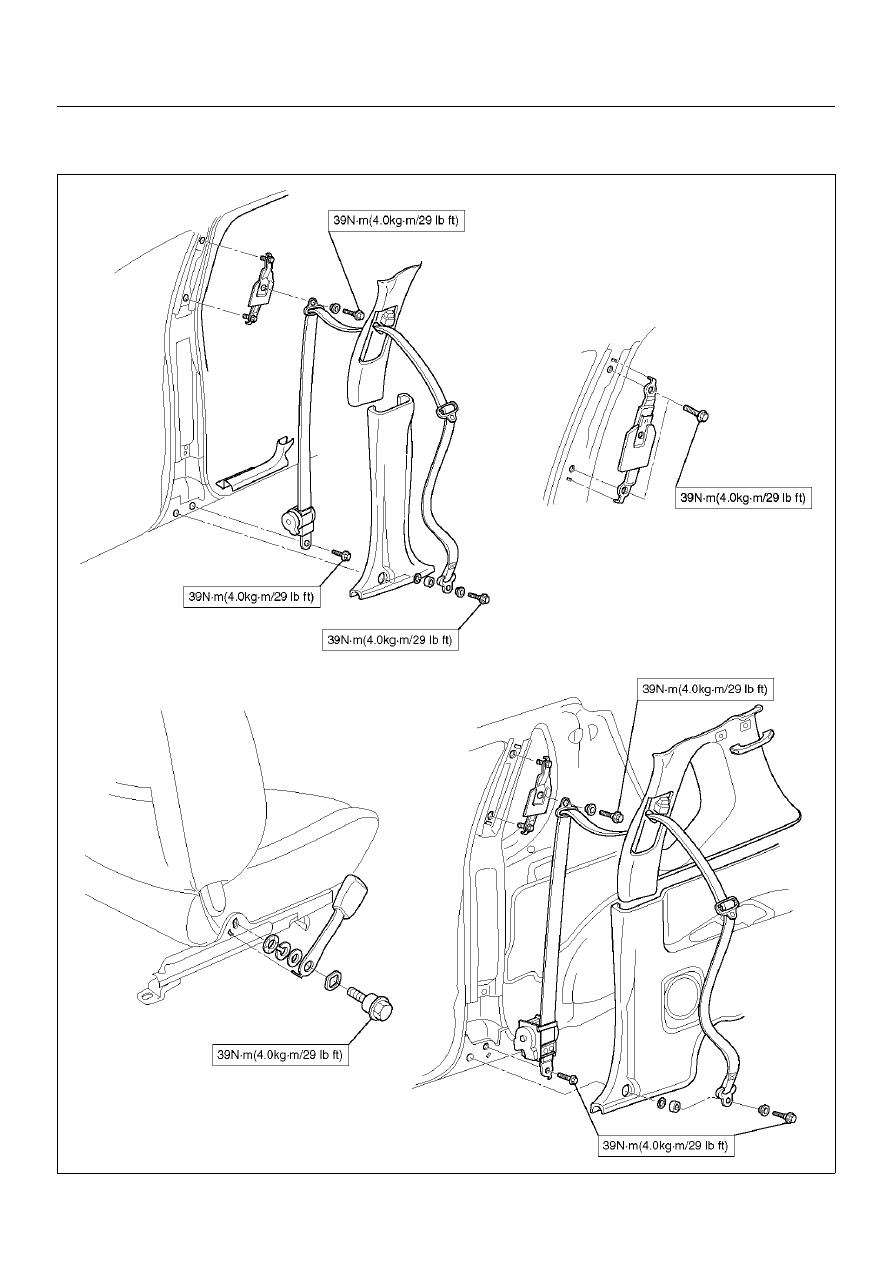

Main Data and Specifications

Torque Specifications

760RX018
