EXTERIOR/INTERIOR TRIM

Rear-Left Side

Removal

1. Disconnect the battery ground cable.

2. Remove the rear window regulator assembly (2).

• Refer to Rear Window Regulator and Glass in

Body Structure section.

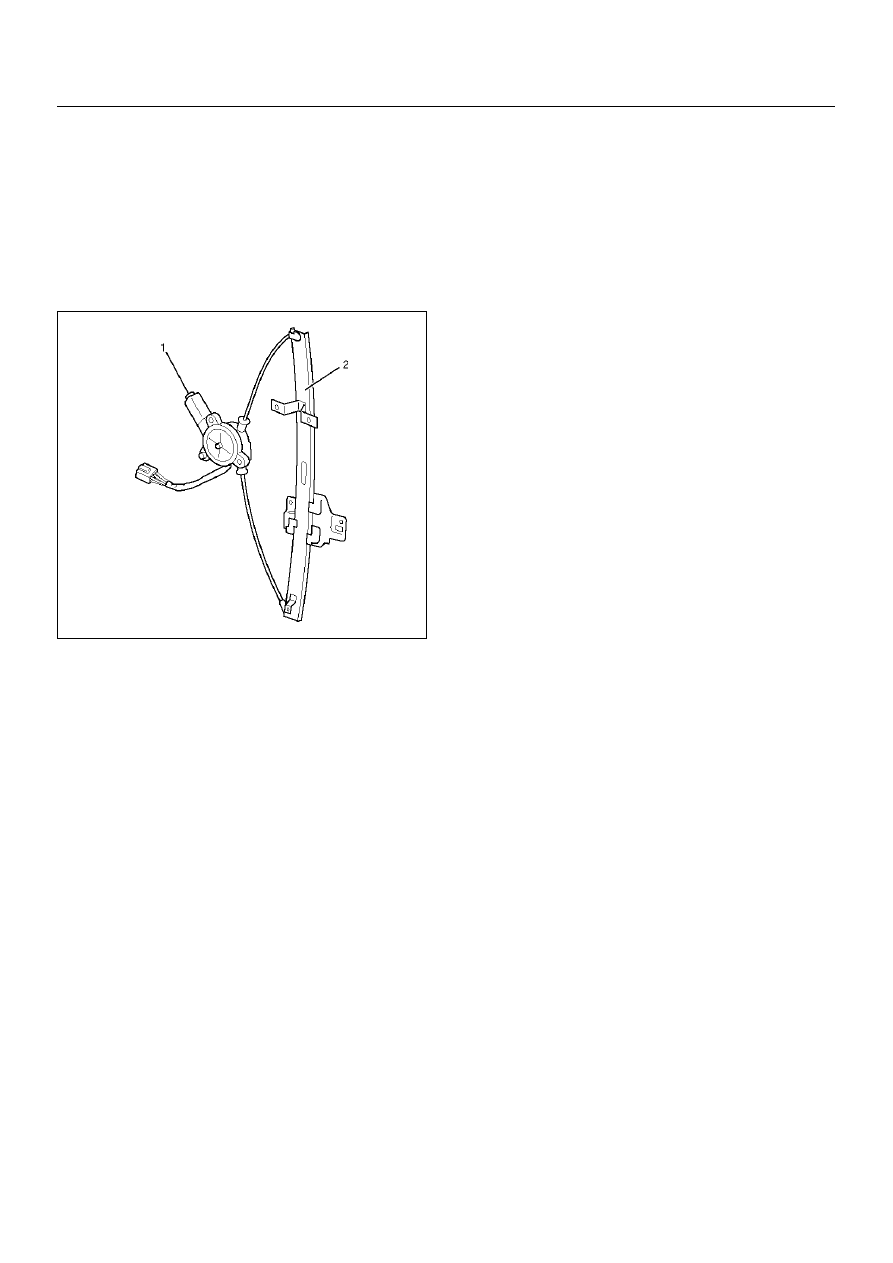

3. Remove the power window motor (1).

• Remove three screws.

825RW095

Installation

To install, follow the removal steps in the reverse order.

Rear-Right Side

Removal and Installation

Refer to Rear Power Window Motor — Left Side in this
section.

EXTERIOR/INTERIOR TRIM

8J–25

Main Data and Specifications

Torque Specifications

Application

N·m

kg·m

lb ft

lb in

Front & Rear Seat Belt Anchor Bolts

39

4.0

29

—

Roof Rail Fixing Bolts

8

0.8

—

69

SEAT BELT SYSTEM

9A–1

RESTRAINTS

SEAT BELT SYSTEM

CONTENTS

Service Precaution......................................... 9A - 1

Front Seat Belt (LWB) ................................... 9A - 2

Front Seat Belt and Associated Parts......... 9A - 2
Removal ..................................................... 9A - 2
Inspection ................................................... 9A - 2
Installation .................................................. 9A - 3

Front Seat Belt (SWB)................................... 9A - 4

Front Seat Belt and Associated Parts......... 9A - 4
Removal ..................................................... 9A - 4
Inspection ................................................... 9A - 5
Installation .................................................. 9A - 5

Rear Seat Belt (LWB).................................... 9A - 6

Rear Seat Belt and Associated Parts ......... 9A - 6
Removal ..................................................... 9A - 6
Inspection ................................................... 9A - 7
Installation .................................................. 9A - 8

Rear Seat Belt (SWB) ................................... 9A - 9

Rear Seat Belt and Associated Parts ......... 9A - 9

Removal...................................................... 9A - 9
Inspection ................................................... 9A - 10
Installation................................................... 9A - 10

Front Seat Buckle Assembly ......................... 9A - 11

Removal...................................................... 9A - 11
Installation................................................... 9A - 11

Rear Center Seat Belt / Buckle Assembly..... 9A - 12

Rear Center Seat Belt / Buckle Assembly

and Associated Parts ............................ 9A - 12

Removal...................................................... 9A - 12
Installation................................................... 9A - 12

Child Seat Tether Anchor

Bracket (Child Restraint).......................... 9A - 13

General Description .................................... 9A - 13
Child Seat Tether Anchor Bracket

and Associated Parts ............................ 9A - 13

Installation................................................... 9A - 13

Main Data and Specifications ........................ 9A - 14

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

SECTION

9A–2

SEAT BELT SYSTEM

Front Seat Belt (LWB)

Front Seat Belt and Associated Parts

760RW040

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the sill plate (Front & Rear).

3. Remove the seat belt lower anchor bolt.

4. Remove the center pillar lower trim cover.

5. Remove the door seal finisher (Front & Rear).

6. Remove the center pillar upper trim cover.

7. Remove the seat belt upper anchor bolt.

8. Remove the retractor fixing bolt.

9. Remove the seat belt assembly.

10. Remove the adjustable shoulder anchor assembly.

• Remove the two fixing bolts.

Inspection

If any of the following abnormalities is found, replace on
an assembly basis.

• Deform and malfunction of adjustable shoulder

anchor.

• No smooth move of upper/lower anchors in the

circumferential direction.

• Damaged and/or deformed through ring.

• Damaged and/or deformed tongue.

• Damaged and/or frayed of webbing.

• Deformed retractor bracket.

• Seat belt not rewound up.

• Resistance or abnormal sound when seat belt is

wound out and rewound.

• Retractor abnormality.

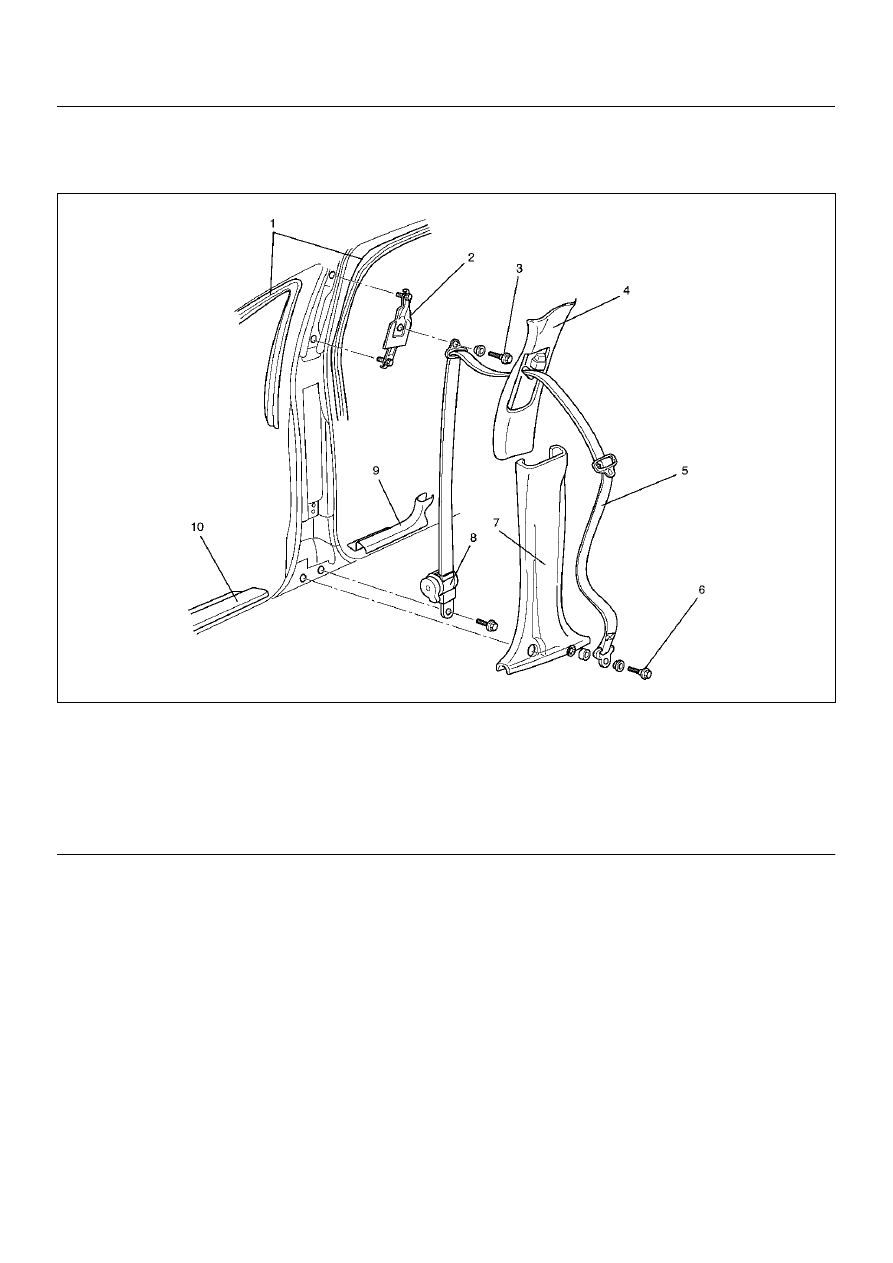

(1) Door Seal Finisher (Front & Rear)
(2) Adjustable Shoulder Anchor Assembly
(3) Seat Belt Upper Anchor Bolt
(4) Center Pillar Upper Trim Cover
(5) Front Seat Belt Assembly

(6) Seat Belt Lower Anchor Bolt
(7) Center Pillar Lower Trim Cover
(8) Retractor
(9) Rear Sill Plate

(10) Front Sill Plate
