SUNROOF/CONVERTIBLE TOP

8I–1

BODY AND ACCESSORIES

SUNROOF/CONVERTIBLE TOP

CONTENTS

Service Precaution......................................... 8I - 1

Sunroof Glass (LWB) .................................... 8I - 2

Sunroof Glass and Associated Parts .......... 8I - 2
Removal ..................................................... 8I - 2
Installation .................................................. 8I - 3

Sunroof Glass (SWB).................................... 8I - 3

Sunroof Glass and Associated Parts .......... 8I - 3
Removal ..................................................... 8I - 4
Installation .................................................. 8I - 4

Sunroof Deflector (LWB) ............................... 8I - 5

Removal ..................................................... 8I - 5
Installation .................................................. 8I - 5

Sunroof Deflector (SWB)............................... 8I - 6

Parts Location............................................. 8I - 6
Removal ..................................................... 8I - 6
Installation .................................................. 8I - 6

Sunshade (LWB)........................................... 8I - 7

Disassembled View .................................... 8I - 7
Removal ..................................................... 8I - 7
Installation .................................................. 8I - 8

Sunroof Frame Complete Assembly (LWB) .. 8I - 9

Sunroof Frame Complete Assembly

and Associated Parts ................................ 8I - 9

Removal ..................................................... 8I - 9
Installation .................................................. 8I - 10

Sunroof Switch .............................................. 8I - 10

Removal...................................................... 8I - 10
Installation................................................... 8I - 10

Sunroof Control Unit...................................... 8I - 11

Removal...................................................... 8I - 11
Installation................................................... 8I - 11

Safety Stop Switch ........................................ 8I - 11

Removal...................................................... 8I - 11
Installation................................................... 8I - 11

Limit Switch ................................................... 8I - 12

Removal...................................................... 8I - 12
Installation................................................... 8I - 12

Sunroof Motor ............................................... 8I - 12

Removal...................................................... 8I - 12
Installation................................................... 8I - 12

Resin Top Assembly ..................................... 8I - 13

Resin Top Assembly and Associated Parts 8I - 13
Removal...................................................... 8I - 13
Installation................................................... 8I - 14

Seat Belt Cross Bar Assembly ...................... 8I - 15

Seat Belt Cross Bar Assembly

and Associated Parts ................................ 8I - 15

Removal...................................................... 8I - 15
Installation................................................... 8I - 16

Main Data and Specifications ........................ 8I - 17

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE  SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications.  Following
these instructions can help you avoid damage to
parts and systems.

SECTION

8I–2

SUNROOF/CONVERTIBLE TOP

Sunroof Glass (LWB)

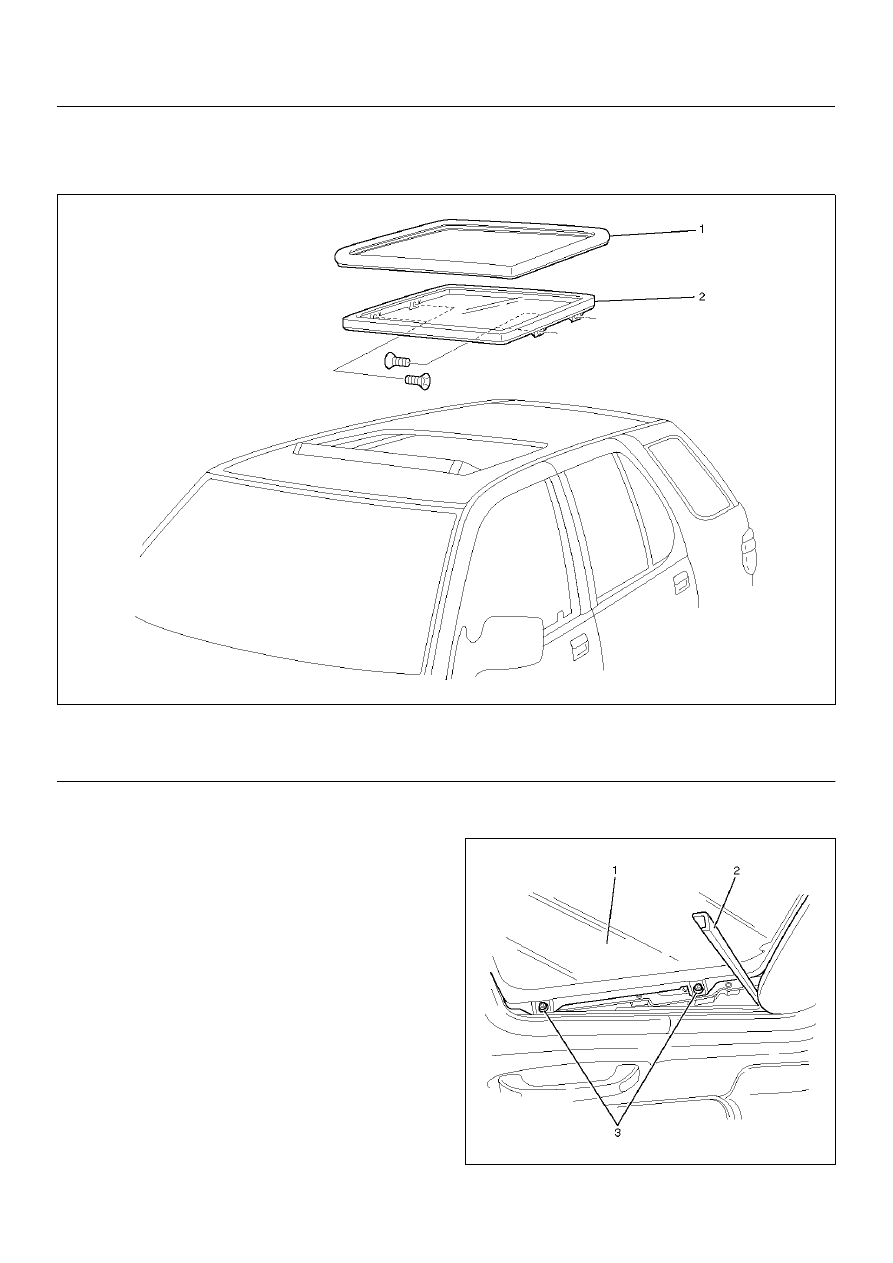

Sunroof Glass and Associated Parts

665RW004

Legend

EndOFCallout

Removal

1. Tilt the sunroof and open the sunshade.

2. Disconnect the battery ground cable.

3. Pull out the front of sight shield (2).

4. Remove four sunroof glass fixing Torx screws (3) to

remove the sunroof glass (1).

665RW011

(1) Sunroof Weatherstrip
(2) Sunroof Glass

SUNROOF/CONVERTIBLE TOP

8I–3

Installation

1. Be sure to install the sunroof weatherstrip so that

the joint of the weatherstrip is on the rear side of the
vehicle.

2. Temporary install the glass to the sunroof frame.

3. Open and shut the sunroof four to five times to

position correctly the sunroof weatherstrip and the
glass in the longitudinal and latitudinal setting
positions.

4. Adjust the setting position to flush the surface

between the roof panel and weatherstrip of sunroof
glass.

5. Tighten the sunroof glass fixing screws to the

specified torque.

Torque: 4N·m (0.4 kg·m/35 lbin)

6. After the sunroof glass is installed, recheck the roof

panel and sunroof glass for vertical install position.
If out of standard, adjust with fixing screws.

Sunroof Glass (SWB)

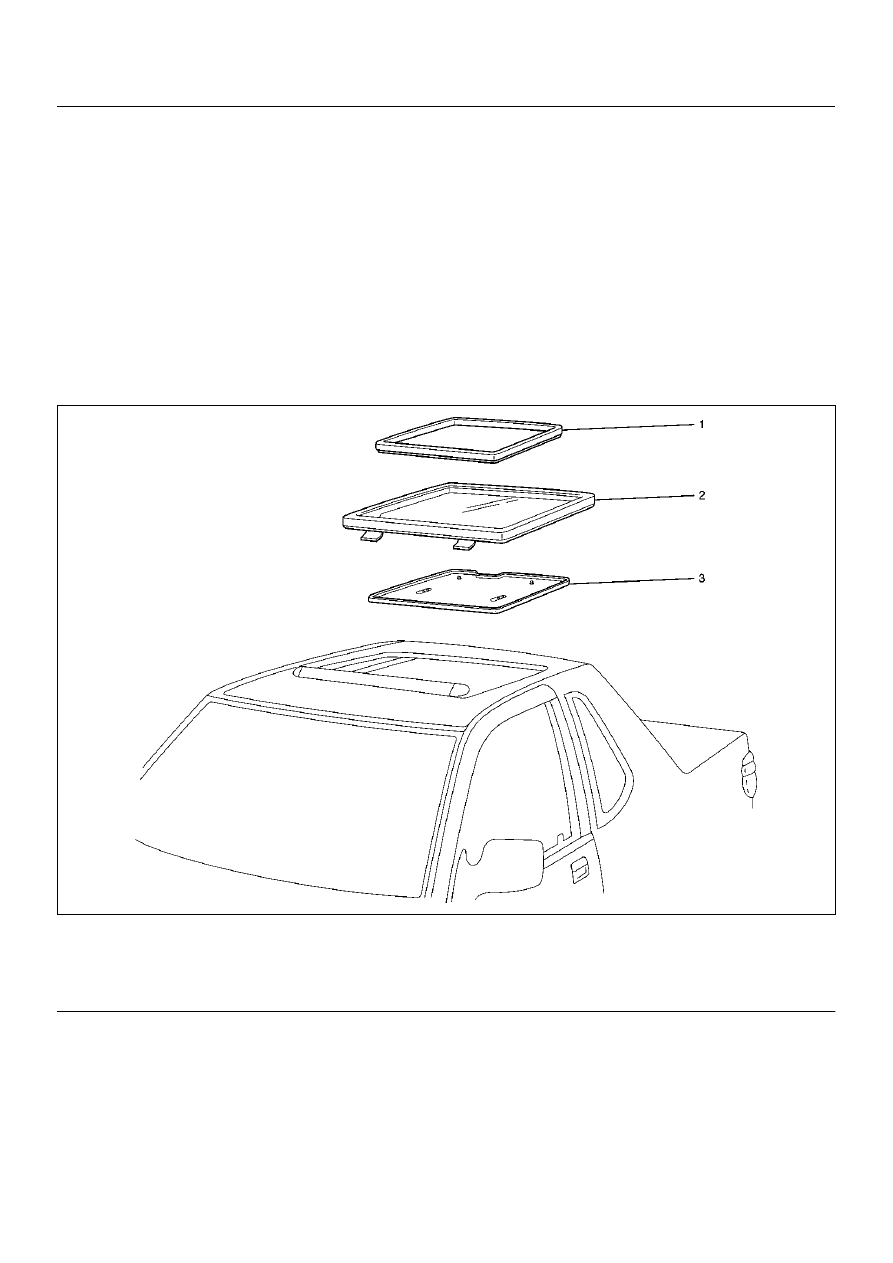

Sunroof Glass and Associated Parts

665RW028

Legend

EndOFCallout

(1) Sunroof Weather Strip
(2) Sunroof Glass Assembly

(3) Sunshade Assembly

8I–4

SUNROOF/CONVERTIBLE TOP

Removal

1. Disconnect the battery ground cable.

2. Remove the sunshade assembly.

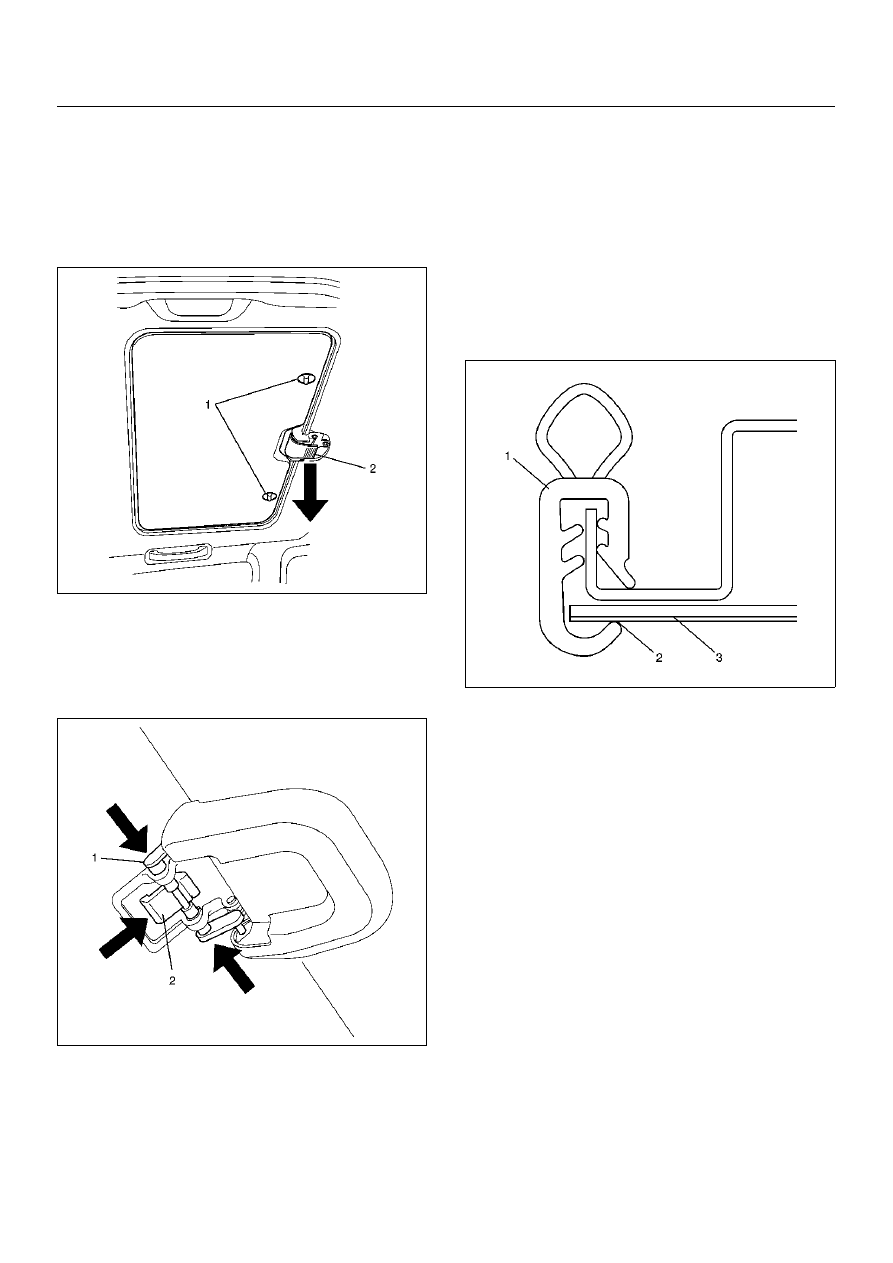

• Turn the knobs (1) 90 degrees and pull it out at

angle. Then pull the sunroof handle (2) to
disengage the lock.

665RW025

3. Remove the sunroof glass assembly.

• Push the safety lever (2) behind the handle and

push in on the hinge pins (1) from the left and
right to disengage them. Raise the rear end of the
sunroof glass assembly at an angle pull it free.

665RW026

4. Remove the sunroof handle cover and sunroof

handle plate.

• Remove the screw form the cover and the three

fixing nuts form the plate.

5. Remove the weather strip.

6. Remove the headlining.

• Refer to Headlining in Exterior/Interior Trim

section.

Installation

To install, follow the removal steps in the reverse order,
nothing the following points.

1. When attaching the sunroof weather strip (1), make

sure that the lip (2) securely overlaps the headlining
(3).

• Assemble with the positioning marks centered

toward the rear of the vehicle.

666RW007

2. Tighten the sunroof handle plate fixing nuts to the

specified torque.

Torque: 8 N·m (0.8 kg·m/69 Ib in)
