8H–12

SECURITY AND LOCKS

Tailgate Lock (SWB)

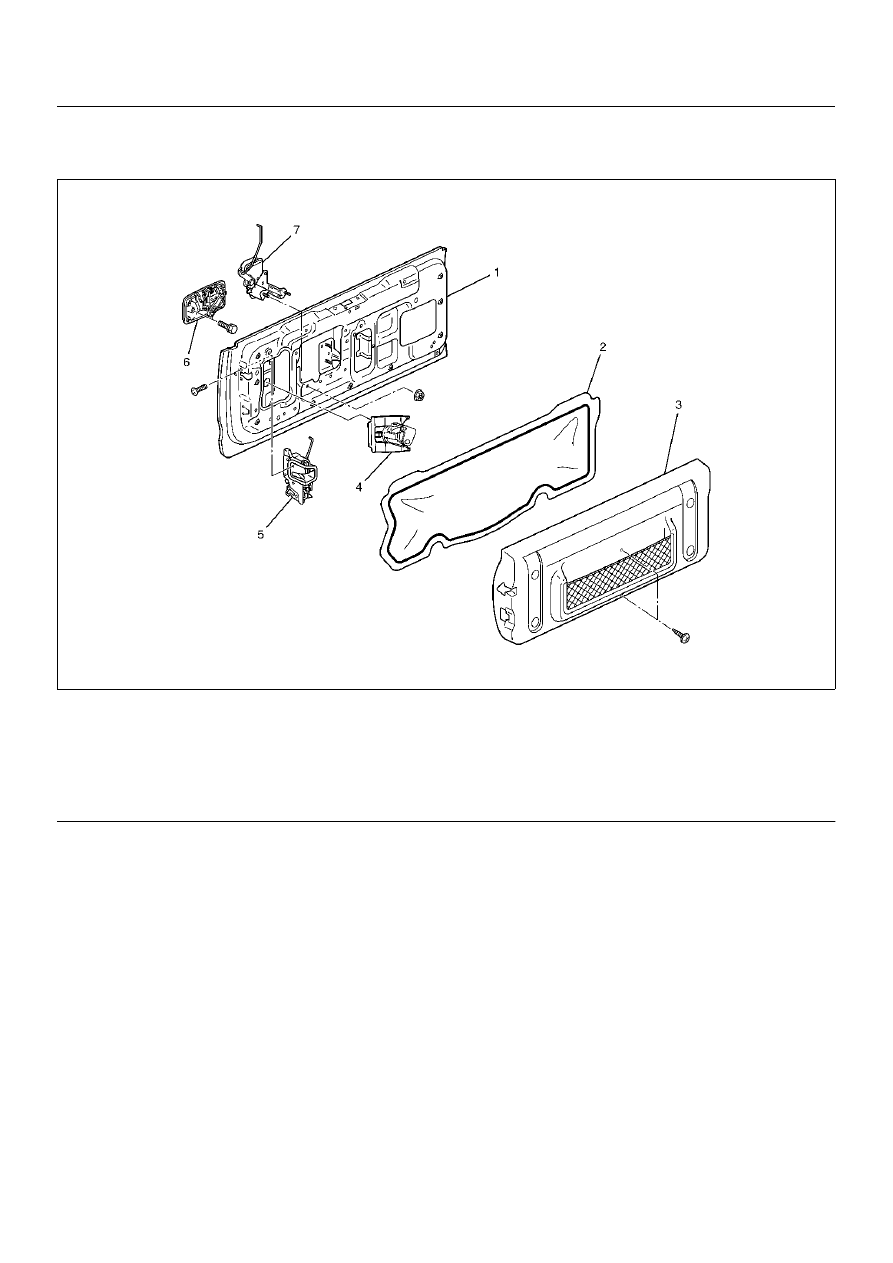

Tailgate Lock and Associated Parts

681RW013

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the tailgate glass assembly and tailgate

glass stay.

• Refer to Tailgate Glass (SWB) in Body Structure

section.

3. Remove the tailgate trim cover assembly.

• Remove the two screws fixing the trim cover

assembly and pull up the trim cover after
detaching the clips from tailgate panel.

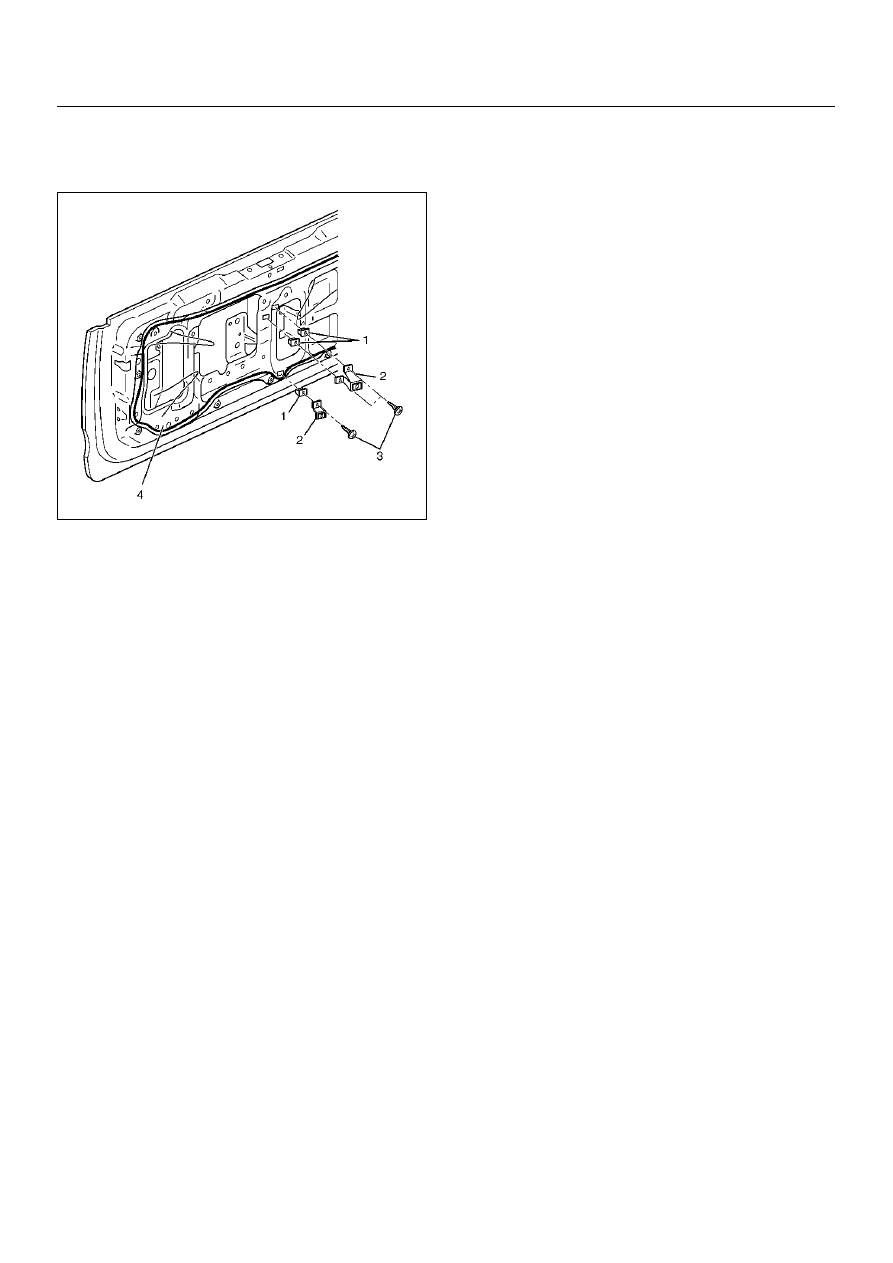

4. Remove the tailgate trim brackets (2).

• Remove the three fixing screws (3) and screw

grommets (1).

(1) Tailgate Assembly
(2) Waterproof sheet
(3) Trim Cover Assembly
(4) Key Cylinder

(5) Tailgate Lock Assembly
(6) Outside Handle
(7) Hatchgate Lock Actuator Assembly

SECURITY AND LOCKS

8H–13

5. Remove the waterproof sheet (4).

• Remove the waterproof sheet, taking special care

so as not to break it.

681RW014

6. Remove the key cylinder.

• Disconnect the lock links.

• Remove the key cylinder retaining clip with screw

driver to remove the key cylinder.

7. Remove the hatchgate lock actuator assembly.

• Disconnect the actuator harness connector.

• Remove the two nuts holding hatchgate lock

actuator assembly from inside.

8. Remove the outside handle.

• Disconnect the lock link.

• Remove the two bolts holding the outside handle

from inside.

9. Remove tailgate lock assembly.

• Remove the three screws holding the lock

assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Apply chassis grease to the lock assembly and

striker moving surface.

2. Tighten the hatchhgate lock assembly fixing screws

to the specified torque.

Torque 7 N·m (0.7kg·m/61lbin)

3. Check that the tailgate lock operates correctly after

installing it.

8H–14

SECURITY AND LOCKS

Fuel Filler Door Lock

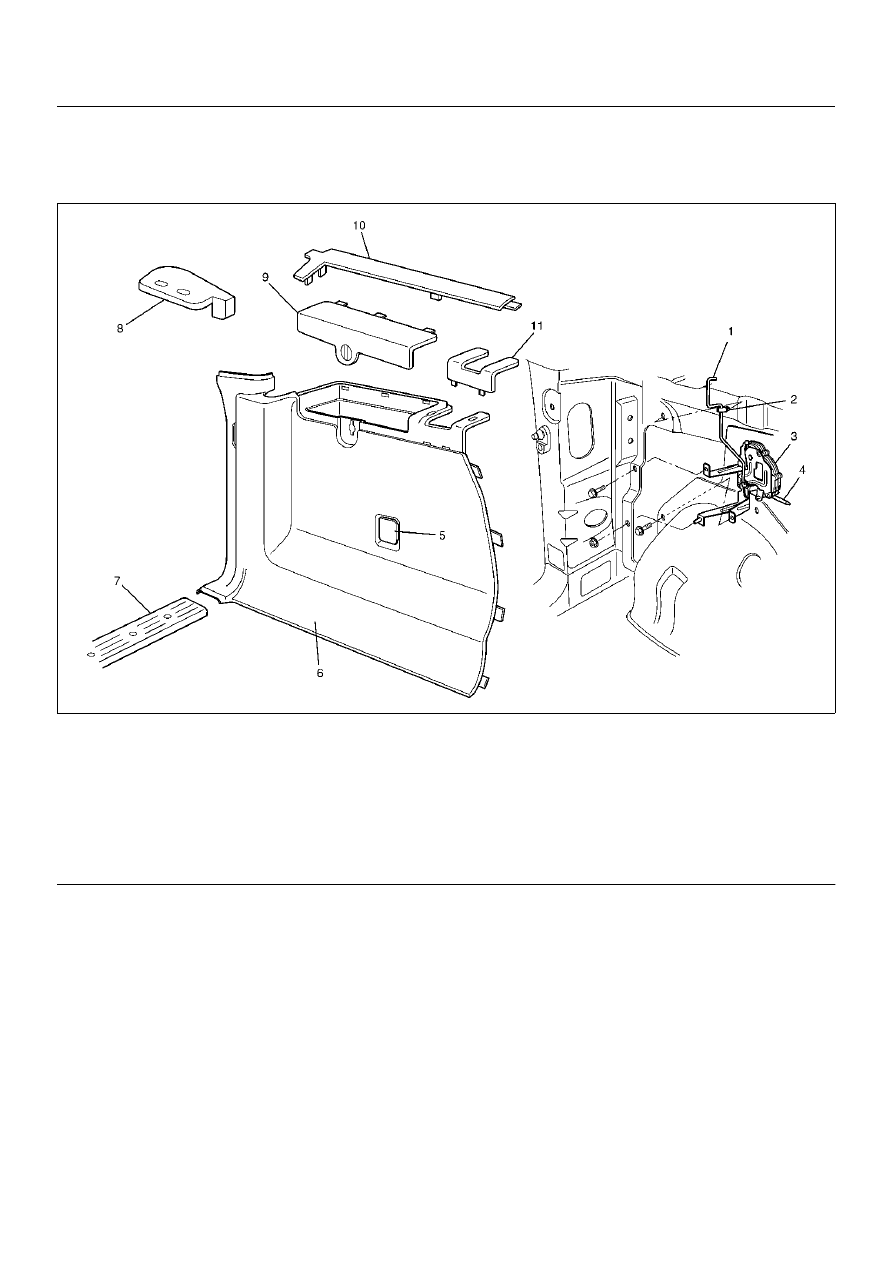

Fuel Filler Door Lock and Associated Parts

This illustration is based on the SWB model.

686RW014

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Unlock the fuel filler door.

3. Remove the luggage trim cover on the left side.

• Remove the two clips, then canopy cover.

• Remove the luggage side lid assembly.

• Remove the luggage side upper cover.

• Remove the luggage side front cover.

• Remove the one fixing screw on the front upper

side of the luggage trim cover.

• Remove the rear and floor trim cover.

• Disconnect the accessory socket connector.

4. Remove the quarter trim cover (LWB).

• Refer to Interior Trim Panel in Exterior/Interior

section.

5. Remove the fuel filler door lock actuator assembly.

• Remove the two fixing bolts and one fixing screw.

(For LWB, one bolt and two screws.)

6. Remove the fixing clip of the link.

(1) Link (SWB only)
(2) Clip (SWB only)
(3) Fuel Filler Door Lock Actuator Assembly
(4) Rod
(5) Accessory Socket
(6) Luggage Trim Cover

(7) Rear End Floor Trim Cover
(8) Canopy Cover
(9) Luggage Side Lid Assembly

(10) Luggage Side Upper Cover
(11) Luggage Side Front Cover

SECURITY AND LOCKS

8H–15

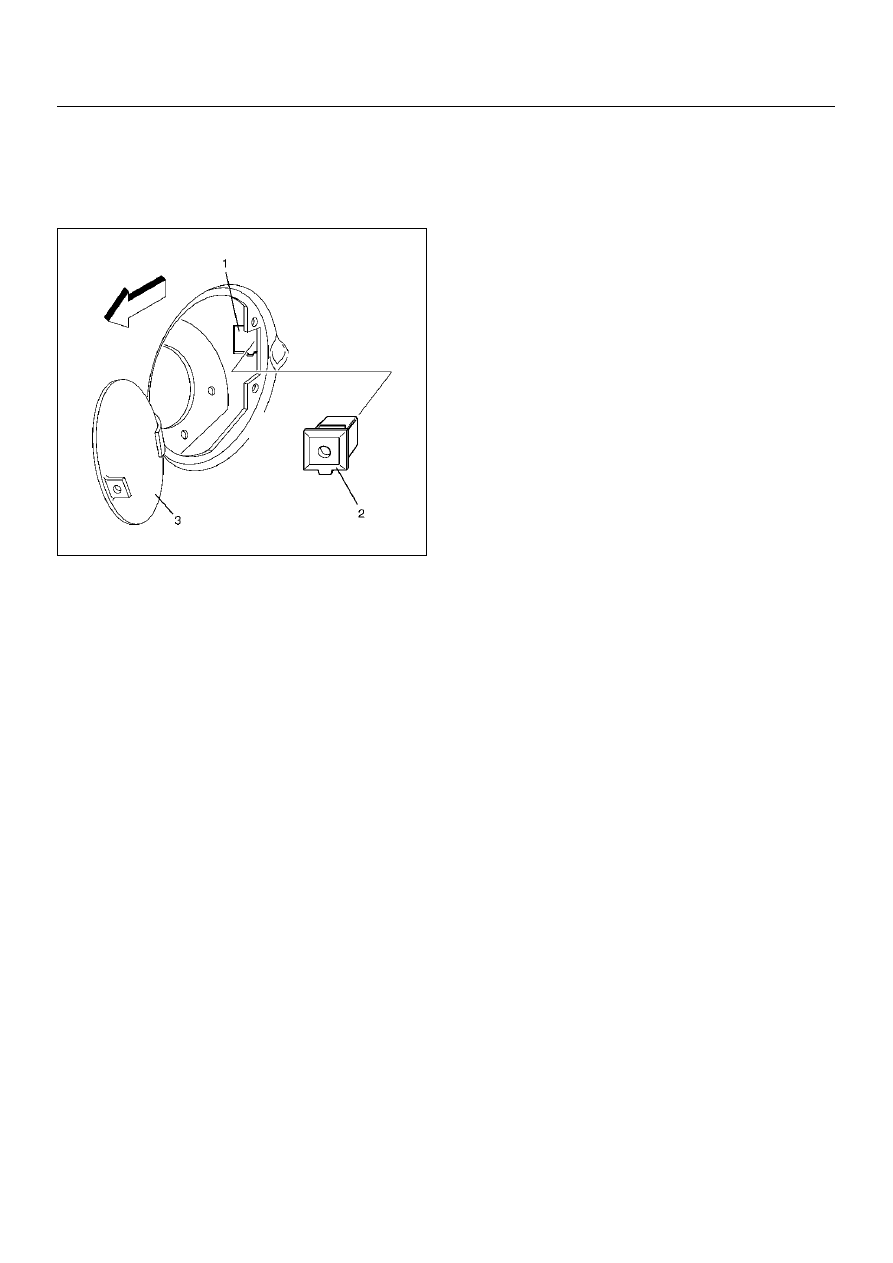

7. Remove the fuel filler door lock cap (2).

• While pressing the two lock portions of the cap

from inside of the vehicle, push the cap into the
hole. Open the fuel filler door (3) and remove the
cap out of the installation hole (1).

686RW013

8. Remove the fuel filler door lock actuator assembly.

• Disconnect the body harness connector.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Install the cap by using the actuator assembly rod

as a guide.

2. Take care not to pinch the drain hose and the

harness while tightening the actuator fixing bolts
and nut.
