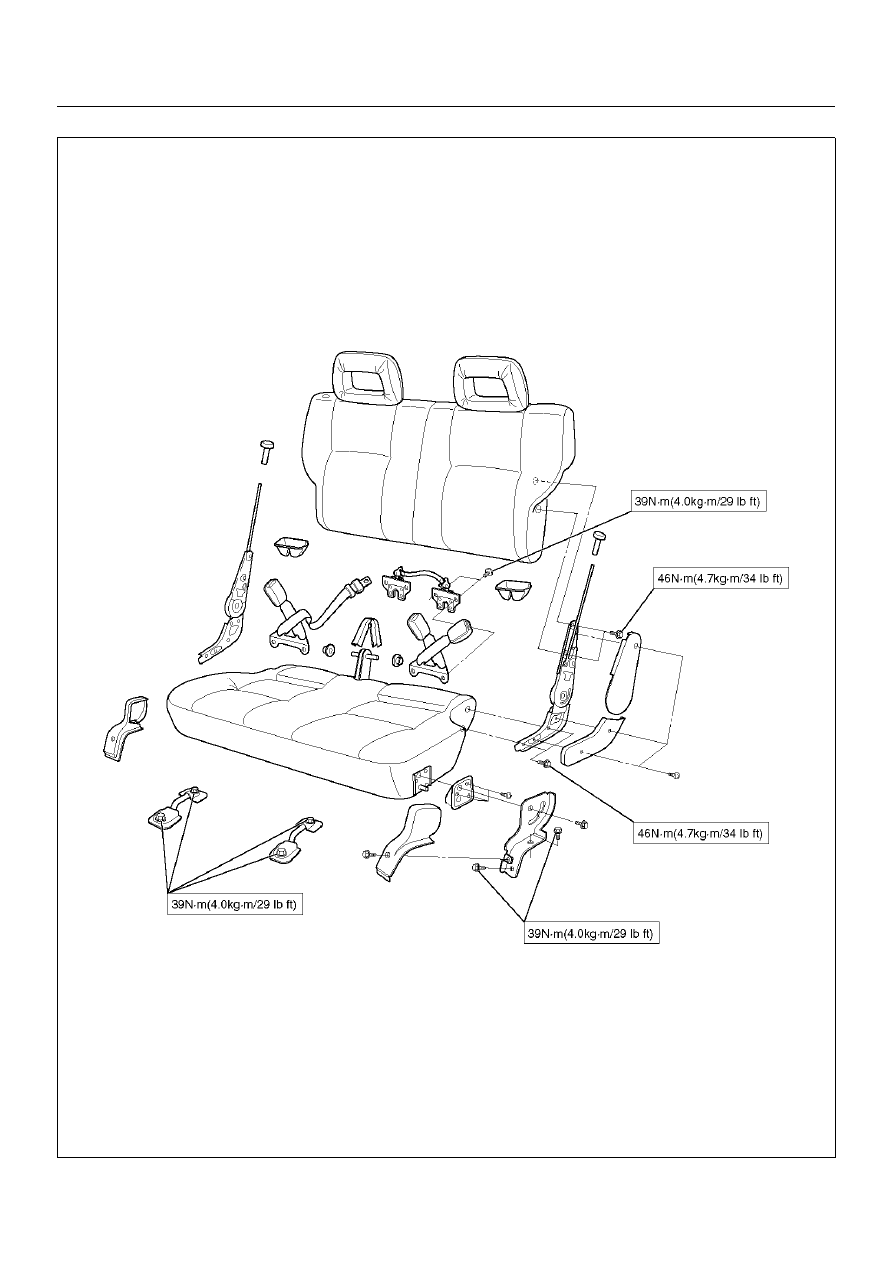

8G–12

SEATS

755RX022

SECURITY AND LOCKS

8H–1

BODY AND ACCESSORIES

SECURITY AND LOCKS

CONTENTS

Service Precaution......................................... 8H - 1

Front Door Lock Assembly............................ 8H - 2

Front Door Lock Assembly and

Associated Parts ..................................... 8H - 2

Removal ..................................................... 8H - 3
Installation .................................................. 8H - 4

Front Outside Handle .................................... 8H - 5

Front Outside Handle and

Associated Parts ..................................... 8H - 5

Removal ..................................................... 8H - 5
Installation .................................................. 8H - 5

Rear Door Lock Assembly ............................ 8H - 6

Rear Door Lock Assembly and

Associated Parts ..................................... 8H - 6

Removal ..................................................... 8H - 7
Installation .................................................. 8H - 7

Rear Outside Handle..................................... 8H - 8

Rear Outside Handle and

Associated Parts ..................................... 8H - 8

Removal ..................................................... 8H - 8
Installation .................................................. 8H - 8

Tailgate Lock and Hatchgate Lock (LWB)..... 8H - 9

Tailgate Lock, Hatchgate Lock and

Associated Parts ..................................... 8H - 9

Removal ..................................................... 8H - 10
Installation .................................................. 8H - 11

Tailgate Lock (SWB) ..................................... 8H - 12

Tailgate Lock and Associated Parts ........... 8H - 12
Removal...................................................... 8H - 12
Installation................................................... 8H - 13

Fuel Filler Door Lock ..................................... 8H - 14

Fuel Filler Door Lock and

Associated Parts ..................................... 8H - 14

Removal...................................................... 8H - 14
Installation................................................... 8H - 15

Key ................................................................ 8H - 16

Key Coding ................................................. 8H - 16
Key Styles................................................... 8H - 16

Power Door Lock System.............................. 8H - 17

General Description .................................... 8H - 17
Door Lock Key Switch................................. 8H - 17
Front Door Lock Actuator............................ 8H - 17
Rear Door Lock Actuator ............................ 8H - 17
Tailgate Lock Actuator ................................ 8H - 17
Fuel Filler Door Lock Actuator .................... 8H - 17

Keyless Entry System ................................... 8H - 18

General Description .................................... 8H - 18
Keyless Entry Control Unit.......................... 8H - 18
Keyless Entry Control Unit/Transmitter

Replacement ........................................... 8H - 18

Main Data and Specifications ........................ 8H - 19

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

SECTION

8H–2

SECURITY AND LOCKS

Front Door Lock Assembly

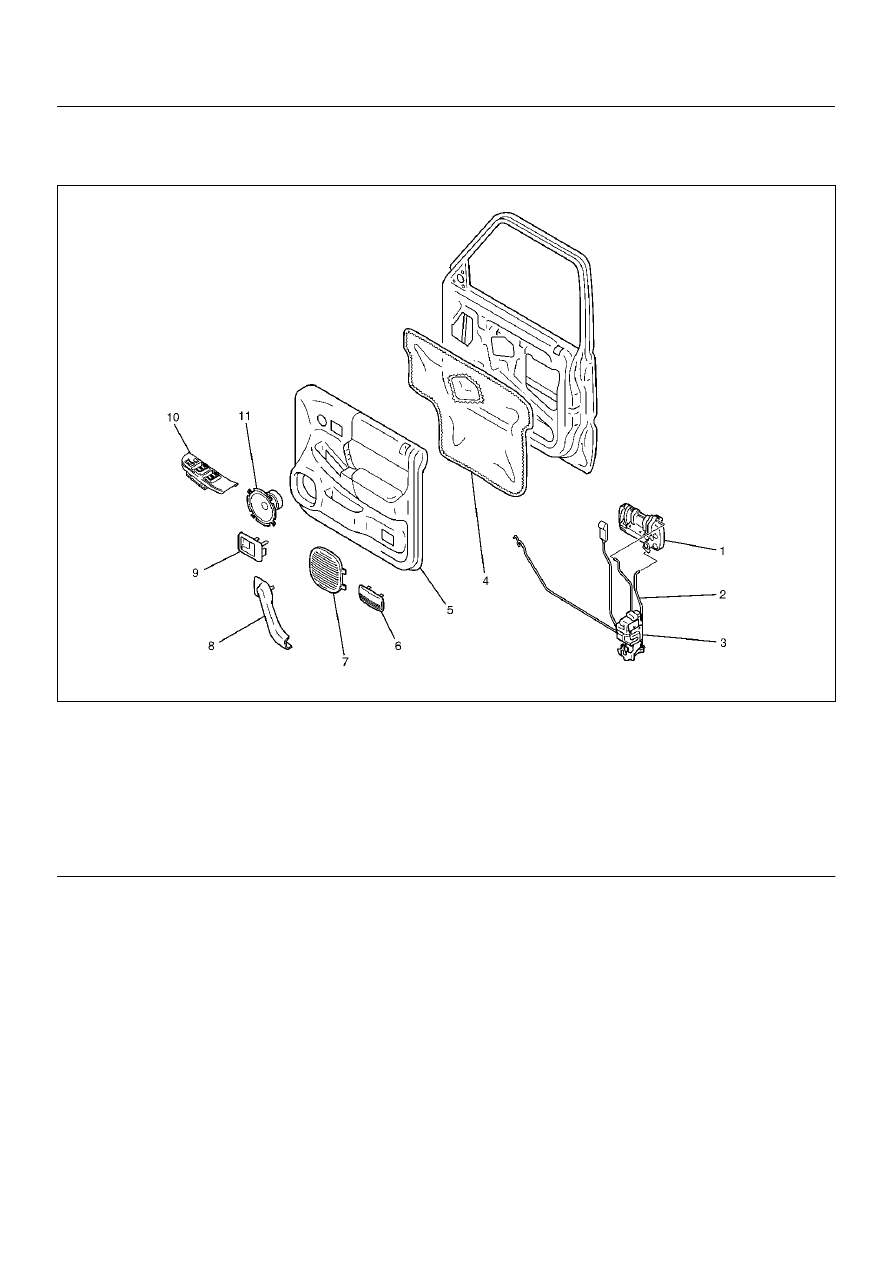

Front Door Lock Assembly and Associated Parts

635RW018

Legend

EndOFCallout

(1) Outside Handle
(2) Door Locking Link
(3) Door Lock Assembly
(4) Waterproof Sheet
(5) Door Trim Panel
(6) Courtesy Light Lens

(7) Speaker Grille
(8) Grip Cover
(9) Inside Handle

(10) Power Window Switch
(11) Speaker Assembly

SECURITY AND LOCKS

8H–3

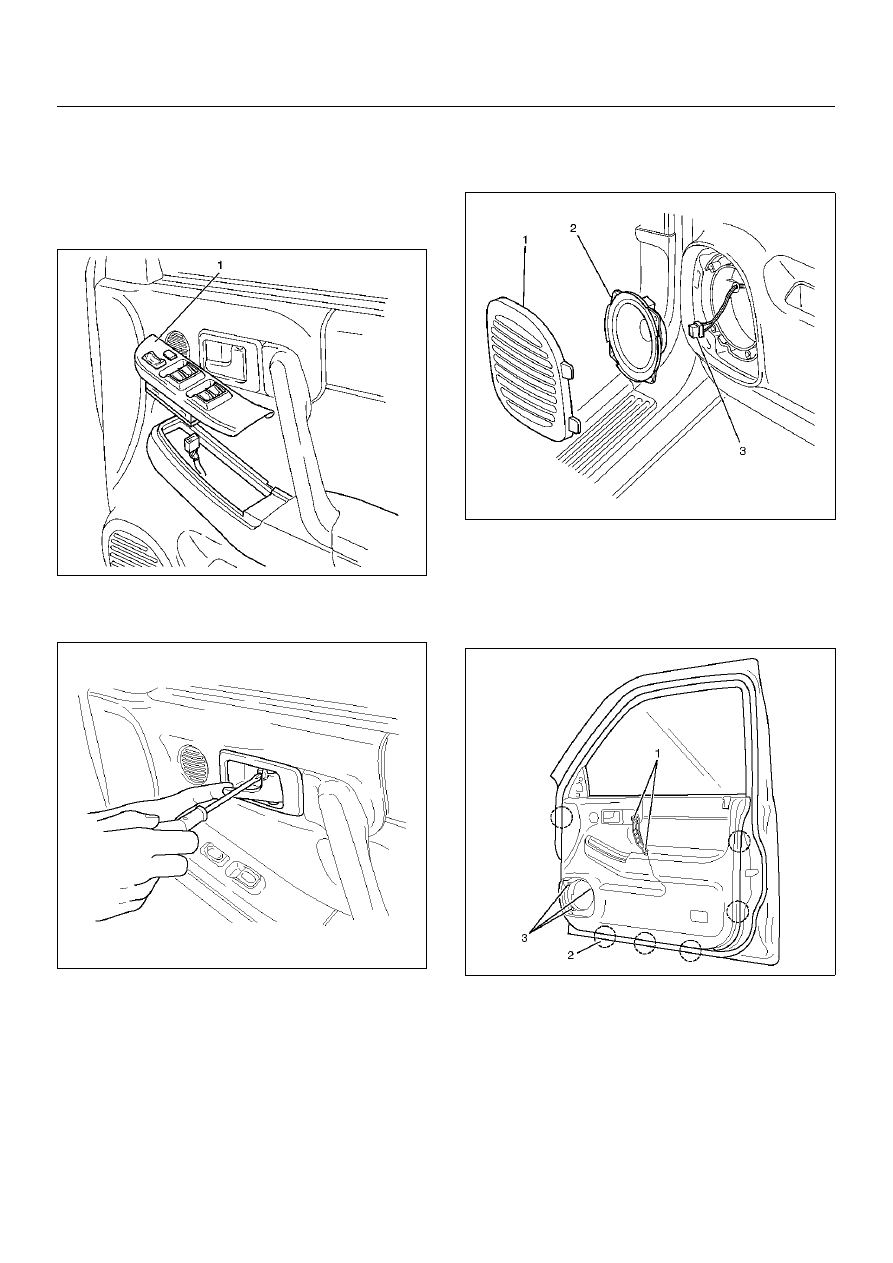

Removal

1. Disconnect the battery ground cable.

2. Remove the power window switch (1).

• Pry out the power window switch and remove the

connectors.

635RW016

3. Remove the screw while pulling the inside lever

toward you and then remove the inside handle.

632RW003

4. Remove the speaker grille (1).

• Pull out the front side of the grille.

5. Remove the speaker assembly (2).

• Remove four screws and disconnect the speaker

harness connector (3).

890RX012

6. Remove the courtesy light lens.

7. Remove the five screws (1), (3) and pull out the door

trim panel at the six clip positions (2).

• Disconnect the tweeter connector and courtesy

light connector.

635RW007

8. Remove the waterproof sheet.

• Taking notice of the door harness, peel the

waterproof sheet off the door panel carefully.

9. Raise the glass up to the uppermost position, and

then remove the rear guide rail.
