10. Remove the center hinge.

• Remove the two fixing bolts.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the center hinge fiixng bolts to the specified

torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

2. Tighten the side hinge fixing nuts to the specified

torque.

Torque: 29 N·m (3.0 kg·m/22lbft)

SEATS

8G–9

Rear Seat Assembly (SWB)

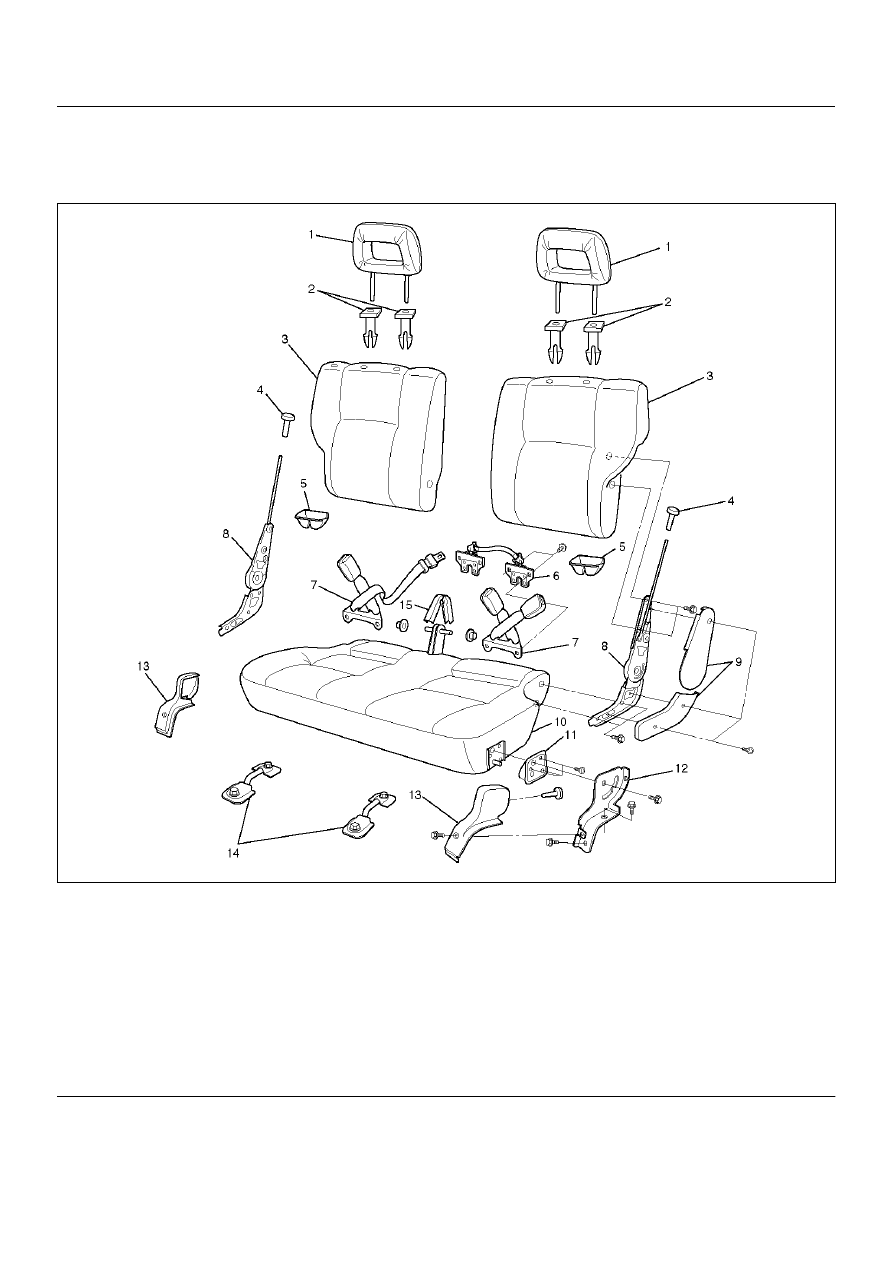

Rear Seat Assembly and Associated Parts

755RW067-1

Legend

EndOFCallout

(1) Headrest
(2) Guide Holder
(3) Rear Seat Back Assembly
(4) Release Knob
(5) Seat Lock Cover
(6) Seat Lock Assembly
(7) Rear Seat Belt Buckle Assembly
(8) Reclining Device

(9) Device Cover

(10) Rear Seat Cushion Assembly
(11) Support Cover
(12) Rear Seat Leg
(13) Rear Seat Leg Cover
(14) Rear Floor Lock Striker
(15) Free Hinge Cover

8G–10

SEATS

Removal

1. Fold the rear seat backs forward.

• Pull up on the left and right release knobs.

2. Remove the rear seat leg covers.

• Remove the one screw and clip from each.

3. Remove the rear seat assembly.

•  Remove the two sets of two fixing bolts from left

and right sides, then pull on the seat lock strap to
release the seat lock.

4. Remove the device covers (left and right).

• Remove the three screws from each.

5. Remove the release knobs (left and right).

6. Remove the rear seat back assemblies (left and

right).

• Remove the two sets of two reclining device fixing

bolts from the sides of the seat backs.

7. Remove the headrests.

8. Remove the trim covers.

9. Remove the guide holders.

10. Remove the reclining devices.

• Remove the two sets of two fixing bolts from the

sides of the seat cushions.

11. Remove the rear seat legs (left and right).

12. Remove the support covers (left and right).

• Remove the three screws from each.

13. Remove the seat lock covers (left and right).

14. Remove the seat lock assemblies and the rear seat

belt buckle assemblies (left and right).

• Remove the two sets of two fixing bolts.

15. Remove the free hinge cover.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the seat lock assemblies and the rear

seatbelt buckle assemblies to the specified torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

2. Tighten the reclining devices to the specified torque.

Torque: 46 N·m (4.7 kg·m/34 lbft)

3. Tighten the rear seat assembly fixing bolts to the

specified torque.

Torque: 39 N·m (4.0 kg·m/29 lbft)

SEATS

8G–11

Main Data and Specifications

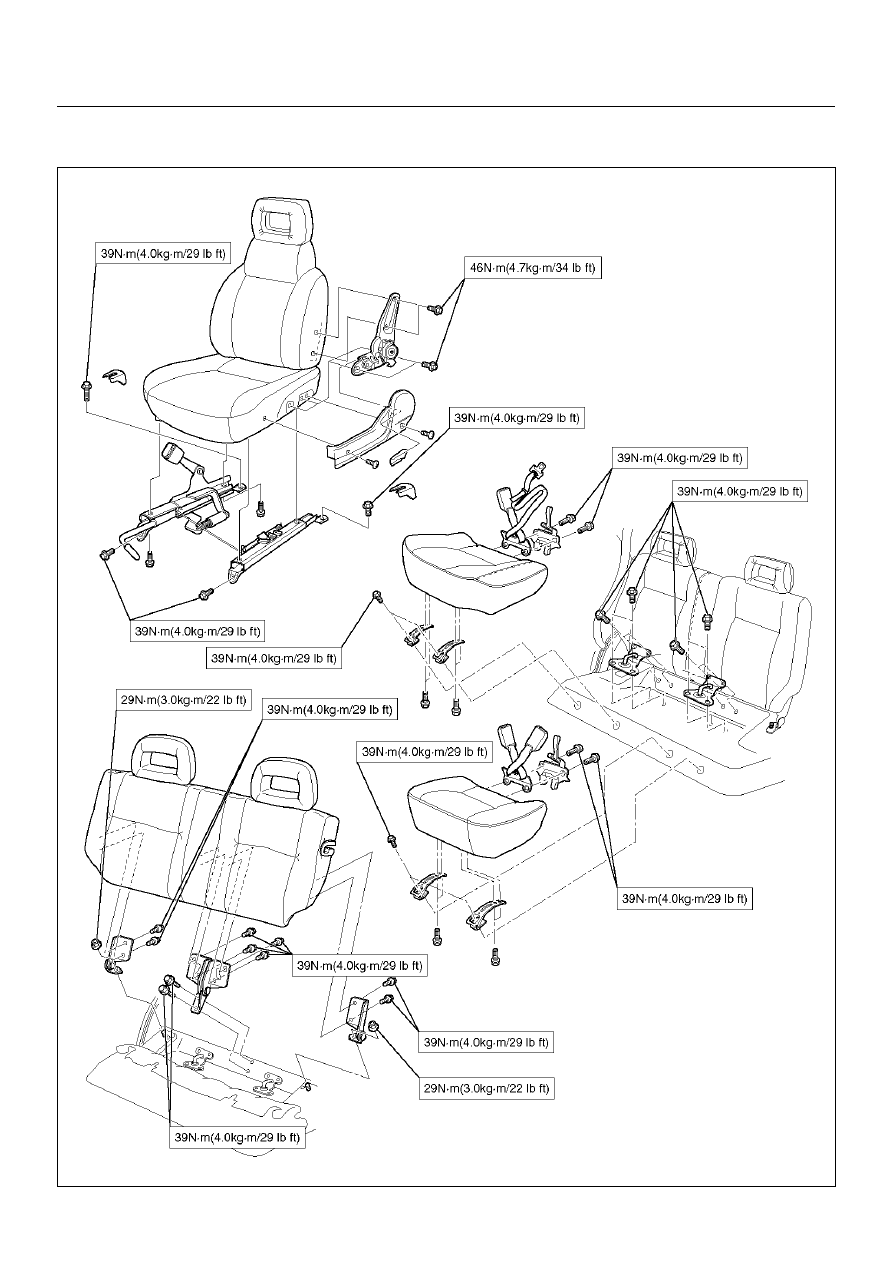

Torque Specifications

760RX015
