Body Mounting

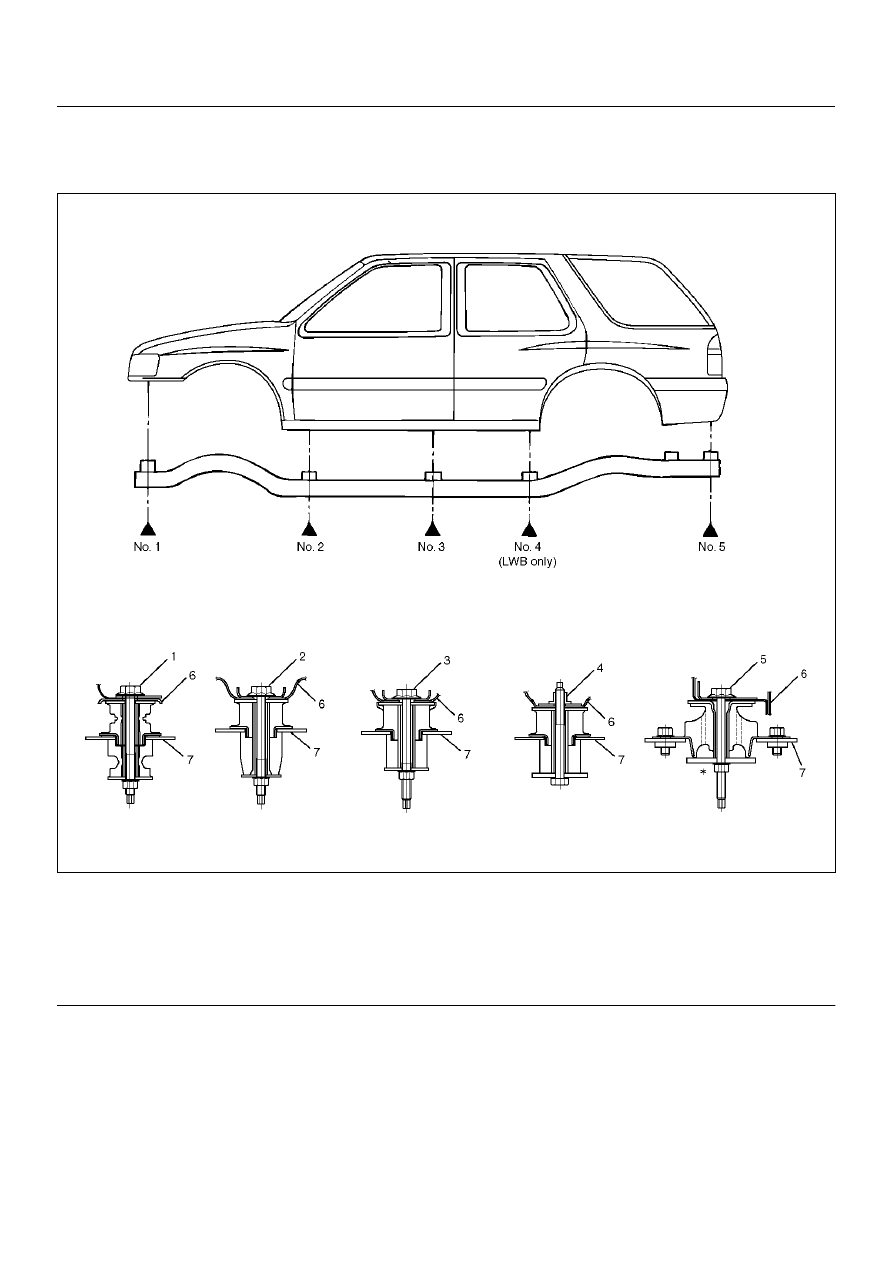

Parts Location

501RX017

Legend

EndOFCallout

Tightening Torque

1. Tighten the body mounting bolts to specified torque.

Torque : 50 N·m (5.1 kg·m/41 lb ft)

* mark position

(LWB) Torque : 50 N·m (5.1 kg·m/41 lb ft)

(SWB) Torque : 103 N·m (10.5 kg·m/76 lb ft)

(1) No.1 Body Mounting
(2) No.2 Body Mounting
(3) No.3 Body Mounting
(4) No.4 Body Mounting (LWB only)

(5) No.5 Body Mounting
(6) Body Side Mounting Bracket
(7) Frame Side Mounting Bracket

8F–22

BODY STRUCTURE

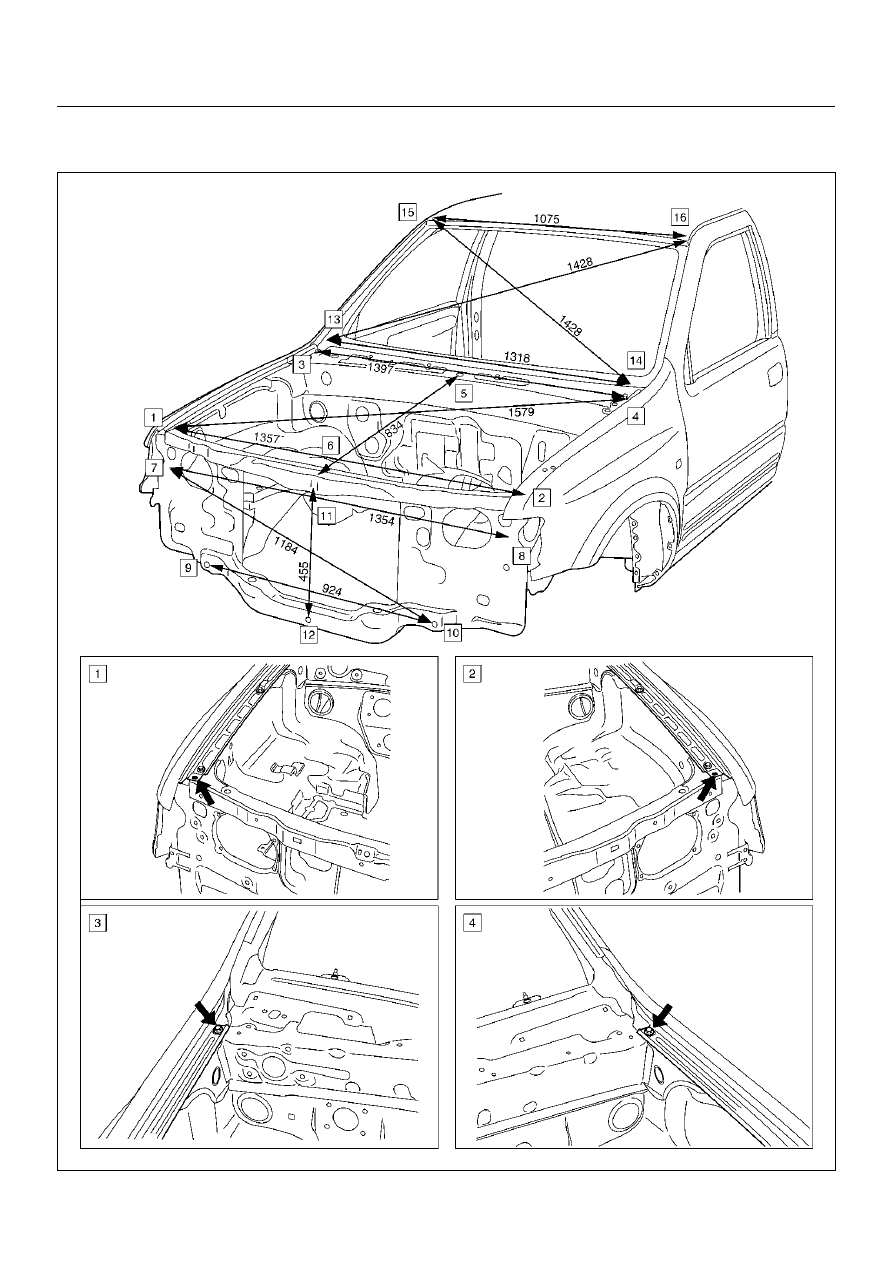

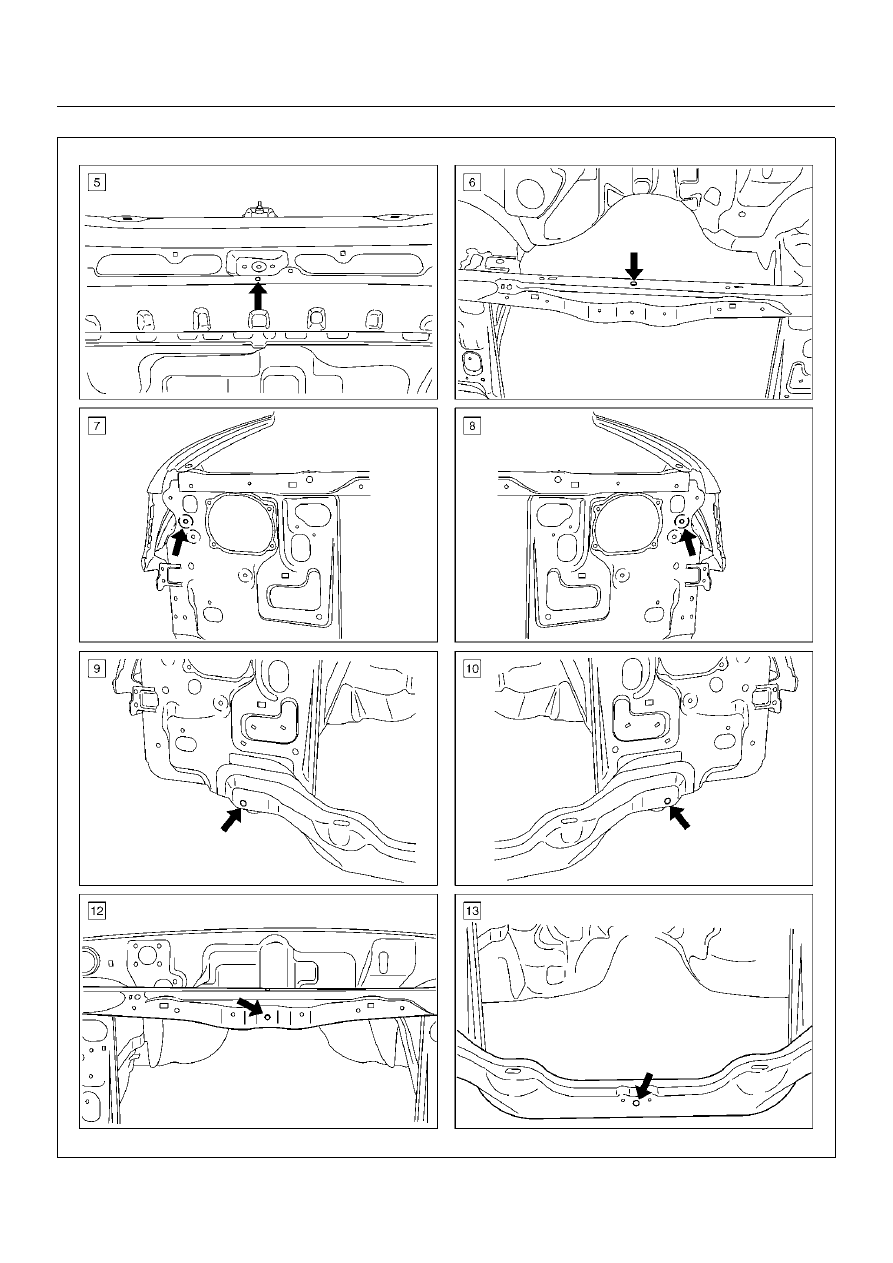

Body Dimension
