Opel Frontera UE. Manual - part 536

8F–4

BODY STRUCTURE

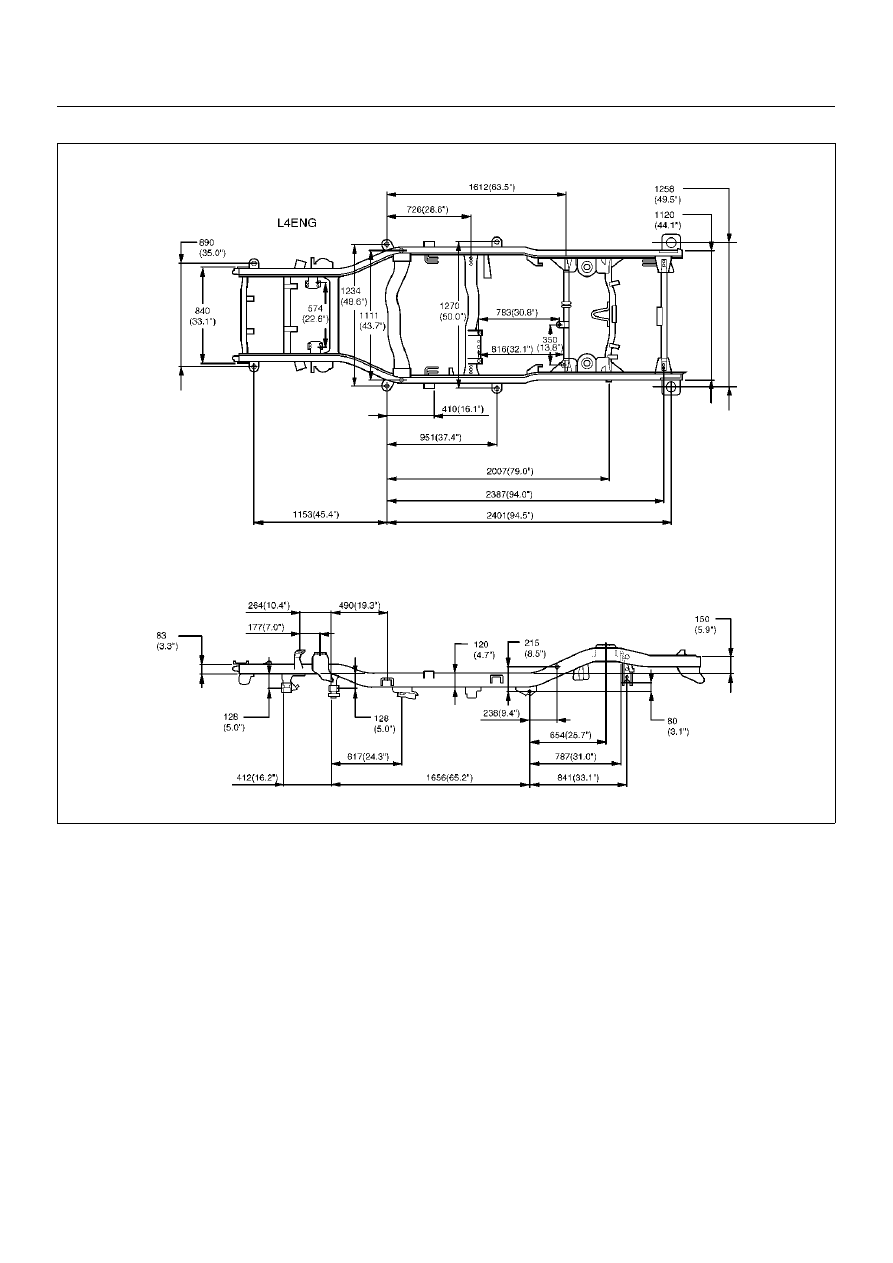

Frame Dimensions (SWB)

501RX016

BODY STRUCTURE

8F–5

General Description (Bumper)

Front and rear bumpers consist of bumper fascia,
support, and reinforcement.

The absorbing capability for both front and rear bumper
systems are achieved through reinforcements in each
bumper.

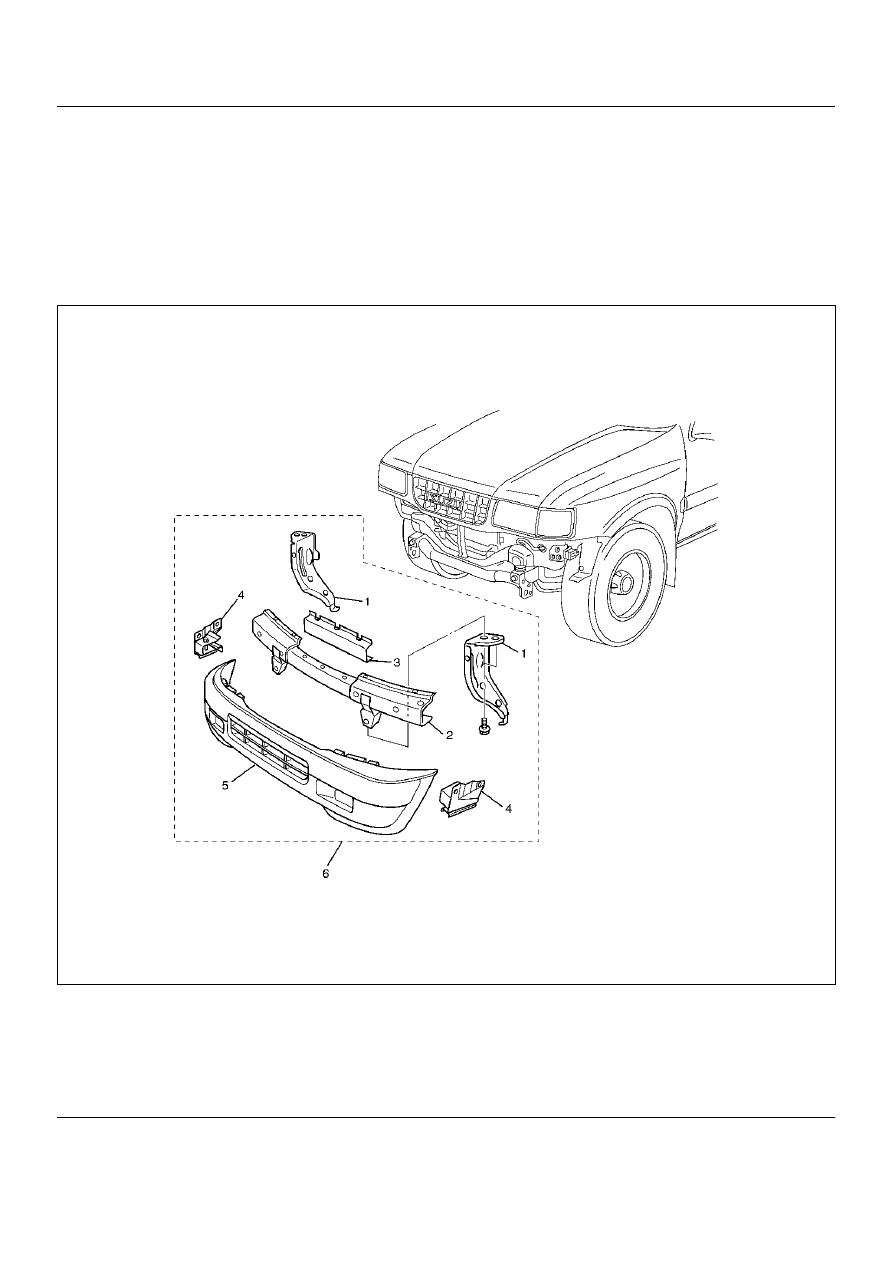

Front Bumper

Parts Location

601RW019

Legend

EndOFCallout

(1) Backbar
(2) Front Bumper Reinforcement Assembly
(3) Support Assembly
(4) Front Bumper Slider

(5) Bumper Fascia
(6) Front Bumper Assembly

8F–6

BODY STRUCTURE

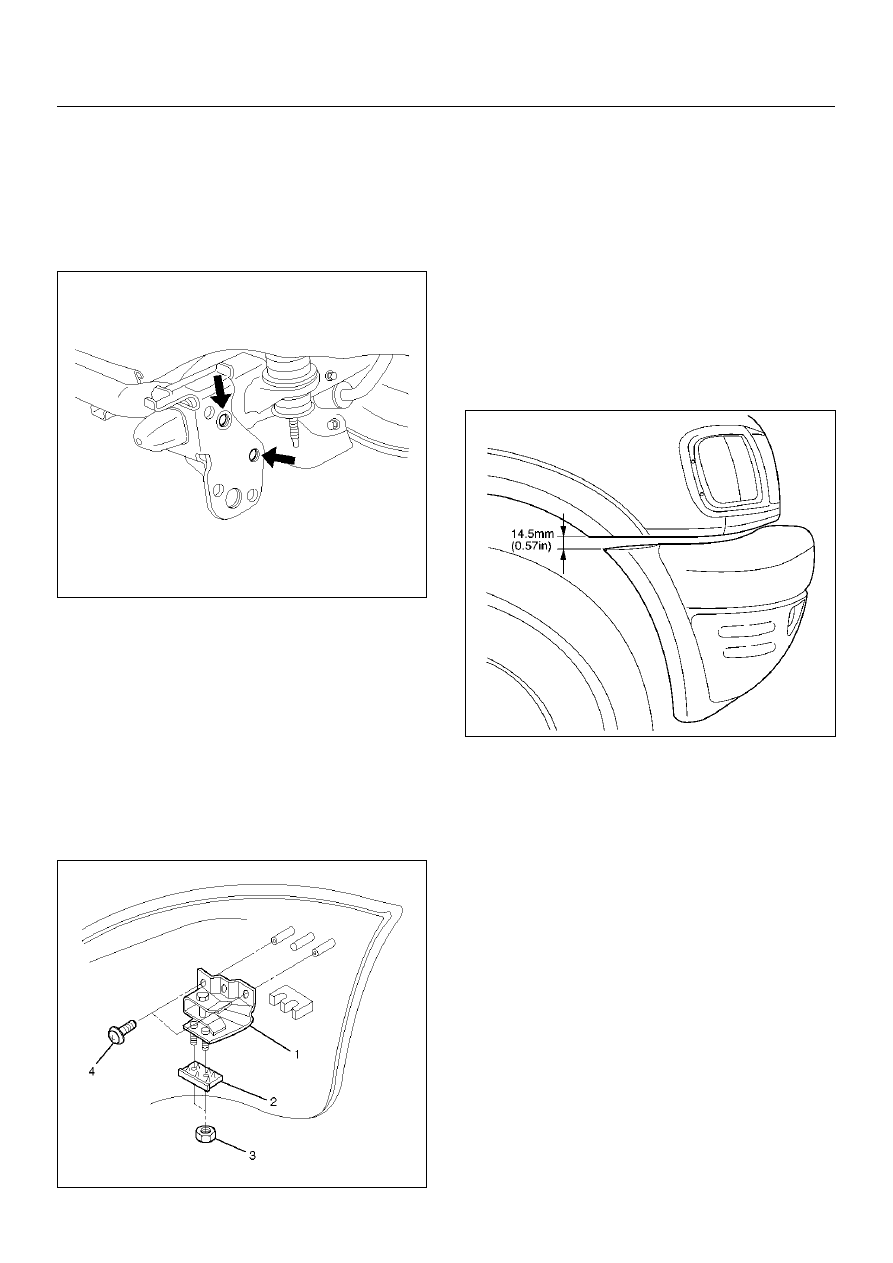

Removal

1. Disconnect the battery ground cable.

2. Disconnect front fog light connector (With fog light).

3. Remove the front bumper fixing bolts.

• Remove the two bolts from both sides of the front

bumper.

601RW004

4. Remove the front bumper assembly.

5. Remove the support assembly.

• Remove the three fixing bolts.

6. Remove the front bumper reinforcement assembly.

• Remove the eleven fixing bolts.

7. Remove the three bolts at each backbar and remove

backbars.

8. Remove the front fog light assembly (With fog light).

9. Remove the front bumper slider(1).

• Remove the two screws(4) and the two nuts(3),

and release the claw from the washer(2).

601RW018

Installation

To install, follow the removal steps in reverse order
noting the following points:

1. Tighten the front bumper assembly fixing bolts to the

specified torque.

Torque : 147 N·m (15 kg·m/108 lb ft)

2. Front bumper adjustment

• When the bolts fixing front bumper assembly are

tightened, adjustment should be made between
the back bar and front side bumper so that a
clearance of 14.5 mm (0.57 in) is provided
between the lower side of the fender and the
upper side of the front bumper.

614RX002

BODY STRUCTURE

8F–7

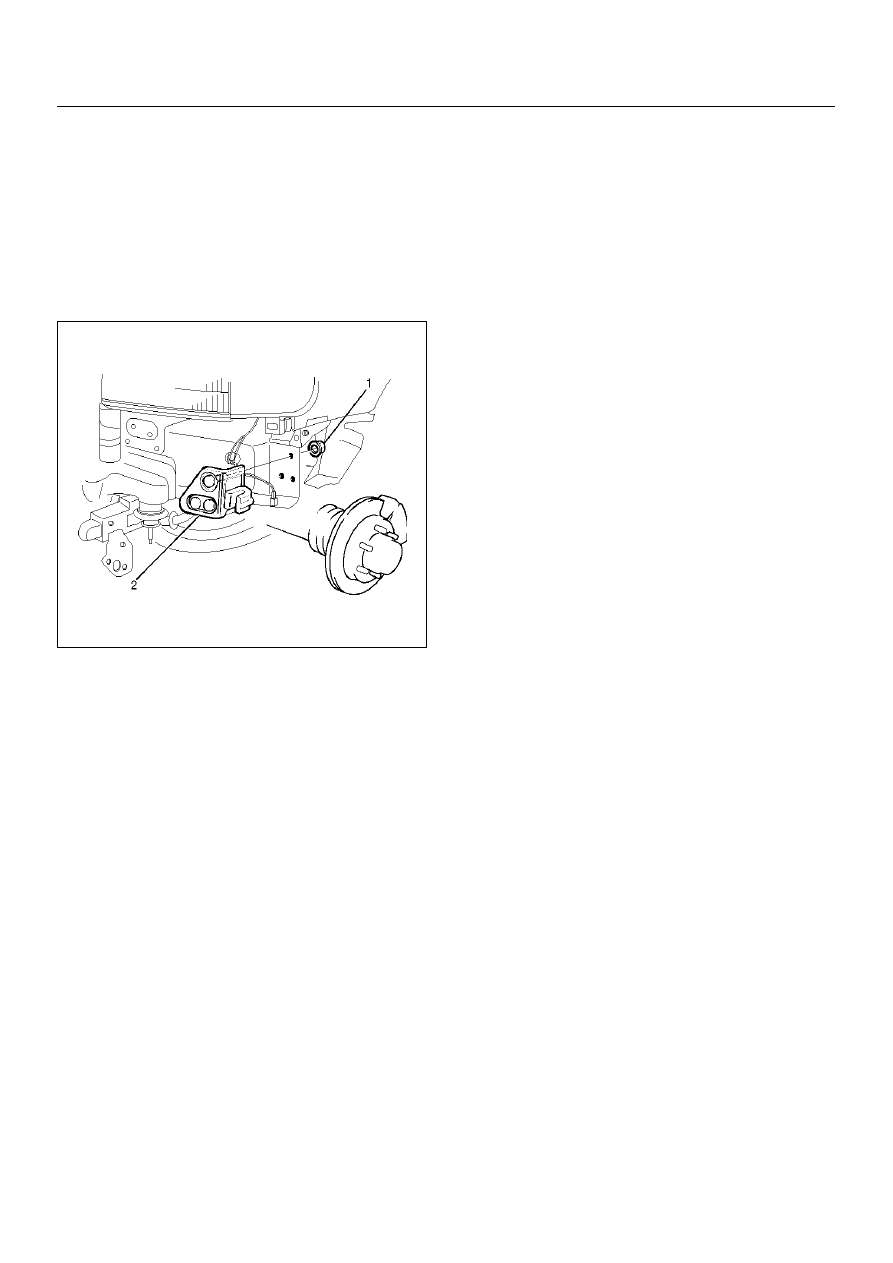

Front Bumper Slider Bracket

Removal

1. Disconnect the battery ground cable.

2. Remove the front bumper.

• Refer to Front Bumper in this section.

3. Remove the three nuts(1) and draw out the slider

bracket(2).

601RW017

Installation

To install, follow the removal steps in reverse order.
