8E–4

METER AND GAUGE

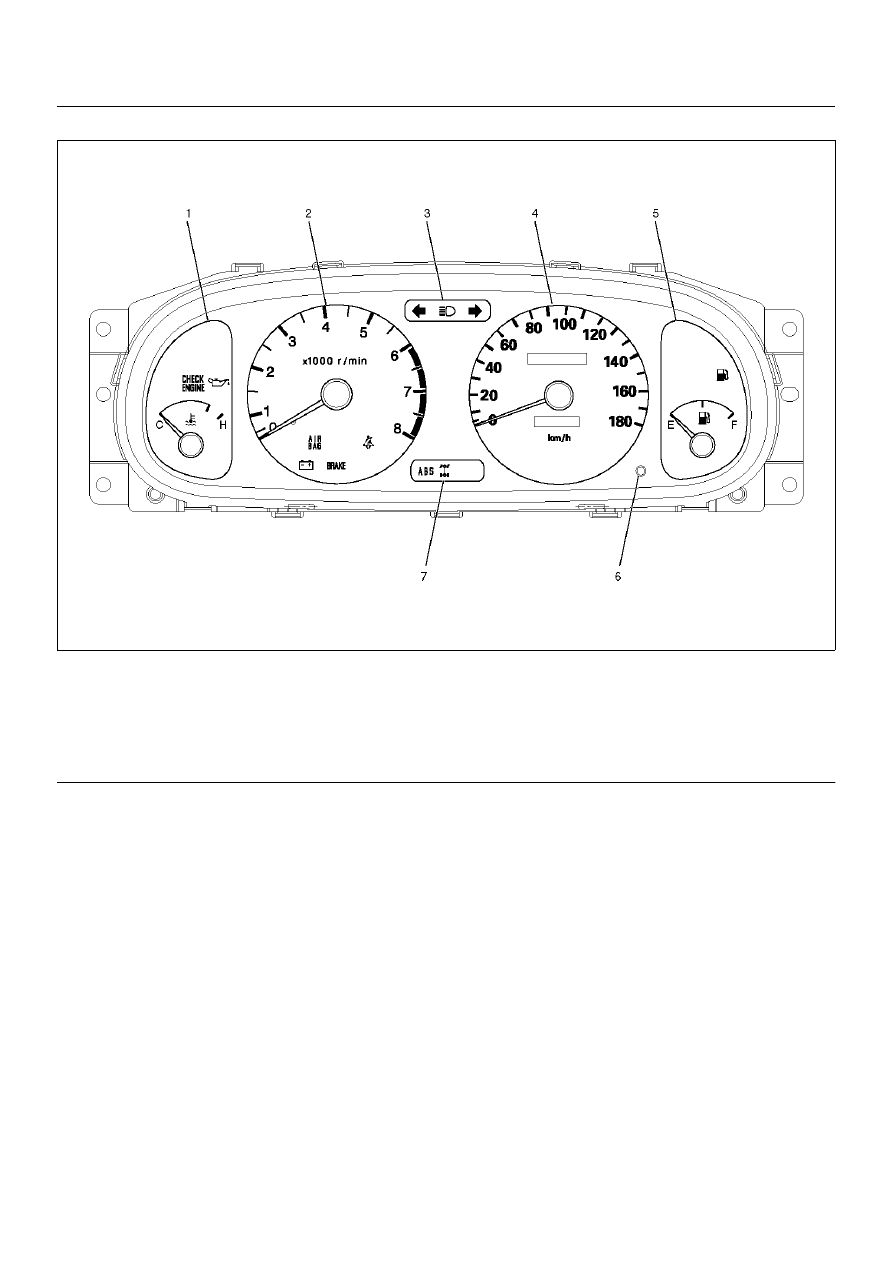

Meter Assembly W/M/T (Front View)

825RX036

Legend

EndOFCallout

(1) Engine Coolant Temperature Gauge
(2) Tachometer
(3) Warning Light Lens
(4) Speedometer

(5) Fuel Gauge
(6) Reset Knob
(7) Warning Light Lens

METER AND GAUGE

8E–5

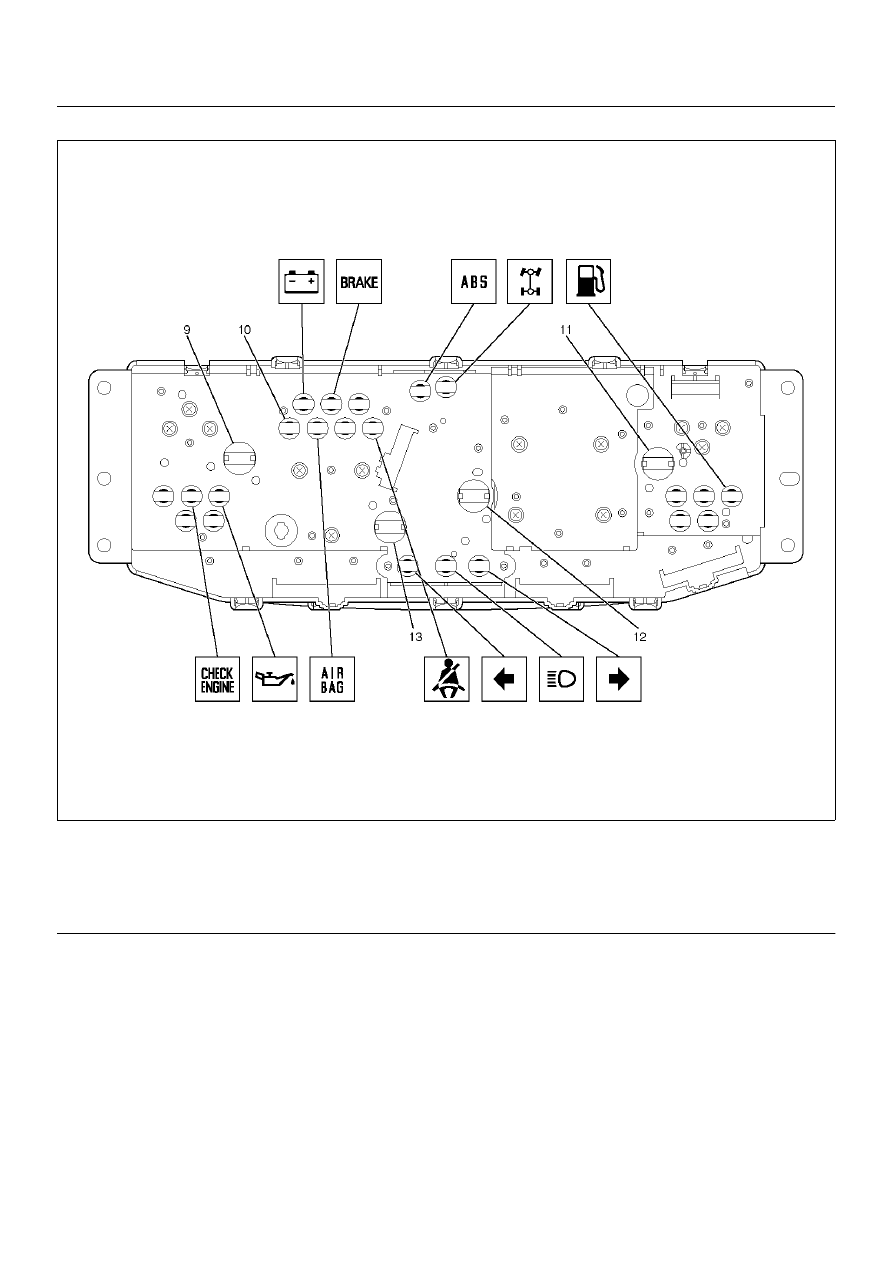

Meter Assembly W/M/T (Rear View)

825RX037

Legend

EndOFCallout

(9) Illumination Light

(10) LCD Light
(11) Illumination Light

(12) Illumination Light
(13) Illumination Light

8E–6

METER AND GAUGE

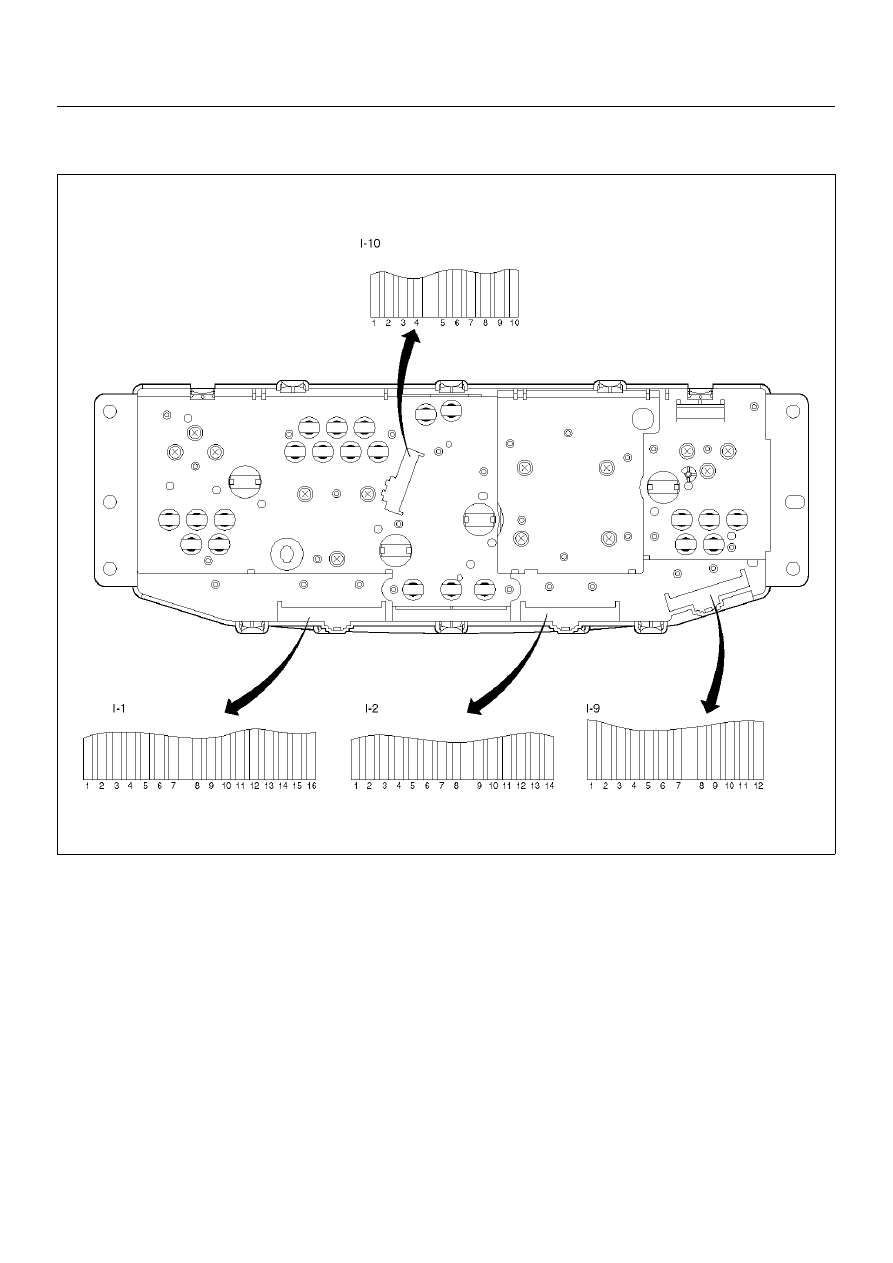

Table for Meter/Gauge Connector Terminal Connections

Meter Assembly W/M/T

825RX014

METER AND GAUGE

8E–7

Connector No. I–1

Terminal

Function

1

—

2

—

3

—

4 Oil pressure warning light

5 Check engine warning light

6

—

7 Engine coolant temperature gauge

8 Brake warning light

9 Ground (Gauge)

10 Charge warning light

11

—

12 Starter switch

13 Air bag warning light

14

—

15 Seat belt warning light

16 Illumination (+)

Connector No. I–2

Terminal

Function

1 Turn signal indicator light (Left)

2 Turn signal indicator light (Right)

3 Ground

4

—

5 Illumination (

−

)

6 Tachometer

7

—

8

—

9 ABS indicator light

10 4WD indicator light

11

—

12 Speedometer

13 Ground

14 Fuel gauge

Connector No. I–9

Terminal

Function

1 Illumination (

−

)

2 Illumination (+)

3

—

4

—

5

—

6

—

7

—

8

—

9

—

10

—

11 Battery (+)

12

—

Connector No. I–10

Terminal

Function

1

—

2

—

3

—

4

—

5

—

6

—

7

—

8

—

9 High–beam indicator light (

−

)

10 High–beam indicator light (+)
