METER AND GAUGE

8E–1

BODY AND ACCESSORIES

METER AND GAUGE

CONTENTS

Service Precaution......................................... 8E - 1

Meter Assembly ............................................ 8E - 2

General Description .................................... 8E - 2
Layout for Meters/Gauges, Warning Lights,

Indicator Lights and Illumination
Lights ...................................................... 8E - 2

Table for Meter/Gauge Connector

Terminal Connections ............................. 8E - 6

Removal ..................................................... 8E - 10
Installation .................................................. 8E - 10

Warning Light Bulb, Indicator Light Bulb,

Illumination Light Bulb,  A/T Shift Indicator

Light Bulb................................................... 8E - 10

Removal...................................................... 8E - 10
Installation................................................... 8E - 10

Vehicle Speed Sensor................................... 8E - 11

Removal...................................................... 8E - 11
Installation................................................... 8E - 11

Fuel Tank Unit ............................................... 8E - 11

Removal...................................................... 8E - 11
Installation................................................... 8E - 11

Main Data and Specifications ........................ 8E - 12

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

SECTION

8E–2

METER AND GAUGE

Meter Assembly

General Description

The meter assembly has the speedometer, tachometer,
engine coolant temperature gauge, fuel gauge  and
warning/indicator lights. These gauges and warning/
indicator lights can be removed and installed from the
back side of meter assembly.

Layout for Meters/Gauges, Warning
Lights, Indicator Lights and
Illumination Lights

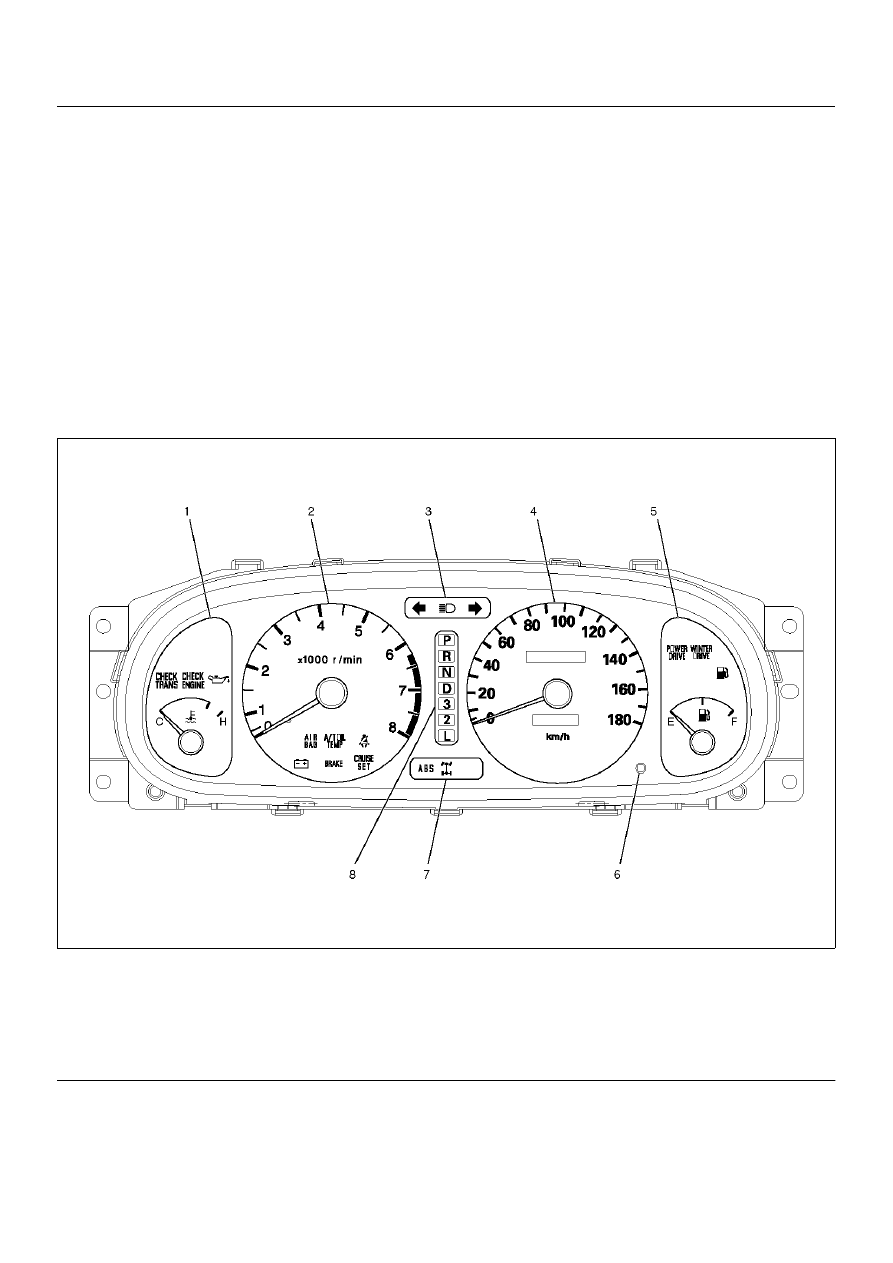

Meter Assembly W/A/T (Front View)

825RX038

Legend

EndOFCallout

(1) Engine Coolant Temperature Gauge
(2) Tachometer
(3) Warning Light Lens
(4) Speedometer

(5) Fuel Gauge
(6) Reset Knob
(7) Warning Light Lens
(8) A/T Shift Indicator

METER AND GAUGE

8E–3

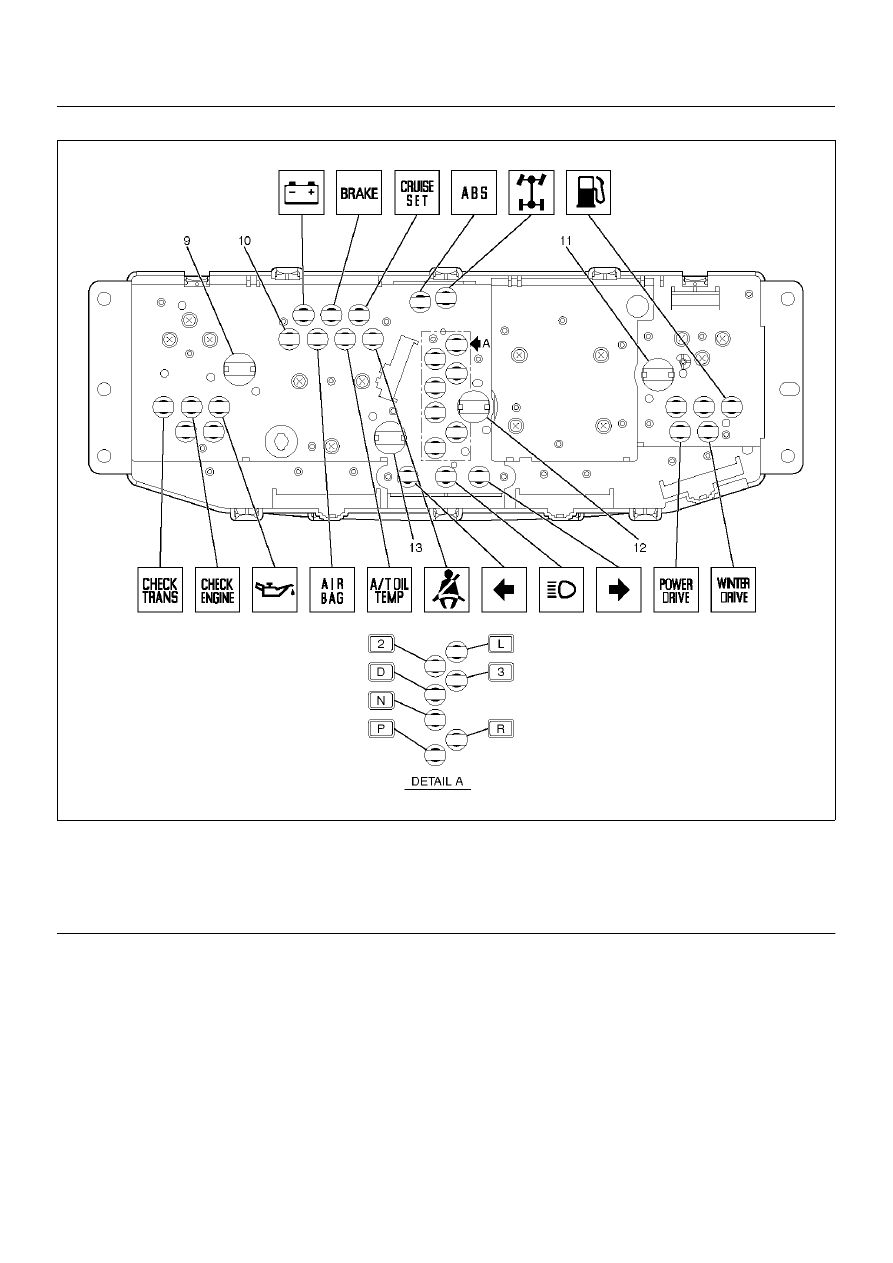

Meter Assembly W/A/T (Rear View)

825RX039

Legend

EndOFCallout

(9) Illumination Light

(10) LCD Light
(11) Illumination Light

(12) Illumination Light
(13) Illumination Light
