8D–160

WIRING SYSTEM

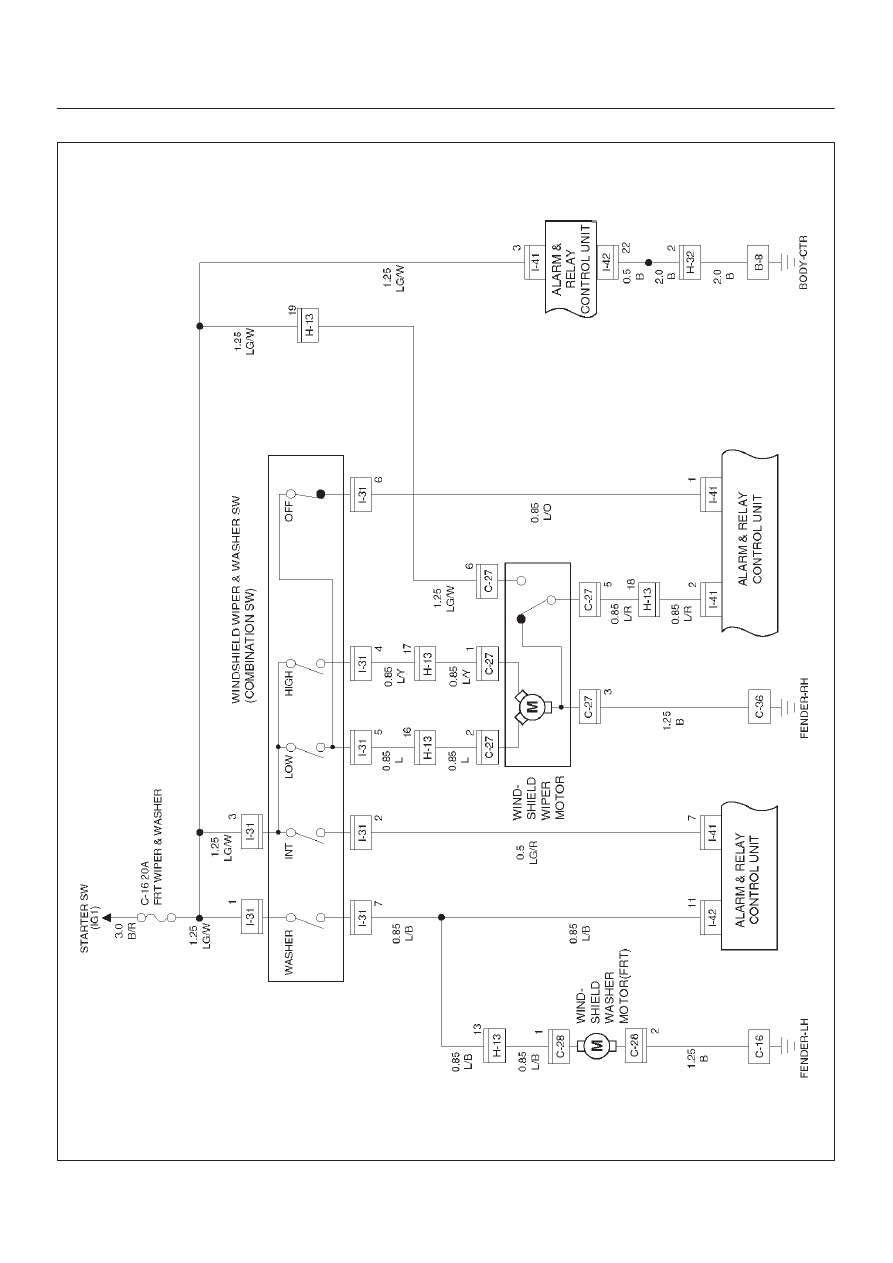

Circuit Diagram (6VD1 M/T)

D08RX220

8D–161

WIRING SYSTEM

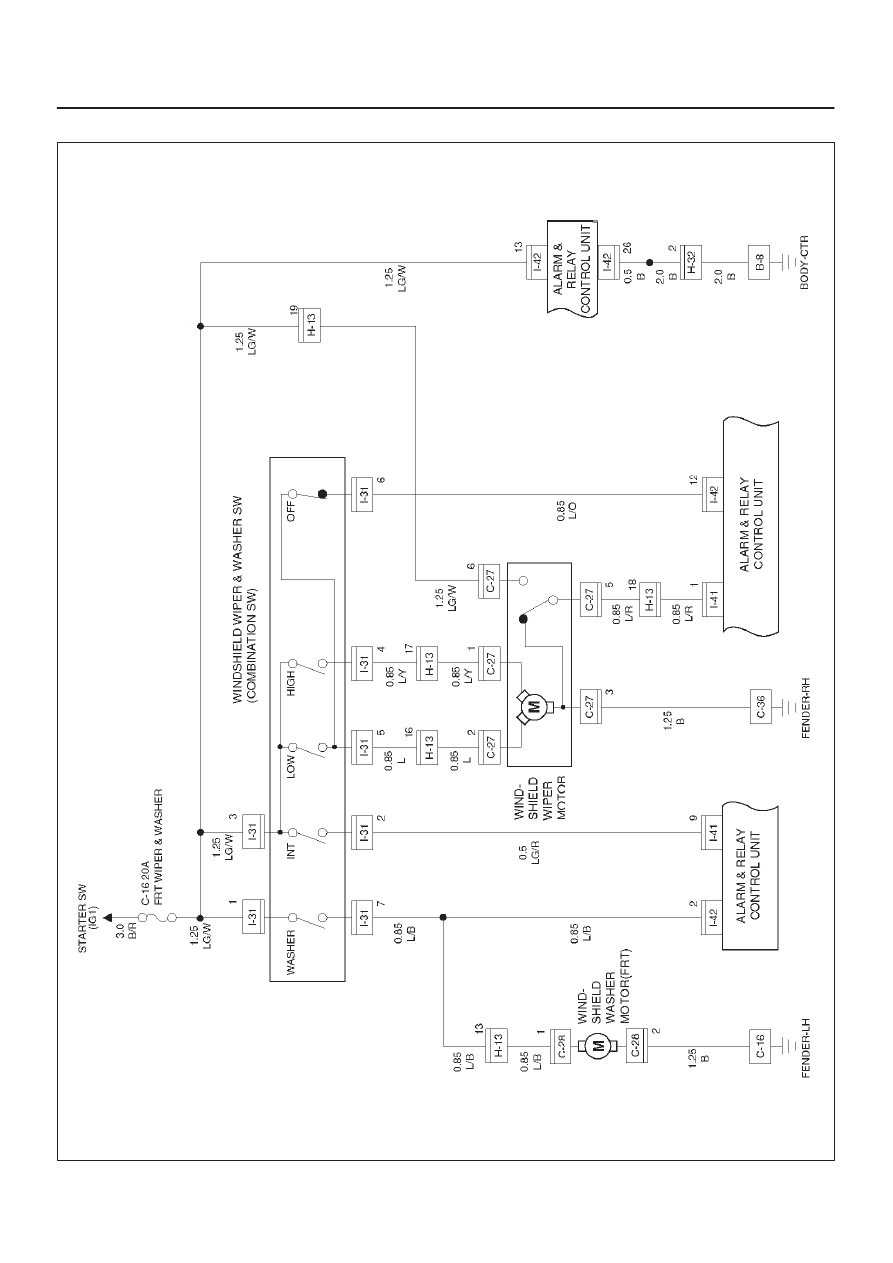

Circuit Diagram (6VD1 A/T)

D08RX218

8D–162

WIRING SYSTEM

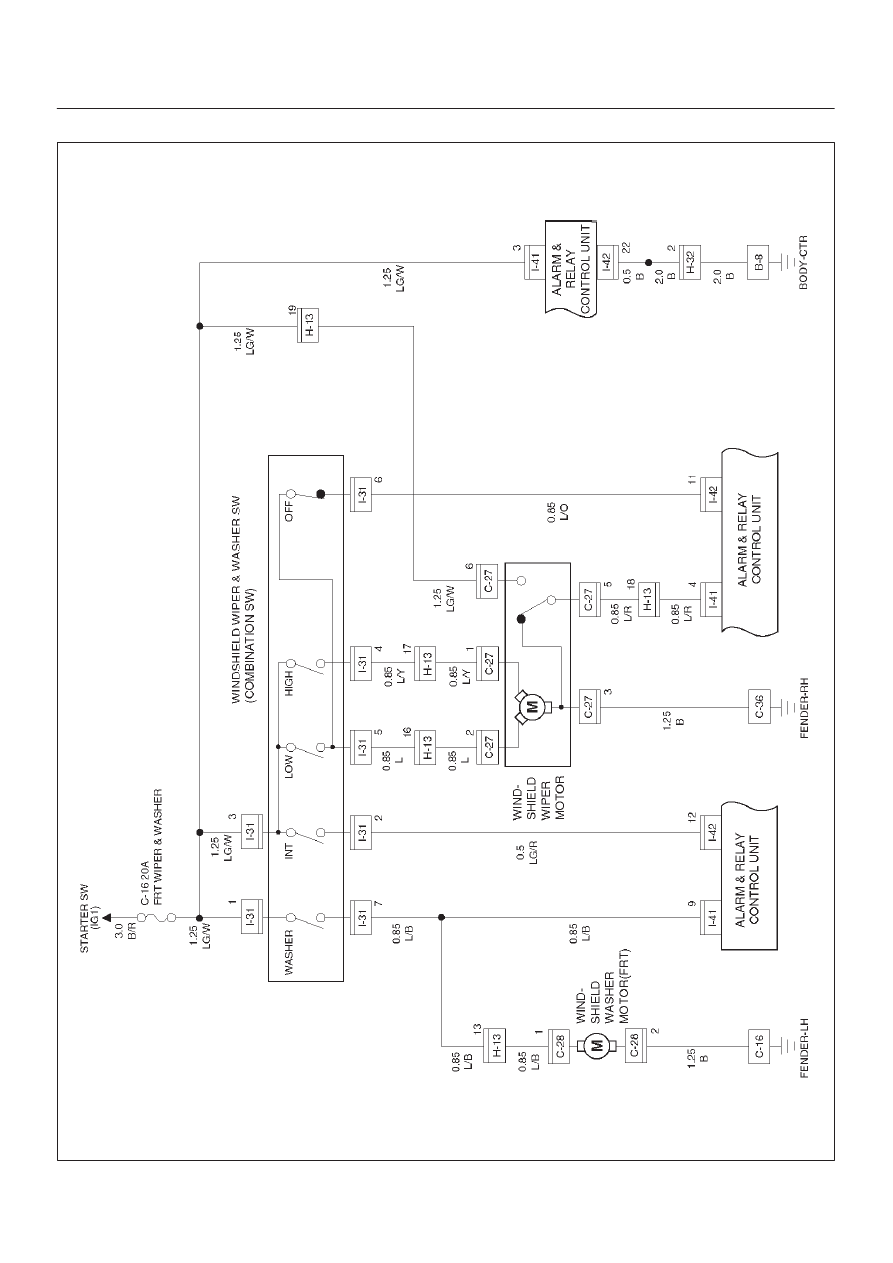

Circuit Diagram (X22SE)

D08RX219

8D–163

WIRING SYSTEM

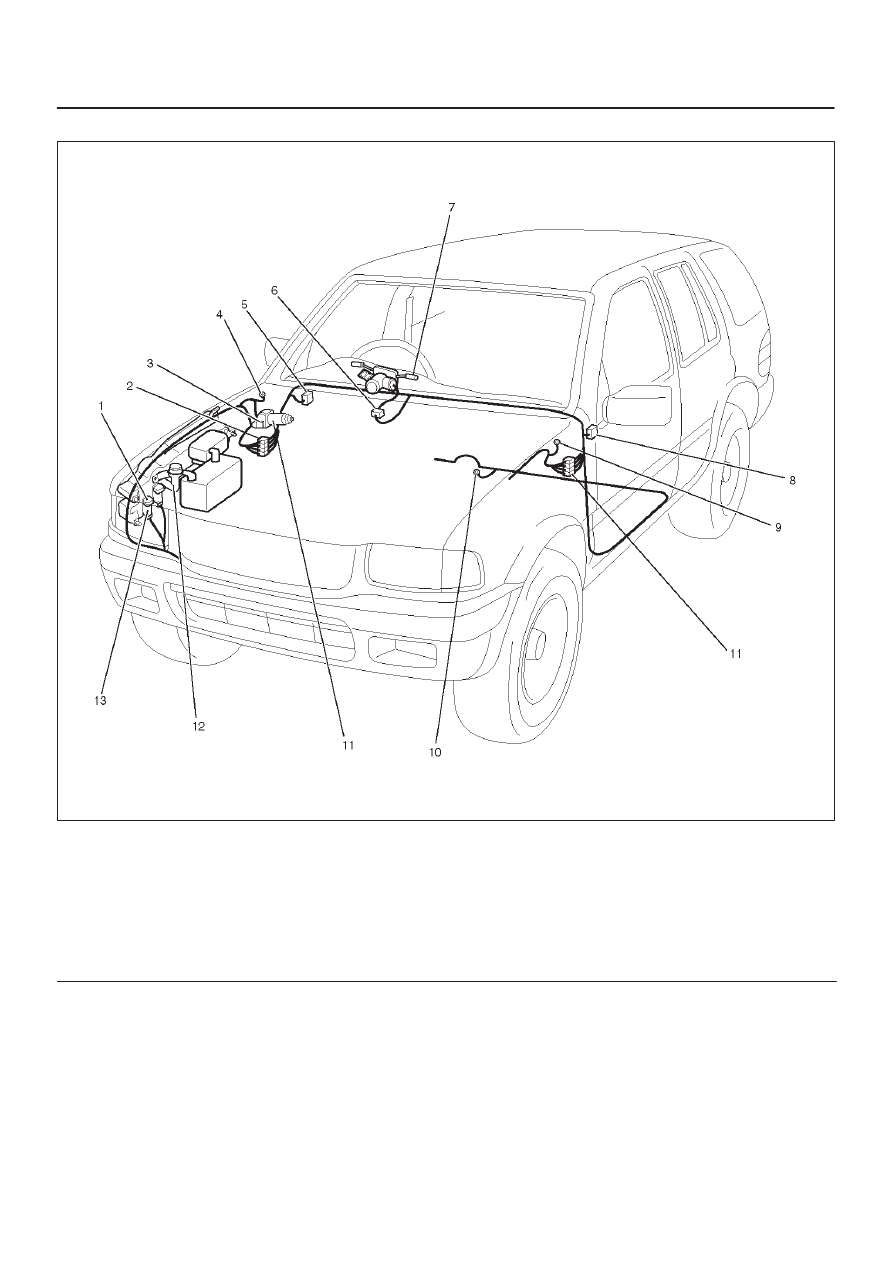

Parts Location

D08RWD12

Legend

(1) C–28
(2) H–13, H–32
(3) C–27
(4) C–36
(5) Relay & Fuse Box (Instrument Panel)
(6) Combination Switch Box

(7) FRT Windshield Wiper, Washer Switch
(8) I–41, I–42
(9) C–16

(10) B–8

(11) FRT Windshield Wiper Motor

(12) Windshield Washer Tank
(13) Windshield Washer Motor
