8D–156

WIRING SYSTEM

A/T Shift Lock

General Description

With the starter switch in the “ON” position and the shift
lever in “P” position, the shift lever cannot be shifted from
“P” to another position unless the brake pedal is
depressed. This is because, unless the brake pedal is
depressed, the solenoid pin underneath the shift lever
retracts and the link lever then locks the shift lever cam.

8D–157

WIRING SYSTEM

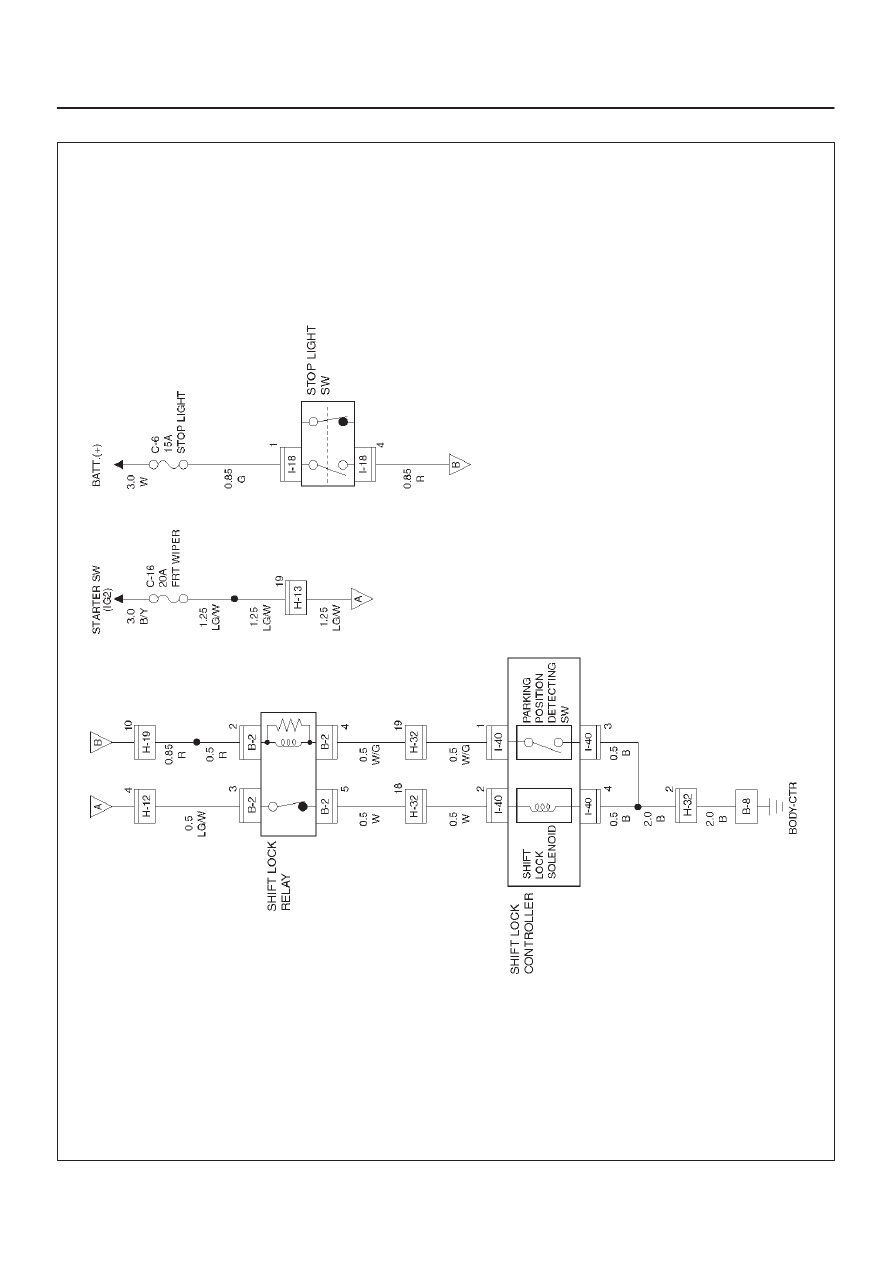

Circuit Diagram–1

D08RY00882

8D–158

WIRING SYSTEM

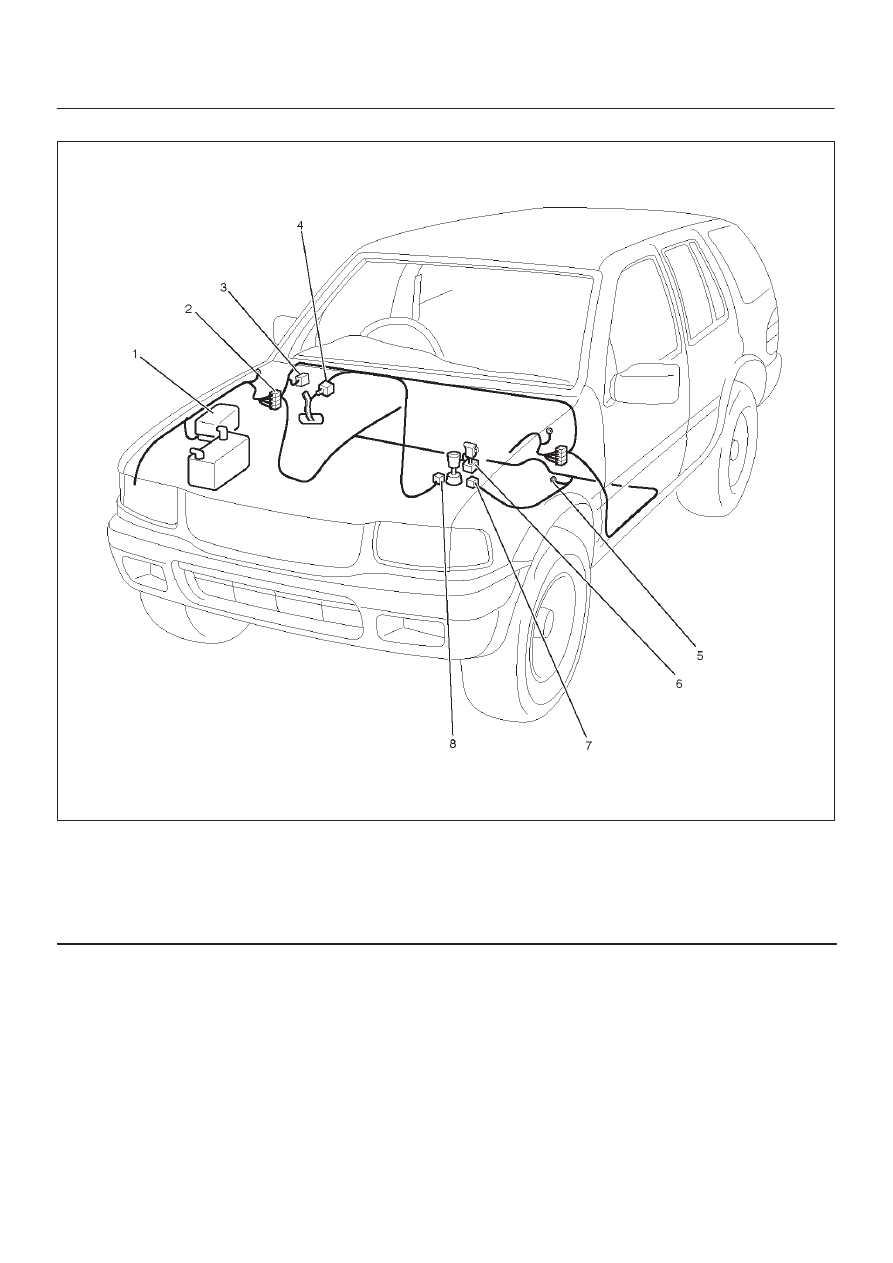

Parts Location

D08RWD16

Legend

(1) Relay & Fuse Box (Engine Room)
(2) H–19, H–32, H–12
(3) Relay & Fuse Box (Instrument Panel)
(4) I–18

(5) B–8
(6) A/T Shift Lever
(7) B–2
(8) I–40

8D–159

WIRING SYSTEM

Windshield Wiper and Washer

General Description

The system consists of a windshield wiper and washer
switch, alarm & relay control unit, windshield wiper motor
and windshield washer motor. With the starter switch in
the “ON” position, when the windshield wiper switch is
turned on (“ON” or “HI”) the battery voltage is applied to
the windshield wiper motor to operate the wipers.
When the “INT” switch is turned on, the operation of the
wipers is controlled by the alarm & relay control unit.
When the “WASHER” switch is turned on, the operation of
the wipers is also controlled by the alarm & relay control
unit and the windshield washer motor operates to squirt
the washing solution when the washer switch is pressed.
