8D–132

WIRING SYSTEM

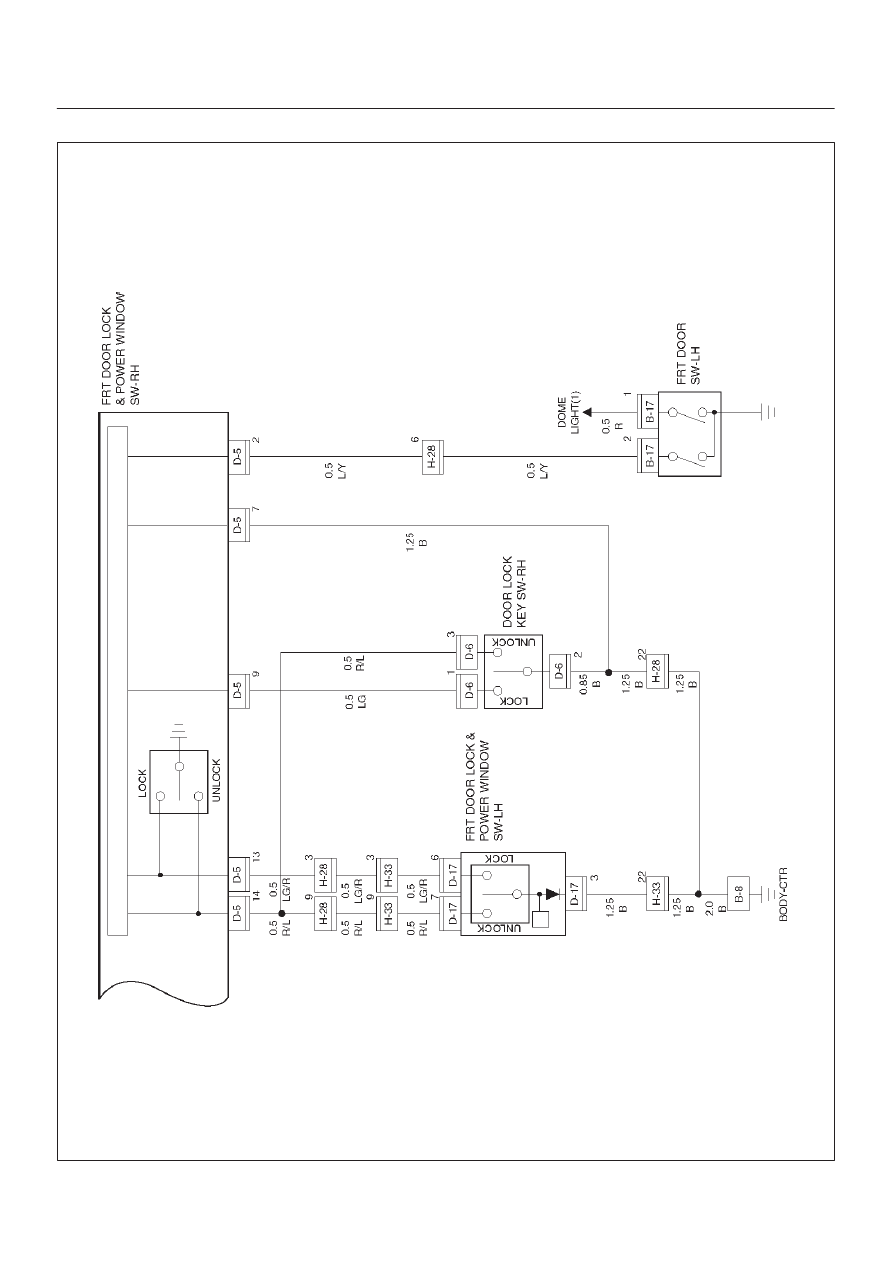

Circuit Diagram–2

D08RX242

8D–133

WIRING SYSTEM

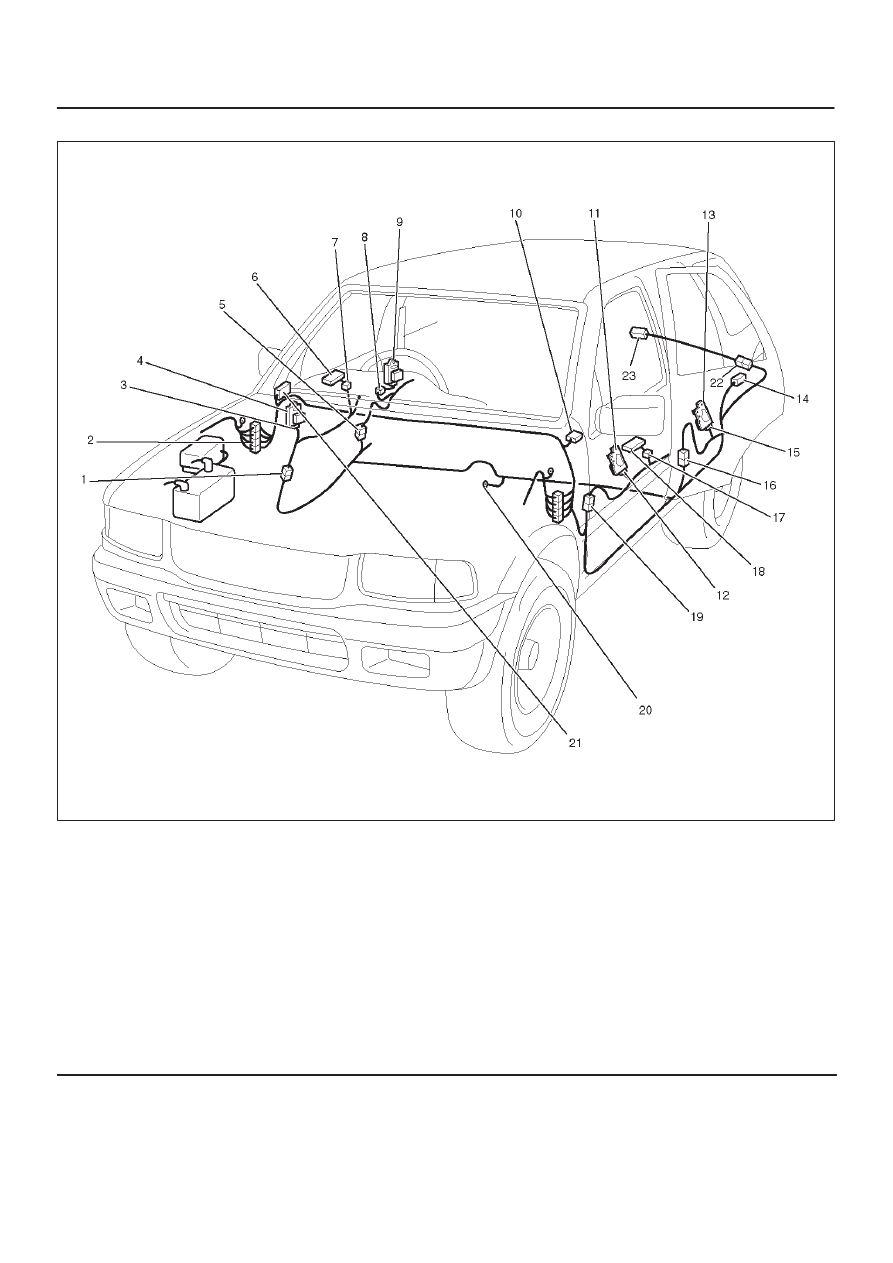

Parts Location

D08RWD15

Legend

(1) H–28
(2) H–19, H–32
(3) D–8
(4) FRT Door Lock Actuator–RH
(5) H–24
(6) FRT Door Lock Switch–RH
(7) D–6, D–5
(8) D–23
(9) RR Door Lock Actuator–RH

(10) I–26

(11) FRT Door Lock Actuator–LH

(12) D–14
(13) RR Door Lock Actuator–LH
(14) B –30
(15) D–28
(16) H–29
(17) D–17
(18) FRT Door Lock Switch–LH
(19) H–33
(20) B–8
(21) Relay & Fuse Box (Instrument Panel)
(22) H–34, H–22 (2Door Model)
(23) G–7

8D–134

WIRING SYSTEM

Diagnosis

All The Doors Do Not Lock And Unlock By Door Lock SW–RH

Step

Action

Value(s)

Yes

No

1

Is the fuse C–7 normal?

—

Go to Step 2

Replace the

fuse

2

Disconnect the front power window & door lock
SW–RH connector D–5.

Is the battery voltage applied between harness side
connector D–5 terminal 11 and the ground?

Approx. 12V

Go to Step 4

Go to Step 3

3

Repair an open circuit between the fuse C–7 and the
switch.

Is the action complete?

—

Verify repair

—

4

Disconnect the FRT door lock actuator–RH connector
D–8.

Is there continuity between harness side connector
D–5 terminal 10 and connector D–8 terminal 1 (or
connector D–5 terminal 12 and connector D–8 terminal
2)?

—

Go to Step 5

Go to Step 6

5

Replace the FRT power window & door lock SW–RH.

Is the action complete?

—

Verify repair

—

6

Repair an open circuit between the FRT power window
& door lock SW–RH and door lock actuator.

Is the action complete?

—

Verify repair

—

All The Doors Do Not Lock and  Unlock by FRT Door Lock SW–LH

Step

Action

Value(s)

Yes

No

1

Disconnect the FRT power window & door lock
SW–RH and –LH connector D–5 and D–17.

Is there continuity between harness side connector
D–5 terminal 13 and connector D–17 terminal 6 (or
connector D–5 terminal 14 and connector D–17
terminal 7)?

—

Go to Step 2

Go to Step 3

2

Replace the FRT power window & door lock SW–LH.

Is the action complete?

—

Verify repair

—

3

Repair an open circuit between the FRT power window
& door lock SW–RH and –LH.

Is the action complete?

—

Verify repair

—

8D–135

WIRING SYSTEM

All the Doors Do Not Not Lock and Unlock by Door Lock Key SW

Step

Action

Value(s)

Yes

No

1

Is B–8 grounded securely?

—

Go to Step 2

Ground it

securely

2

Disconnect the door lock key SW connector D–6.

Is there continuity between harness side connector
D–6 terminal 2 and the ground?

—

Go to Step 4

Go to Step 3

3

Repair an open circuit between connector D–6 terminal
2 and the ground B–8.

Is the action complete?

—

Verify repair

—

4

Is there continuity between the switch side connector
terminal 1 and 2 when the switch is turned to lock
position, and terminal 2 and 3 when the switch is turned
to unlock position?

—

Go to Step 5

Repair or

replace the

switch

5

Repair an open circuit between the door lock key SW
and FRT power window & door lock SW–RH.

Is the action complete?

—

Verify repair

—
