8D–124

WIRING SYSTEM

Circuit Diagram–2 (6VD1 M/T)

D08RX209

8D–125

WIRING SYSTEM

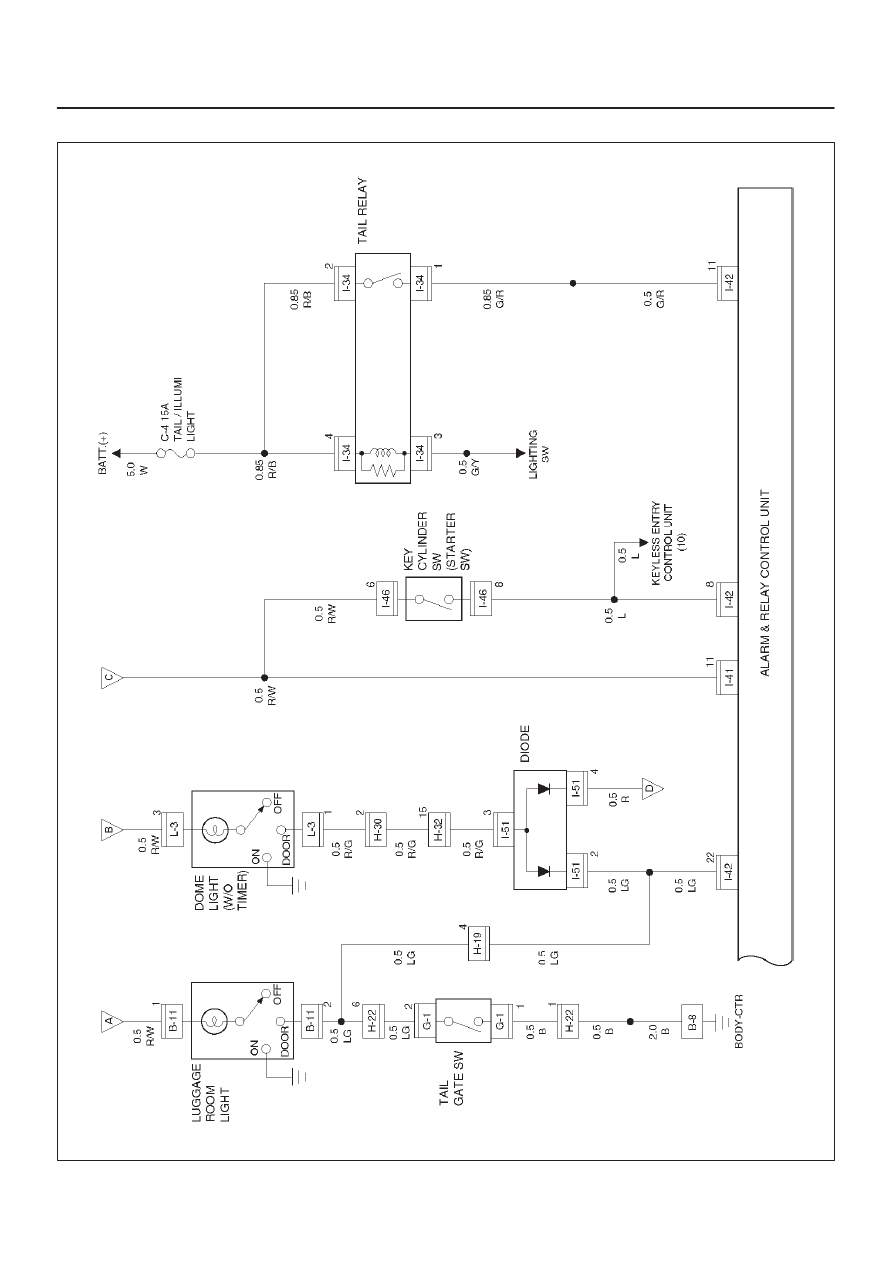

Circuit Diagram–2 (6VD1 A/T)

D08RX211

8D–126

WIRING SYSTEM

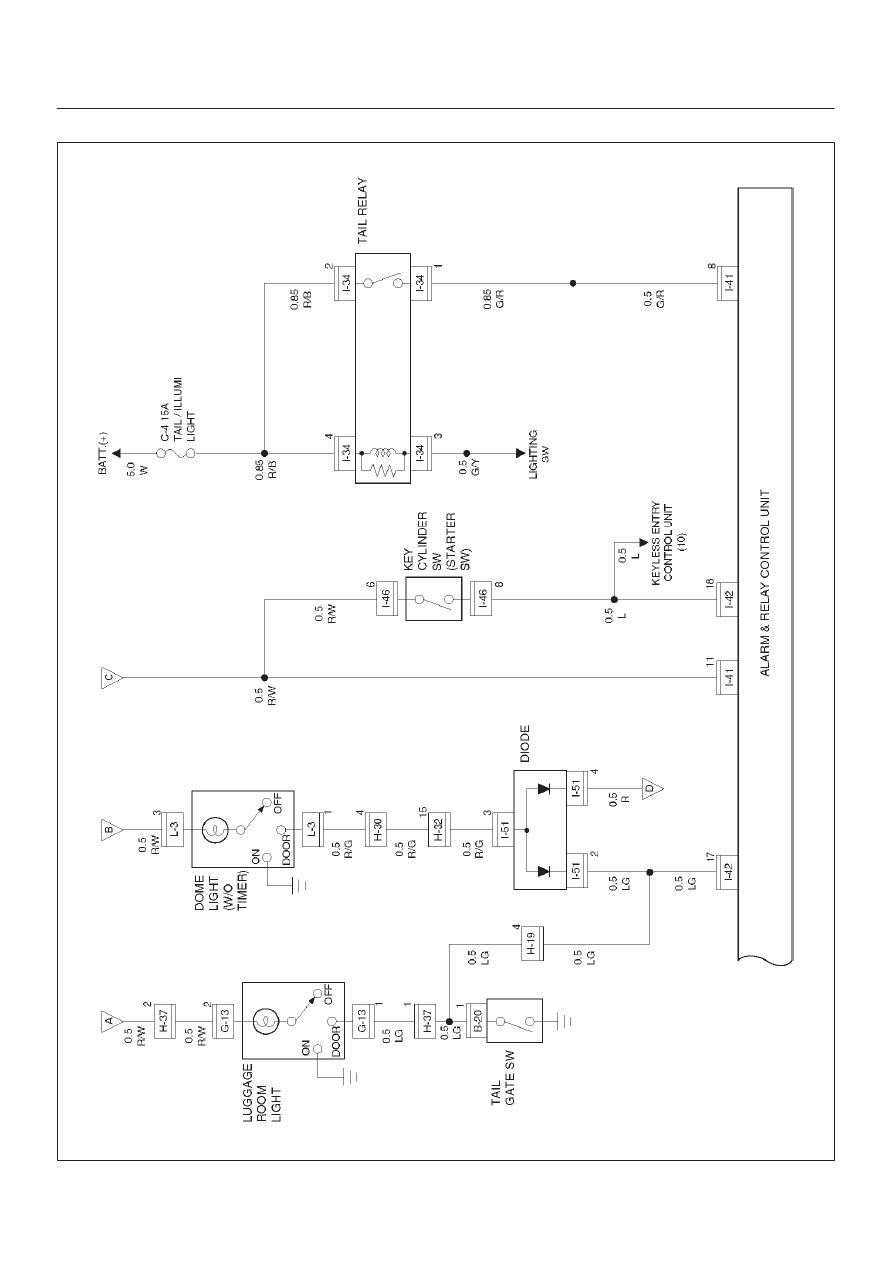

Circuit Diagram–2 (X22SE)

D08RX207

8D–127

WIRING SYSTEM

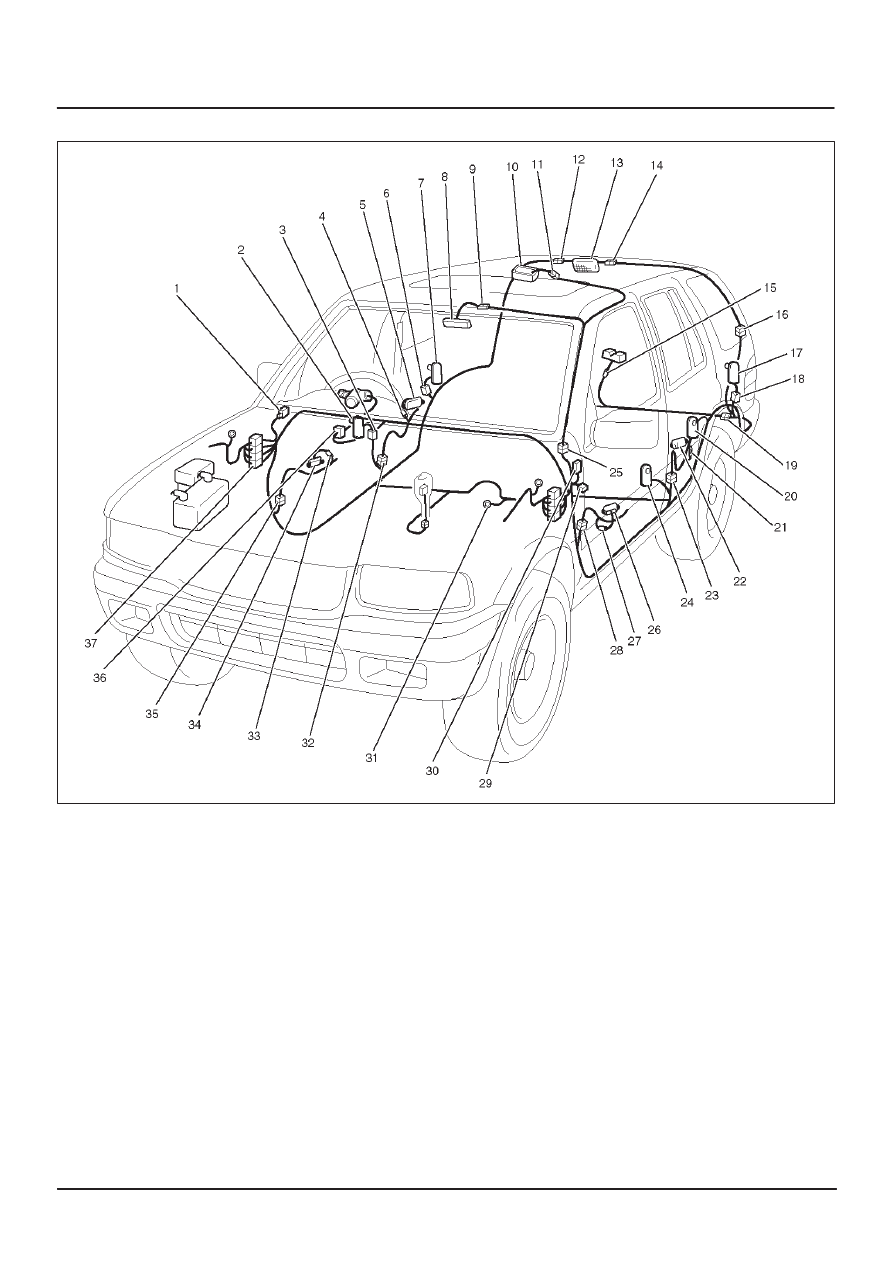

Parts Location

D08RWD17

Legend

(1) Relay & Fuse Box
(2) FRT Door SW–RH
(3) B–1
(4) D–24
(5) RR Courtesy–Light–RH
(6) B–21
(7) RR Door SW–RH
(8) Map Light
(9) L–2

(10) Dome Light

(11) L–3

(12) B–11 (4Door Model)
(13) Luggage Room Light
(14) G–13 (2Door Model)
(15) G–1
(16) H–37
(17) Tailgate Switch
(18) B–20

(19) H–22
(20) RR Door SW–LH
(21) B–16
(22) RR Courtesy–Light–LH
(23) H–29
(24) FRT Door SW–LH
(25) H–30
(26) FRT Courtesy–Light–LH
(27) D–18
(28) H–33
(29) I–26
(30) I–41, I–42
(31) B–8
(32) H–24
(33) FRT Courtesy–Light–RH
(34) D–7
(35) H–28
(36) I–46
(37) H–19, H–32
