WIRING SYSTEM
Dome Light, Luggage Room Light, Courtesy Light, Map Light, Seat
Belt Switch and Warning Buzzer
General Description

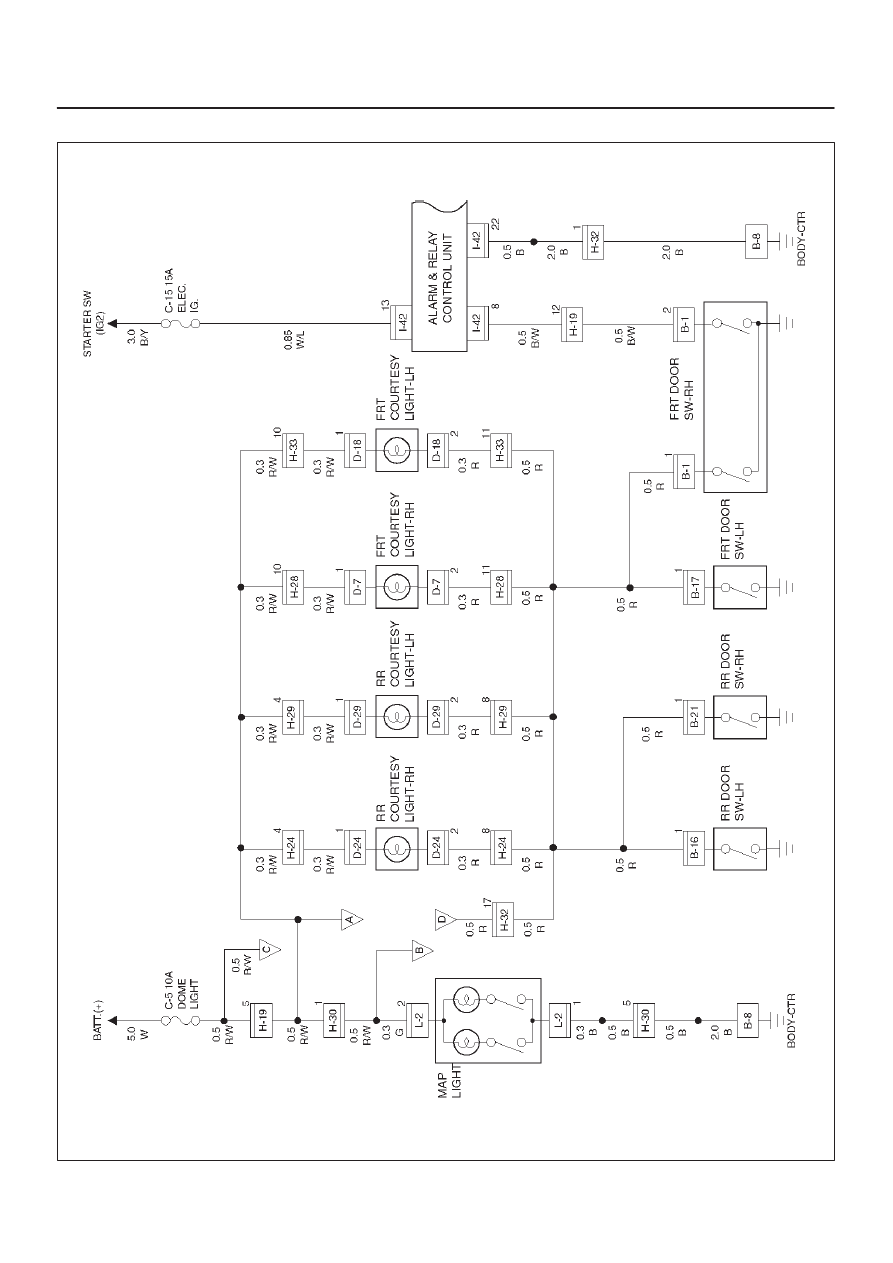

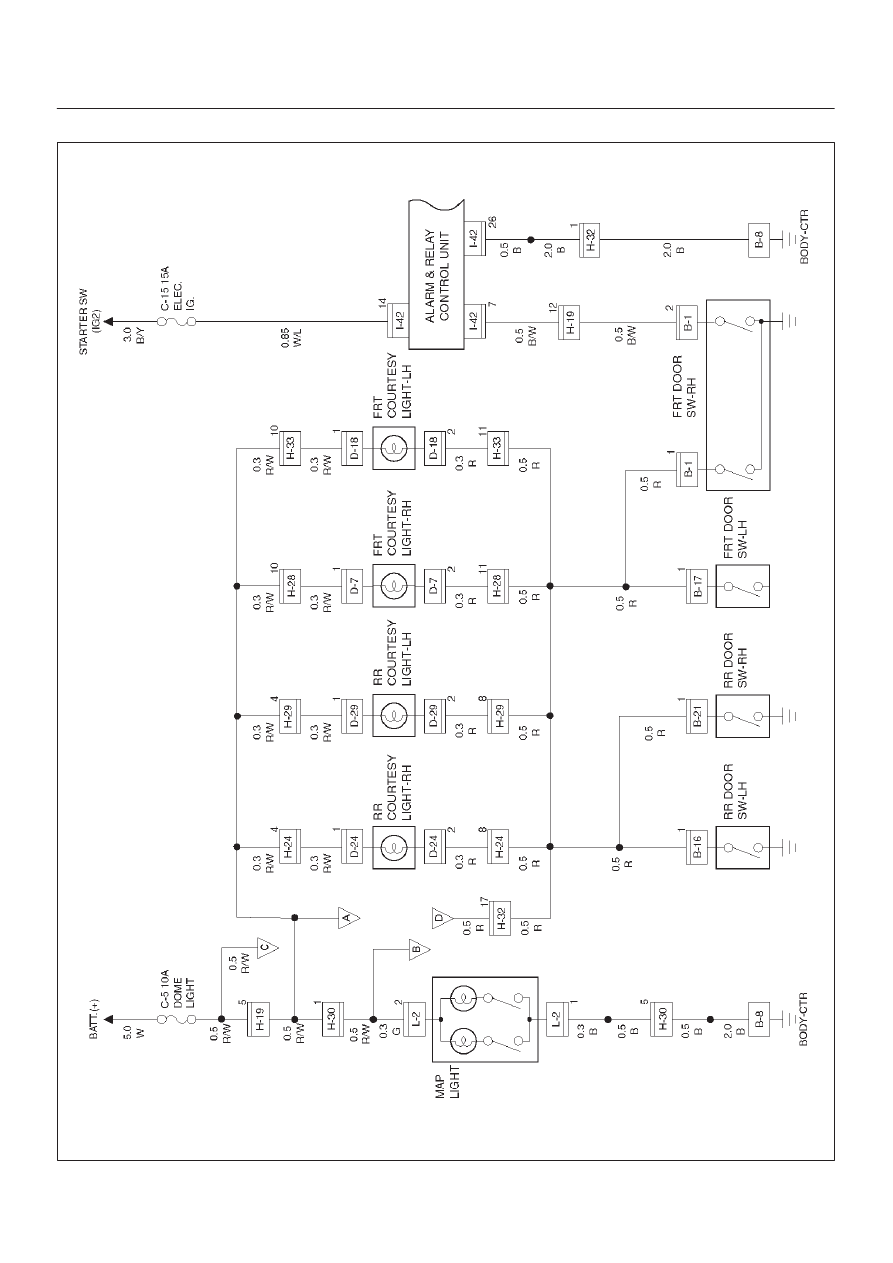

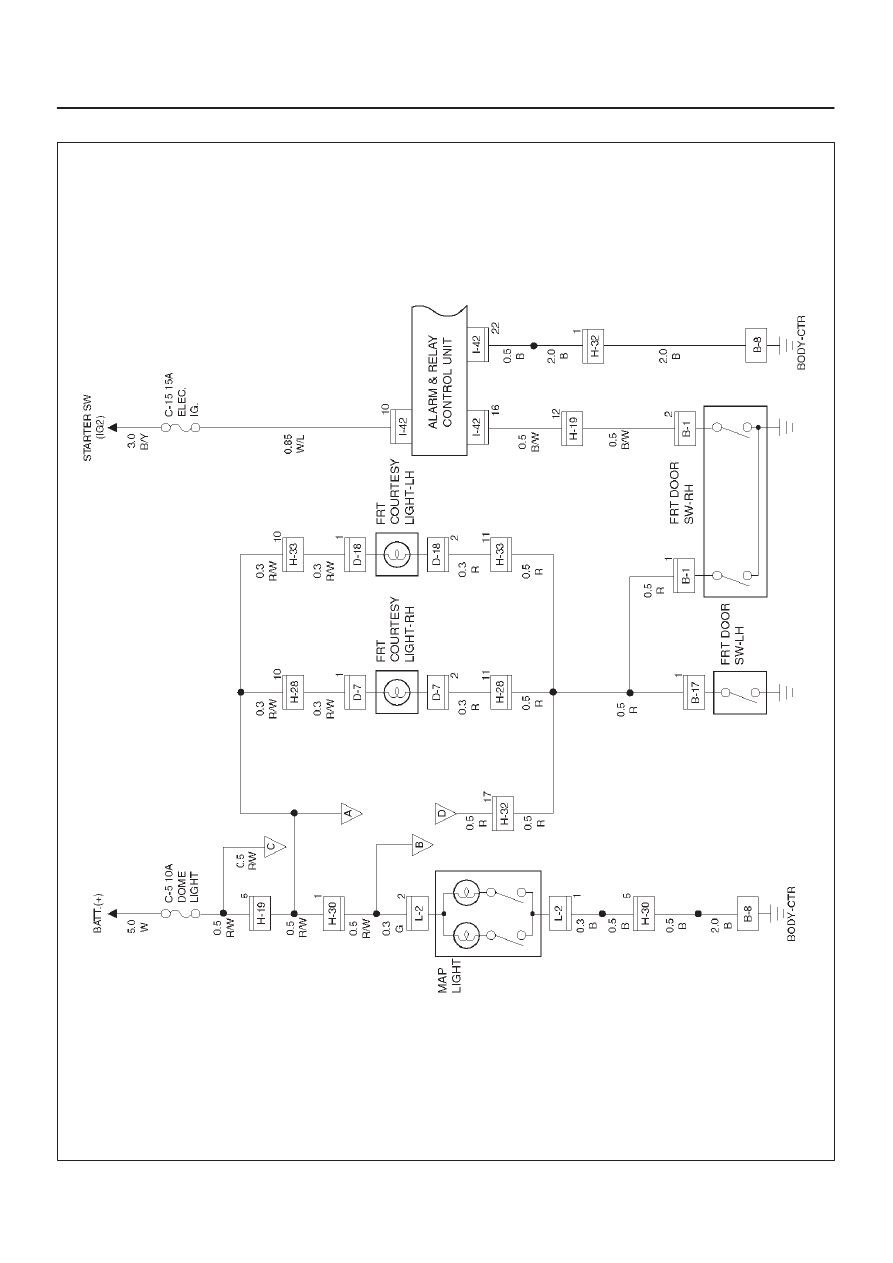

The circuit consists of door switch, dome light, luggage
room light, courtesy light, map light tail relay, key cylinder
switch and alarm & relay control unit.
Dome light comes on with dome light switch turned to
door position and any door open.
The buzzer sounds when starter switch is turned to either
“ACC” or “OFF” position and FRT door–RH, is opened
with lighting switch on.
The buzzer also sounds when FRT door–RH is opened
with starter key left in starter switch key cylinder.
These functions are controlled by alarm & relay control
unit.
