8D–32

WIRING SYSTEM

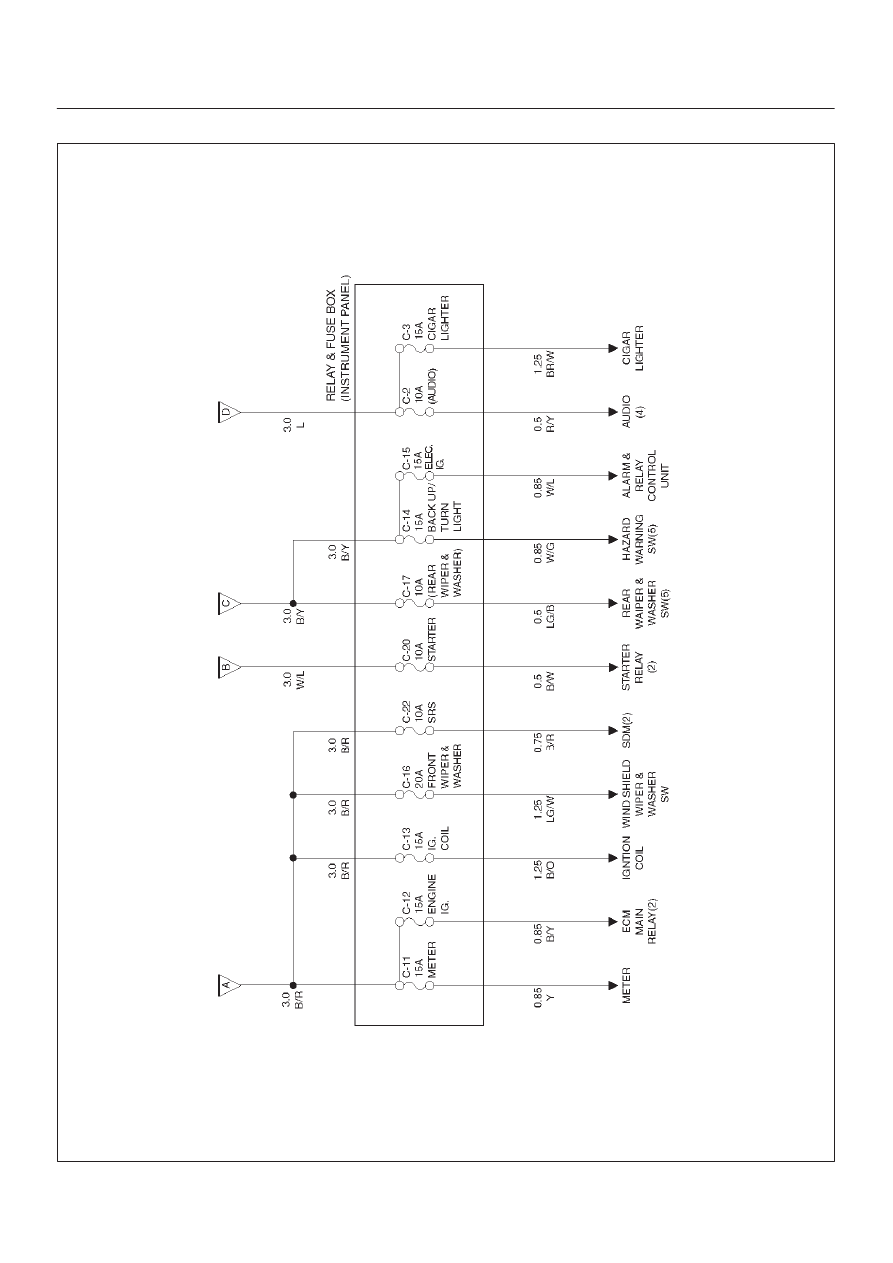

Fuse Block Circuit–4

D08RX283

8D–33

WIRING SYSTEM

Reference Table of Fuse, Fusible Link and Circuit Breaker

Fuse (Relay and Fuse Box · Engine Room)

Fuse No.

Capacity

Indication on label

Parts (Load)

F-1

15A

HAZARD

Hazard warning light

F-2

10A

HORN

Alarm & relay control unit, Horn, Anti - theft horn

F-4

20A

BLOWER

Blower motor, Blower resistor

F-5

10A

A/C

A/C thermostat relay, Electronic thermostat,

A/C compressor relay, Magnetic clutch

F-8

10A

H/L LIGHT - LH

Headlight - LH, High beam indicator light, Fog light relay

F-9

10A

H/L LIGHT - RH

Headlight - RH

F-10

15A

FOG LIGHT

Fog light

F-11

20A

O

2

SENSOR

Oxygen sensor

F-12

20A

FUEL PUMP

Fuel pump

F-13

15A

ECM

Engine control module

F-14

–

–

–

FL-1

60A

ABS

EHCU

FL-2

30A

COND.FAN

(6VD1) Condenser fan unit

FL-4

100A

MAIN

FL-5

60A

IGN.

FL-6

30A

ELEC. FAN

(X22SE) Electric fan relay, Electric fan

Fuse (Relay & Fuse Box · Instrument Panel)

Fuse No.

Capacity

Indication on label

Parts (Load)

C-1

20A

ACC. SOCKET

Acc socket relay, Acc socket

C-2

10A

(AUDIO)

Audio

C-3

15A

CIGAR LIGHTER

Cigarette Lighter

C-4

15A

TAIL/ILLUMI. LIGHT

Tail relay, Parking light & Side marker light, Tail light
License plate light, Illumination controller, Illumination
light, A/T shift indicator control unit

C-5

10A

DOME LIGHT

Stop light, Dome light, Courtesy light - LH, Courtesy light
- RH, Courtesy light RR - LH, Courtesy light RR - RH,
Luggage room light, Alarm & relay control unit, Digital
clock, Audio

C-6

15A

STOP LIGHT

Stop light switch, Rear combination light - LH, Rear
combination light - RH, High mounted stop light

C-7

20A

(POWER DOOR

LOCK)

FRT door lock & Power window SW, Door lock actuator,
Anti- theft indicator light

C-8

10A

(MIRROR DEFOG)

Mirror defogger

C-9

15A

(REAR DEFOG)

Rear defogger

C-10

15A

(REAR DEFOG)

Rear defogger

C-11

15A

METER

Indicator and warning lights (meter), Meter gauge,
Vehicle speed sensor

C-12

15A

ENGINE IG.

Generator, ECM main relay, VSV; purge solenoid, Coil
drive, PCM, EGR valve

8D–34

WIRING SYSTEM

Fuse (Relay & Fuse Box · Instrument Panel)

Fuse No.

Capacity

Indication on label

Parts (Load)

C-13

15A

IG. COIL

Ignition coil

C-14

15A

BACKUP/TURN

LIGHT

Mode SW, PCM, Turn signal light, Backup light, Cruise
control unit, A/T shift indicator control unit

C-15

15A

ELEC. IG.

Alarm & relay control unit, Rear defogger relay, Mirror
defogger - LH, Mirror defogger - RH, Rear defogger SW,
Power window relay, Cruise control unit, Shift lock relay,
4WD control unit, VSV; FRT axle (c), VSV; FRT axle (d)

C-16

20A

FRONT WIPER &

WASHER

Windshield wiper motor, Windshield washer motor,
Alarm & relay control unit

C-17

10A

(REAR WIPER &

WASHER

Rear wiper motor, Rear washer motor, Alarm & relay &
control unit

C-19

15A

(AUDIO)

Audio

C-20

10A

STARTER

Starter, Starter relay, Anti - theft cotroller

C-22

10A

SRS

SRS warning light, SDM

PCM: Power train module, VSV: Vacuum switching valve

Fusible Link (Relay and Fuse Box · Engine Room)

Fuse Link No.

Capacity

Indication on label

FL-1

60A

ABS

FL-2

30A

COND. FAN

FL-4

100A

MAIN

FL-5

60A

IGN.

FL-6

30A

ELEC. FAN

ABS: Anti - lock Brake System

Circuit Breaker (Relay & Fuse Box · Instrument Panel)

Fuse No.

Capacity

Indication on label

Parts (Load)

C-21

30A

(POWER WINDOW)

Power window relay, Power window SW, Power window
motor, Sun roof motor, Sun roof control unit, Sun roof
SW, Safety stop SW, Limit SW, Power seat switch, Front
tilt motor & SW, Rear tilt motor & SW, Slide motor, Re-
cliner moror & SW

8D–35

WIRING SYSTEM

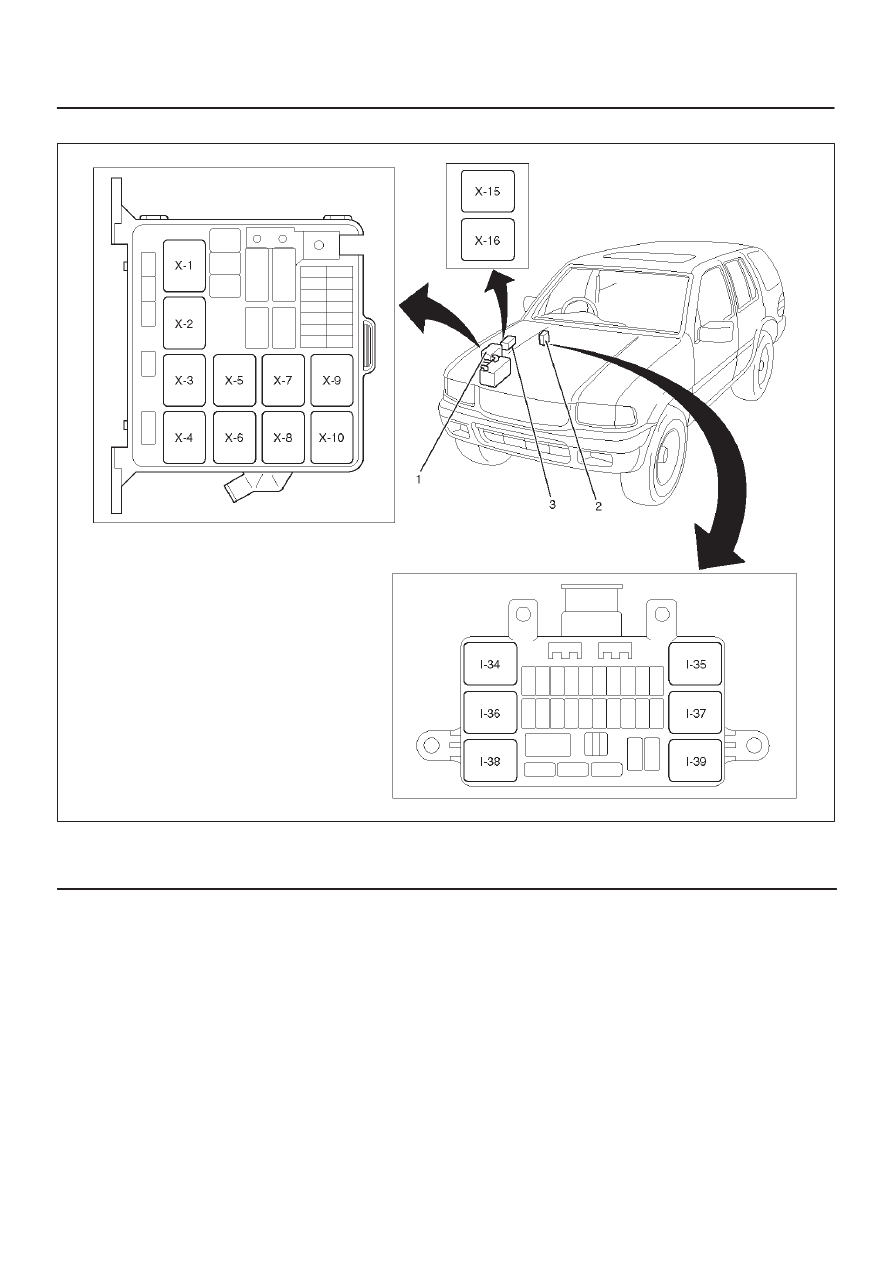

Relay Location

810RX014

Legend

(1) Relay & Fuse Box (Engine Room)

(2) Relay & Fuse Box (Instrument panel)
(3) Relay Box (Engine Room)
