WIPER/WASHER SYSTEM

8B–11

Rear Washer Motor

Removal

1. Disconnect the battery ground cable.

2. Remove the fender inner liner (right side).

3. Disconnect the windshield washer motor connector

and the rear washer motor connector.

4. Disconnect the windshield washer hose connector

and the rear washer hose connector.

5. Remove the filler neck (2).

• Remove the bolt.

6. Remove the washer tank (1).

• Remove the three nuts.

7. Pull out the rear washer motor (3) from the washer

tank.

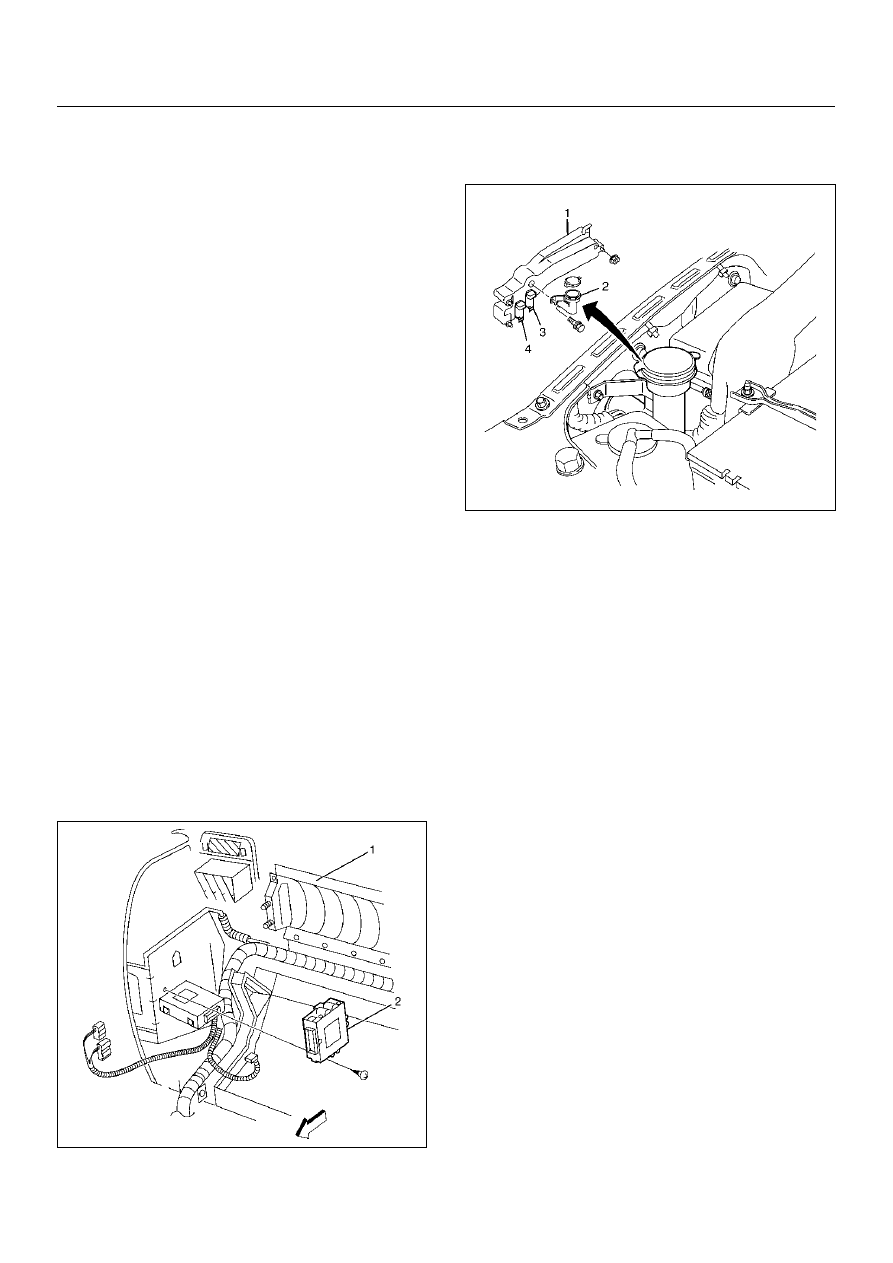

880RW028

Installation

To install, follow the removal steps in the reverse order.

Alarm and Relay Control Unit

Removal

1. Disconnect the battery ground cable.

2. Remove the instrument panel (1).

3. Remove the alarm and relay control unit (2).

• Remove the fixing screw and disconnect the

connector.

826RW039

Installation

To install, follow the removal steps in the reverse order.

8B–12

WIPER/WASHER SYSTEM

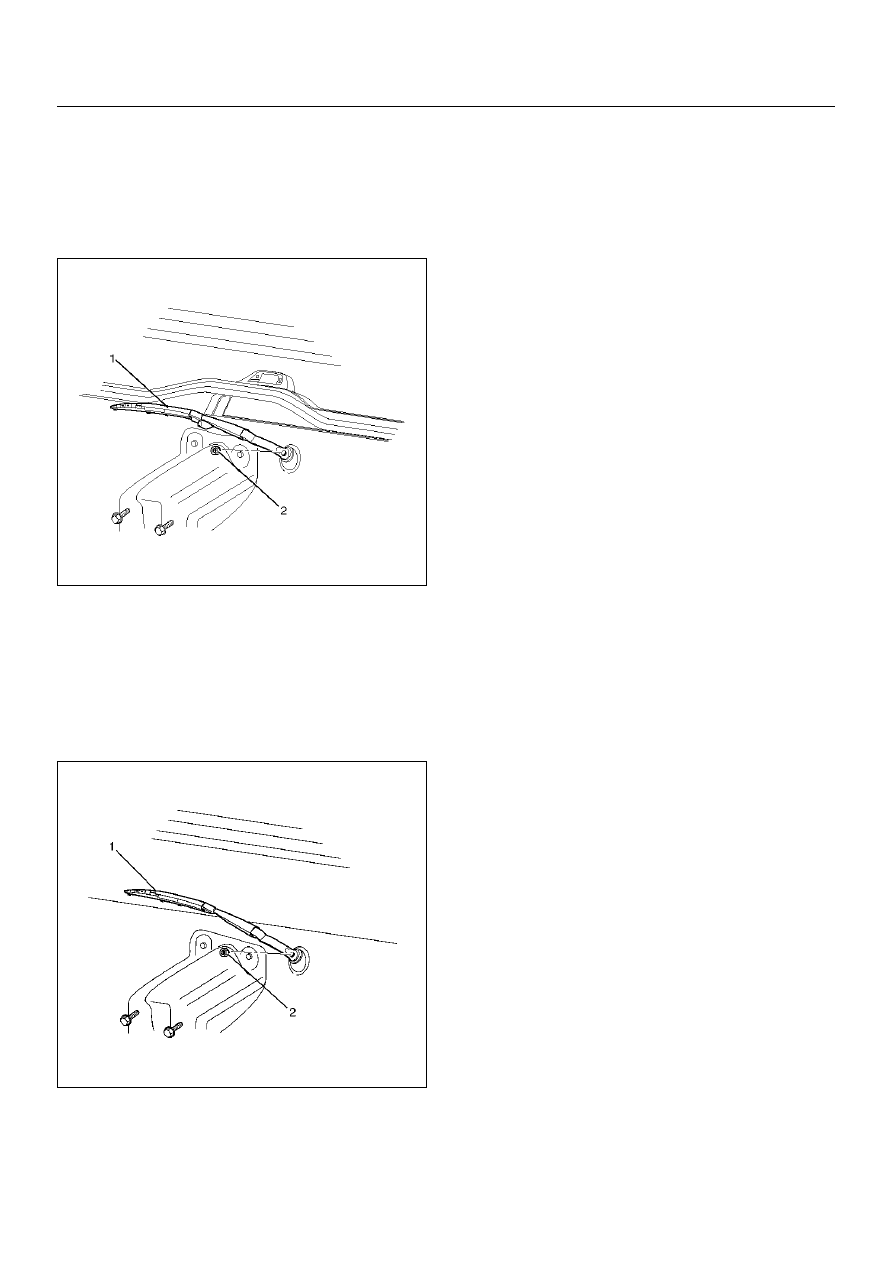

Rear Wiper Arm/Blade (4Door Model)

Removal

1. Remove the arm nut(2).

2. Remove the wiper arm/blade(1).

885RW007

Installation

Refer to Rear Wiper Motor (4door Model) in this section.

Rear Wiper Arm/Blade (2Door Model)

Removal

1. Remove the arm nut(2).

2. Remove the wiper arm/blade(1).

885RX003

Installation

Refer to Rear Wiper Motor (2door Model) in this section.

WIPER/WASHER SYSTEM

8B–13

Rear Washer Nozzle (4Door Model)

Removal

1. Remove the washer nozzle(1).

• Pull out the washer nozzle from the washer hose

(2).

885RW003

Installation

To install, follow the removal steps in the reverse order.

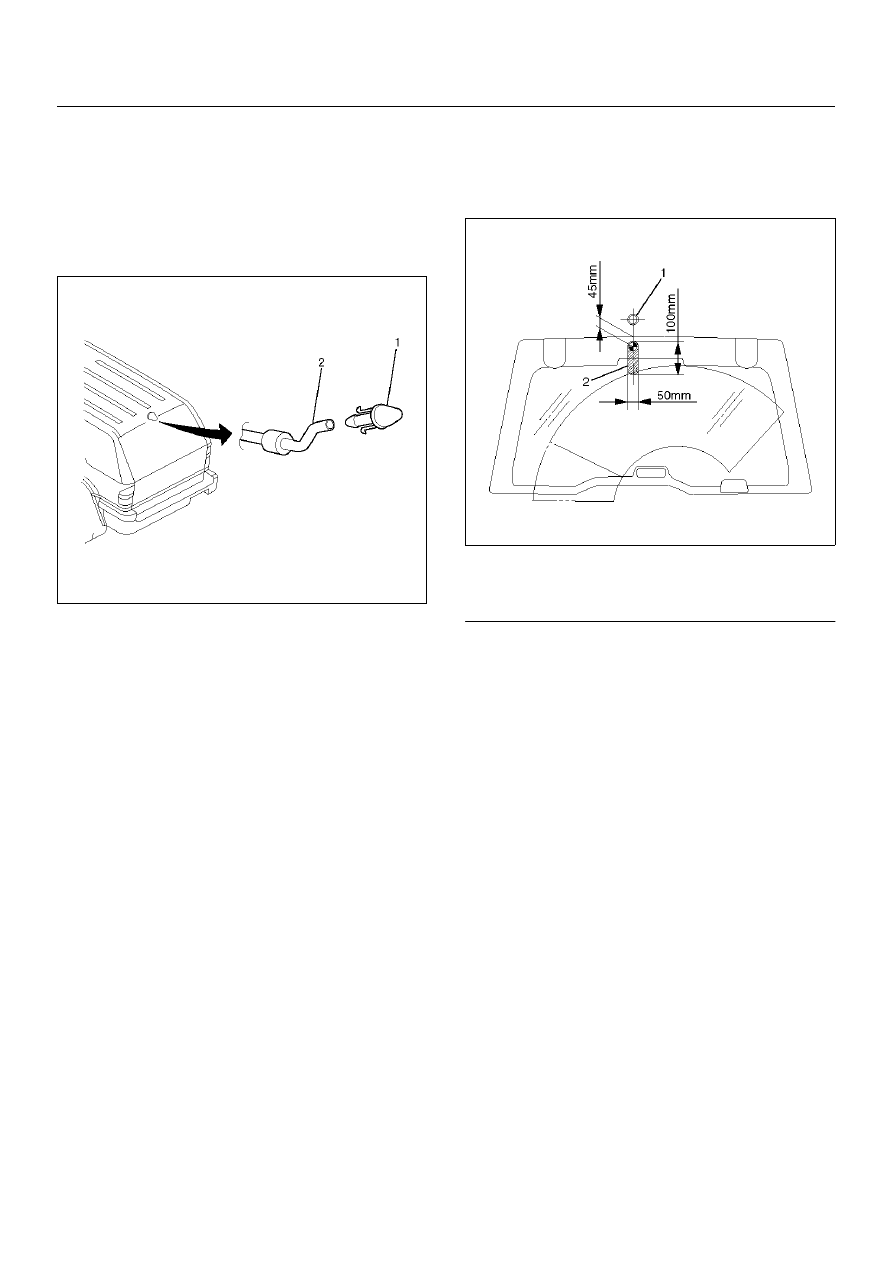

Rear Washer Spray Pattern

885RW013

Legend

EndOFCallout

(1) Washer Nozzle
(2) Spray Target

8B–14

WIPER/WASHER SYSTEM

Rear Washer Nozzle (2Door Model)

Removal

1. Remove the washer nozzle(1).

• Pull out the washer nozzle and disconnect the

washer hose.

885RX001

Installation

To install, follow the removal steps in the reverse order.

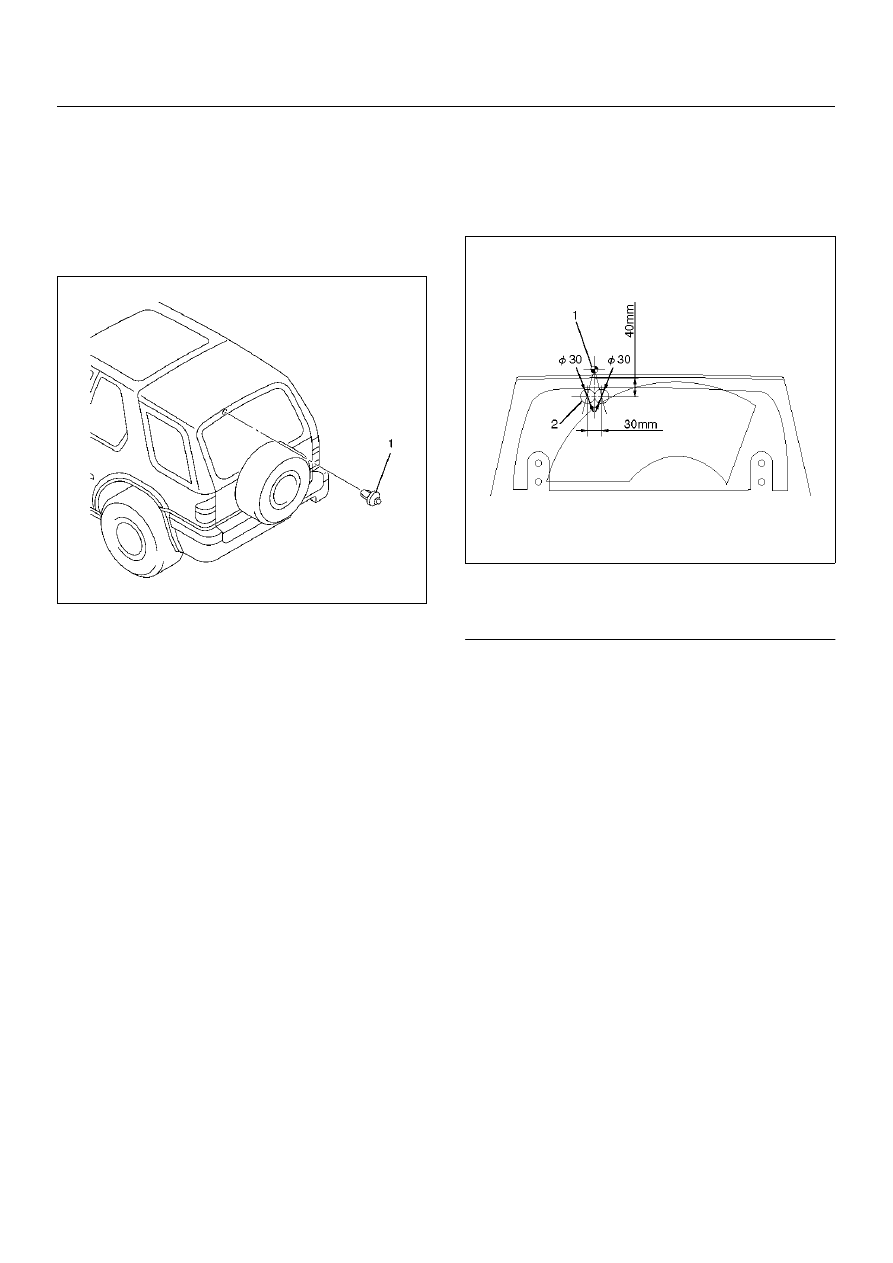

Rear Washer Spray Pattern

To install, follow the removal steps in the reverse order.

885RX005

Legend

EndOFCallout

(1) Washer Nozzle
(2) Spray Target
