CLUTCH

7C–3

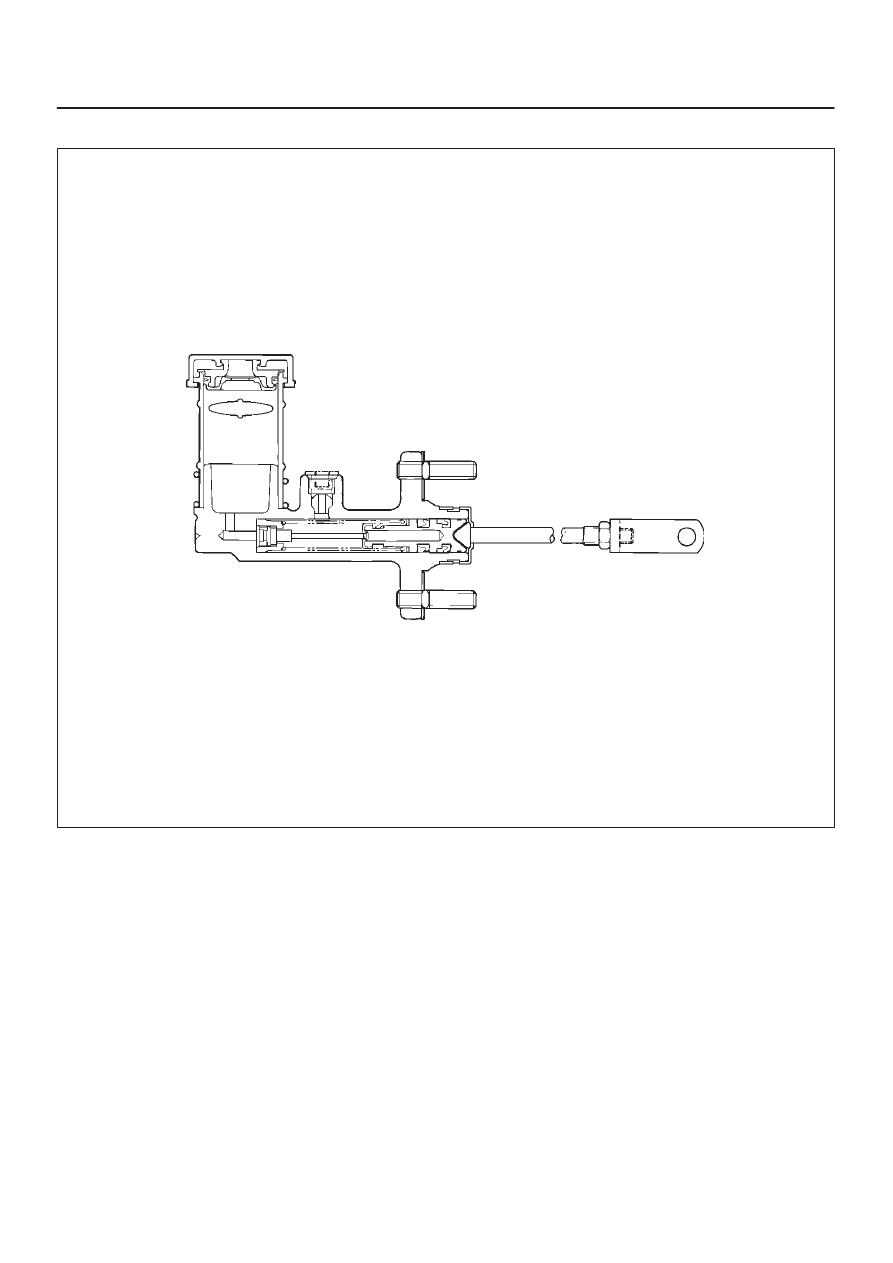

Master Cylinder

A07RW071

The master cylinder converts mechanical energy into
hydraulic energy.
Depressing the clutch pedal causes the push rod to move
against the piston to close the return port.

Clutch fluid is forced out of the master cylinder.
Releasing the clutch pedal causes the return spring to
force the piston back to its original position.

7C–4

CLUTCH

Damper Cylinder

A07RS004

In order to reduce the occurrence of noises at the clutch
hydraulic system, the damper cylinder is used in the

clutch hydraulic line between the master cylinder and
slave cylinder.

CLUTCH

7C–5

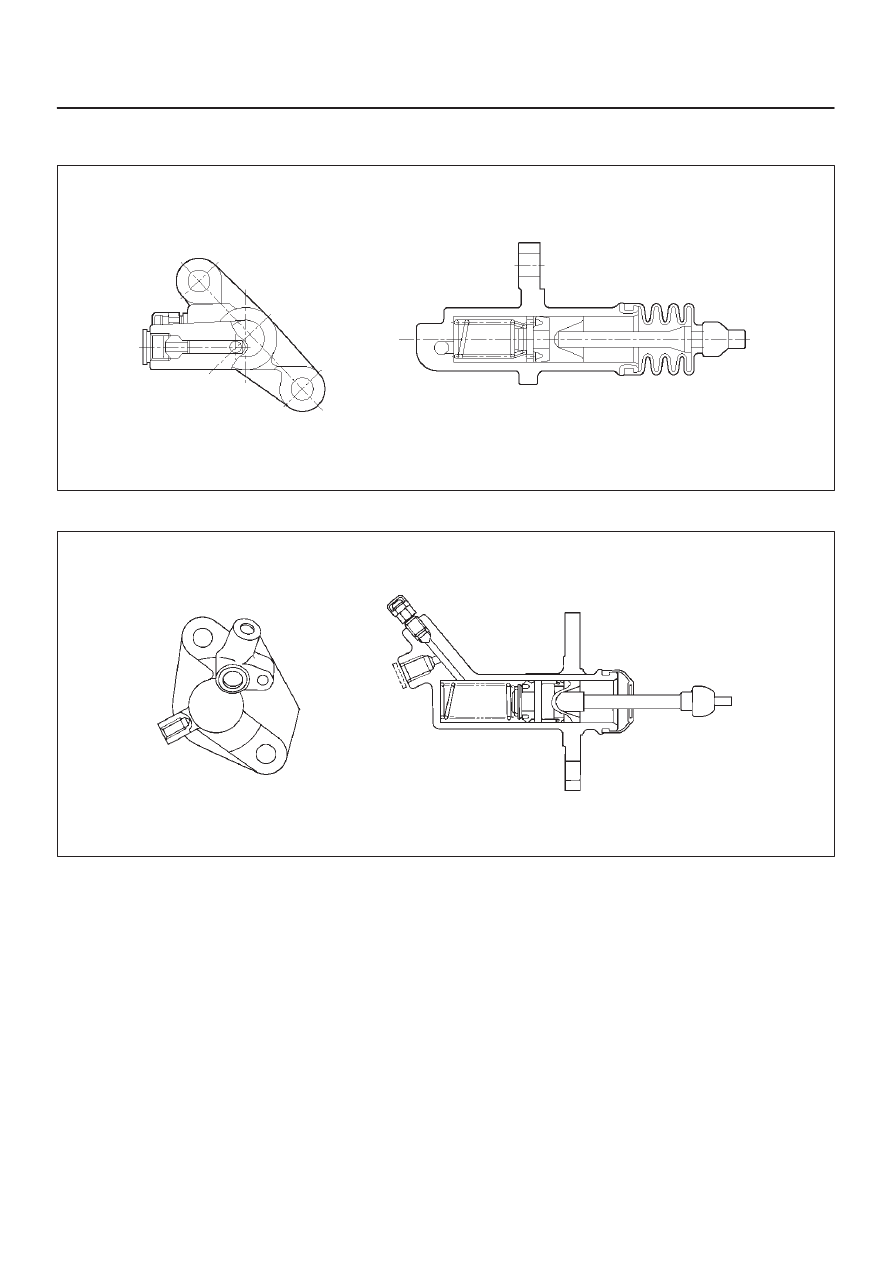

Slave Cylinder

X22SE, MUA

A07RW028

6VD1, MUA

A07RW037

The slave cylinder converts hydraulic energy into
mechanical energy.  Hydraulic fluid supplied by the
master cylinder moves the slave cylinder piston to

actuate the shift fork.  The mechanical energy produced
by the slave cylinder is directly proportional to the
diameters of the master cylinder and the slave cylinder.

7C–6

CLUTCH

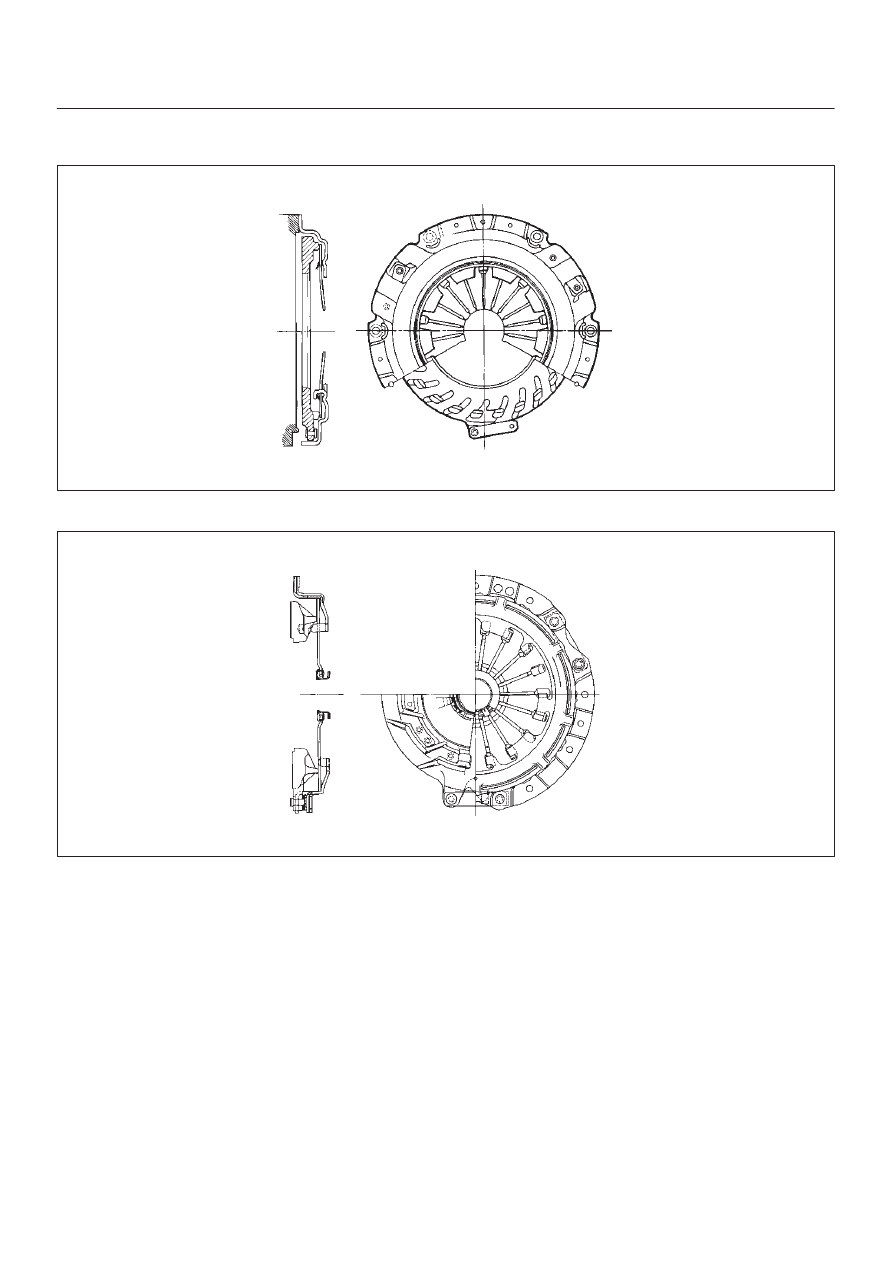

Pressure Plate Assembly

X22SE, MUA

A07RW024

6VD1, MUA

A07RW025

The pressure plate assembly consists of the clutch cover,
the pressure plate with diaphragm spring.

Operating the clutch pedal causes the pressure plate to
move in an axial direction to engage and disengage the
clutch.
