Opel Frontera UE. Manual - part 290





ENGINE ELECTRICAL

6D1–3

a. VOLTAGE DOES NOT DROP BELOW THE

MINIMUM LISTED IN THE TABLE – The battery is
good and should be returned to service.

b. VOLTAGE IS LESS THAN MINIMUM LISTED –

Replace battery.

ESTIMATED TEMPERATURE

MINIMUM

VOLTAGE

°

F

°

C

V

70

21

9.6

60

16

9.5

50

10

9.4

40

4

9.3

30

–1

9.1

20

–7

8.9

10

–12

8.7

0

–18

8.5

The battery temperature must be estimated by feel

and by the temperature the battery has been

exposed to for the preceding few hours.

Battery Charging

Observe the following safety precautions when charging
the battery:

1. Never attempt to charge the battery when the fluid

level is below the lower level line on the side of the
battery. In this case, the battery must be replaced.

2. Pay close attention to the battery during charging

procedure.
Battery charging should be discontinued or the rate of
charge reduced if the battery feels hot to the touch.
Battery charging should be discontinued or the rate of
charge reduced if the battery begins to gas or spew
electrolyte from the vent holes.

3. In order to more easily view the hydrometer blue dot

or ring, it may be necessary to jiggle or tilt the battery.

4. Battery temperature can have a great effect on

battery charging capacity.

5. The sealed battery used on this vehicle may be either

quick charged or slow charged in the same manner as
other batteries.
Whichever method you decide to use, be sure that
you completely charge the battery. Never partially
charge the battery.

Jump Starting

Jump Starting with an Auxiliary (Booster)
Battery

CAUTION: Never push or tow the vehicle in an
attempt to start it. Serious damage to the emission
system as well as other vehicle parts will result.

Treat both the discharged battery and the booster
battery with great care when using jumper cables.
Carefully follow the jump starting procedure, being
careful at all times to avoid sparking.

WARNING: FAILURE TO CAREFULLY FOLLOW THE
JUMP STARTING PROCEDURE COULD RESULT IN
THE FOLLOWING:

1. Serous personal injury, particularly to your eyes.
2. Property damage from a battery explosion, battery

acid, or an electrical fire.

3. Damage to the electronic components of one or both

vehicles particularly.

Never expose the battery to an open flame or electrical
spark. Gas generated by the battery may catch fire or
explode.
Remove any rings, watches, or other jewelry before
working around the battery. Protect your eyes by wearing
an approved set of goggles.
Never allow battery fluid to come in contact with your eyes
or skin.
Never allow battery fluid to come in contact with fabrics or
painted surfaces.
Battery fluid is a highly corrosive acid.
Should battery fluid come in contact with your eyes, skin,
fabric, or a painted surface, immediately and thoroughly
rinse the affected area with clean tap water.
Never allow metal tools or jumper cables to come in
contact with the positive battery terminal, or any other
metal surface of the vehicle. This will protect against a
short circuit.
Always keep batteries out of reach of young children.

Jump Starting Procedure

1. Set the vehicle parking brake.

If the vehicle is equipped with an automatic
transmission, place the selector level in the “PARK”
position.
If the vehicle is equipped with a manual transmission,
place the shift lever in the “NEUTRAL” position.
Turn “OFF” the ignition.
Turn “OFF” all lights and any other accessory
requiring electrical power.

2. Look at the built–in hydrometer.

If the indication area of the built–in hydrometer is
completely clear, do not try to jump start.

3. Attach the end of one jumper cable to the positive

terminal of the booster battery.
Attach the other end of the same cable to the positive
terminal of the discharged battery.
Do not allow the vehicles to touch each other. This will
cause a ground connection, effectively neutralizing
the charging procedure.
Be sure that the booster battery has a 12 volt rating.

6D1–4

ENGINE ELECTRICAL

4. Attach one end of the remaining cable to the negative

terminal of the booster battery.
Attach the other end of the same cable to a solid
engine ground (such as the air conditioning
compressor bracket or the generator mounting
bracket) of the vehicle with the discharged battery.
The ground connection must be at least 450 mm (18
in.) from the battery of the vehicle whose battery is
being charged.

WARNING: NEVER ATTACH THE END OF THE
JUMPER CABLE DIRECTLY TO THE NEGATIVE
TERMINAL OF THE DEAD BATTERY.

5. Start the engine of the vehicle with the good battery.

Make sure that all unnecessary electrical accessories
have been turned “OFF”.

6. Start the engine of the vehicle with the dead battery.
7. To remove the jumper cables, follow the above

directions in reverse order.
Be sure to first disconnect the negative cable from the
vehicle with the discharged battery.

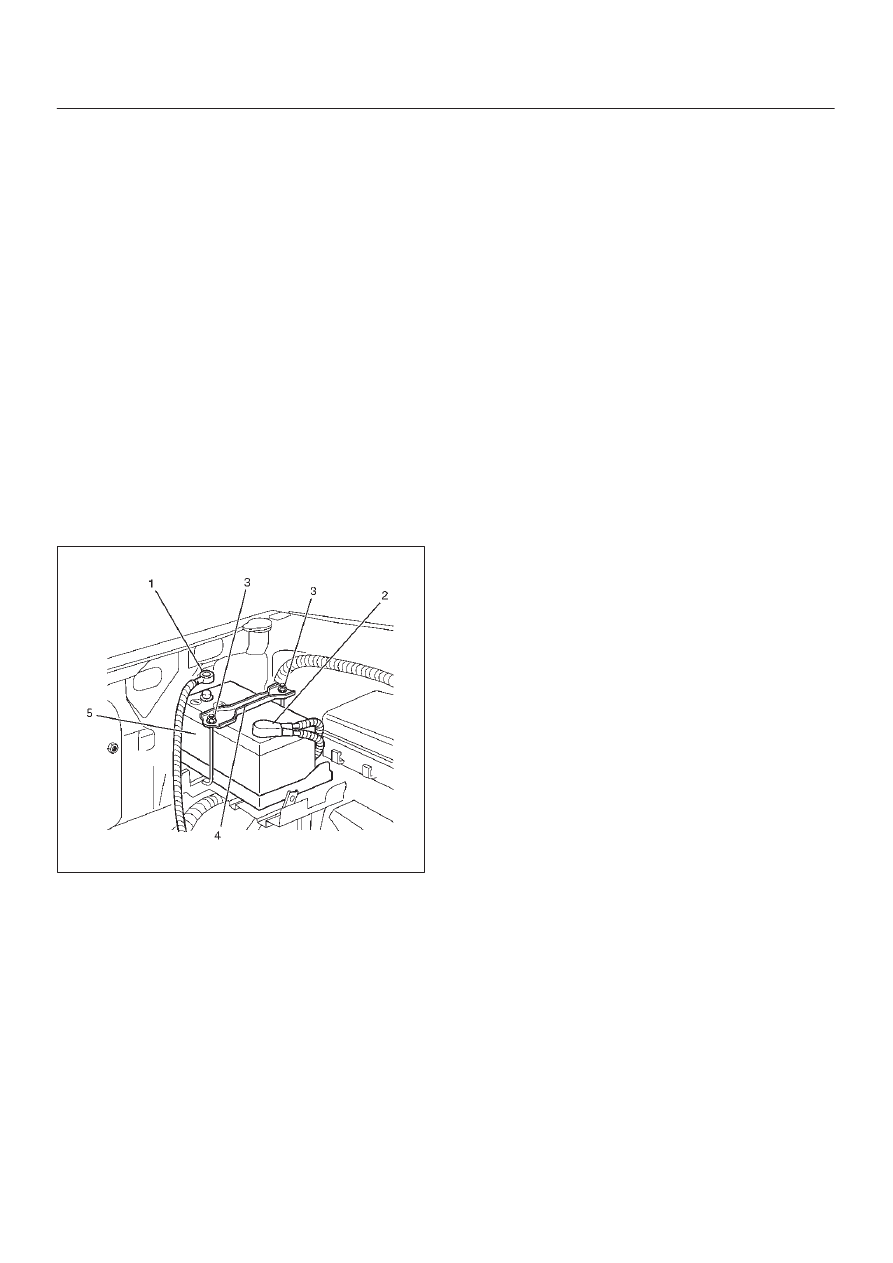

Battery Removal

061RX002

1. Remove negative cable (1).
2. Remove positive cable (2).
3. Remove retainer screw and rods (3).
4. Remove retainer (4).
5. Remove battery (5).

Battery Installation

1. Install battery (5).
2. Install retainer (4).
3. Instal retainer screw and rods (3).

NOTE: Make sure that the rod is hooked on the body
side.

4. Install positive cable (2).
5. Install negative cable (1).

ENGINE ELECTRICAL

6D1–5

Main Data and Specifications

General Specifications

Model  (JIS)

24R–600

Voltage  (V)

12

Cold Cranking Performance  (Amp)

600

Reserve Capacity  (Min)

118

Load Test  (Amp)

300

BCI Group No.

24

6D2–1

IGNITION SYSTEM

FRONTERA

ENGINE

IGNITION SYSTEM

CONTENTS

Service Precaution

6D2–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

6D2–2

. . . . . . . . . . . . . . . . . . . . .

Diagnosis

6D2–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Ignition Coil

6D2–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

6D2–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

6D2–3

. . . . . . . . . . . . . . . . . .

Installation

6D2–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Spark Plug

6D2–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

6D2–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

6D2–4

. . . . . . . . . . . . . . . . . .

Installation

6D2–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft Position Sensor

6D2–5

. . . . . . . . . . . . . . .

Removal

6D2–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6D2–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

6D2–6

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS), REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION
