ENGINE SPEED CONTROL SYSTEM (X22SE 2.2L)

6H–1

ENGINE

ENGINE SPEED CONTROL SYSTEM (X22SE 2.2L)

CONTENTS

Service Precaution......................................... 6H - 1

Accelerator Pedal Control Cable ................... 6H - 2

Removal ..................................................... 6H - 2
Inspection ................................................... 6H - 2
Installation .................................................. 6H - 2
Adjustment.................................................. 6H - 2

Accelerator Pedal .......................................... 6H - 3

Accelerator Pedal and Associated Parts .... 6H - 3
Removal...................................................... 6H - 3
Installation................................................... 6H - 3
Adjustment.................................................. 6H - 3

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

SECTION

6H–2

ENGINE SPEED CONTROL SYSTEM (X22SE 2.2L)

Accelerator Pedal Control Cable

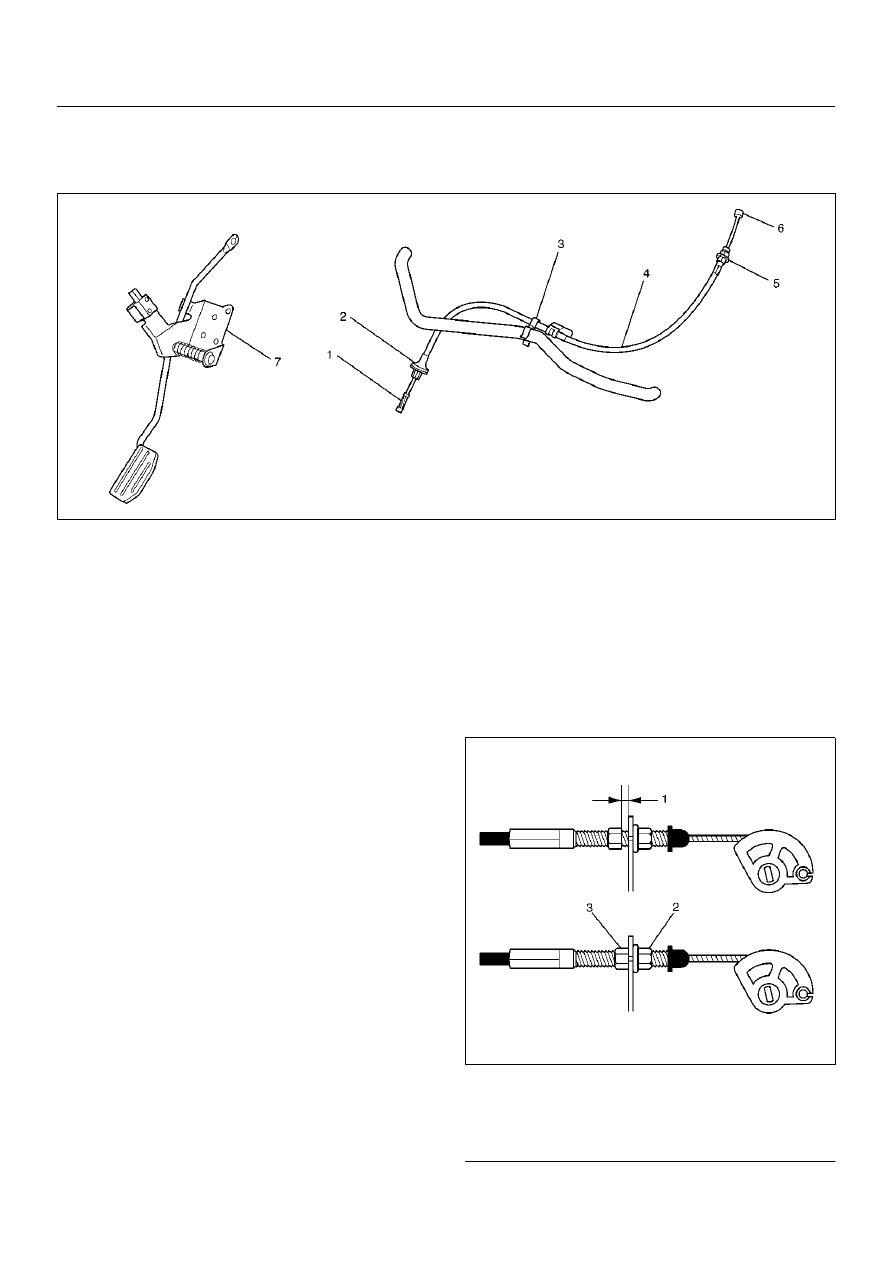

035RX004

Removal

1. Loosen the nut(5) on the cable bracket mounted.

2. Remove cable clip(3).

3. Disconnect accelerator pedal (AP) control cable(6).

(on throttle valve side)

4. Disconnect AP control cable(1). (on AP pedal(7)

side)

5. Remove grommet(2).

6. Remove AP control cable(4).

Inspection

Check the following items, and replace the control cable
if any abnormality is found:

• The control cable should move smoothly.

• The control cable should not be bent or kinked.

• The control cable should be free of damage and

corrosion.

Installation

1. Install AP control cable(4).

2. Install grommet(2).

3. Connect AP control cable(1). (on AP pedal(7) side)

4. Connect AP control cable(6). (on throttle valve side)

5. Install cable clip(3).

6. Install nut(5).

Adjustment

1. Loosen adjusting nut and lock nut.

2. Pull outer cable while closing fully the throttle valve.

3. Tighten adjusting nut and lock nut temporarily.

4. Loosen adjusting nut by three turns and tighten lock

nut.
Then, manually operating the throttle valve, make
sure that the valve lever returns up to the stopper
screw.
If it does not reach the stopper screw, repeat from
step 1.

035RX014

Legend

EndOFCallout

(1) Clearance (2 – 3.5 mm)
(2) Lock Nut
(3) Adjusting Nut

ENGINE SPEED CONTROL SYSTEM (X22SE 2.2L)

6H–3

Accelerator Pedal

Accelerator Pedal and Associated
Parts

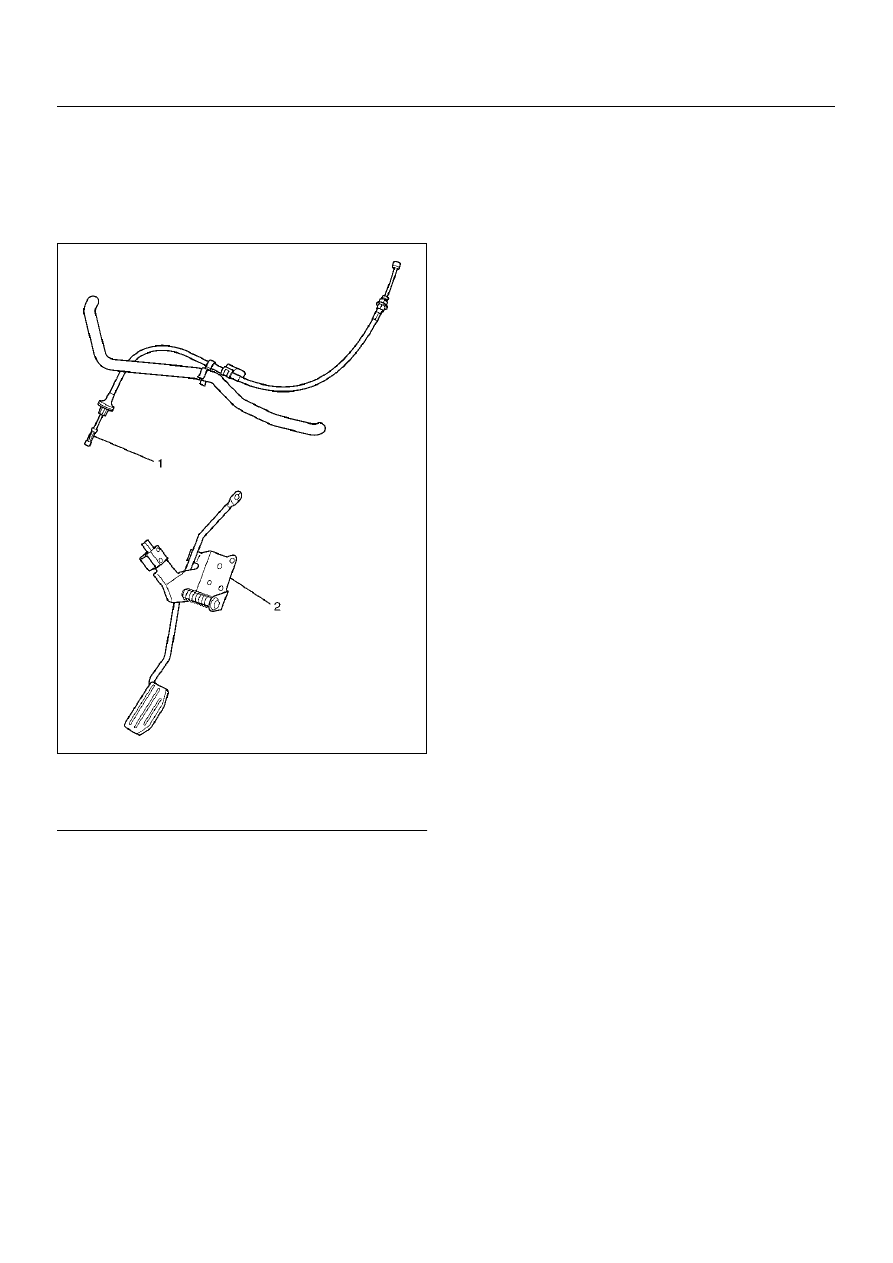

035RX002

Legend

EndOFCallout

Removal

1. Accelerator pedal control cable(1).

2. Accelerator pedal assembly(2).

Installation

1. Accelerator pedal assembly (2).

2. Accelerator pedal control cable (1).

Adjustment

Manual Transmission:

• Rotate counterclockwise to loosen the lock nut and

screw the stopper bolt in sufficiently.

• Fully depress the pedal and hold it there by hand.

Next, rotate the stopper bolt until it hits the stopper of
pedal bracket. Then, lock the stopper bolt there.

(1) Accelerator Pedal Control Cable
(2) Accelerator Pedal Assembly
