X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

Broken locks

Improperly formed or damaged terminals

Also, check the wiring harness for: shorts to ground,
shorts to battery positive, and open circuits.

A misrouted harness. Inspect the knock sensor
harness in order to ensure that it is not routed too close
to high voltage wires such as spark plug leads.

Improper Knock Sensor torque specification. Torque
the Knock Sensor to 19N·m (1.9kg·m/14 lbs·ft). Refer
to Fastener Notice.

Review the Fail Records vehicle mileage since the
diagnostic test last failed in order to help determine how

often the conditions that caused the DTC to set occur.
This may assist in diagnosing the condition.

Test Description

Number(s) below refer to the step number(s) on the
Diagnostic Chart:
2. Ensures that the fault is present.

6. Ensures that the knock sensor is capable of

detecting detonation.

DTC P0327 KS Circuit Low Input

Step

Action

Value(s)

Yes

Was the Powertrain ”On–Board Diagnostic (OBD)
System Check” performed?

—

Go to Step 2

Go to

Powertrain

OBD System

Check

1. Operate the engine within the conditions specified

in the diagnostic support Conditions for Setting the
DTC.

2. Using a Tech 2, monitor theDiagnostic Trouble

Code information for Diagnostic Trouble Code
P0327 until the Diagnostic Trouble Code P0327 test
runs.

3. Observe the test results.

Does the Tech 2 indicate the DTC P0327 failed this
ignition?

—

Go to Step 4

Go to Step 3

1. Turn ON the Ignition leaving the engine OFF.
2. Review the Tech 2 Fail Records data.
3.

IMPORTANT: Before clearing the DTCs, use the Tech
2 to record the Freeze Frame and the Failure Records
for reference. This data will be lost when the Clear Info
function is used.

4. Record the Tech 2 Fail Records data.
5. Operate the vehicle within the Fail Records

conditions.

6. Using a Tech 2, monitor the DTC info for the DTC

P0327 until the DTC P0327 test runs.

7. Observe the test results.

Does the Tech 2 indicate the DTC P0327 Failed This
Ignition?

—

Go to Step 4

Go to

Diagnostic

Aids

1. Disconnect the KS Sensor electrical connector.
2. Using a Digital Voltmeter (DVM), measure the

voltage between the KS signal circuit at the knock
sensor harness connectors and ground.

Is the voltage at the specified value?

Approx. 5.0 V

Go to Step 5

Go to Step 8

Measure the resistance of the KS sensor by connecting
the between the KS sensor terminal and the engine
block.

Is the resistance of the KS sensor near the specified
value?

100K

Go to Step 6

Go to Step 9

6E1–155

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

DTC P0327 KS Circuit Low Input

(Cont'd)

Step

Yes

Value(s)

Action

1. Check the KS signal circuit for a poor terminal

connection at the knock sensor.

2. If a problem is found, repair as necessary. Refer to

Wiring Repairs in Engine Electrical.

Was a problem found?

—

Go to Step 7

Go to Step 9

1. Re–Connect the KS Sensor in order to monitor the

voltage between the KS sensor terminal and the
engine ground.

2. Tap on the engine lift bracket, near the KS Sensor,

while observing the signal indicated on the Tech 2.

Is any signal indicated on the while tapping on the
engine lift bracket?

—

Go to Step

Go to Step 8

1. Turn OFF the ignition.
2. Disconnect the ECM.
3. Turn ON the ignition.
4. Check the KS signal circuit between the ECM and

the KS sensor connector for an open, a short to
voltage, or a short to ground.

5. If a wiring problem is found, repair as necessary.

Was a problem found?

—

Go to Step

Replace the KS Sensor. Refer to Knock Sensor.

Is the action complete?

—

Go to Step

—

Replace the ECM.

Is the action complete?

—

Go to Step

—

1. Using the Tech 2, select the DTC and the Clear Info.
2. Start the engine.
3. Idle at the normal operating temperature.
4. Select the DTC and the Specific.
5. Enter the DTC number which was set.
6. Operate the vehicle within the conditions for setting

this DTC as specified in the supporting text.

Does the Tech 2 indicate that this diagnostic ran and
passed?

—

Go to Step

Go to Step 2

Using the Tech 2, select the Capture Info and the
Review Info.

Are any DTCs displayed that have not been
diagnosed?

—

Go to

applicable
DTC table

System OK

6E1–156

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

DIAGNOSTIC TROUBLE CODE (DTC) P0336 CRANKSHAFT POSITION (CKP)

SENSOR CIRCUIT RANGE/PERFORMANCE

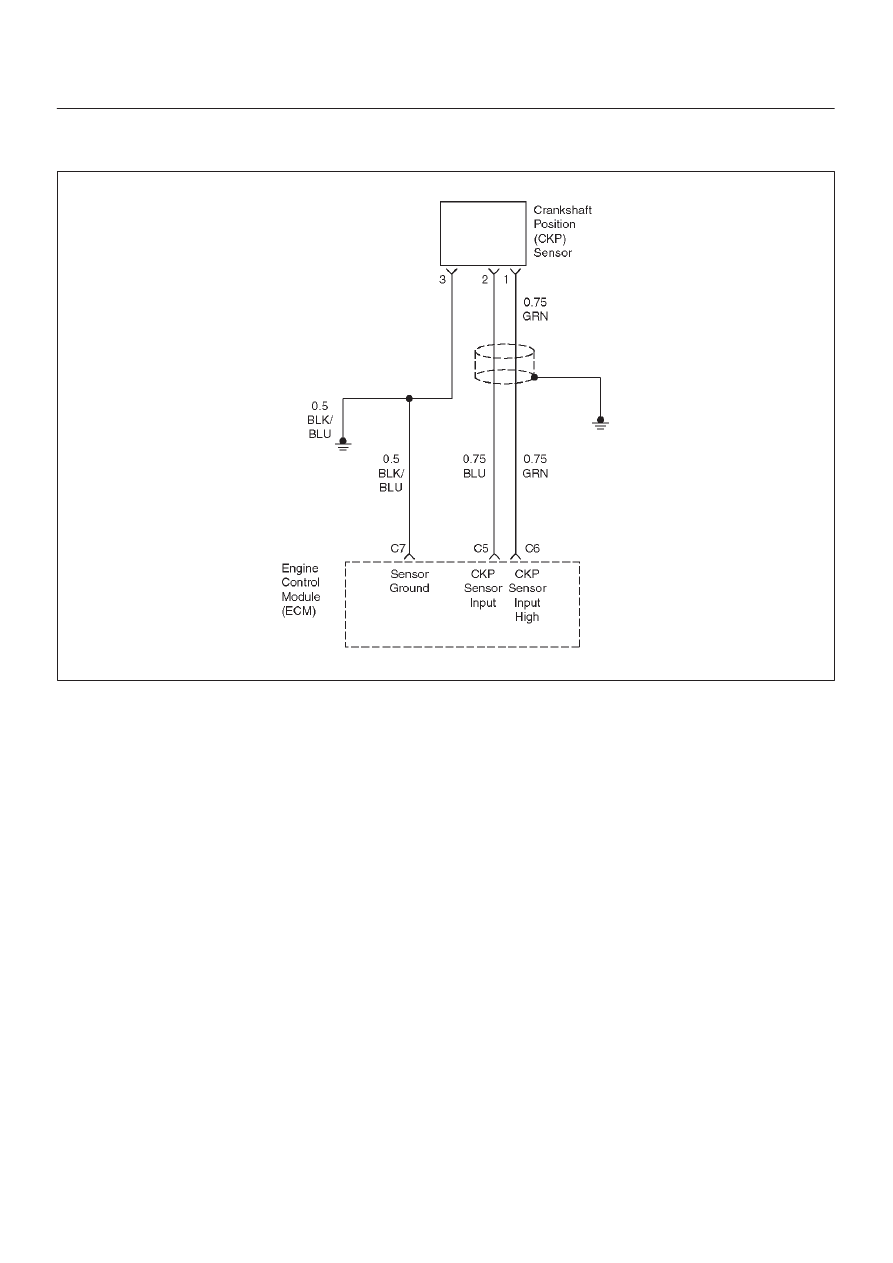

D06RX122

Circuit Description

The 58X reference signal is produced by the crankshaft
position (CKP) sensor. During one crankshaft revolution,
58 crankshaft pulses will be produced. The engine control
module (ECM) uses the 58X reference signal to calculate
engine RPM and crankshaft position. The ECM
constantly monitors the number of pulses on the 58X
reference circuit and compares them to the number of
camshaft position (CMP) signal pulses being received. If
the ECM receives an incorrect number of pulses on the
58X reference circuit, Diagnostic Trouble Code P0336 will
set. Diagnostic Trouble Code P0336 is a type B code.

Conditions for Setting the DTC

Engine is running.

Extra or missing pulse is detected between
consecutive 58X reference pulses.

Above condition is detected in 10 of 100 crankshaft
rotations.

Action Taken When the DTC Sets

The ECM will illuminate the malfunction indicator lamp
(MIL) after the second consecutive trip in which the
fault is detected.

The ECM will store conditions which were present
when the Diagnostic Trouble Code was set as Freeze
Frame and in the Failure Records data.

Conditions for Clearing the MIL/DTC

The ECM will turn the MIL OFF on the third consecutive
trip cycle during which the diagnostic has been run and
the fault condition is no longer present.

A history Diagnostic Trouble Code P0336 will clear
after 40 consecutive warm–up cycles have occurred
without a fault.

Diagnostic Trouble Code P0336 can be cleared by
using the Scan Tool’s ”Clear Info” function.

Diagnostic Aids

An intermittent may be caused by a poor connection,
rubbed–through wire insulation or a wire broken inside the
insulation. Check for:

Poor connection – Inspect the ECM harness and
connectors for improper mating, broken locks,
improperly formed or damaged terminals, and poor
terminal–to–wire connection.

Damaged harness – Inspect the wiring harness for
damage; shorts to ground, shorts to battery positive
and open circuits. If the harness appears to be OK,
disconnect the ECM, turn the ignition on and observe
a voltmeter connected to the 58X reference circuit at
the ECM harness connector while moving connectors
and wiring harnesses related to the ECM. A change in
voltage will indicate the location of the fault.

Reviewing the Failure Records vehicle mileage since the
diagnostic test last failed may help determine how often
the condition that caused the Diagnostic Trouble Code to

6E1–157

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

be set occurs. This may assist in diagnosing the
condition.

DTC P0336 – CKP Sensor Circuit Range/Performance

Step

Action

Value(s)

Yes

Was the ”On–Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to OBD

System

Check

Attempt to start the engine.

Does the engine start?

—

Go to Step 3

Refer to

Engine

Cranks But

Will Not Run

chart

1. Review and record Failure Records information.
2. Clear Diagnostic Trouble Code P0336.
3. Start the engine and idle for 1 minute.
4. Observe Diagnostic Trouble Codes.

Is Diagnostic Trouble Code P0336 set?

—

Go to Step 4

Refer to

Diagnostic

Aids

1. Disconnect the ECM and CKP sensor.
2. Check for an open or a short to ground in the 58X

reference circuit between the CKP sensor
connector and the ECM harness connector.

3. If a problem is found, repair as necessary.

Was a problem found?

—

Verify repair

Go to Step 5

1. Reconnect the ECM and CKP sensor.
2. Connect a Digital Voltmeter (DVM) to measure

voltage on the 58X reference circuit at the ECM
connector.

3. Observe the voltage while cranking the engine.

Is the voltage near the specified value?

2.5 V

Go to Step 8

Go to Step 6

Check the connections at the CKP sensor and replace
the terminals if necessary.

Did any terminals require replacement?

—

Verify repair

Go to Step 7

Replace the CKP sensor.

Is the action complete?

—

Verify repair

—

Check connections at the ECM and replace the
terminals if necessary.

Did any terminals require replacement?

—

Verify repair

Go to Step 9

Replace the ECM.

Is the action complete?

—

Verify repair

—
