6E1–14

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

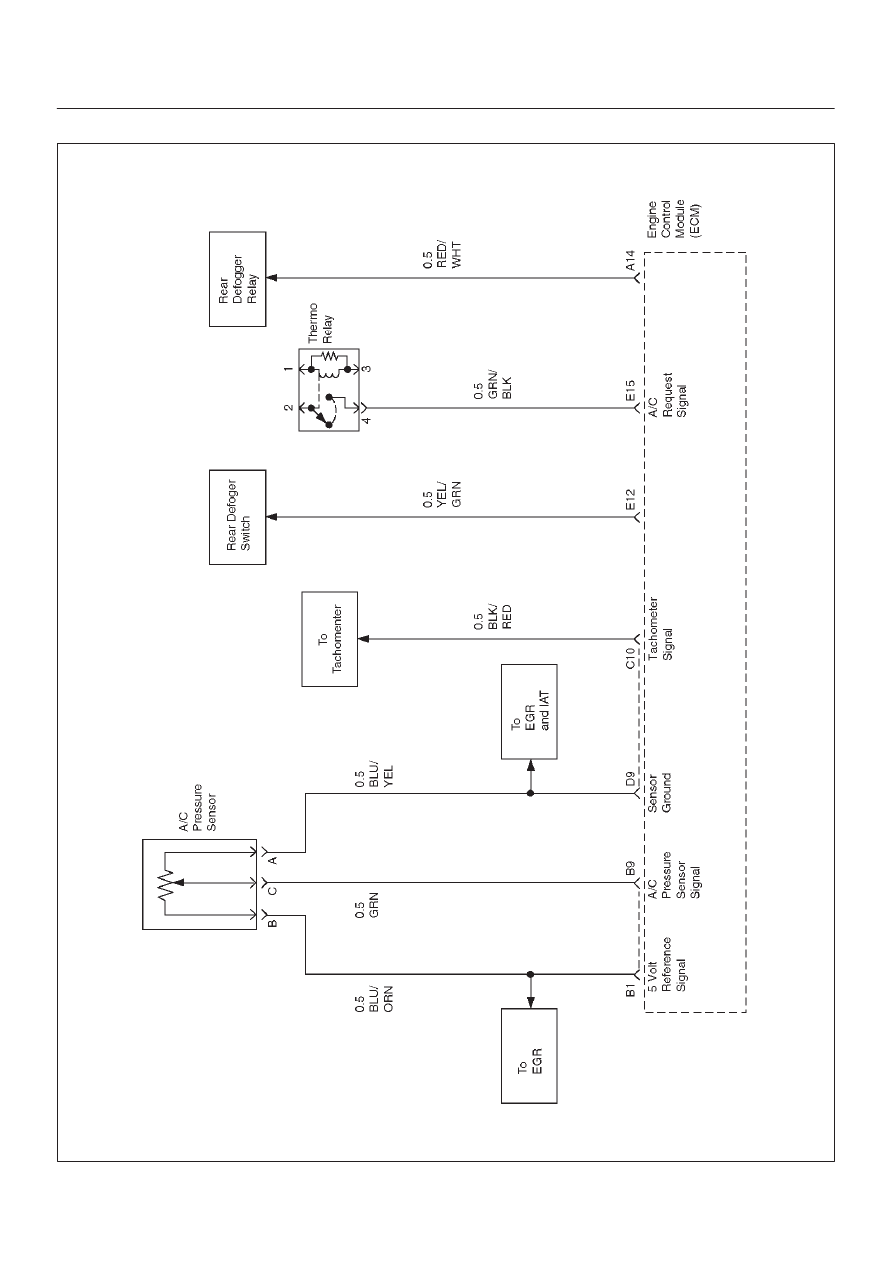

ECM WIRING DIAGRAM (8 of 10)

D06RX104

6E1–15

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

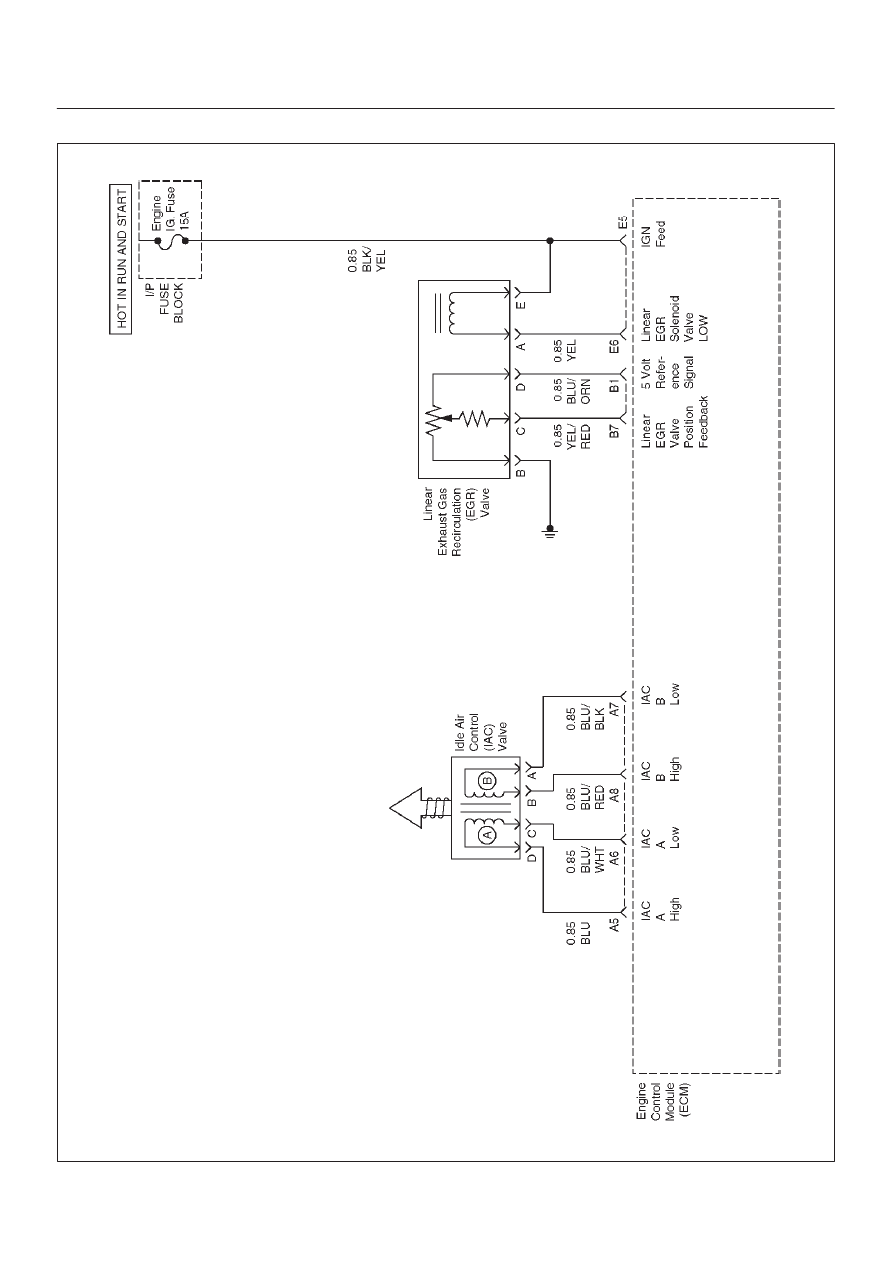

ECM WIRING DIAGRAM (9 of 10)

D06RX105

6E1–16

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

ECM WIRING DIAGRAM (10 of 10)

D06RX106

6E1–17

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

ECM PINOUTS

ECM Pinout Table, 32–Pin Red Connector – Row ”A”

TS23344

PIN

PIN Function

Wire Color

IGN ON

ENG RUN

Refer To

A1

5 Volt Reference Signal

RED

5.0 V

5.0 V

Appropriate Sensor

A2

Knock Sensor Input

YEL

—

3.0 V (MAX)

General Description and
Operation, Knock Sensor

A3

Not Used

—

A4

Battery Feed

RED/WHT

B+

B+

Chassis Electrical

A5

Idle Air Control (IAC)  ”A”
High

BLU

B+/0.8 V

B+/0.8 V

General Description and
Operation, IAC

A6

IAC ”A” Low

BLU/WHT

B+/0.8 V

B+/0.8 V

General Description and
Operation, IAC

A7

IAC ”B” Low

BLU/BLK

B+/0.8 V

B+/0.8 V

General Description and
Operation, IAC

A8

IAC ”B” High

BLU/RED

B+/0.8 V

B+/0.8 V

General Description and
Operation, IAC

A9

Not Used

—

—

—

—

A10

Not Used

—

—

—

—

A11

Not Used

—

—

—

—

A12

Not Used

—

—

—

—

A13

Malfunction Indicator
Lamp (MIL) Control

WHT/GRN

0.4–0.9 V

B+

Chassis Electrical

A14

Rear Defogger Relay

RED/WHT

B+

B+

Classis Electrical

A15

EVAP Canister Vent
Solenoid Control

RED/BLU

B+

0–5 V

(varies)

General Description and
Operation, EVAP Emission
Control System

A16

Not Used

—

—

—

—
