6E1–6

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

SPECIFICATIONS

TIGHTENING SPECIFICATIONS

Application

N–m

Lb Ft

kg·m

Lb In

Crankshaft Position Sensor Mounting Bolt

9

0.9

78

EGR Nut

14

1.4

130

Engine Coolant Temperature Sensor

30

3.1

22

Fuel Drain Plug

20

2.0

14

Fuel Pressure Regulator Attaching Screw

6.5

0.6

60

Fuel Rail Bolts

7

0.7

75

Fuel Tank Undercover Retaining Bolts

36

3.7

27

Heated Oxygen Sensor

42

4.3

32

Spark Plugs

25

2.5

18

Throttle Body Mounting Bolts

13

1.3

120

VSS Retaining Bolt

13

1.3

120

6E1–7

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

DIAGRAMS AND SCHEMATICS

ECM WIRING DIAGRAM (1 of 10)

D06RX097

6E1–8

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

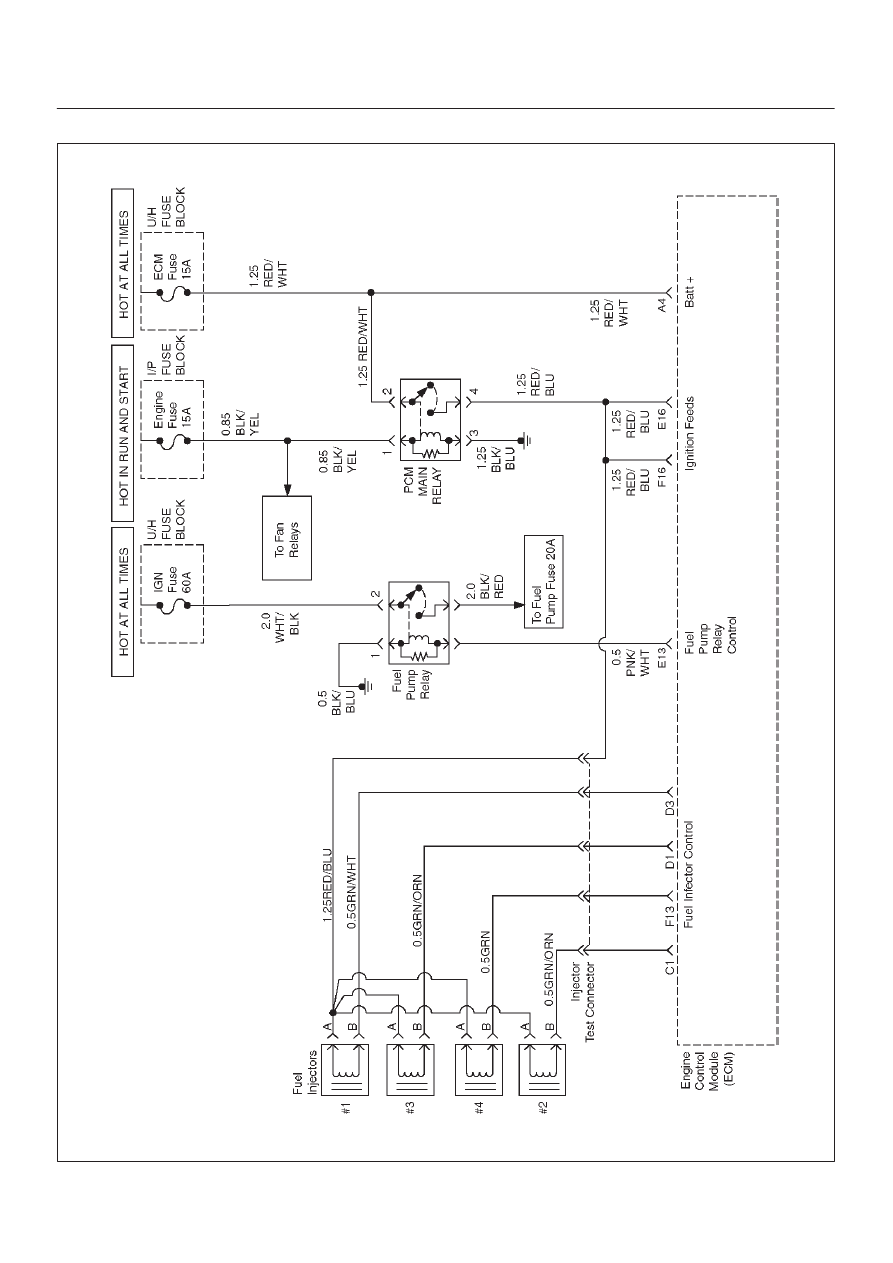

ECM WIRING DIAGRAM (2 of 10)

060RX091

6E1–9

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

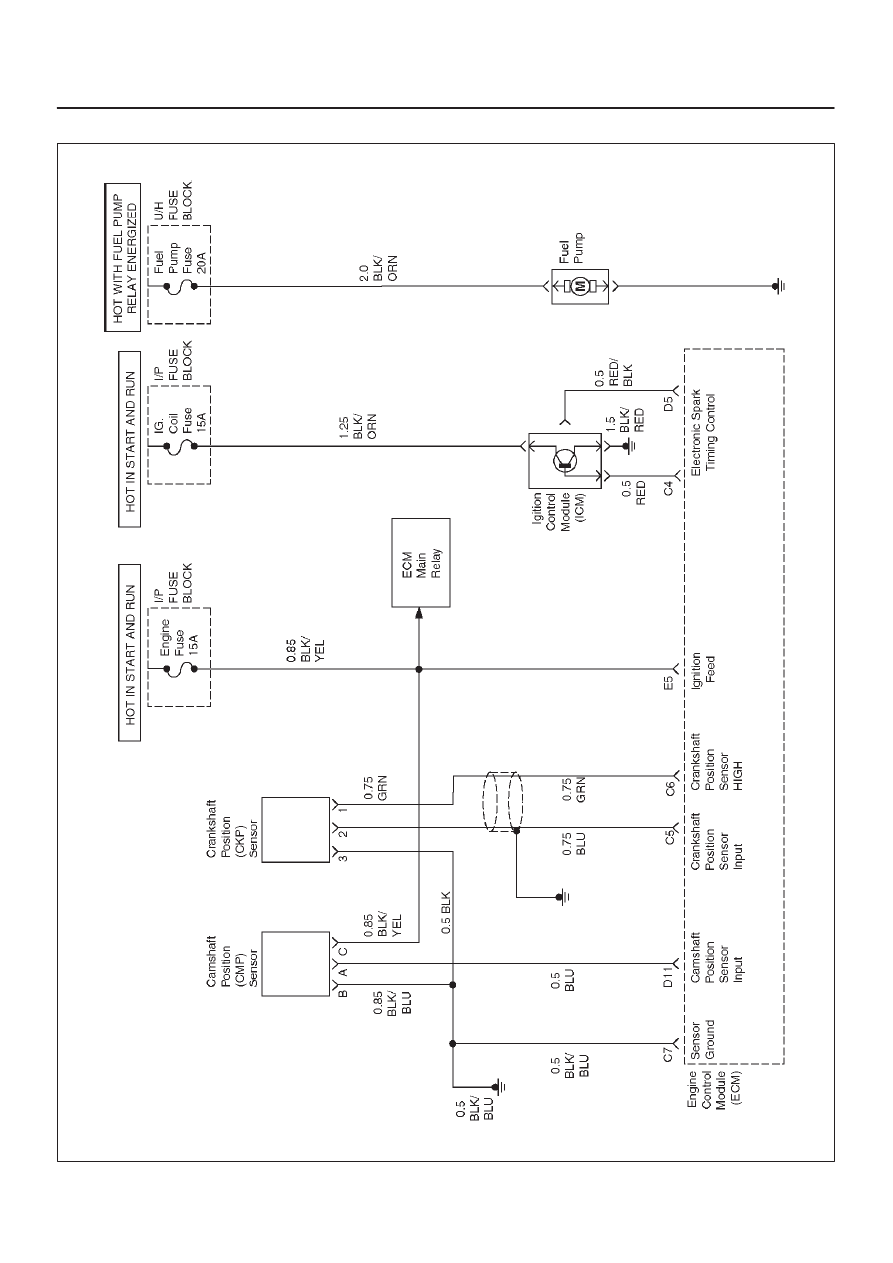

ECM WIRING DIAGRAM (3 of 10)

D06RX099
