Opel Frontera UE. Manual - part 1761





9J1–34

RESTRAINT CONTROL SYSTEM

DTC 22  Driver Deployment Loop Resistance Low

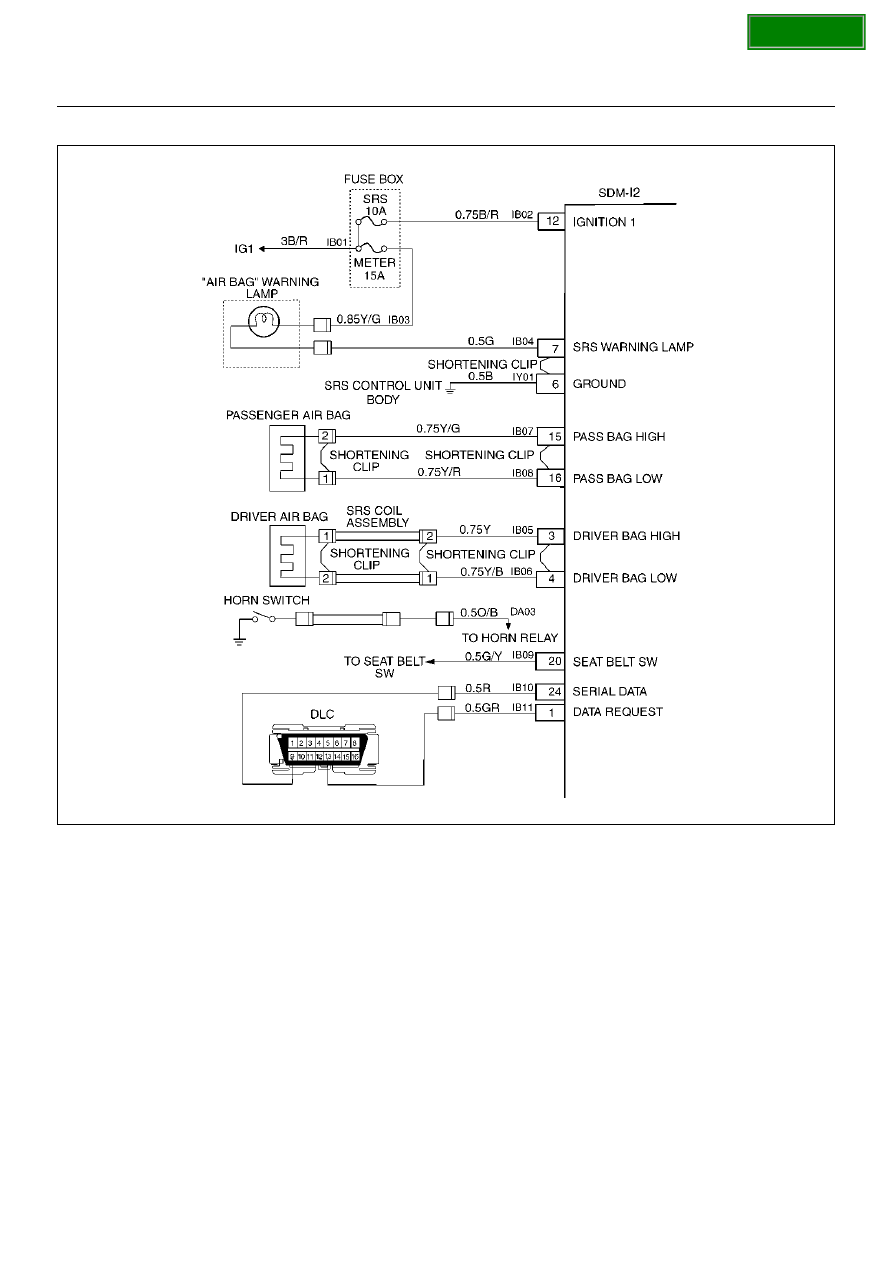

D09RX002

Circuit Description:

When the ignition switch is turned “ON", the Sensing
and Diagnostic Module (SDM) will perform tests to
diagnose critical  malfunctions within itself.   Upon
passing these tests “ignition 1",  and deployment loop
voltages are measured to ensure  they are within their
respective normal voltage ranges. The SDM then
proceeds with the “Resistance Measurement Test"
“Driver Bag Low" terminal “4"  is grounded through a
current sink and the driver current source connected to
“Driver Bag  High" terminal “3" allows a known amount
of current to flow.   By monitoring the voltage difference
between “Driver Bag High" and “Driver Bag Low" the
SDM calculates the combined resistance of the driver
air bag assembly, Supplemental Restraint System
(SRS) coil assembly,  harness wiring Circuits(CKTs)
IB05–YELLOW and IB06–YELLOW/BLACK and
connector terminal  contact.

DTC Will Set When:

The combined resistance of the driver air bag assembly,
SRS coil assembly, harness wiring  CKTs IB05–
YELLOW and IB06–YELLOW/BLACK and connector
terminal contact is above a  specified value.  This test is
run once each ignition cycle during the “Resistance
Measurement Test" when:

1. No “higher priority faults" are detected during “Turn–

ON"

2. “Ignition 1" voltage is in the specified value.

Action Taken:

SDM turns “ON" the “AIR BAG" warning lamp and sets
DTC 22.

DTC Will Clear When:

The ignition switch is turned “OFF."

SECTION

RESTRAINT CONTROL SYSTEM

9J1–35

DTC Chart Test Description:

Number(s) below refer to step number(s) on the
diagnostic chart:
2. This test determines whether the malfunction is in the

Sensing and Diagnostic Module (SDM).

3. This test verifies proper connection of the yellow 2–

pin connector at the base of  the steering column.

4. This test checks for proper operation of the shorting

clip in the yellow 2–pin  connector.

5. This test isolate the malfunction to one side of the

Supplemental Restraint System (SRS) coil assembly
yellow 2–pin connector located at the base of
steering column.

6. This test determines whether the malfunction is due

to shorting in the wiring.

7. This test determines whether the malfunction is in the

SRS coil assembly or the driver air  bag assembly.

Diagnostic Aids:

An intermittent condition is likely to be caused by a short
between Circuits IB05–YELLOW or IB06–YELLOW/
BLACK or a malfunctioning shorting clip on the driver air
bag assembly or  SRS coil assembly which would
require replacement of the component.  The test for this
diagnostic trouble code is only run while the “AIR BAG"
warning lamp is performing the bulb  check, unless
Diagnostic Trouble Code (DTC) 17 or DTC 26 is
detected.  When a scan tool “Clear Codes" command is
issued  and the malfunction is still present, the DTC will
not reappear until the next ignition cycle.

SECTION

9J1–36

RESTRAINT CONTROL SYSTEM

DTC 22 Driver Deployment Loop Resistance Low

Step

Action

Yes

No

1

Was the “SRS Diagnostic System Check" performed?

Go to Step 2

Go to the “SRS

Diagnostic System

Check."

2

1. When measurements are requested in this chart use 5–

8840–0285–0 DVM with correct terminal adapter from 5–
8840–0385–0.

2. Use scan tool data list function, read and record the driver

deployment loop resistance.

Is driver resist. less than 1.9 ohms?

Go to Step 3

Go to Chart A.

3

1. Ignition switch “OFF."

2. Make sure the SRS coil assembly yellow 2–pin connector

located at the base of steering column is seated properly.

Is the 2–pin connector connected properly?

Go to Step 4

Seat driver air

bag assembly

2–pin connector

properly.

Go to Step 8

4

1. Disconnect and inspect the SRS coil assembly yellow 2–pin

connector located base of steering column.

2. If OK, reconnect the driver air bag assembly yellow 2–pin

connector.

3. Ignition switch “ON."

Is DTC 22 current?

Go to Step 5

Ignition switch

“OFF."

Go to Step 8

5

1. Ignition switch “OFF."

2. Disconnect SRS coil and passenger air bag 2–pin connectors

located at the base of steering column and behind the glove
box assembly.

3. Connect SRS driver / passenger load tool 5–8840–2421–0

and appropriate adapter to SRS coil and passenger air bag
assembly harness connectors.

4. Ignition switch “ON."

Is DTC 22 current?

Go to Step 6

Go to Step 7

6

1. Ignition switch “OFF."

2. There has been a decrease in the total circuit resistance of

the driver deployment loop.

3. Use the high resolution ohmmeter mode of the DVM while

checking CKTs IB05–YEL and IB06–YEL/BLK, and SDM
connector terminal “3" and “4" to locate the root cause.

Was a fault found?

Replace SRS

harness.

Go to Step 8

Go to Chart A.

7

1. Ignition switch “OFF."

2. Disconnect SRS driver / passenger load tool from SRS coil

assembly harness connector.

3. Connect SRS driver / passenger load tool 5–8840–2421–0 to

the top of steering column.

4. Reconnect SRS coil assembly harness connector as the

base of steering column.

5. Ignition switch “ON."

Is DTC 22 current?

Ignition switch

“OFF."

Replace SRS

coil assembly.

Refer to in this

section.

Go to Step 8

Ignition switch

“OFF."

Replace driver

air bag

assembly.

Go to Step 8

8

1. Reconnect all components, ensure all component are

properly mounted.

2. Clear diagnostic trouble codes.

Was this step finished?

Repeat the “SRS

Diagnostic System

Check."

Go to Step 8

SECTION

RESTRAINT CONTROL SYSTEM

9J1–37

DTC 24  Driver Deployment Loop Short To Ground

D09RX002

Circuit Description:

When the ignition switch is turned “ON", the Sensing
and Diagnostic Module (SDM) will perform tests to
diagnose critical  malfunctions within itself.   Upon
passing these tests, “ignition 1",  and deployment loop
voltages are measured to ensure  they are within their
respective normal voltage ranges.
The SDM monitors the voltage at “Driver Bag Low"
terminal “4" and “Passenger Bag Low" terminal “16" to
detect shorts to ground in the air bag assembly circuits.

DTC Will Set When:

Neither of the two air bag assemblies is open.
“Ignition 1" is within the normal operating voltage range.
This test is run once each  ignition cycle and
“Continuous Monitoring".   Once these conditions are
met and the voltage at “Driver Bag Low" is below a
specified value,  DTC 24 will set.

Action Taken:

SDM turns “ON" the “AIR BAG" warning lamp and sets
a diagnostic trouble code.

DTC Will Clear When:

The malfunction is no longer occurring and the ignition
is turned “OFF."

DTC Chart Test Description:

Number(s) below refer to step number(s) on the
diagnostic chart:
2. This test determines whether the SDM is

malfunctioning

3. This test isolates the malfunction to one side of the

Supplemental Restraint System (SRS) coil assembly
yellow  2–pin connector at the base of the steering
column.

SECTION
