9J1–6

RESTRAINT CONTROL SYSTEM

Notes On System Check Chart:

Number(s) below refer to step number(s) on the
“Supplemental Restraint System Diagnostic System
Check" chart.
1. The “AIR BAG" warning lamp should flash seven

times after ignition is first turned “ON."

2. After the “AIR BAG" warning lamp flashes seven

times, it should turn “OFF."

3. Improper operation of the “AIR BAG" warning lamp is

indicated.  This test differentiates a warning lamp
stays “ON" condition from a warning lamp does not
come “ON" condition.

4. This test checks for the proper operation of the “Serial

Data" line.  This test will also determine whether
history diagnostic trouble codes are stored and, if so,
identify them.

5. This test checks for proper operation of the “Serial

Data" line.  This test will also identify the stored
diagnostic trouble codes and whether they are
current or history.

Diagnostic Aids:

The order in which diagnostic trouble codes are
diagnosed is very important.  Failure to diagnose the
diagnostic trouble codes in the order specified may
result in extended diagnostic time, incorrect diagnosis
and incorrect parts Replacement.

SECTION

RESTRAINT CONTROL SYSTEM

9J1–7

SRS Diagnostic System Check

Step

Action

Yes

No

1

Note the “AIR BAG" warning lamp when ignition switch is turned
“ON."
Does the “AIR BAG" warning lamp flash seven (7) times?

Go to Step 2

Go to Step 3

2

Note the “AIR BAG" warning lamp after it flashed 7 times.
Does the “AIR BAG" warning lamp go “OFF"?

Go to Step 4

Go to Step 5

3

Note the “AIR BAG" warning lamp when ignition switch is turned
“ON."
Does the “AIR BAG" warning lamp come “ON" steady?

Go to Chart B.

Go to Chart C.

4

1. Ignition switch “OFF."

2. Connect a scan tool to data link connector.

3. Follow direction given in the scan tool instruction manual.

4. Ignition switch “ON."

5. Request the SRS diagnostic trouble code display recode all

history diagnostic trouble code(s) specify as such, on repair
order.

Is diagnostic trouble code(s) displayed?

Ignition switch

“OFF."

When DTC 71

is set, go to

DTC 71 chart.

For all other

history codes

refer to

“Diagnostics

Aids" for that

specific DTC.

A history DTC

indicates the

malfunction has

been repaired

or is

intermittent.

SRS is

functional and

free of

malfunctions,

no further

diagnosis is

required.

If scan tool

indicates “No

Data Received,"

refer to chassis

electrical

section.

SECTION

9J1–8

RESTRAINT CONTROL SYSTEM

5

1. Ignition switch “OFF."

2. Connect a scan tool to data link connector.

3. Follow directions as given in the scan tool instruction manual.

4. Ignition switch “ON."

5. Request the SRS diagnostic trouble code display, recode all

diagnostic trouble code(s), specifying as current or history on
repair order.

Is diagnostic trouble code(s) displayed?

Ignition switch

“OFF."

When DTC 53

is set, go to

DTC 53 chart.

When DTC 51

is set, go to

DTC 51 chart.

When DTC 19

is set, go to

DTC 19 chart.

When DTC 25

is set, go to

DTC 25 chart.

Diagnose

remaining

current DTCs

from lowest to

highest.

When only

history DTCs

exist, Refer to

“Diagnostics

Aids" for that

specific DTC.

A history DTC

indicates the

malfunction has

been repaired

or is

intermittent.

If scan tool

indicates “No Data
Received," refer to

chassis electrical

section.

Step

Action

Yes

No

SECTION

RESTRAINT CONTROL SYSTEM

9J1–9

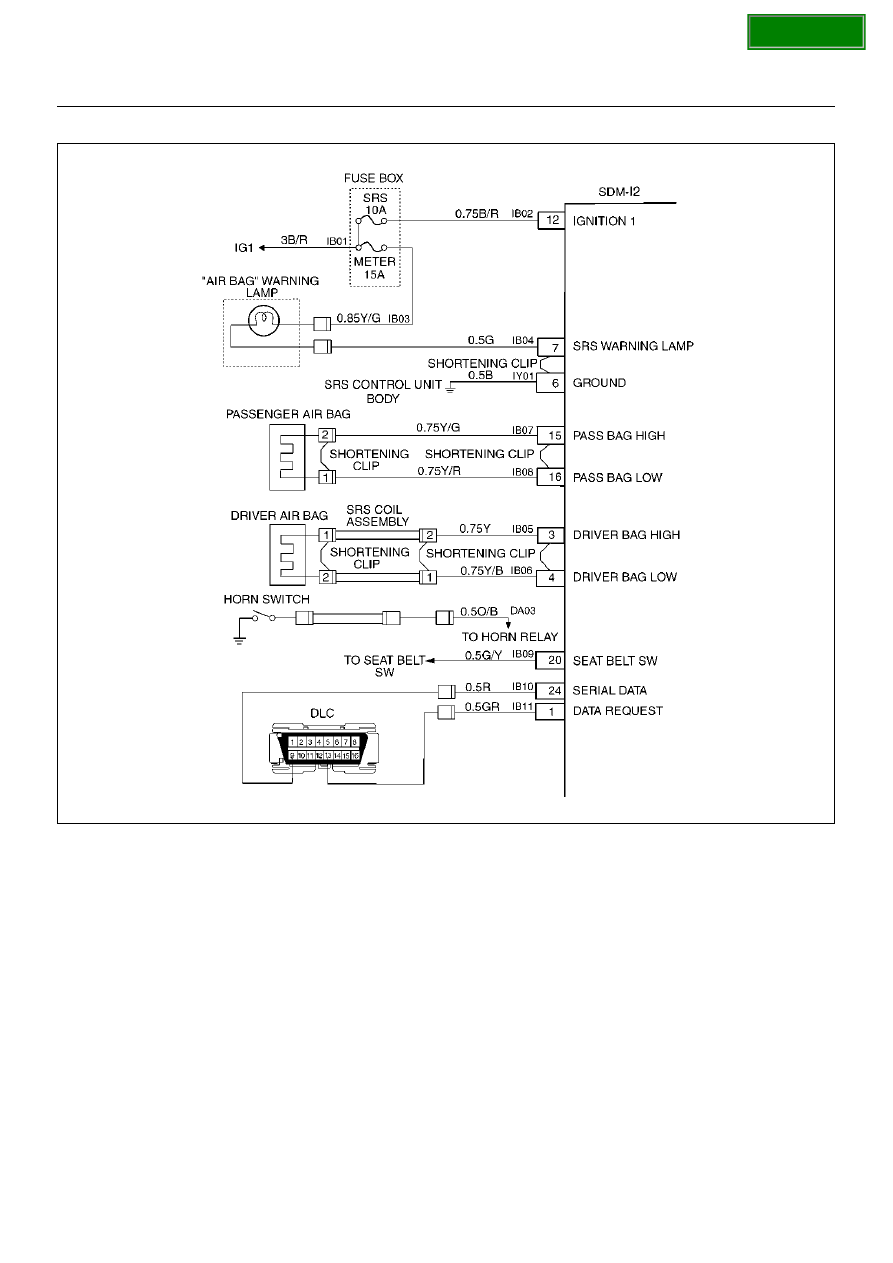

Chart A  SDM Integrity Check

D09RX002

Circuit Description:

When the Sensing and Diagnostic Module (SDM)
recognizes “ignition 1" voltage, applied to terminals “12",
is greater than 9  volts, the “AIR BAG" warning lamp is
flashed 7 times to verify operation.  At this time the
SDM performs “Turn–ON" tests followed by “Continuous
Monitoring" tests.  When a malfunction  is detected, the
SDM sets a current diagnostic trouble code and
illuminates the “AIR BAG"  warning lamp. The SDM will
clear current diagnostic trouble codes and move them to
a history  file when the malfunction is no longer detected
and/or the ignition switch is cycled, except  for
Diagnostic Trouble Codes (DTCs) 51, 53 and 71.  DTC
71 can only be cleared using a scan tool “Clear Codes"
command in case that the malfunction on DTC 71 has
been solved and no DTCs 51 and 53 were remained.
DTCs 51, 53 and 71 can not be cleared after a “Clear
Codes" command is  issued.

Chart Test Description:

Number(s) below refer to step number(s) on the
diagnostic chart:
1. This test confirms a current malfunction.  If no current

malfunction is occurring (history DTC set) the
“Diagnostic Aids" for the appropriate  diagnostic
trouble code should be referenced.  The SDM should
not be replaced for a history  diagnostic trouble code.

2. This test checks for a malfunction introduced into the

SRS during  the diagnostic process.  It is extremely
unlikely that a malfunctioning SDM would cause a
new malfunction to occur during the diagnostic
process.

3. When all circuitry outside the SDM has been found to

operate properly,  as indicated by the appropriate
diagnostic chart, then and only then should the SDM
be  replaced.
