Opel Frontera UE. Manual - part 1721





BODY STRUCTURE

8F–61

Installation

1. Rear quarter glass.

• Clean the bonding surfaces of both the glass and

the body panel.

• Be absolutely sure to apply glass primer to the

side glass.

• Be absolutely sure to apply body primer fully to

the body.

NOTE:  Immediately wipe off the primer left on the body
or extruded sealant.

• Attach the fastener tape to the indicated position

of body with sealant as shown in the figure.

• Apply the sealant to the circumference of glass as

shown in the figure.

• Insert the location pins on glass into the panel,

push the glass against the panel, and bond them.

• Attach the moulding to the body with sealant.

• Cure the bonding at a temperature of 20

°

C



–

30

°

C (68

°

F – 86

°

F) for 24 hours.

• Check that the rear quarter glass does not leak

water.

2. Install the rear quarter trim panel.

SECTION

8F–62

BODY STRUCTURE

Main Data and Specifications

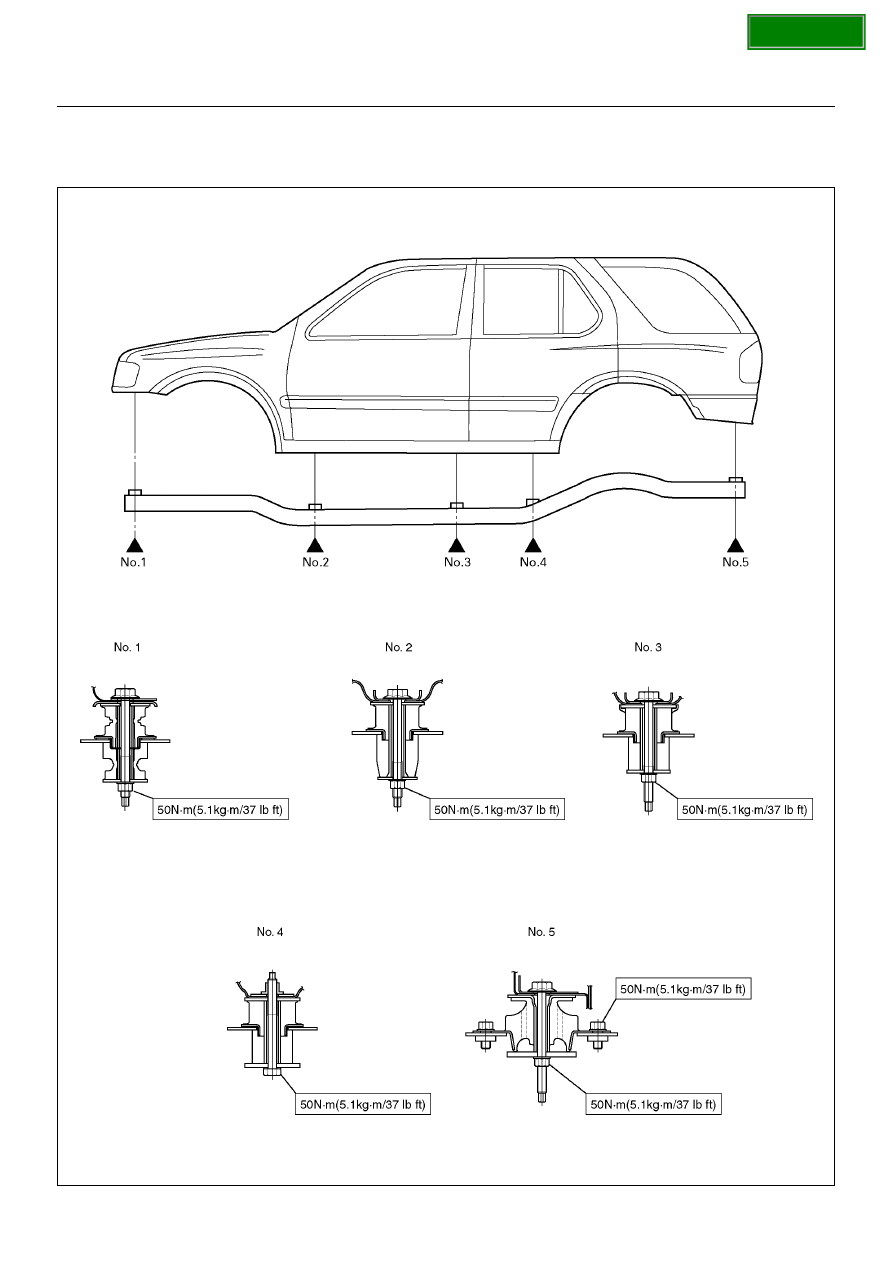

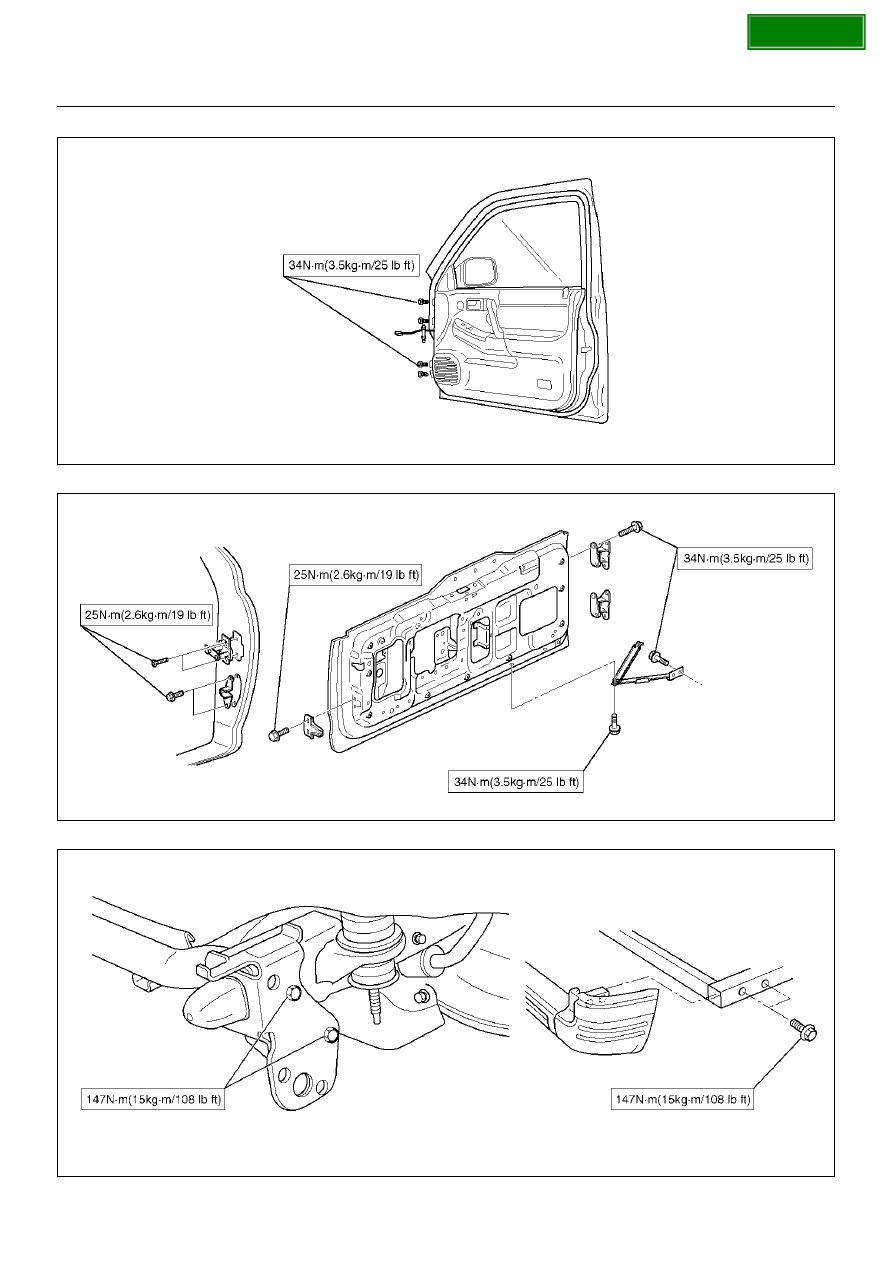

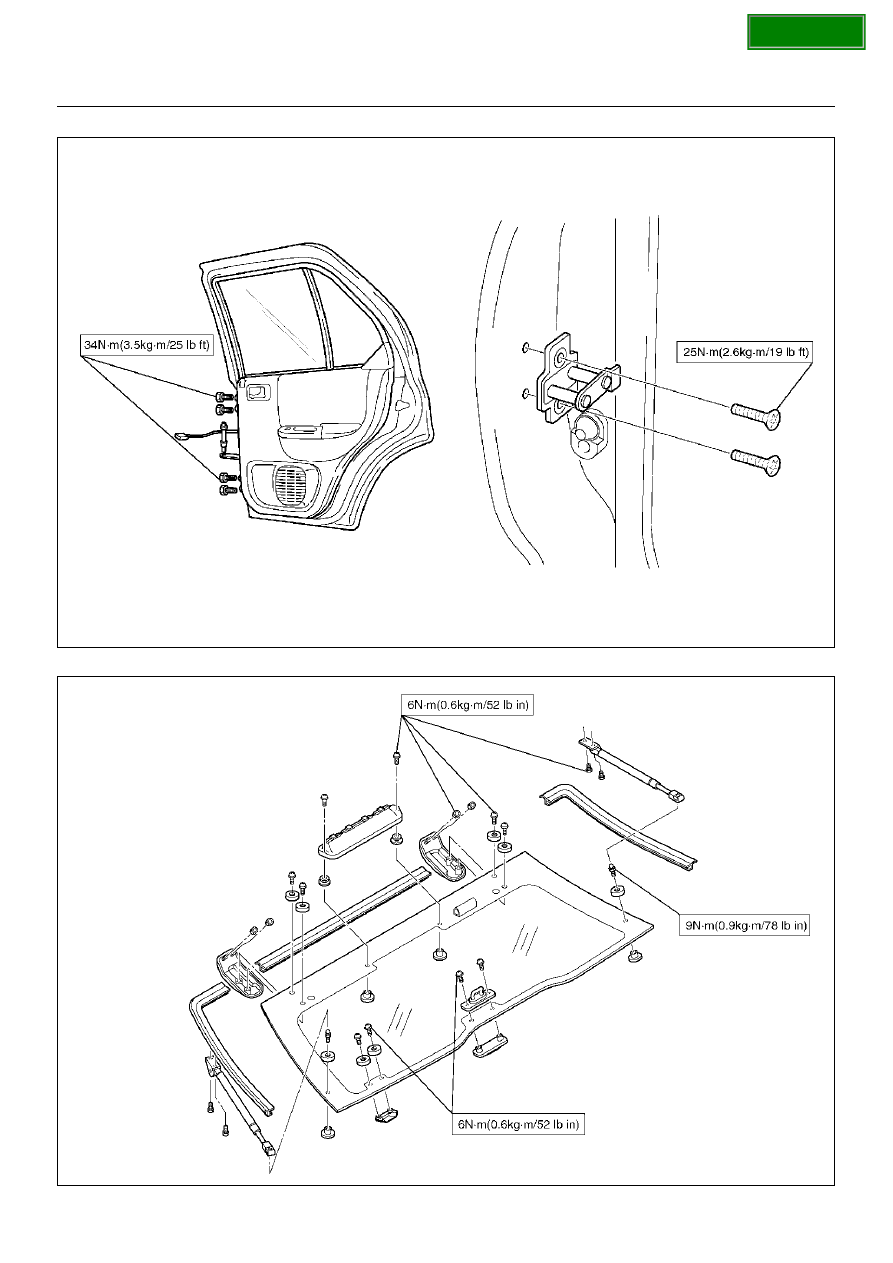

Torque Specification

501R100004

SECTION

BODY STRUCTURE

8F–63

630RX021

681RX003

601RY00011

SECTION

8F–64

BODY STRUCTURE

650R100004

682RY00006

SECTION
