Rear Window Regulator, Glass and Glass Run

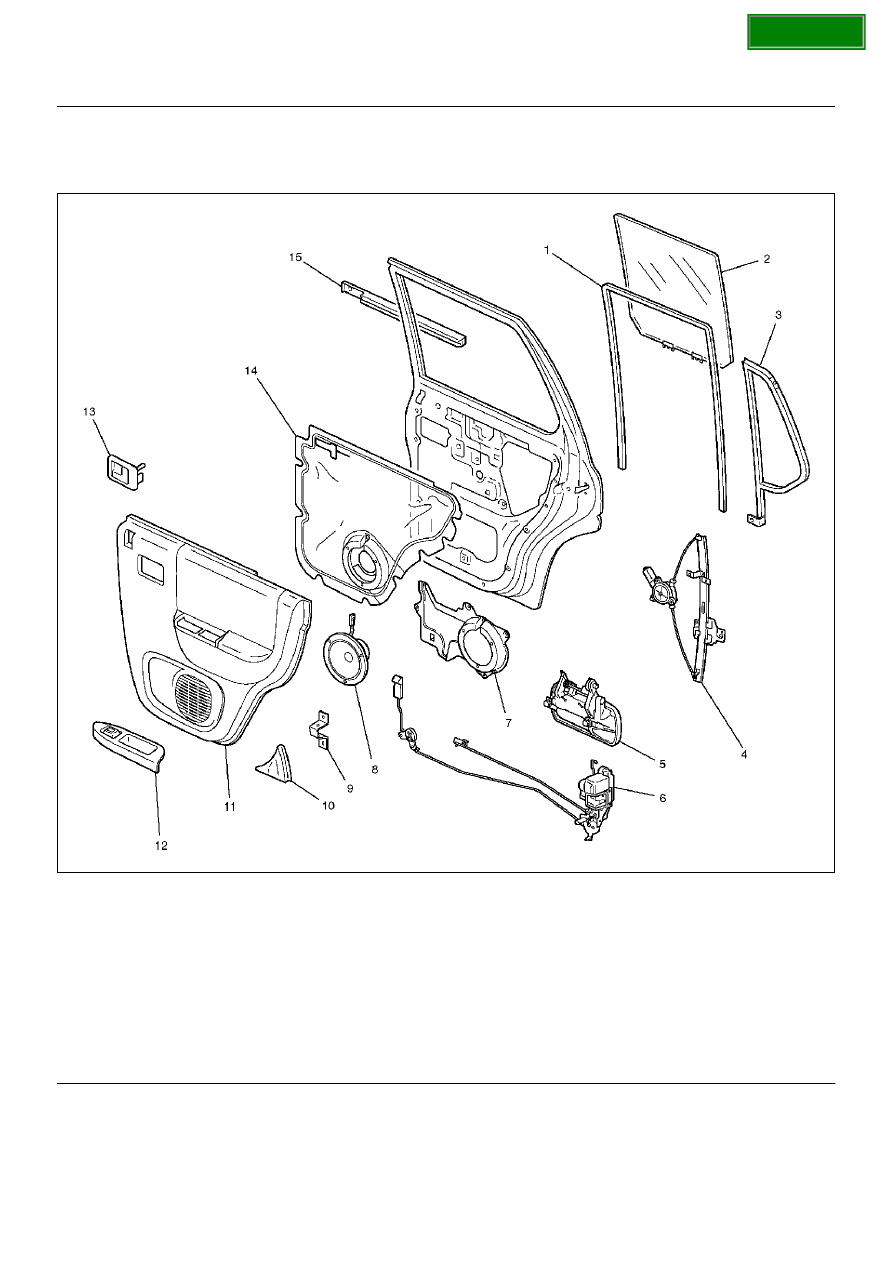

Parts Location

655R100005

Legend

EndOFCallout

(1) Glass Run
(2) Glass
(3) Fixed Glass
(4) Window Regulator
(5) Outside Handle
(6) Door Lock Assembly
(7) Speaker Bracket
(8) Speaker

(9) Bracket

(10) Rear Corner Garnish
(11) Door Trim Panel
(12) Power Window Switch and Pull Case
(13) Inside Handle
(14) Waterproof Sheet
(15) Waist Seal

SECTION

8F–46

BODY STRUCTURE

Removal

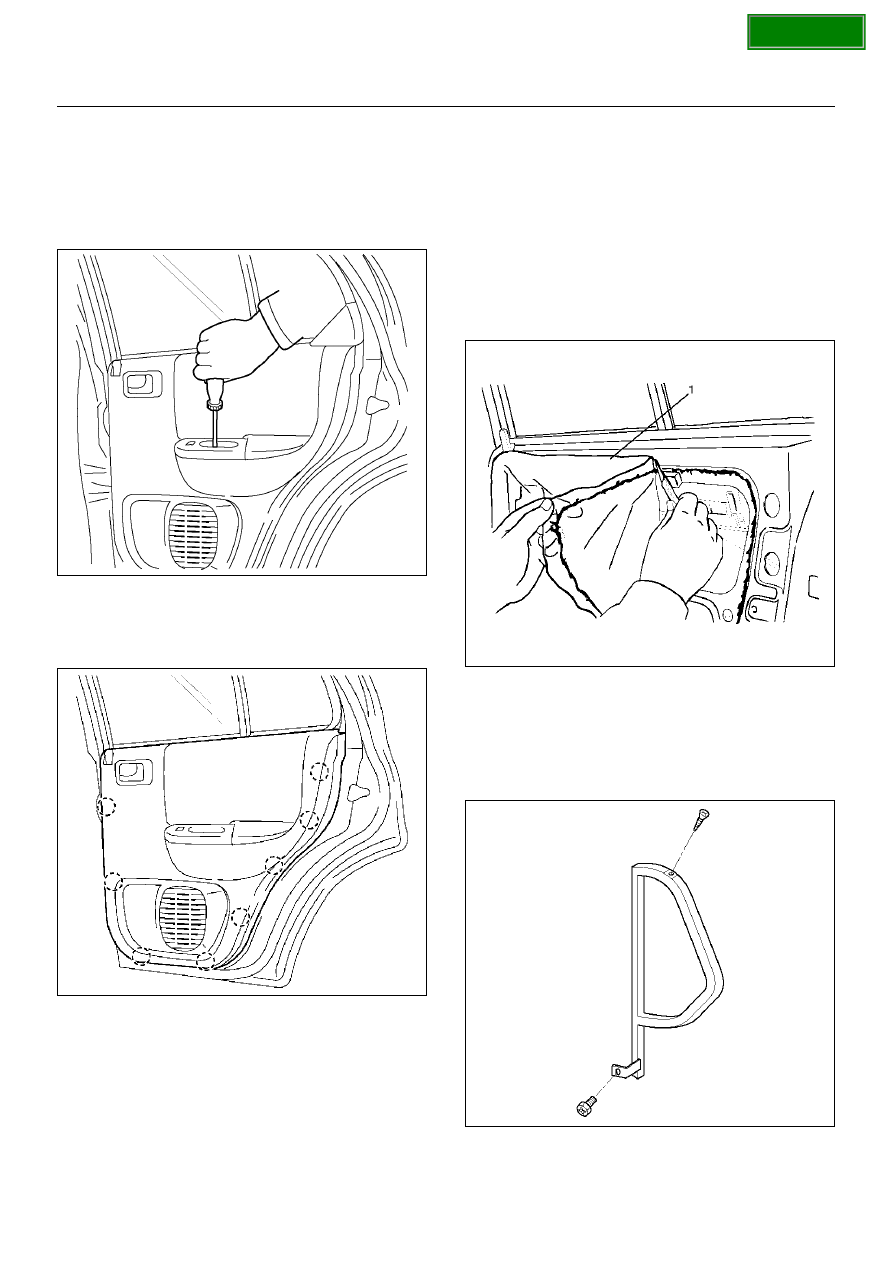

1. Disconnect the battery ground cable.

2. Remove the screw while pulling the inside lever

toward you and then remove the inside handle.

3. Remove the one screw at the pull case.

655R100002

4. Remove the rear corner garnish.

5. Pull out the trim panel at the eight clip positions.

• Disconnect the power window switch connector.

655R100003

6. Remove the power window switch and pull case.

• Remove the fixing screws from back side of the

rear door trim panel.

7. Remove the bracket.

8. Disconnect the speaker harness connector.

9. Remove the speaker with the speaker harness

connector from the door inner panel.

10. Remove the waterproof sheet (1).

• Taking notice of the door harness, peel the

waterproof sheet off the door panel carefully.

651RS002

11. Remove the speaker bracket.

• Remove the six fixing screws.

12. Remove the fixed glass.

• Remove one bolt and screw as shown in the

figure, then pull it upward.

651RW002

SECTION

BODY STRUCTURE

8F–47

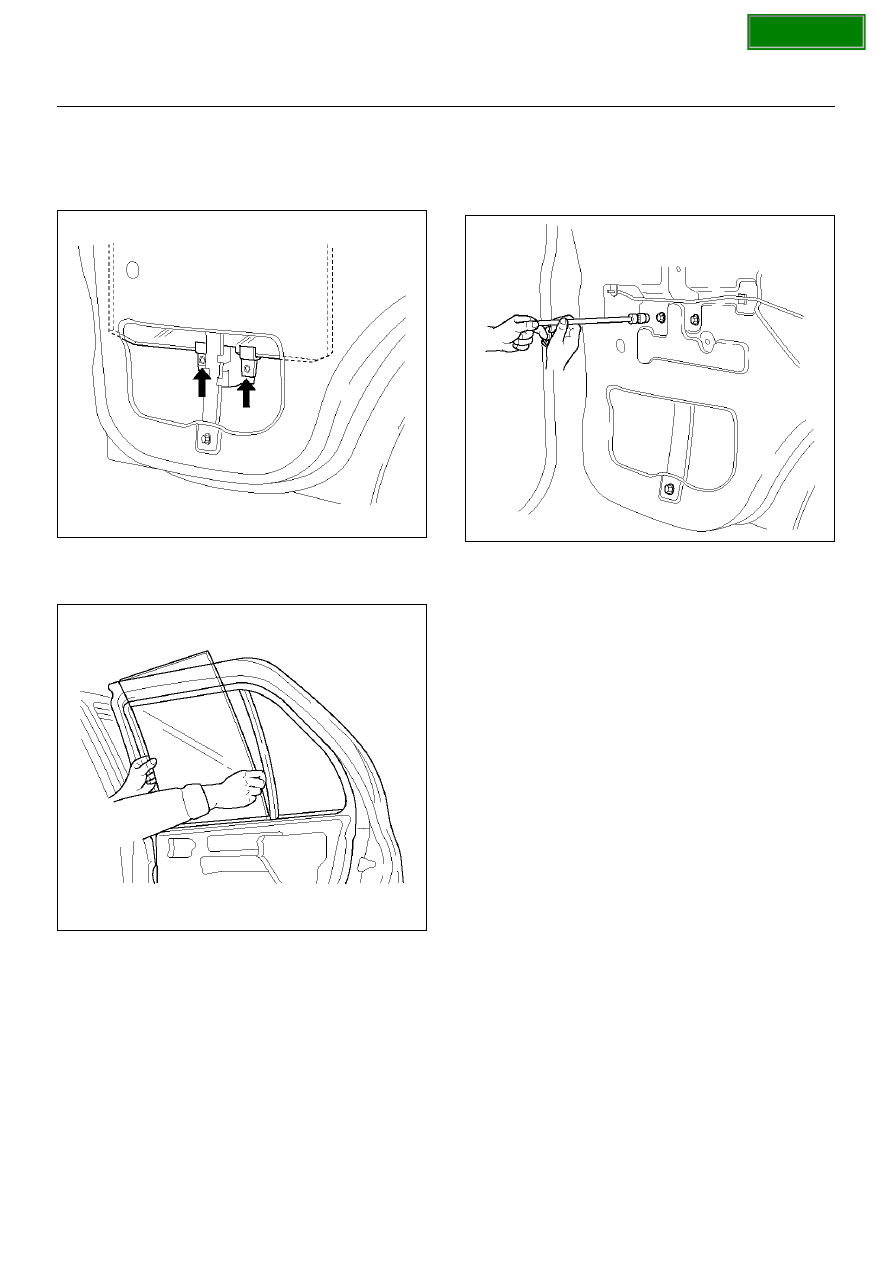

13. Remove the glass.

• First, align the height of regulator to the access

hole. Remove two screws attaching bottom
channel and regulator, then remove the glass.

651RW006

• Remove the window glass by tilting it as

necessary.

651RW007

14. Remove the window regulator.

• Remove the six fixing bolts and pull the regulator

out from the lower hole of the door panel.

• Disconnect the connector.

651RW005

15. Remove the glass run.

• Pull the glass run out from the door frame.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Check to see that the window regulator operates

smoothly and the glass opens and closes properly.

2. Install the waterproof sheet with no clearance

between the door panel and the waterproof sheet.

SECTION

8F–48

BODY STRUCTURE

Tailgate

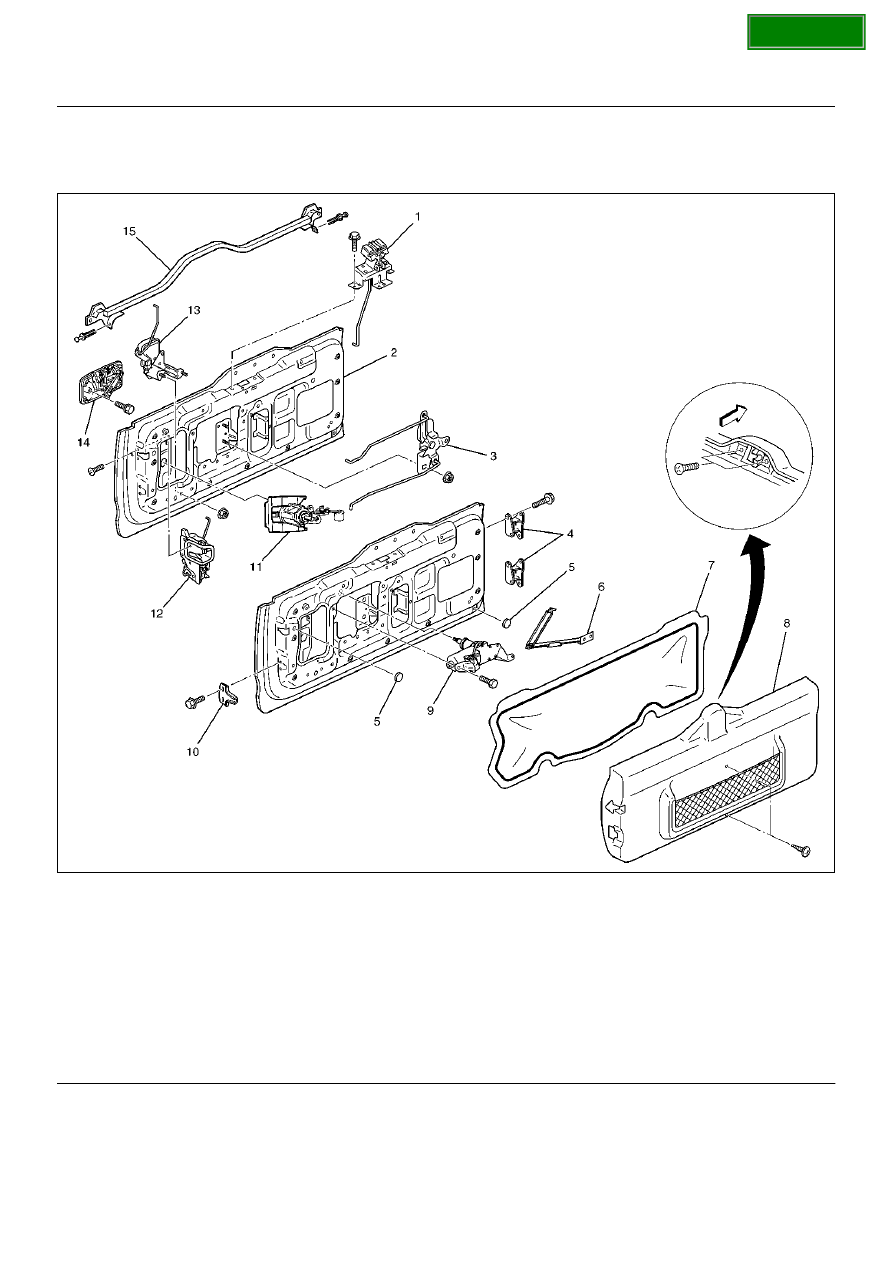

Parts Location

681RW010

Legend

EndOFCallout

(1) Hatchgate Lock Assembly
(2) Tailgate Assembly
(3) Tailgate Bell Crank
(4) Hinges
(5) Plug
(6) Tailgate Stopper Link
(7) Waterproof Sheet
(8) Trim Cover Assembly

(9) Rear Wiper Motor

(10) Dove Tail
(11) Key Cylinder
(12) Tailgate Lock Assembly
(13) Hatchgate Lock Actuator Assembly
(14) Outside Handle
(15) Tailgate Waist Seal

SECTION
