BODY STRUCTURE

8F–37

21. Remove the cross beam.

• Remove the five fixing nuts, two fixing bolts

(upper) and six fixing bolts (lower).

840RW025

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Adjust the control cable.

• Refer to Control Lever Assembly in Heating,

Ventilation and Air Conditioning (HVAC) section.

SECTION

8F–38

BODY STRUCTURE

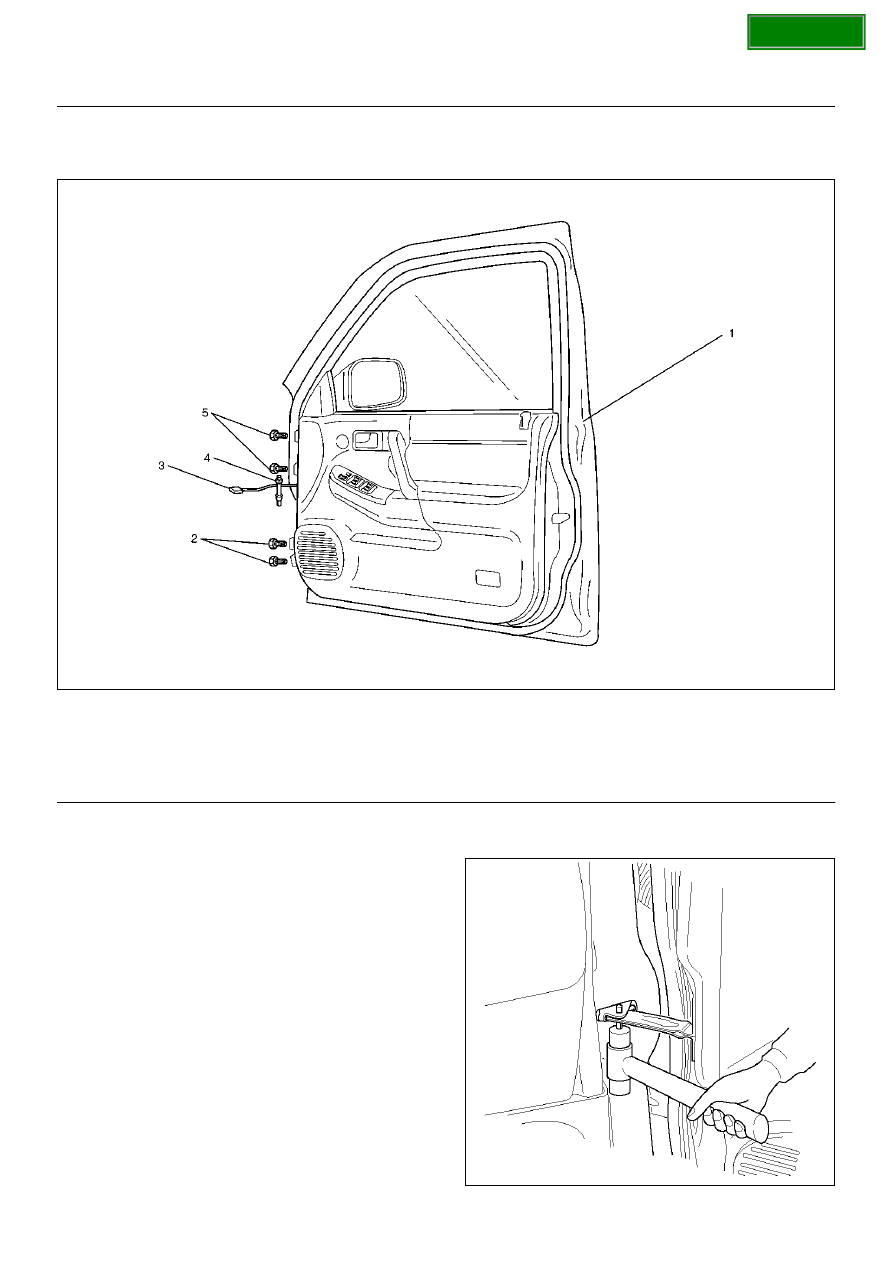

Front Door Assembly

Parts Location

630RW044

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Apply a setting mark on the body side hinge.

3. Remove the door check arm pin.

630RW001

(1) Front Door Assembly
(2) Lower Hinge Bolt
(3) Door Harness Connection

(4) Door Check Arm Pin
(5) Upper Hinge Bolt

SECTION

BODY STRUCTURE

8F–39

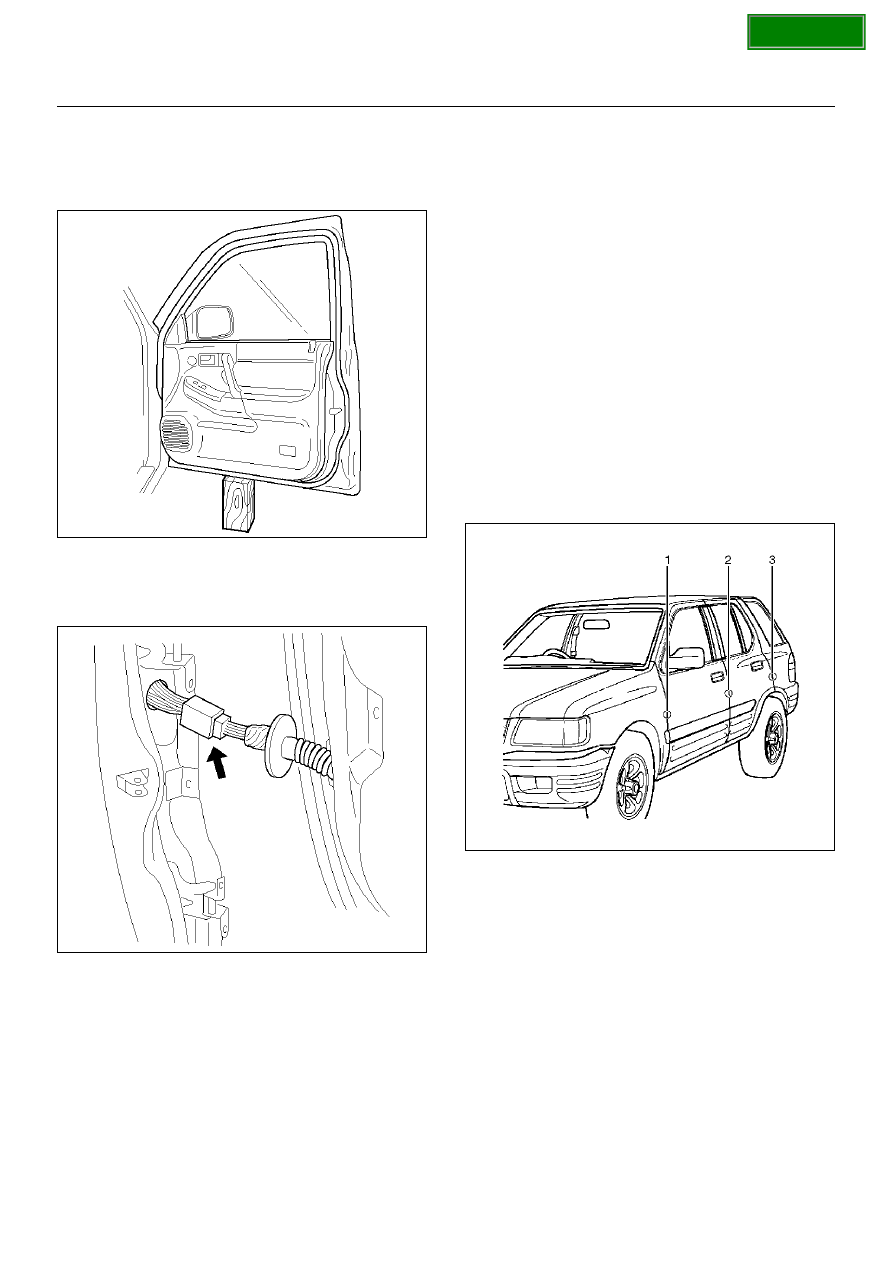

4. Remove the upper and lower hinge bolts.

• Position a wood block under the door for

protection and support the door assembly with
hands during removal or installation.

635RW003

5. Remove the door harness connection.

• Pull the door harness grommet out in order to

disconnect the harness connection.

630RW004

6. Remove the front door assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Align the door fitting to the body.

• Check the fender and front door (1).

Clearance: 5.0 mm (0.196 in)

Height (step): Flush

• Check the front door and rear door (2).

Clearance: 6.0 mm (0.23 in)

Height (step): Flush

• Check the rear door and body (3).

Clearance: 5.0 mm (0.196 in)

Height (step): Flush

Adjust clearance with door hinges.
Adjust height (step) by tapping on the fender
lightly with a rubber hammer.

610R100002

2. Tighten the door hinge bolts to the specified torque.

Torque : 34 N·m (3.5 kg·m/25 lb ft)

SECTION

8F–40

BODY STRUCTURE

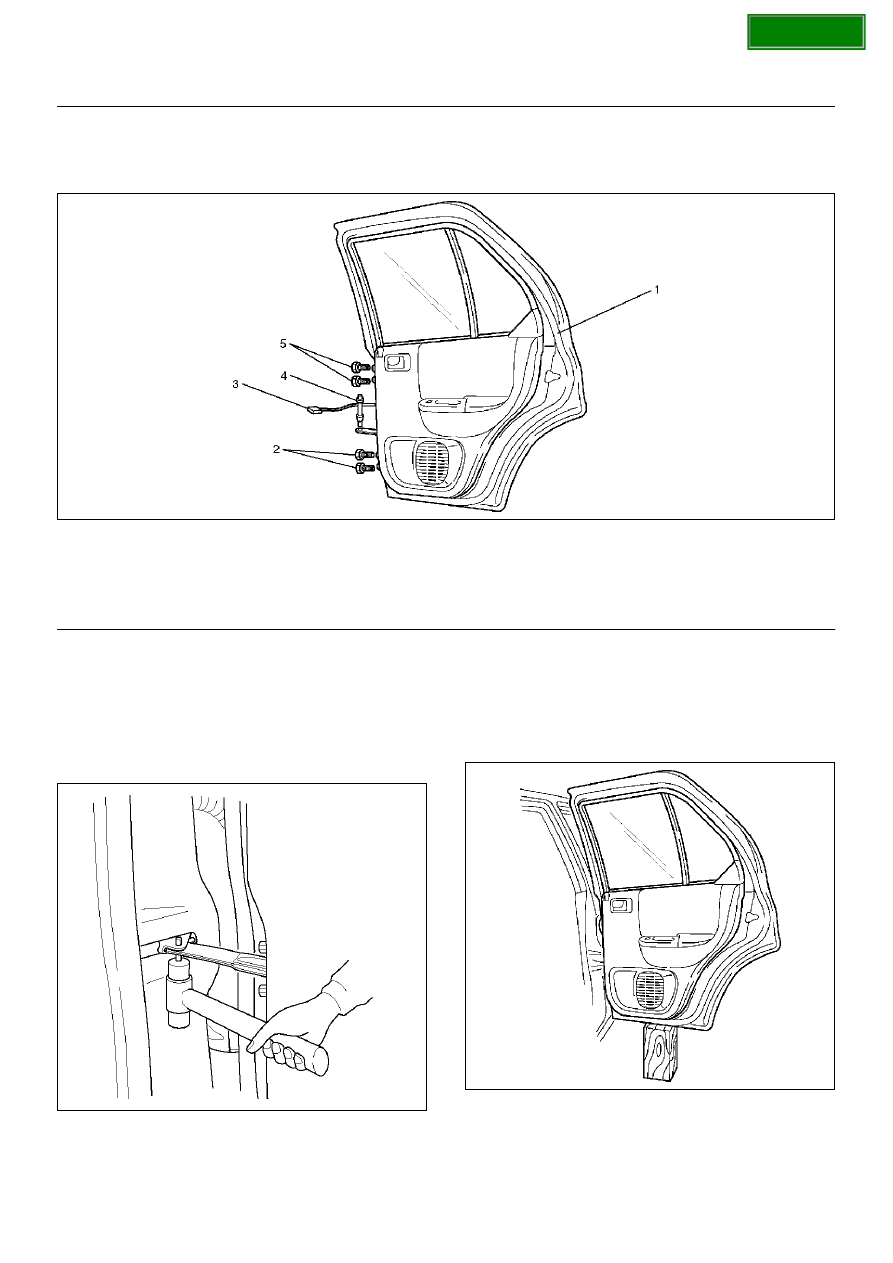

Rear Door Assembly

Parts Location

650R100001

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Apply a setting mark on the body side hinge.

3. Remove the door check arm pin.

630RW003

4. Remove the upper and lower hinge bolts.

• Position a wood block under the door for

protection and support the door assembly with
hands during removal or installation.

650R100002

(1) Rear Door Assembly
(2) Lower Hinge Bolt
(3) Door Harness Connection

(4) Door Check Arm Pin
(5) Upper Hinge Bolt

SECTION
