General Description (Body)

This publication contains essential removal, installation,
adjustment and maintenance procedures.

Instrument Panel Assembly

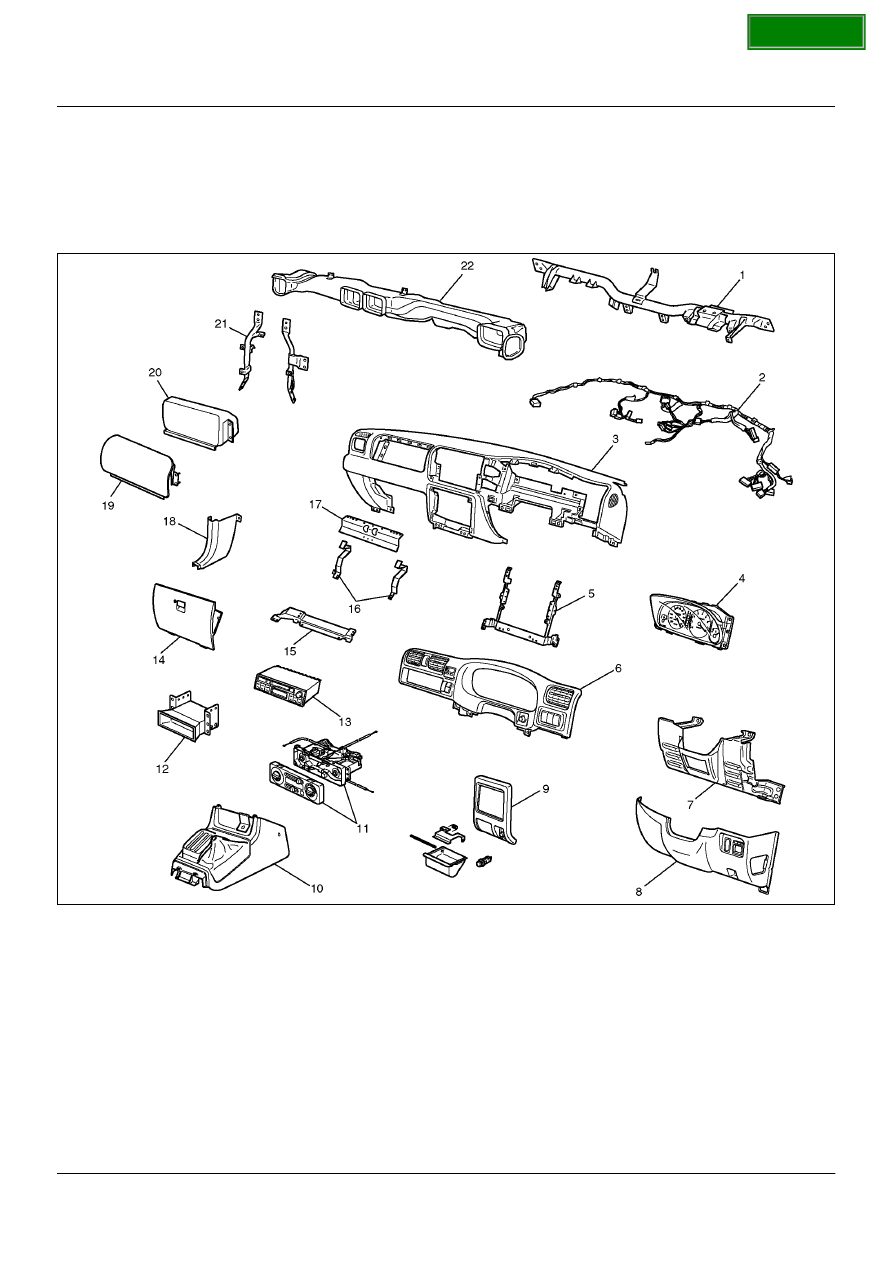

Parts Location

740R100009

Legend

EndOFCallout

(1) Cross Beam
(2) Instrument Harness Assembly
(3) Instrument Panel Assembly
(4) Meter Assembly
(5) Instrument Panel Center Reinforcement
(6) Meter Cluster Assembly
(7) Driver knee Bolster Assembly
(8) Instrument Panel Driver Lower Cover Assembly
(9) Lower Cluster Assembly

(10) Front Console Assembly
(11) Control Lever Assembly

(12) Audio Sub Box
(13) Radio Assembly
(14) Glove Box
(15) Passenger Lower Bracket
(16) Glove Box Side Reinforcement
(17) Instrument Upper Reinforcement
(18) Dash Side Trim Panel
(19) Passenger Air Bag Cover
(20) Passenger Air Bag
(21) Instrument Panel Stay
(22) Vent Duct Assembly

SECTION

BODY STRUCTURE

8F–35

Removal

CAUTION:  For precautions on installation or
removal of SRS – air bag system, refer to
Supplemental Restraint  System (SRS) – AIR BAG in
Restraint section.

1. Disconnect the battery ground cable.

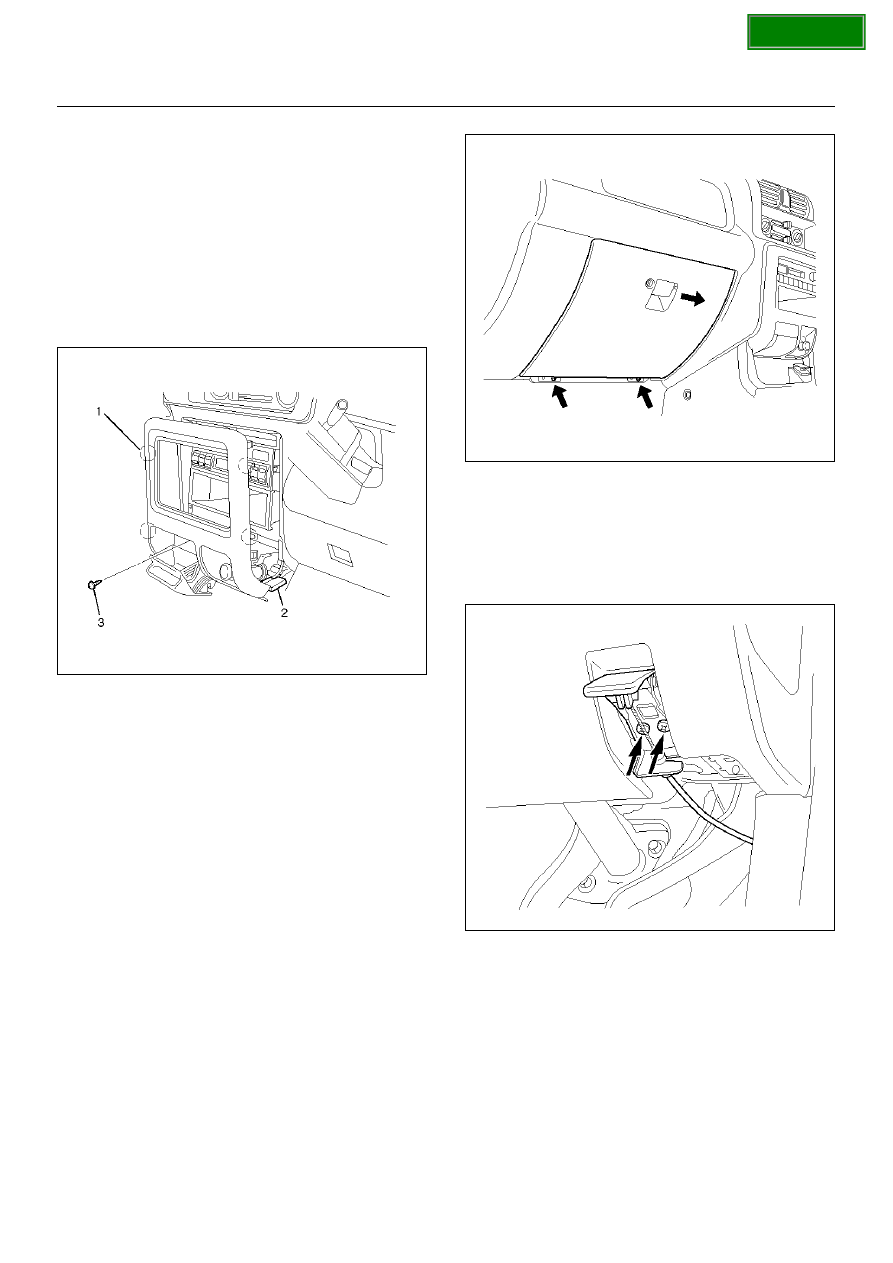

2. Remove the lower cluster assembly.

• Remove screw (3) and pull out the cluster at the

clip positions (1).

• Disconnect the cigarette lighter connectors (2).

470RW006

3. Remove the radio assembly and audio sub box.

• Refer to Radio in Entertainment section.

4. Remove the front and rear consoles.

• Refer to Consoles in Exterior/Interior Trim

section.

5. Remove the dash side trim panels.

• Remove the sill plates, then remove the trim

panels.

6. Remove the glove box.

• Remove the two fixing screws.

470RW007

7. Remove the instrument panel driver lower cover

assembly.

• Remove the engine hood opener two fixing

screws and another one fixing screw.
After four clips are pried, disconnect switch
connector and duct.

610RW023

8. Remove the meter cluster assembly.

• Remove the five fixing screws, two clips and

switch connectors.

9. Remove the meter assembly.

• Remove the four fixing screws and disconnect the

connectors.

10. Remove the driver knee bolster assembly.

• Remove the six fixing bolts and screw.

11. Remove the control lever assembly.

• Refer to Control Lever Assembly and/or Control

Cable in Heating, Ventilation and Air Conditioning
(HVAC) section.

SECTION

8F–36

BODY STRUCTURE

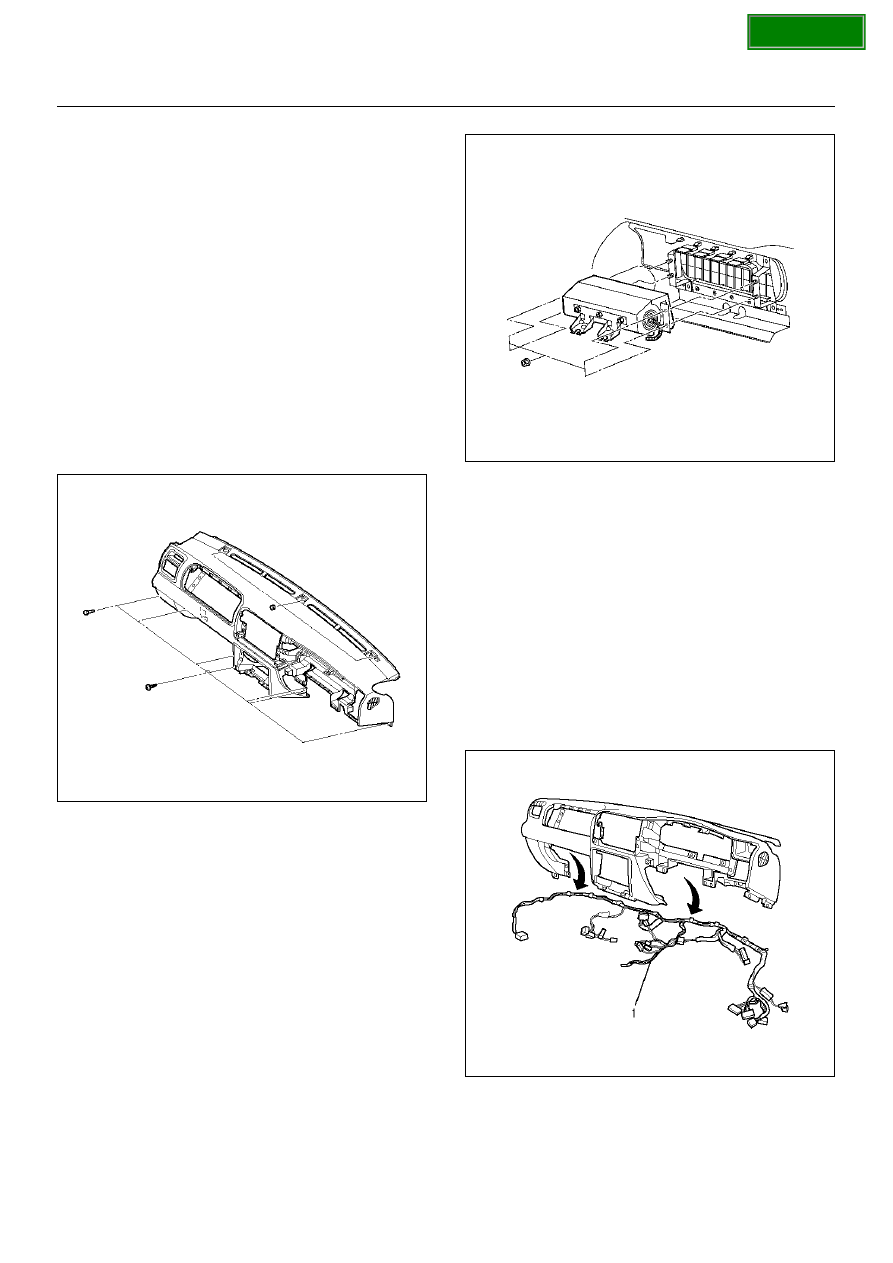

12. Remove the Instrument panel assembly.

CAUTION:  For precautions on installation or
removal of SRS – air bag system, refer to
Supplemental  Restraint System (SRS) – AIR BAG in
Restraint section.

• Disconnect the instrument harness connectors

(six connectors on the driver's side, three
connectors on the passenger side and two
connectors on the center side).

• Disconnect radio antenna cable plug and the

ground cable fixing bolts from dash side panel.

• Remove the two fixing bolts of passenger air bag

assembly and disconnect the connector.

• Remove the two fixing screws from fuse box.

• After pry the three hole cover from the surface of

instrument panel, remove the three nuts.

• Remove the six bolts and one screw.

740RX070

13. Remove the passenger air bag.

• Remove the four fixing nuts.

CAUTION:  For precautions on installation or
removal of SRS – air bag system, refer to
Supplemental  Restraint System in Restraint
section.

827RY00004

14. Remove the vent duct assembly.

• Remove the five fixing screws.

15. Remove the passenger lower bracket.

• Remove the three screws.

16. Remove the glove box side reinforcement.

17. Remove the instrument upper reinforcement.

• Remove the nine screws.

18. Remove the instrument panel center reinforcement.

• Remove the six screws.

19. Remove the instrument panel harness assembly

(1).

• Remove the clips.

740RX069

20. Remove the instrument panel stays.

• Remove the two fixing nuts and two fixing bolts

for each bracket.
