8D–226

WIRING SYSTEM

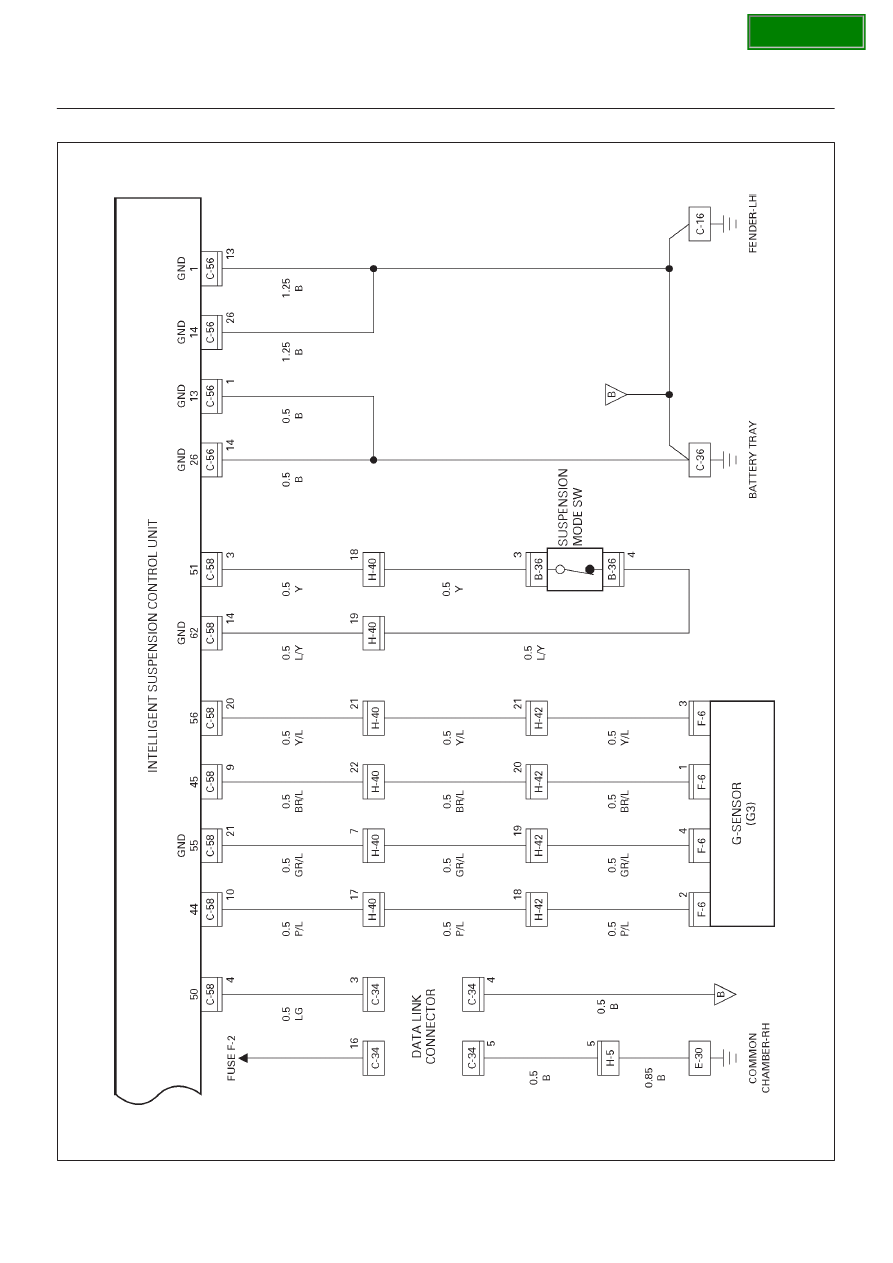

Circuit Diagram–4

D08R100236

SECTION

8D–227

WIRING SYSTEM

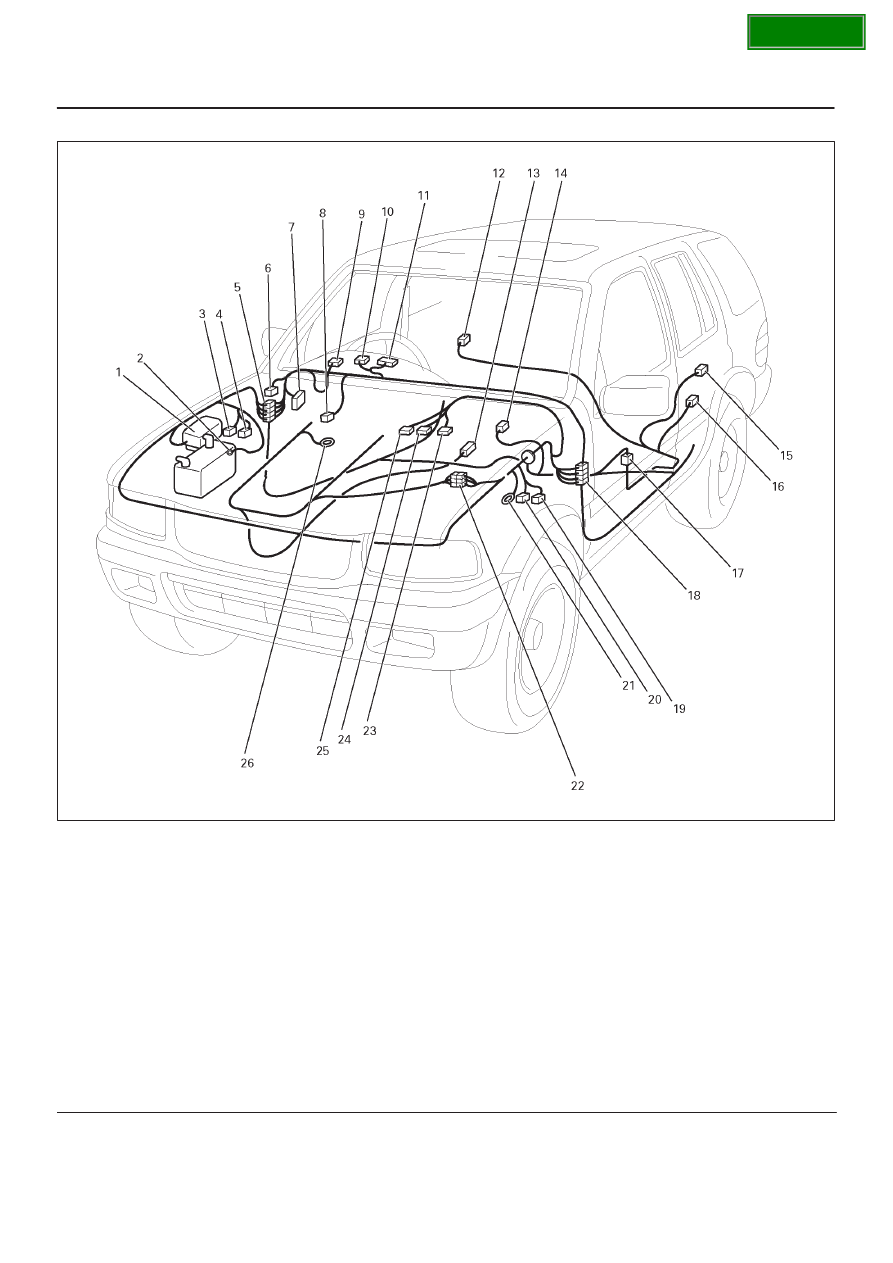

Parts Location

D08R100210

Legend

(1) Relay & Fuse Box (Engine Room)
(2) C–36
(3) C–51
(4) C–52
(5) H–13, H–14
(6) C–34
(7) Relay & Fuse Box (Instrument Panel)
(8) I–18
(9) I–2

(10) I–9

(11) I–10

(12) F–7
(13) E–61

(14) B–36
(15) F–8
(16) F–6
(17) H–42
(18) H–16, H–17, H–40
(19) C–54
(20) C–53
(21) C–16
(22) H–5, H–39
(23) C–58
(24) C–57
(25) C–56
(26) E–30

SECTION

8D–228

WIRING SYSTEM

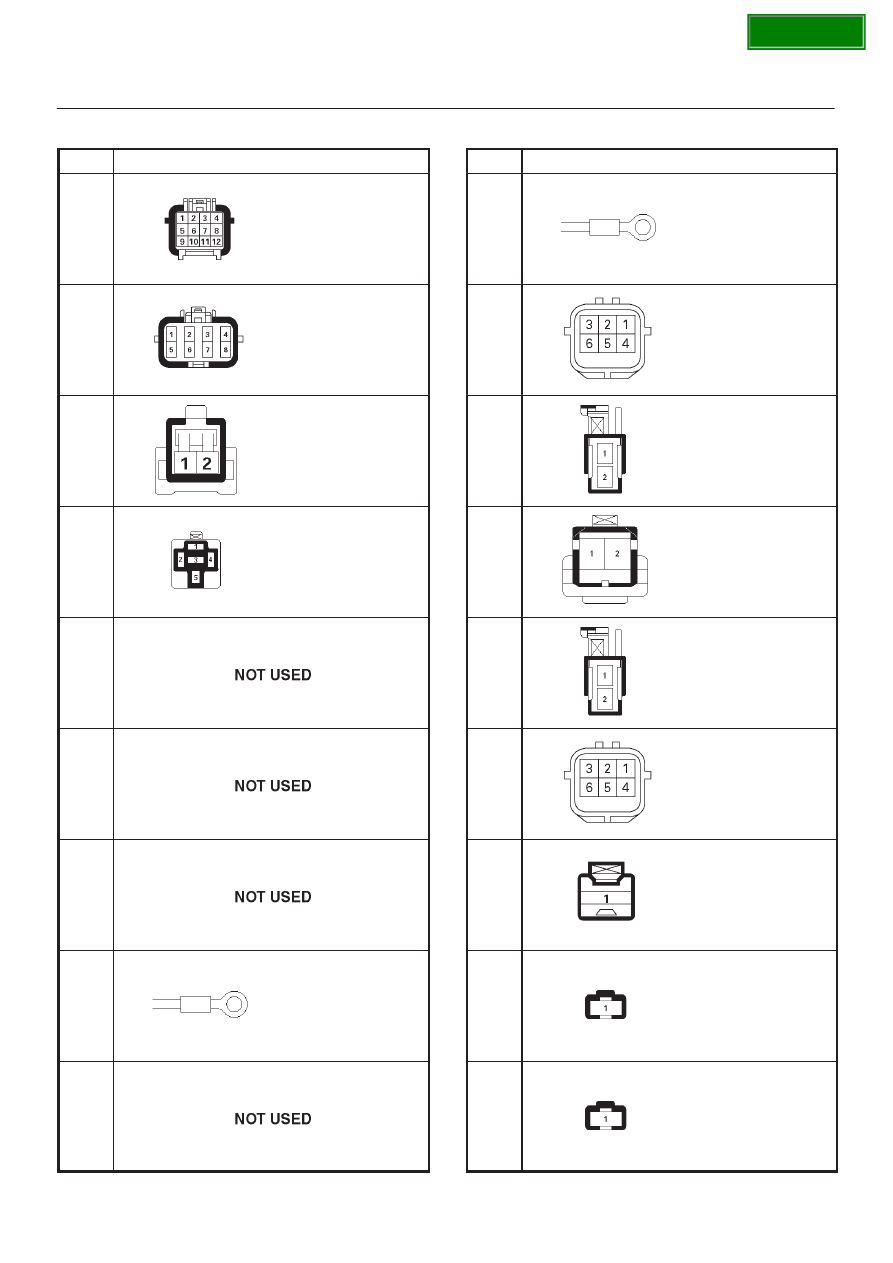

Harness Connector Faces

No.

Connector face

A-1

A-2

B-1

B-2

B-3

B-4

B-5

B-6

B-7

No.

Connector face

B-8

B-9

B-10

B-11

B-12

B-13

B-14

B-15

B-16

SECTION

8D–229

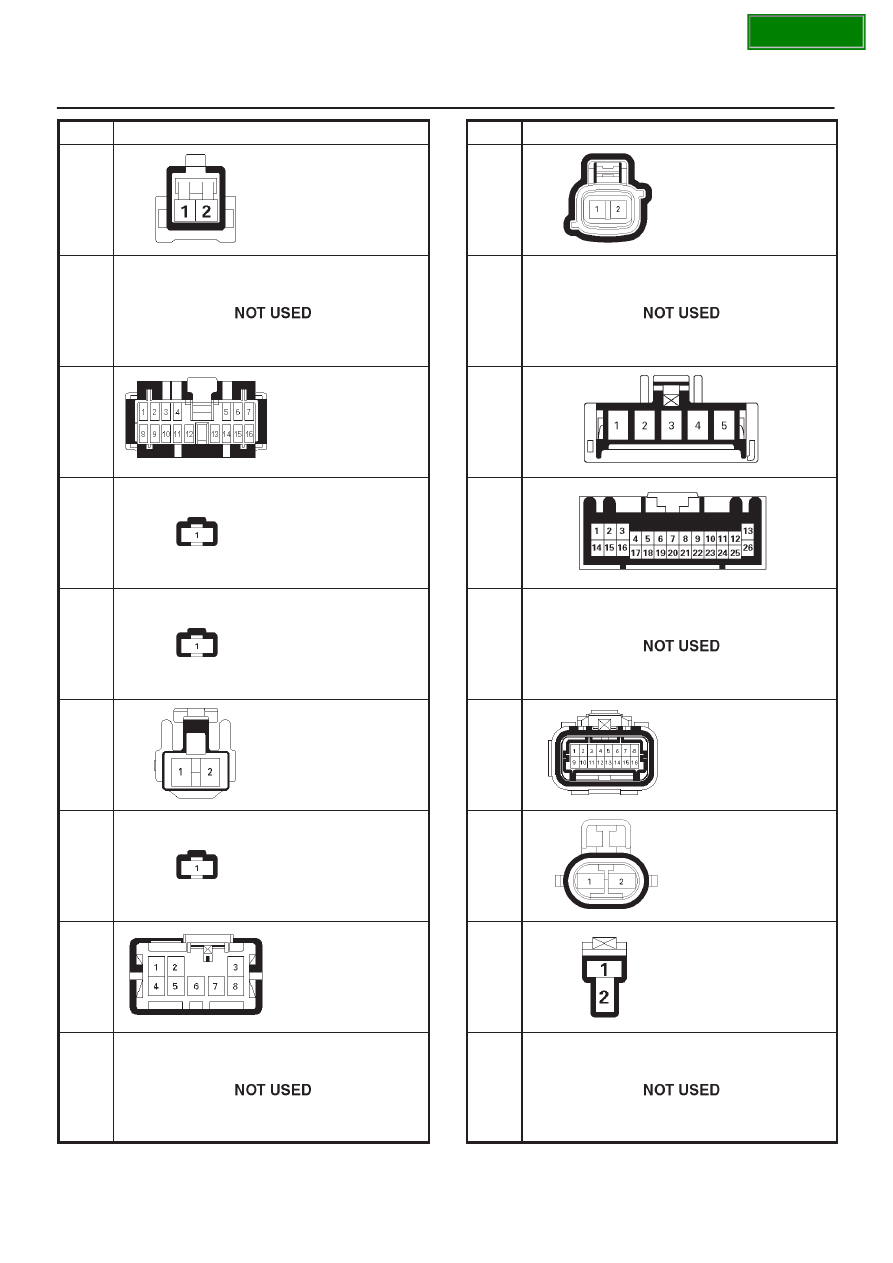

WIRING SYSTEM

No.

Connector face

B-17

B-18

B-19

B-20

B-21

B-22

B-23

B-24

B-25

∼

B-29

No.

Connector face

B-30

B-31

∼

B-35

B-36

B-37

C-1

∼

C-3

C-4

C-5

C-6

C-7
