Opel Frontera UE. Manual - part 1697

8D–218

WIRING SYSTEM

Alarme and Relay Control Unit

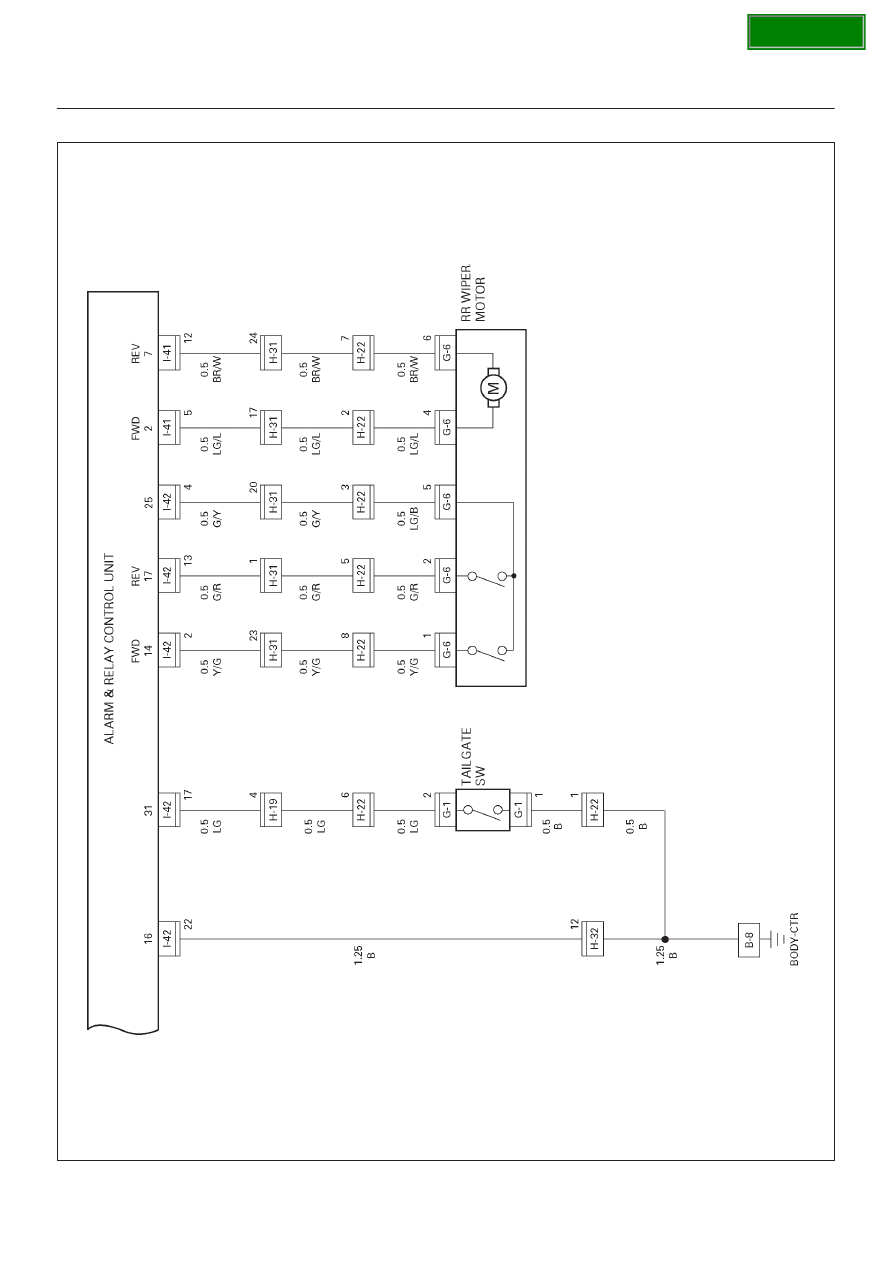

Circuit Diagram–1

D08R100163

SECTION

8D–219

WIRING SYSTEM

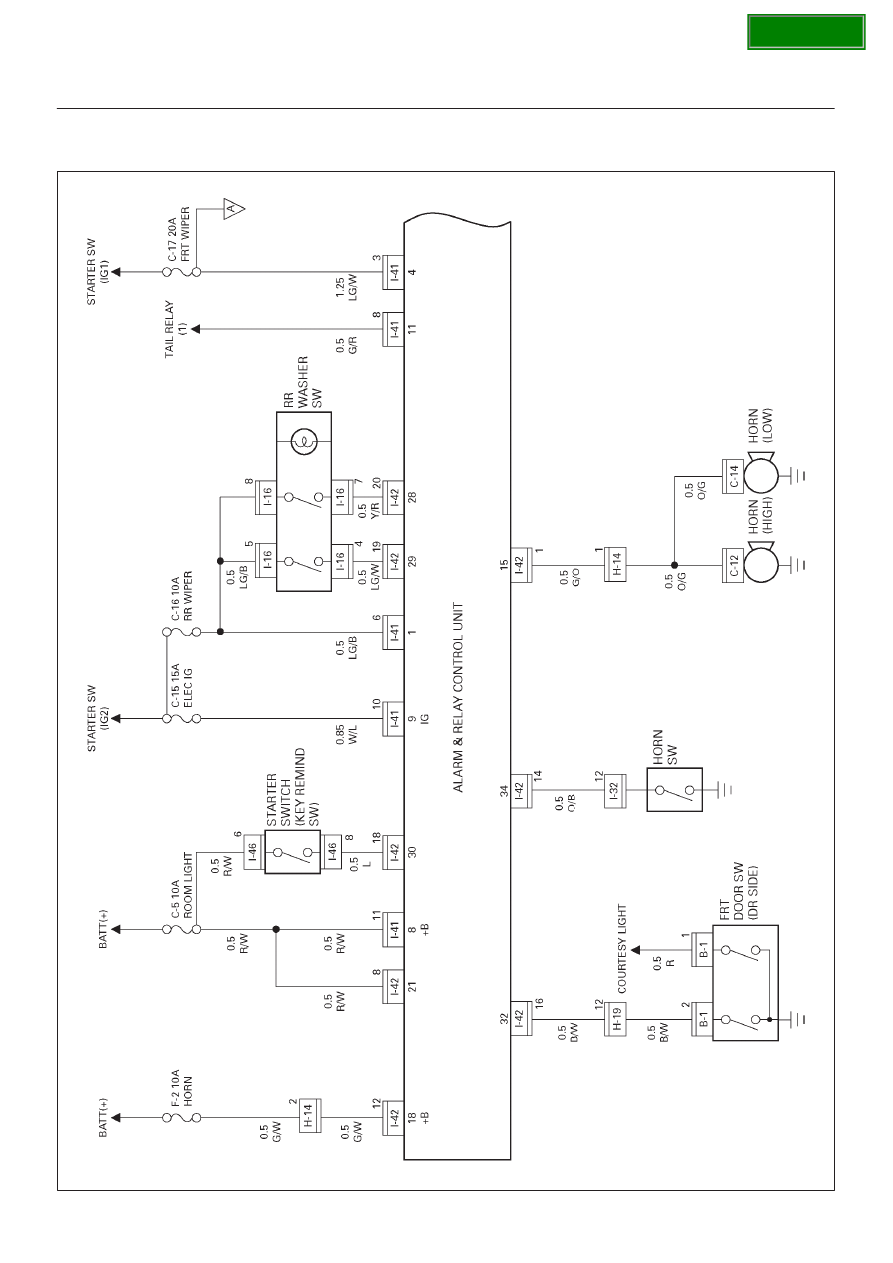

Circuit Diagram–2

D08R100164

SECTION

8D–220

WIRING SYSTEM

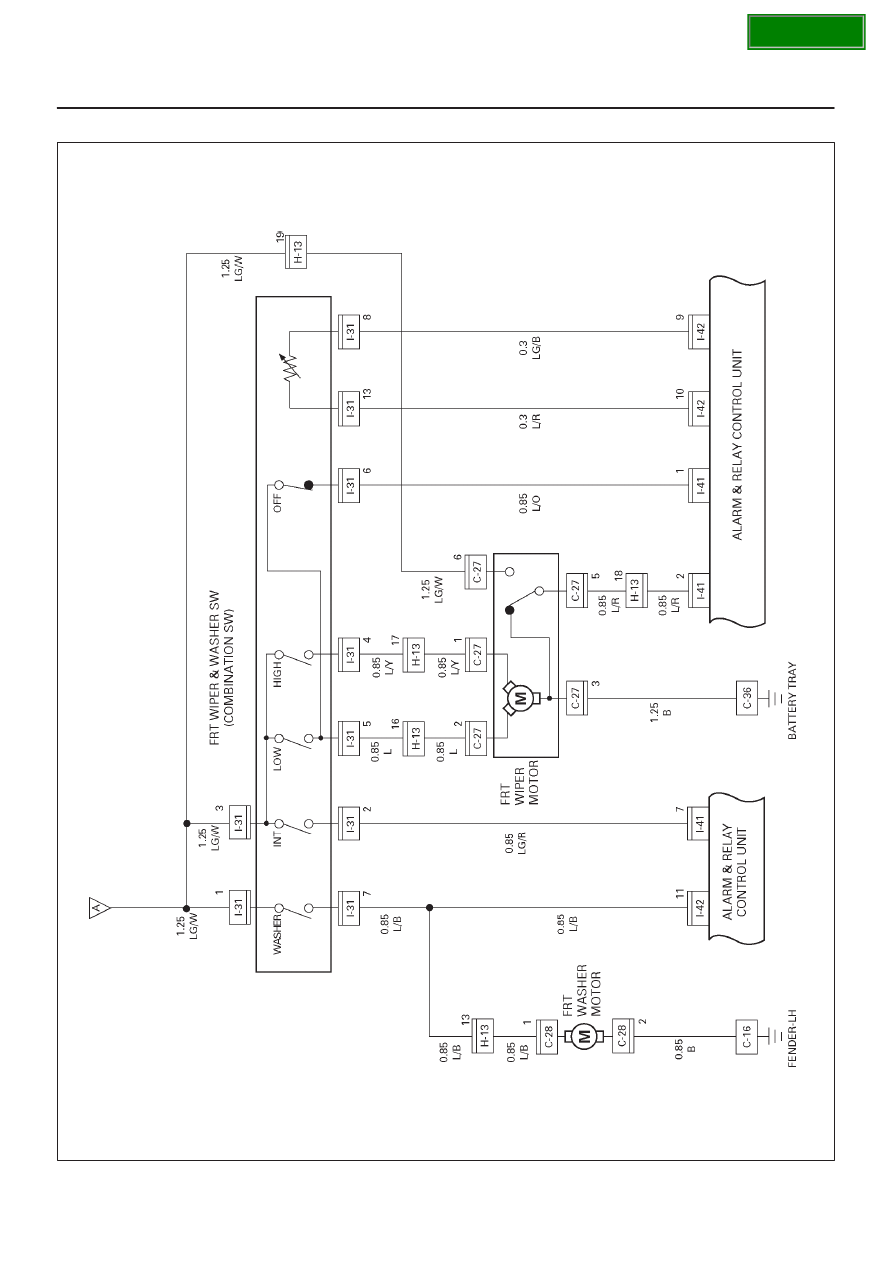

Circuit Diagram–3

D08R100165

SECTION

8D–221

WIRING SYSTEM

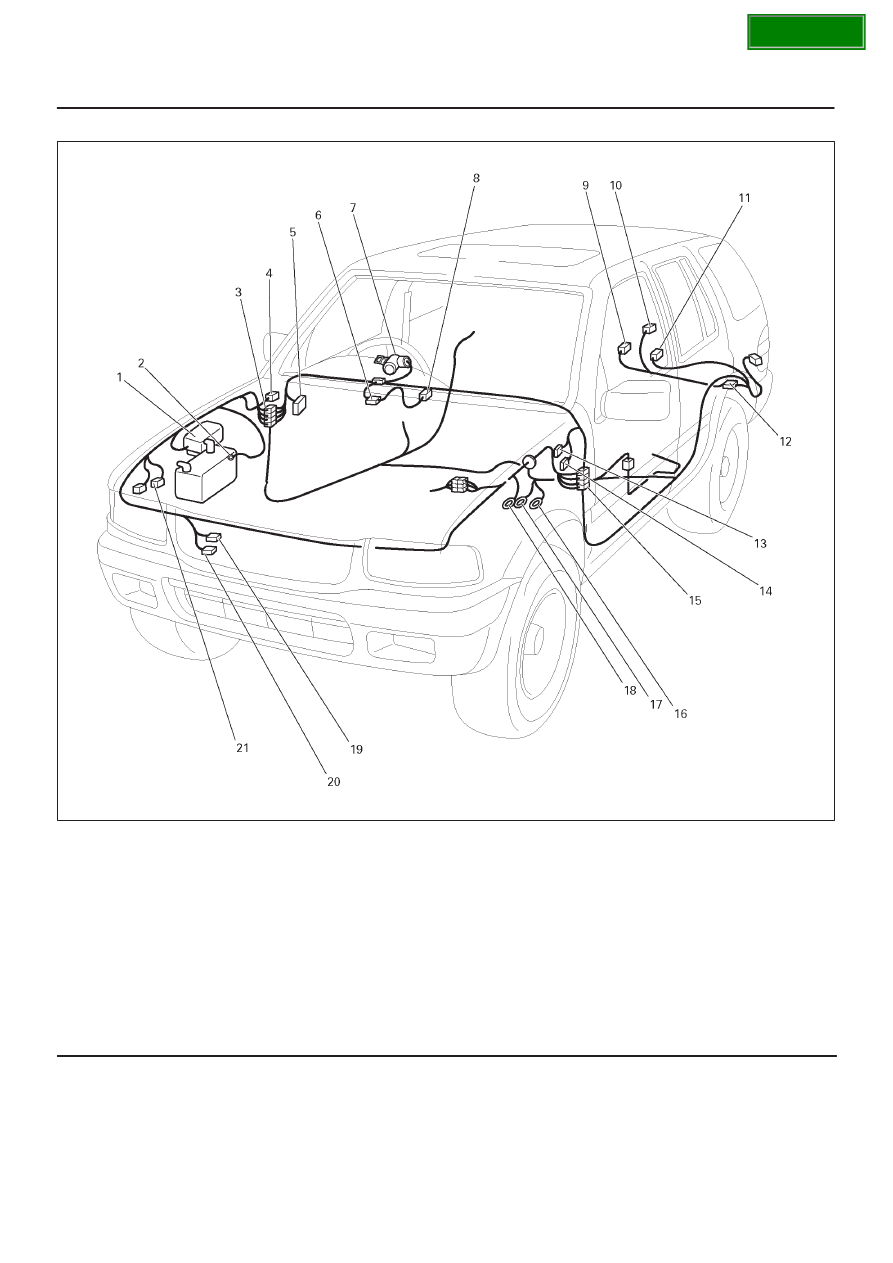

Parts Location

D08R100209

Legend

(1) Relay & Fuse Box (Engine Room)
(2) C–36
(3) H–13, H–14, H–19, H–32
(4) C–27
(5) Relay & Fuse Box (Instrument Panel)
(6) I–31, I–32
(7) I–46
(8) I–16
(9) G–6

(10) G–1

(11) B–20

(12) H–22
(13) I–41
(14) I–42
(15) H–31
(16) B–6
(17) B–8
(18) C–16
(19) C–14
(20) C–12
(21) C–28

SECTION
