8D–210

WIRING SYSTEM

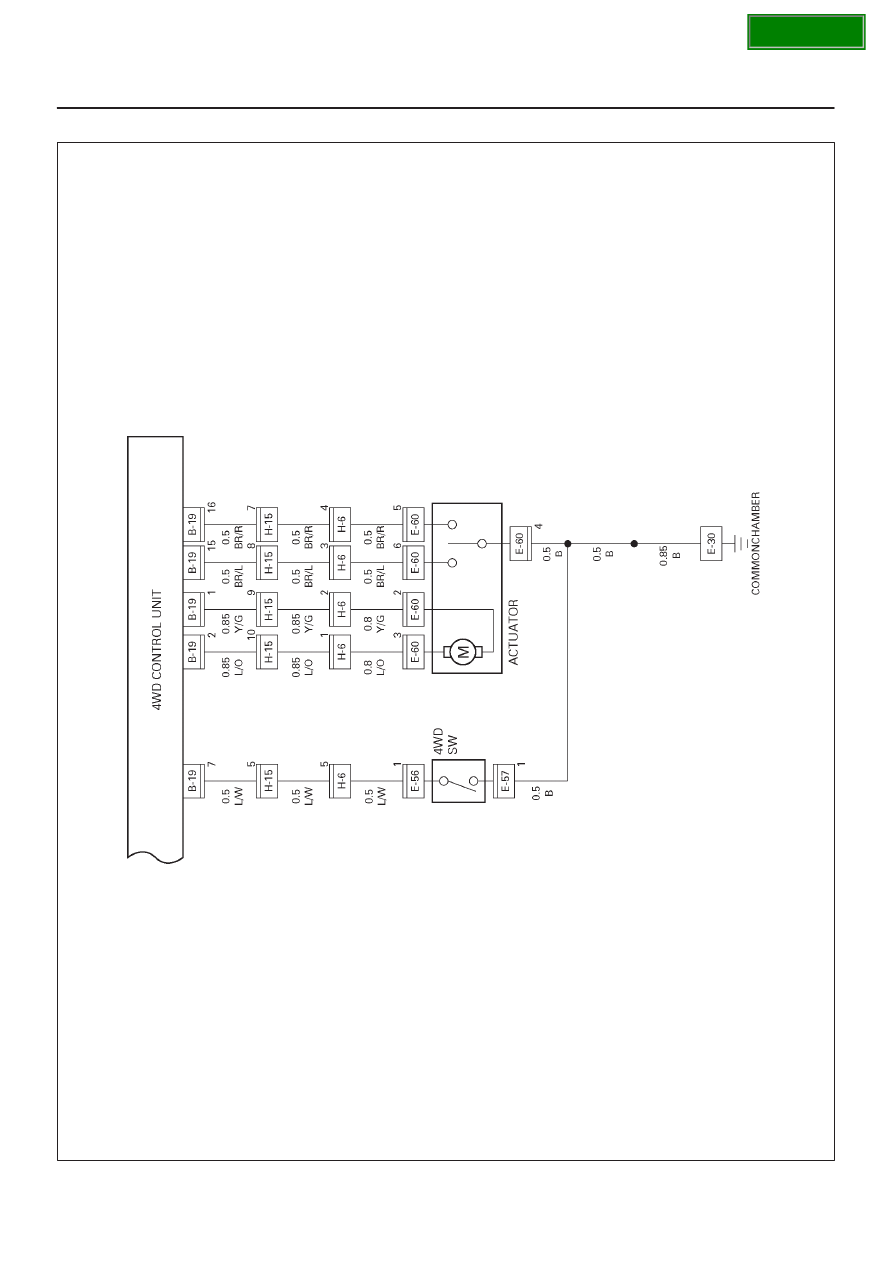

Circuit Diagram–2

D08R100158

SECTION

8D–211

WIRING SYSTEM

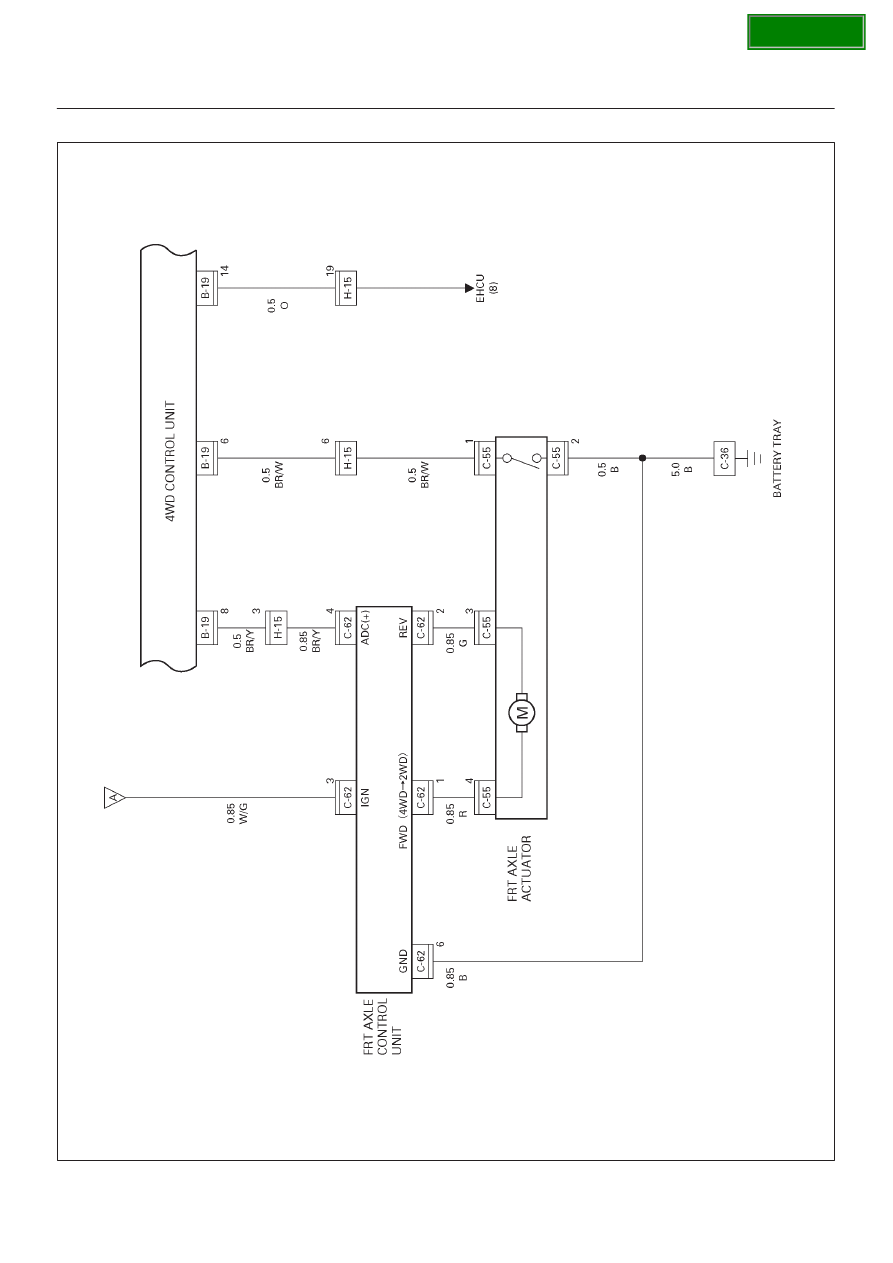

Circuit Diagram–3

D08R100159

SECTION

8D–212

WIRING SYSTEM

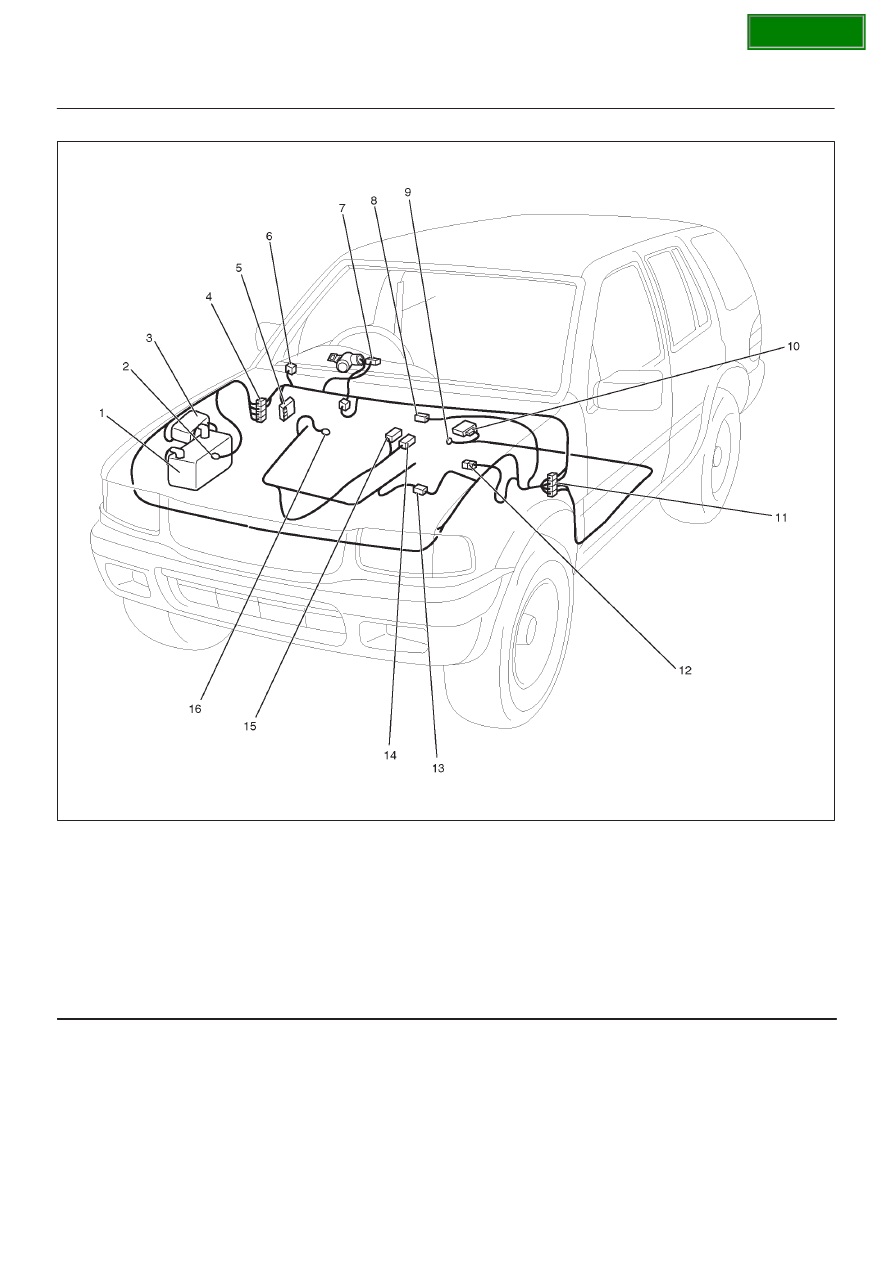

Parts Location

D08RY00857

Legend

(1) Battery
(2) C–36
(3) Relay & Fuse Box (Engine Room)
(4) H–15, H–19
(5) Relay & Fuse Box (Instrument Panel)
(6) I–19
(7) I–10
(8) C–62

(9) B–8

(10) B–19

(11) H–16

(12) C–55
(13) H–6
(14) E–60
(15) E–56, E–57
(16) E–30

SECTION

8D–213

WIRING SYSTEM

T.O.D.

General Description

The system consists of the T.O.D. control unit, the FRT
axle control unit, the FRT axle actuator, T.O.D. switch and
indicator light and ETC. The T.O.D. control unit always
monitors road conditions that the vehicle runs on, and
varies the torque applied to the front and rear axle to keep
vehicle stability, if necessary.
Refer to Driveline Control System (T.O.D.) in
Driveline/Axle section.
