Opel Frontera UE. Manual - part 1694





8D–206

WIRING SYSTEM

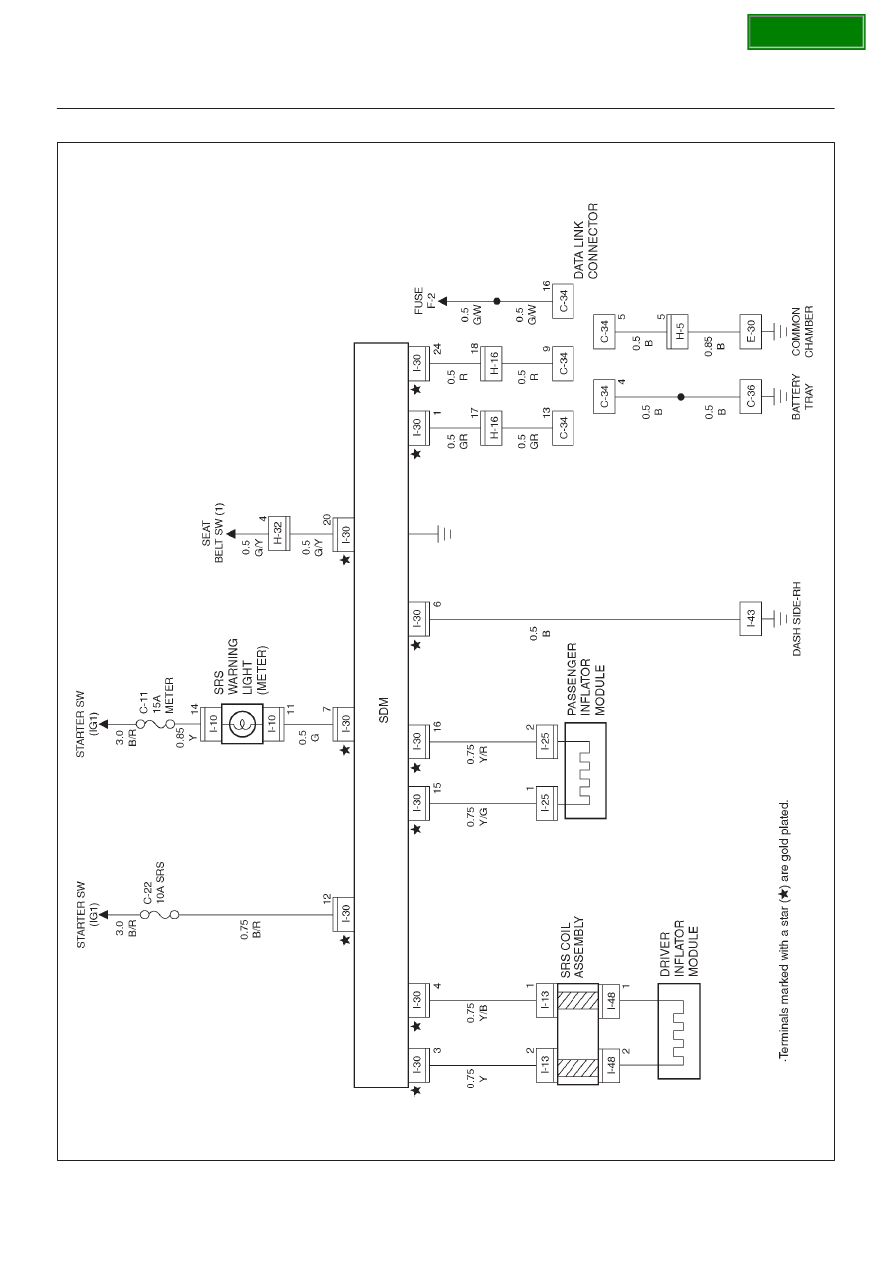

Circuit Diagram

D08R100170

SECTION

8D–207

WIRING SYSTEM

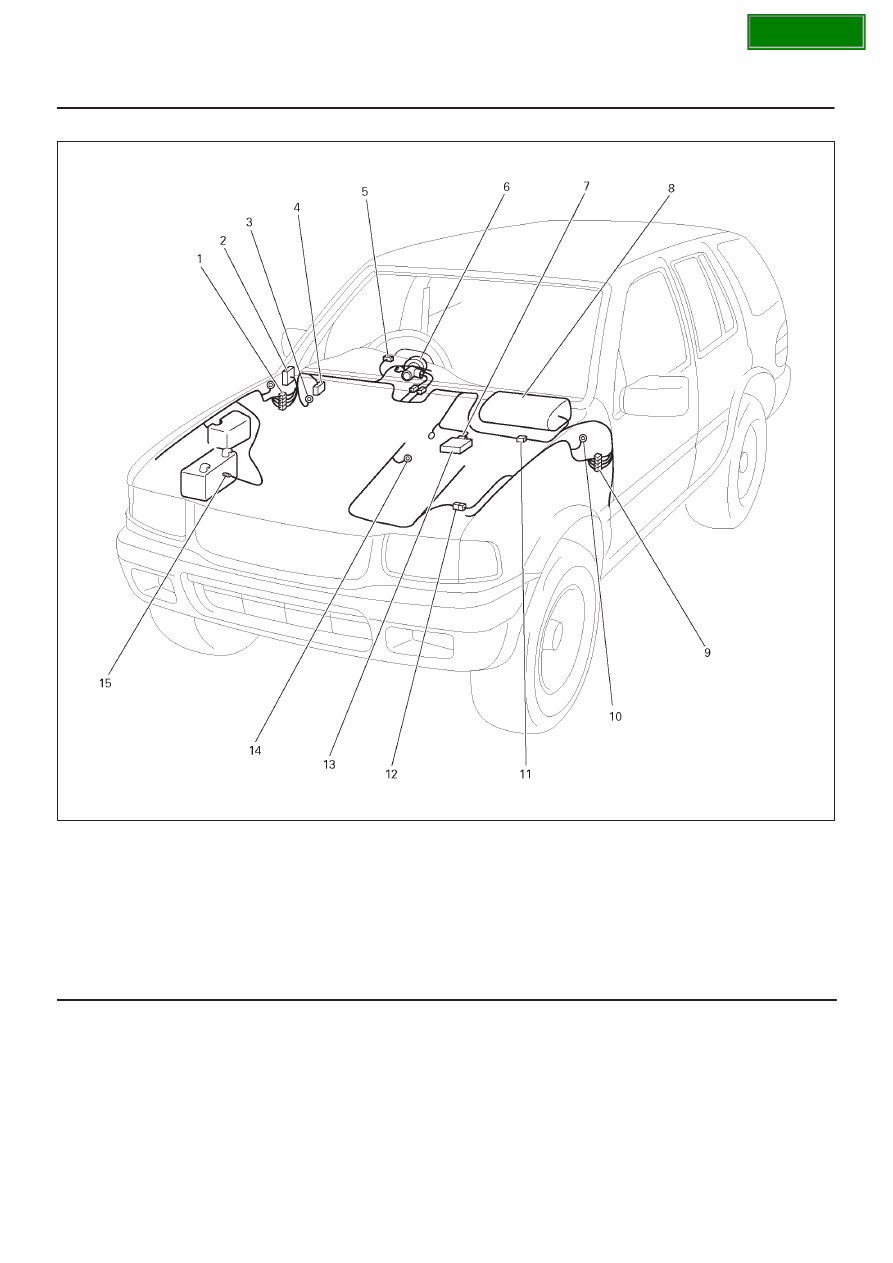

Parts Location

D08R100207

Legend

(1) H–32
(2) Relay & Fuse Box (Instrument Panel)
(3) I–43
(4) C–34
(5) I–10
(6) SRS Coil Assembly (I–13, I–48)
(7) I–30

(8) Passenger Air Bag Assembly
(9) H–16

(10) C–16

(11) I–25

(12) H–5
(13) SDM
(14) E–30
(15) C–36

SECTION

8D–208

WIRING SYSTEM

Shift on the Fly System

General Description

The circuit consists of the starter switch, 4WD control
unit, actuator (transfer), 4WD switch, front axle control
unit, front axle actuator and 4WD indicator (meter).
Refer to Driveline Control System (Shift on the Fly) in
Driveline/Axle.

SECTION

8D–209

WIRING SYSTEM

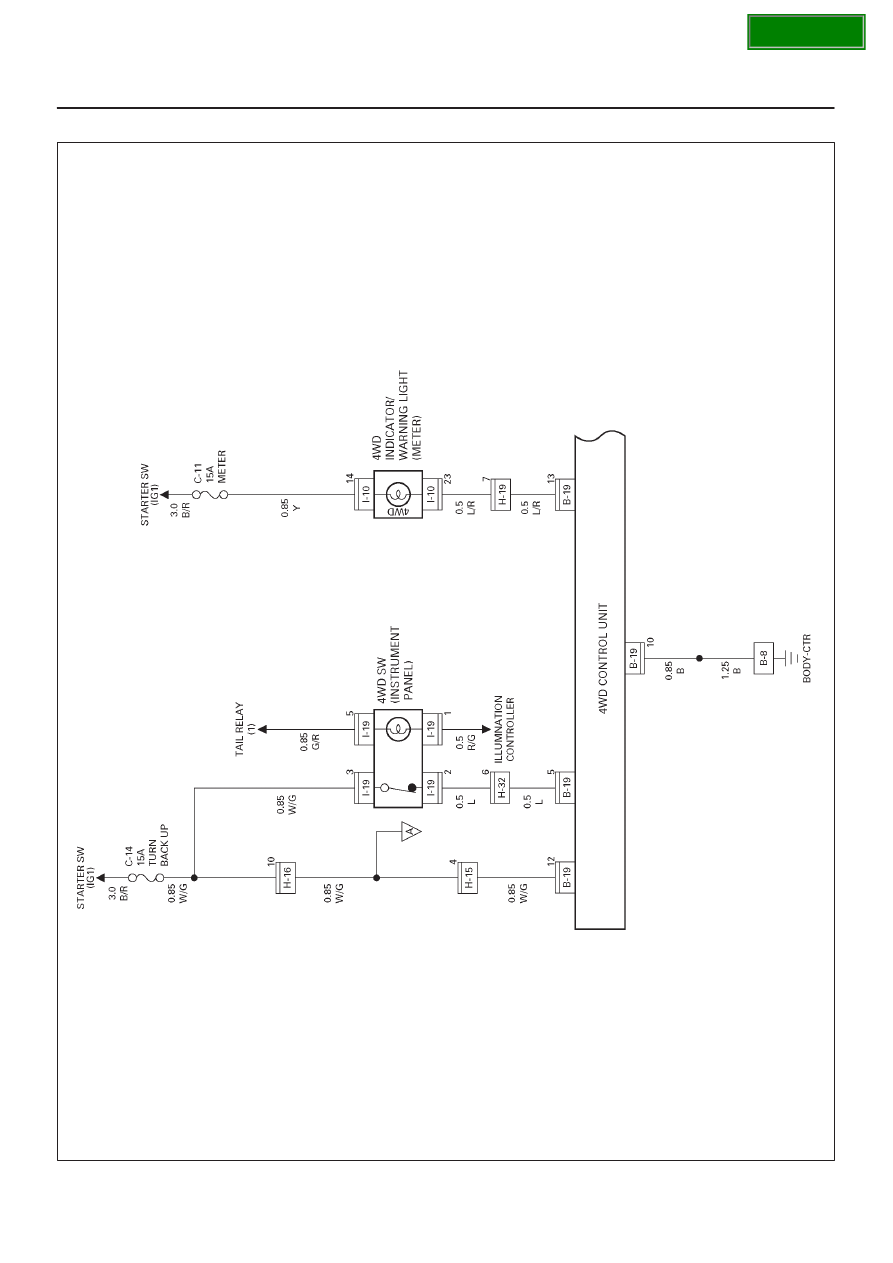

Circuit Diagram–1

D08R100157

SECTION
