8D–134

WIRING SYSTEM

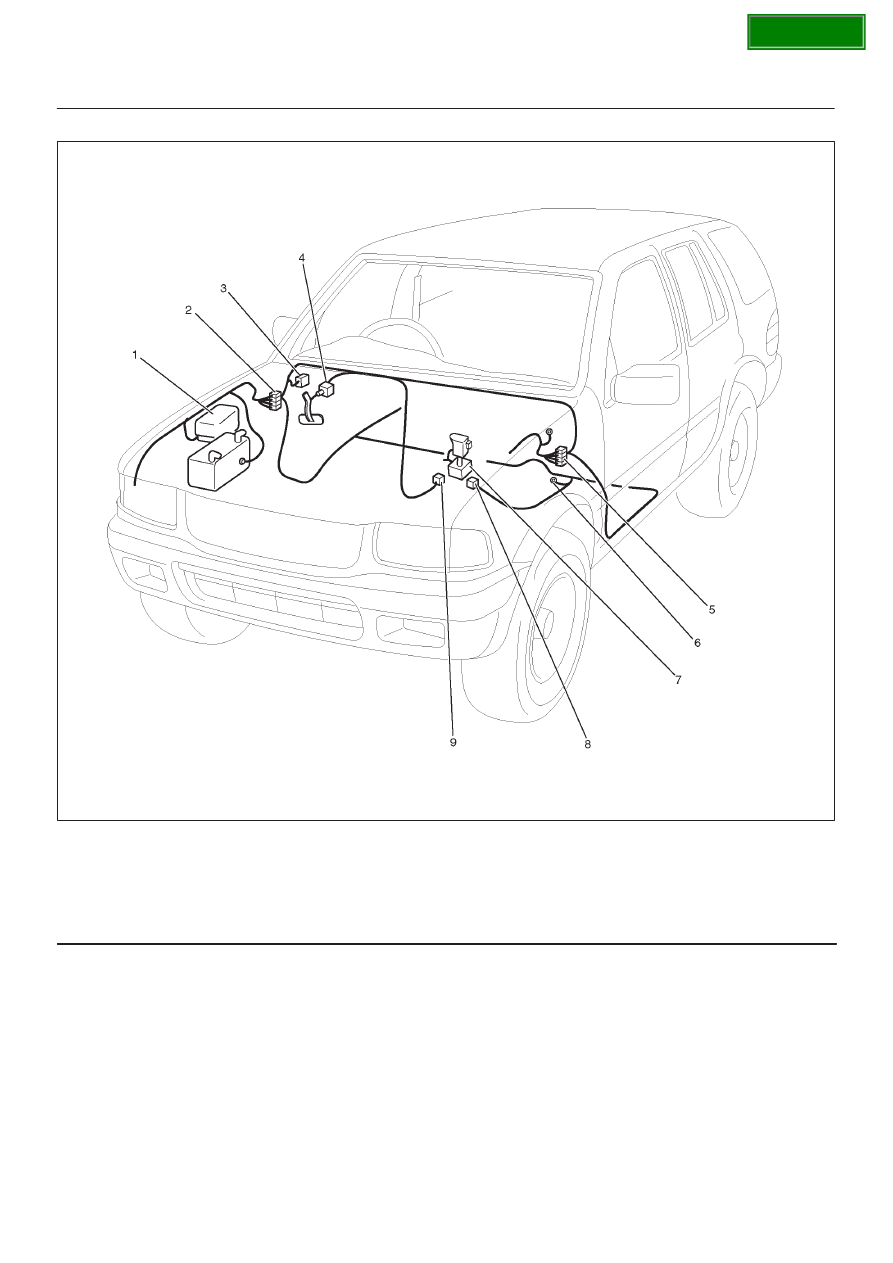

Parts Location

D08R100196

Legend

(1) Relay & Fuse Box (Engine Room)
(2) H–19, H–32
(3) Relay & Fuse Box (Instrument Panel)
(4) I–18

(5) H–31
(6) B–8
(7) A/T Shift Lever
(8) B–2
(9) I–40

SECTION

8D–135

WIRING SYSTEM

Windshield Wiper and Washer

General Description

The system consists of a windshield wiper and washer
switch, alarm & relay control unit, windshield wiper motor
and windshield washer motor. With the starter switch in
the “ON” position, when the windshield wiper switch is
turned on (“LOW” or “HI”) the battery voltage is applied to
the windshield wiper motor to operate the wipers.
When the “INT” switch is turned on, the operation of the
wipers is controlled by the alarm & relay control unit.
When the “WASHER” switch is turned on, the operation of
the wipers is also controlled by the alarm & relay control
unit and the windshield washer motor operates to squirt
the washing solution when the washer switch is pressed.

SECTION

8D–136

WIRING SYSTEM

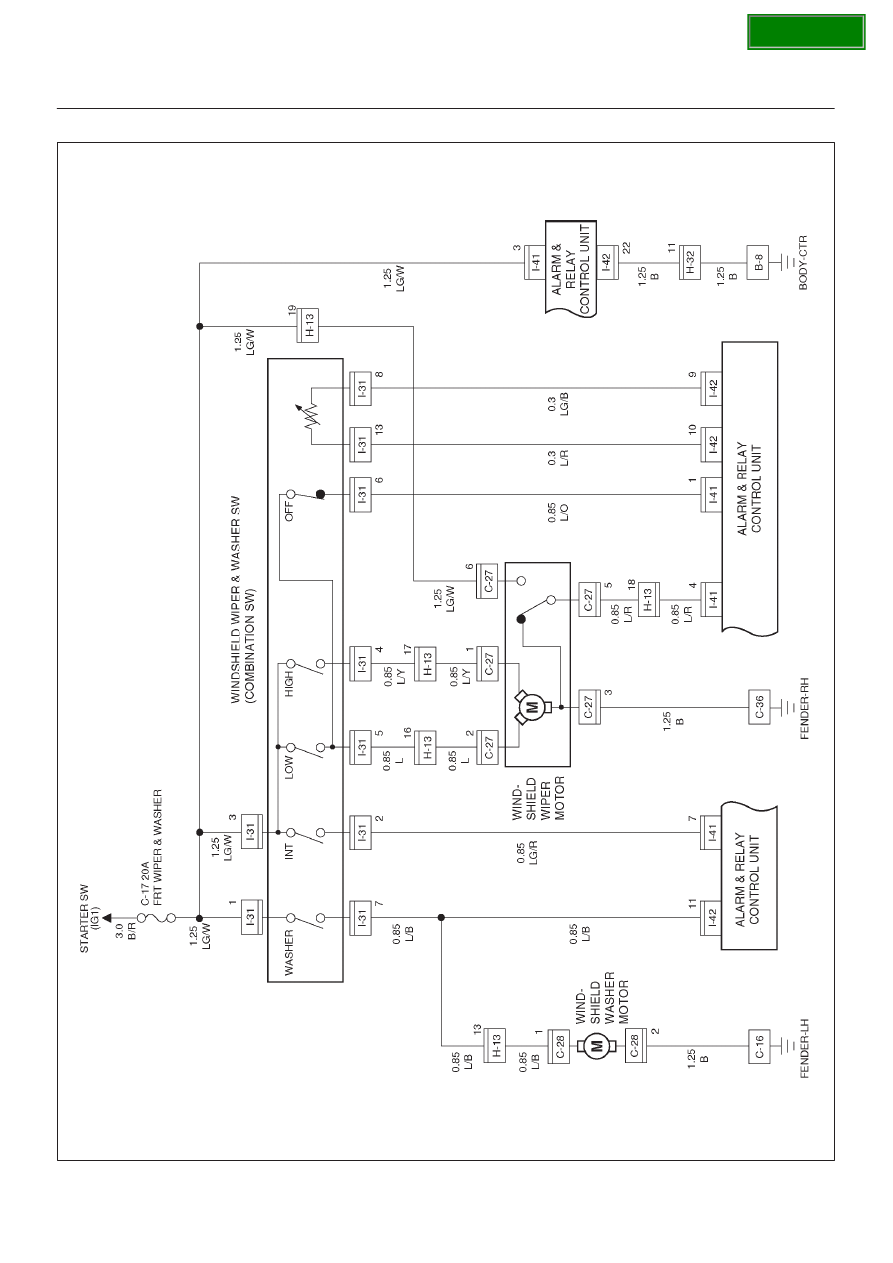

Circuit Diagram

D08R100132

SECTION

8D–137

WIRING SYSTEM

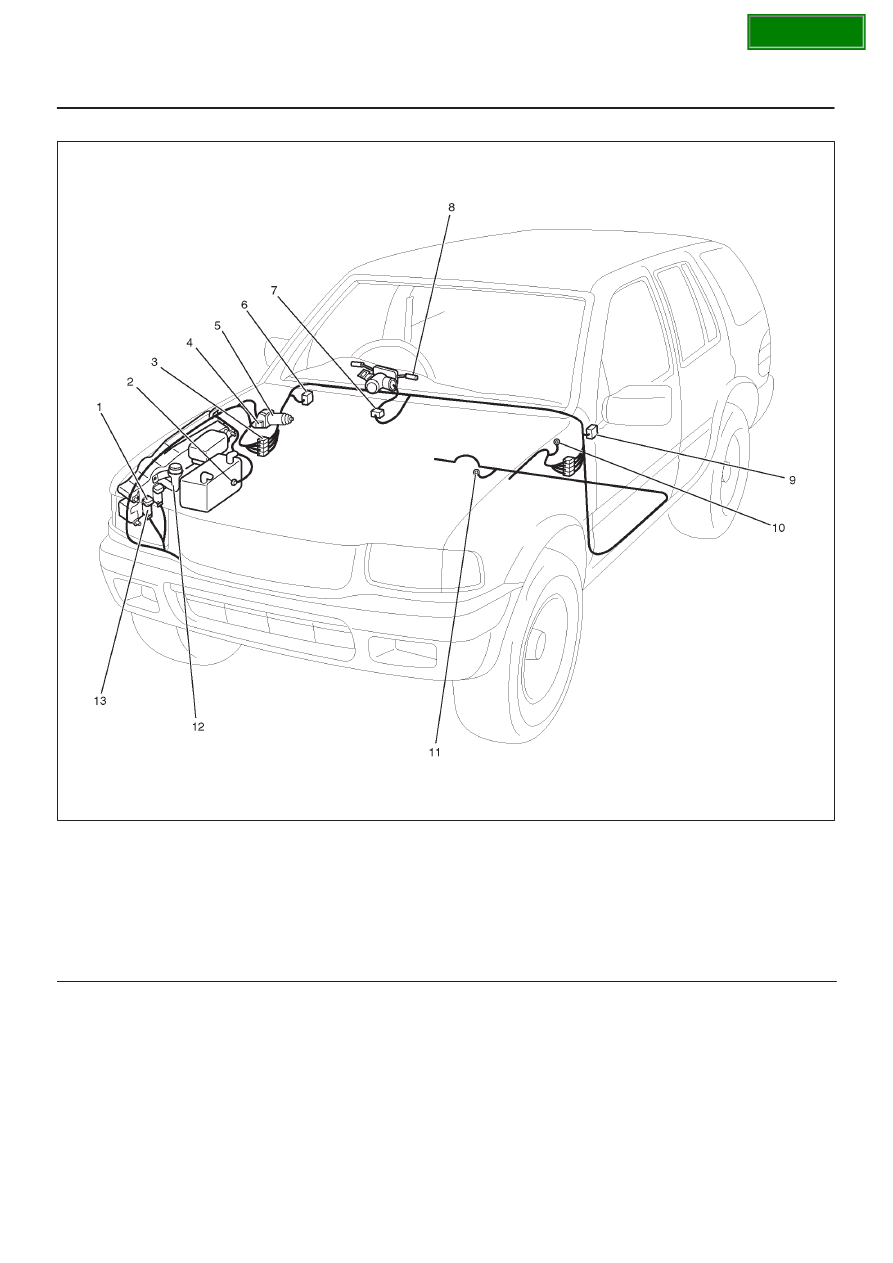

Parts Location

D08R100197

Legend

(1) C–28
(2) C–36
(3) H–13, H–32
(4) C–27
(5) Windshield Wiper Motor
(6) Relay & Fuse Box (Instrument Panel)

(7) I–31
(8) Windshield Wiper, Washer Switch
(9) I–41, I–42

(10) C–16

(11) B–8

(12) Windshield Washer Tank
(13) Windshield Washer Motor
