WIRING SYSTEM

Rear Window On The Left (or Right) Side Does Not Operate

Step

Action

Value(s)

Yes

No

1

1. Disconnect the rear power window switch–RH

connector D–22 or the rear power window and door
lock switch–LH connector D–27.

2. Turn the starter switch on.

Is the battery voltage applied between harness side
connector D–22 terminal 4 and the ground, or harness
side connector D–27 terminal 4 and the ground?

Approx. 12V

Go to Step 3

Go to Step 2

2

Repair an open circuit between connector X–22
terminal 1 and connector D–22 terminal 4 or connector
D–27 terminal 4.

Is the action complete?

—

Go to Step 1

—

3

Is there continuity between harness side connector
D–22 terminal 3 and the ground B–8, or harness side
connector D–27 terminal 3 and the ground B–6 or 8?

—

Go to Step 5

Go to Step 4

4

Repair an open circuit between connector D–22
terminal 3 or connector D–27 terminal 3 and the ground
B–6 or 8.

Is the action complete?

—

Go to Step 3

—

5

Connect the battery positive terminal with harness side
connector D–22 terminals 5 or harness side connector
D–27 terminal 5, and connect the battery negative
terminal with harness side connector D–22 terminal 6
or harness side connector D–27 terminal 6.

Does the motor operate?

—

Replace the

rear power

window

switch–LH or

–RH

Go to Step 6

6

1. Disconnect the rear power window motor connector

D–20 or D–25.

2. Connect the battery positive terminal with motor

side connector D–20 or D–25 terminal 1 or 2, and
connect the battery negative terminal with the motor
side connector D–20 or D–25 terminal 2 or 1.

Does the motor operate?

—

Go to Step 7

Replace the

motor

7

Repair an open circuit between the rear power window
switch and the rear power window motor.

Is the action complete?

—

Verify repair

—

Window On The Front Passenger’s Side Does Not Operate by the Front Power Window
and Door Lock Switch–RH

Step

Action

Value(s)

Yes

No

1

Disconnect the front power window and door lock
switch–RH connector D–5 and the front power window
and door lock switch–LH connector D–17.

Is there continuity between harness side connector
D–5 terminal 8 and harness side connector D–17
terminal 5?

—

Replace the

front power

window and

door lock

switch–LH

Go to Step 2

2

Repair an open circuit between connector D–5 terminal
8 and connector D–17 terminal 5.

Is the action complete?

—

Verify repair

—

SECTION

8D–127

WIRING SYSTEM

Lock SW Does Not Function

Step

Action

Value(s)

Yes

No

1

Repair or replace the front power window and door lock
switch–RH.

Is the action complete?

—

Verify repair

—

SECTION

8D–128

WIRING SYSTEM

Anti–Lock Brake System (ABS)

General Description

The circuit consists of the Electronic Hydraulic Control
Unit (EHCU), the starter switch, stoplight switch, wheel
speed sensor, ABS warning light, BRAKE warning light,
and data link connector.
When the service brake is applied while in the running
mode, the EHCU judges which wheel is about to lock by
using the wheel rotation speed signals sent from the three
wheel speed sensors at the front wheels and rear
differential. And the brake fluid pressure applied to the
four wheels is controlled by the EHCU to prevent the
wheels from locking.
Refer to Brake Control System in Brakes section in detail.

SECTION

8D–129

WIRING SYSTEM

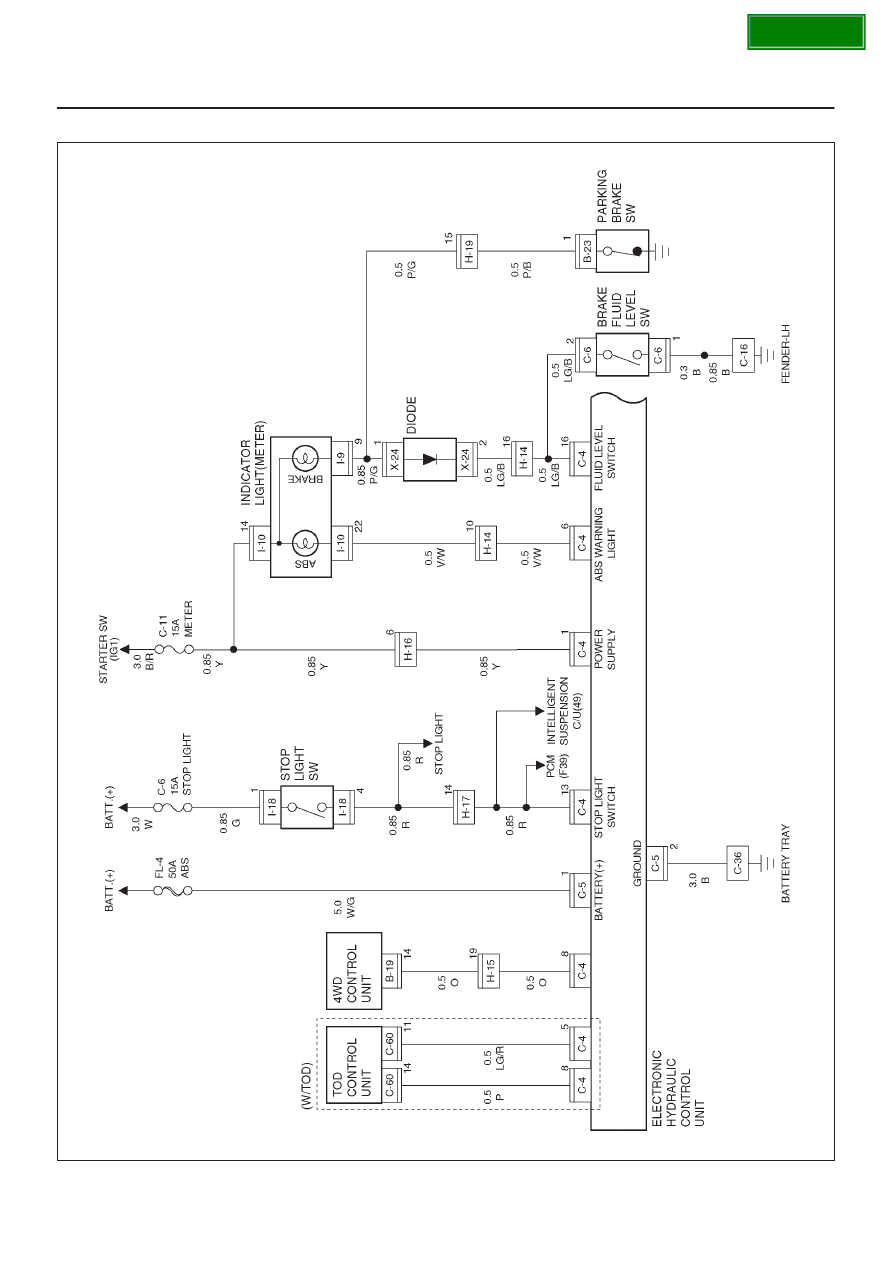

Circuit Diagram–1

D08R100217
