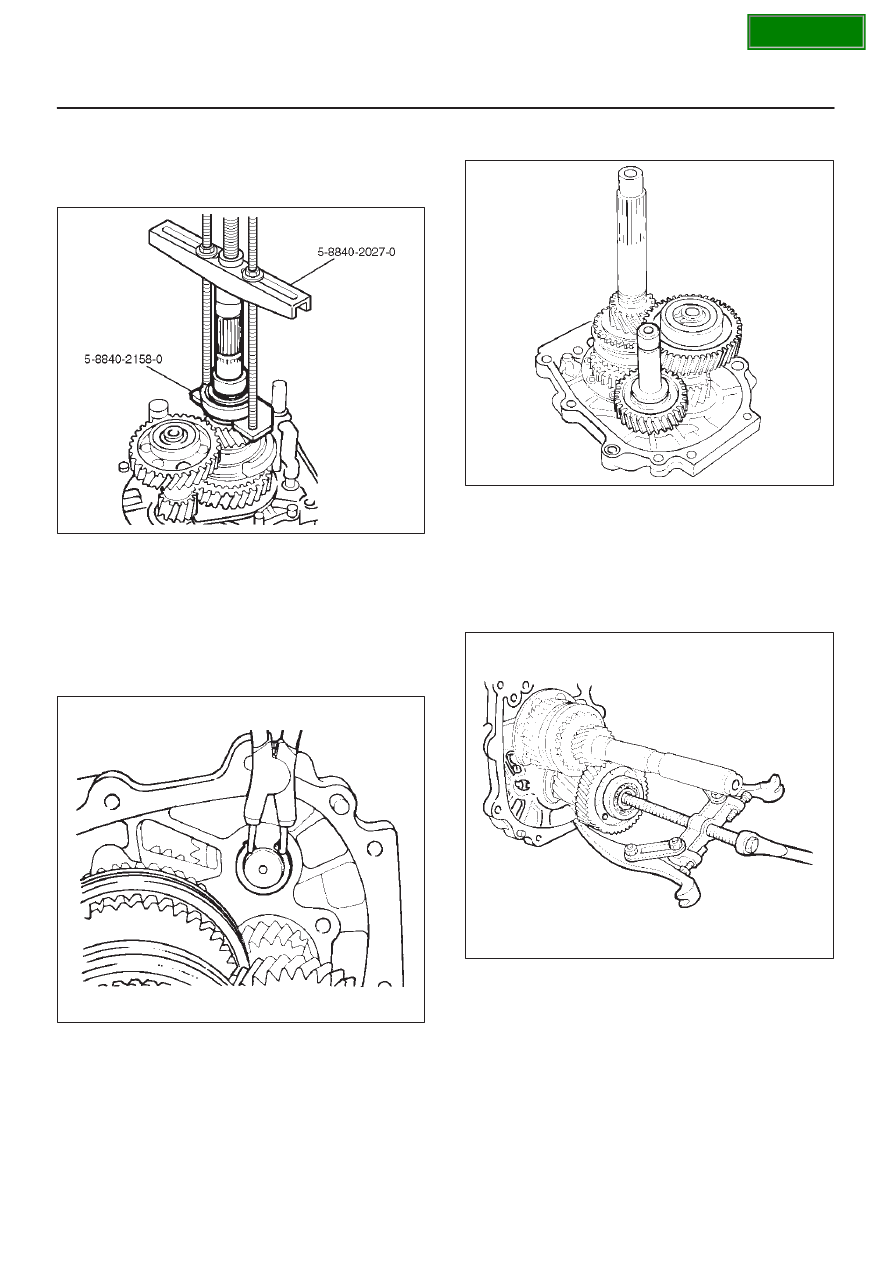

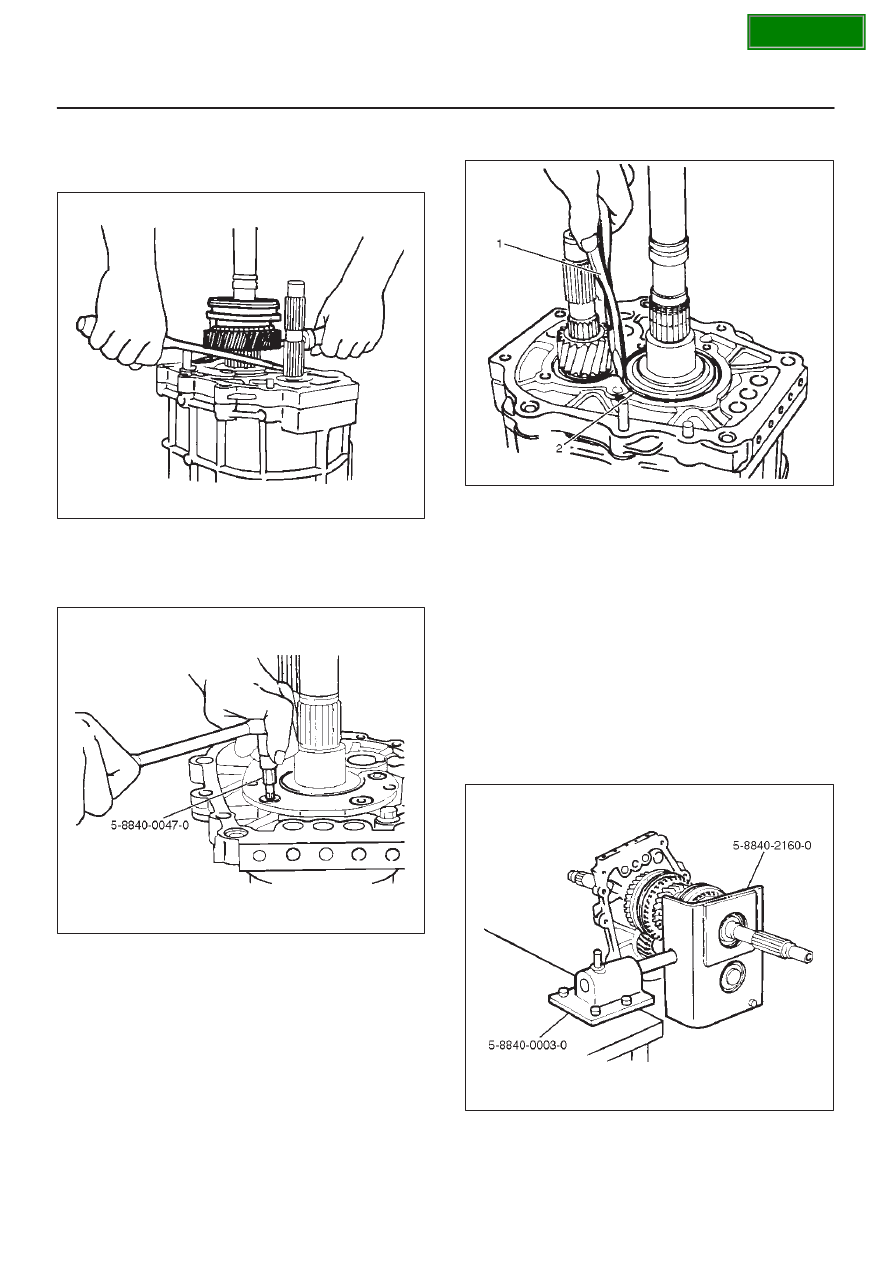

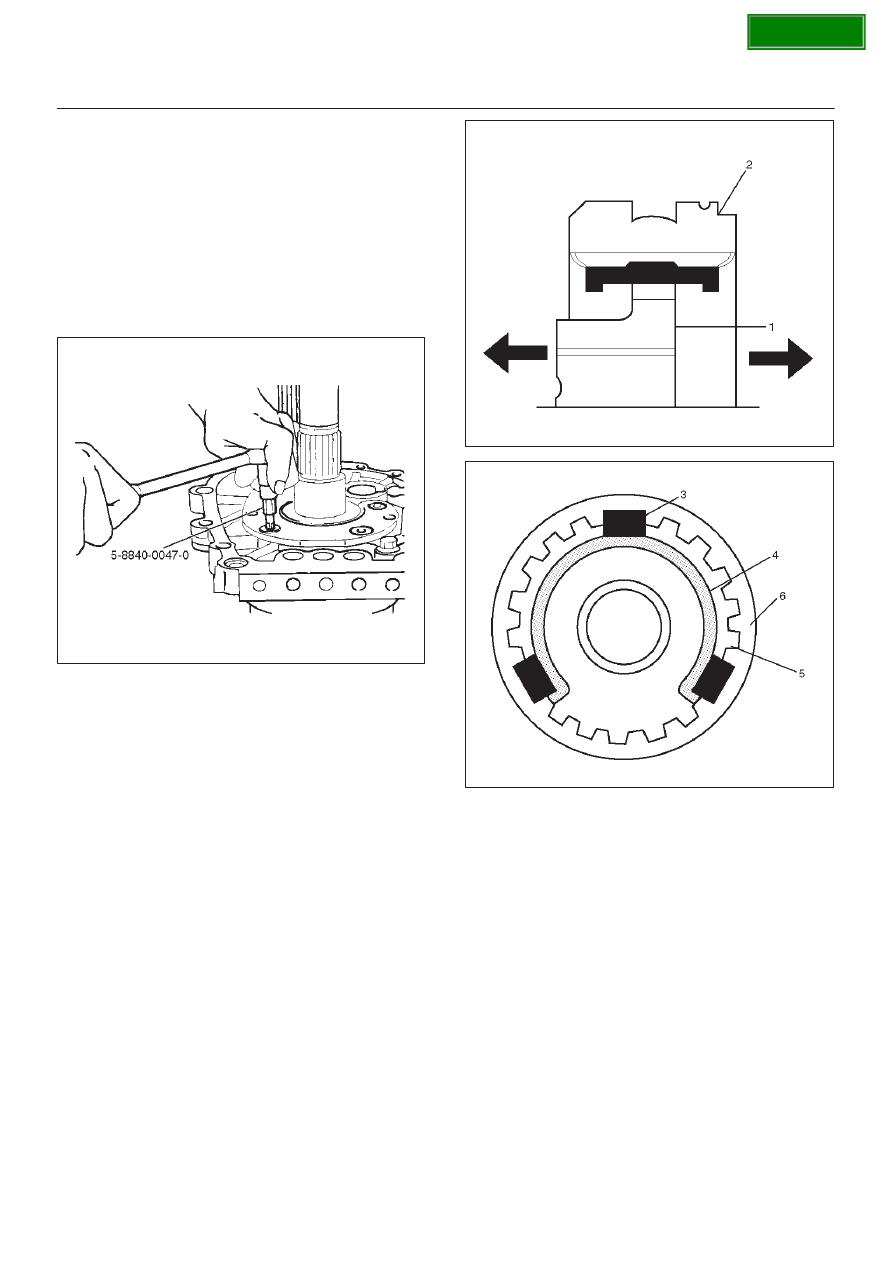

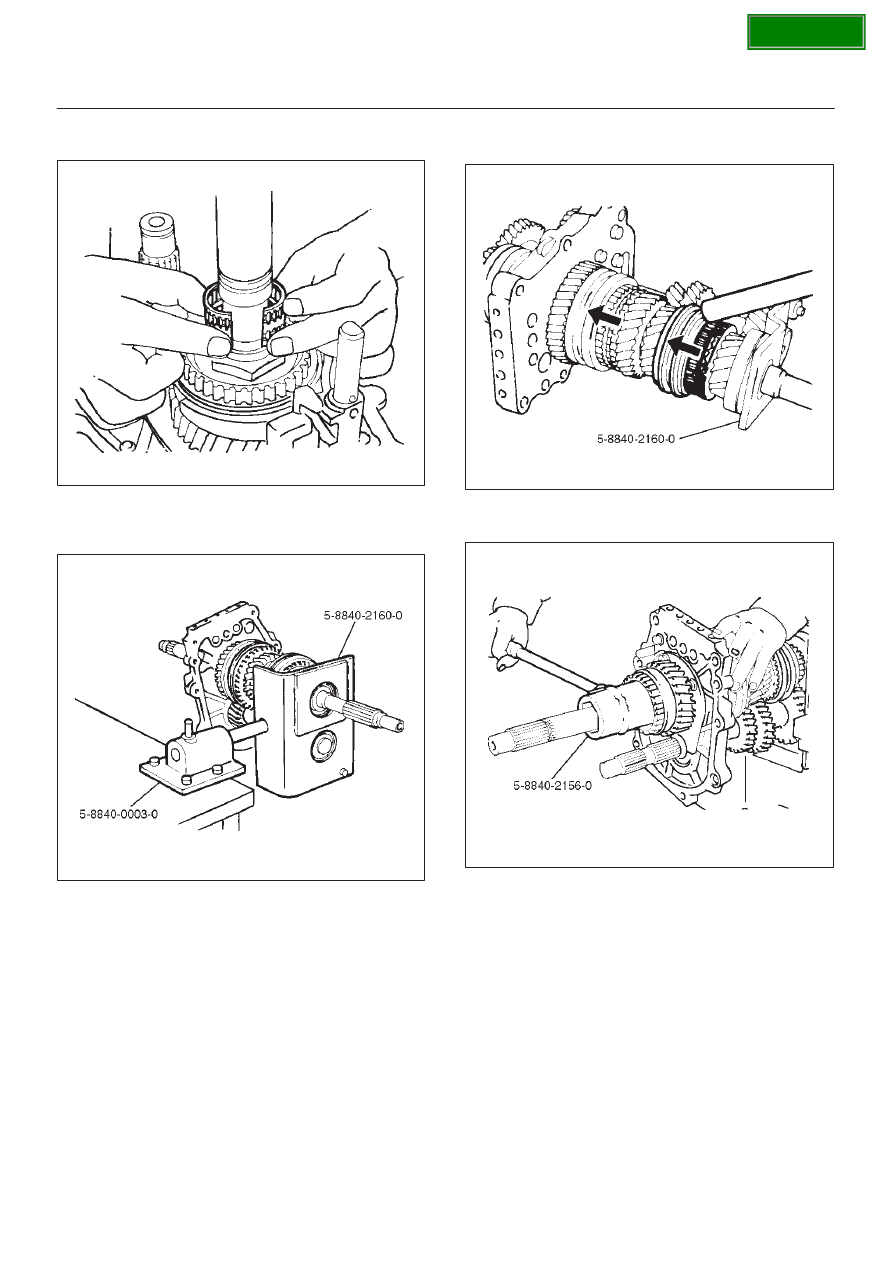

MANUAL TRANSMISSION 7B–25 Disassembly 1. Set the retaining ring remover 5–8840–2158–0 and puller 5–8840–2027–0 to the retainer(3) and the 262RW079 2. Remove the retainer(3) together with the bearing(2) and the oil seal collar(1). 3. Remove thrust plate(4) and thrust washer and lock ball(5). 4. Use a pair of snap ring pliers to remove reverse idler gear snap ring(6). 226RS004 5. Remove the reverse idler gear assembly(7) from the intermediate plate(26). 226RS005 6. Remove idle shaft pin(8), thrust washer(9), reverse idler gear(10), and reverse idler shaft(11). 7. Use a pair of snap ring pliers to remove the snap ring(12). 8. Attach the bearing remover to the counter gear shaft. Use the bearing remover to remove the ball 226RS006 9. Remove counter reverse gear(15). |
