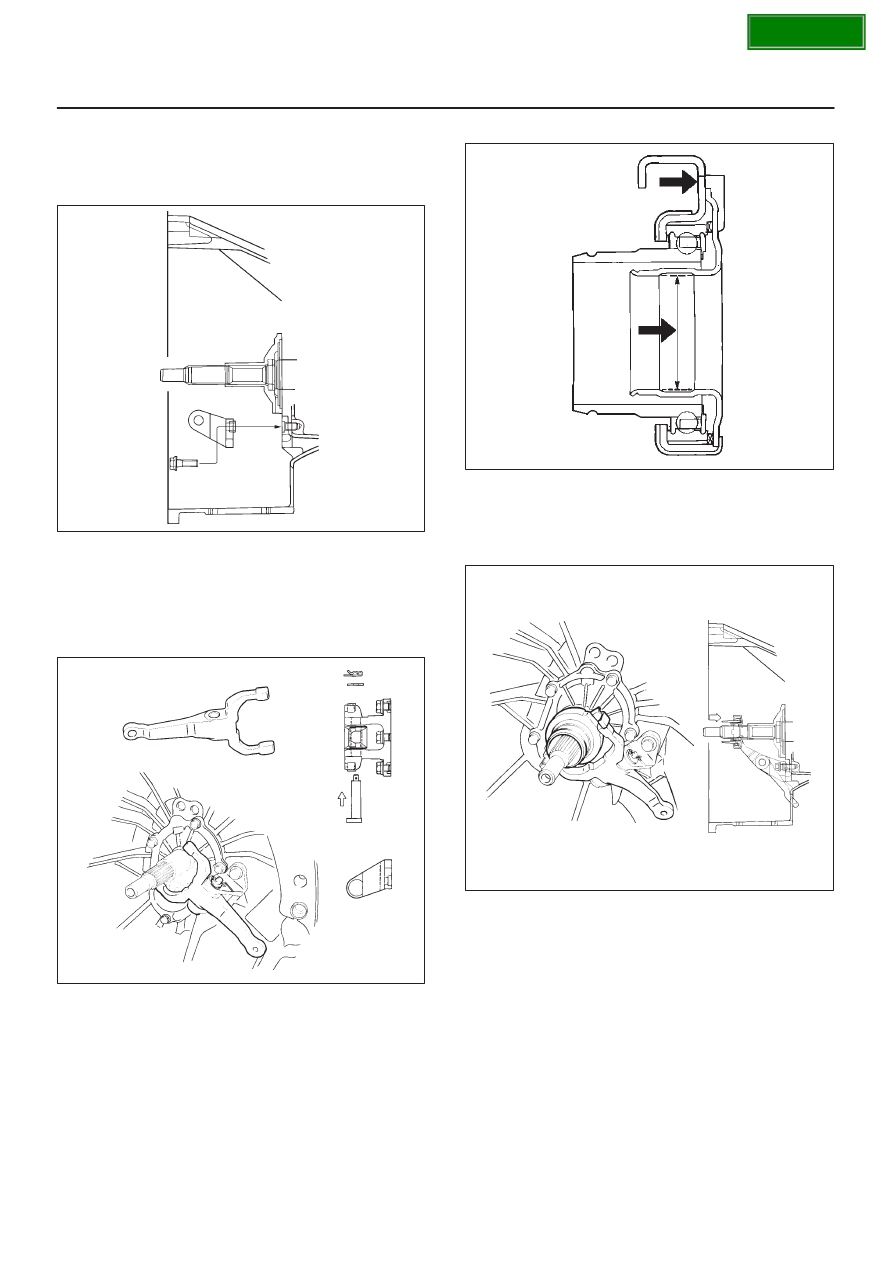

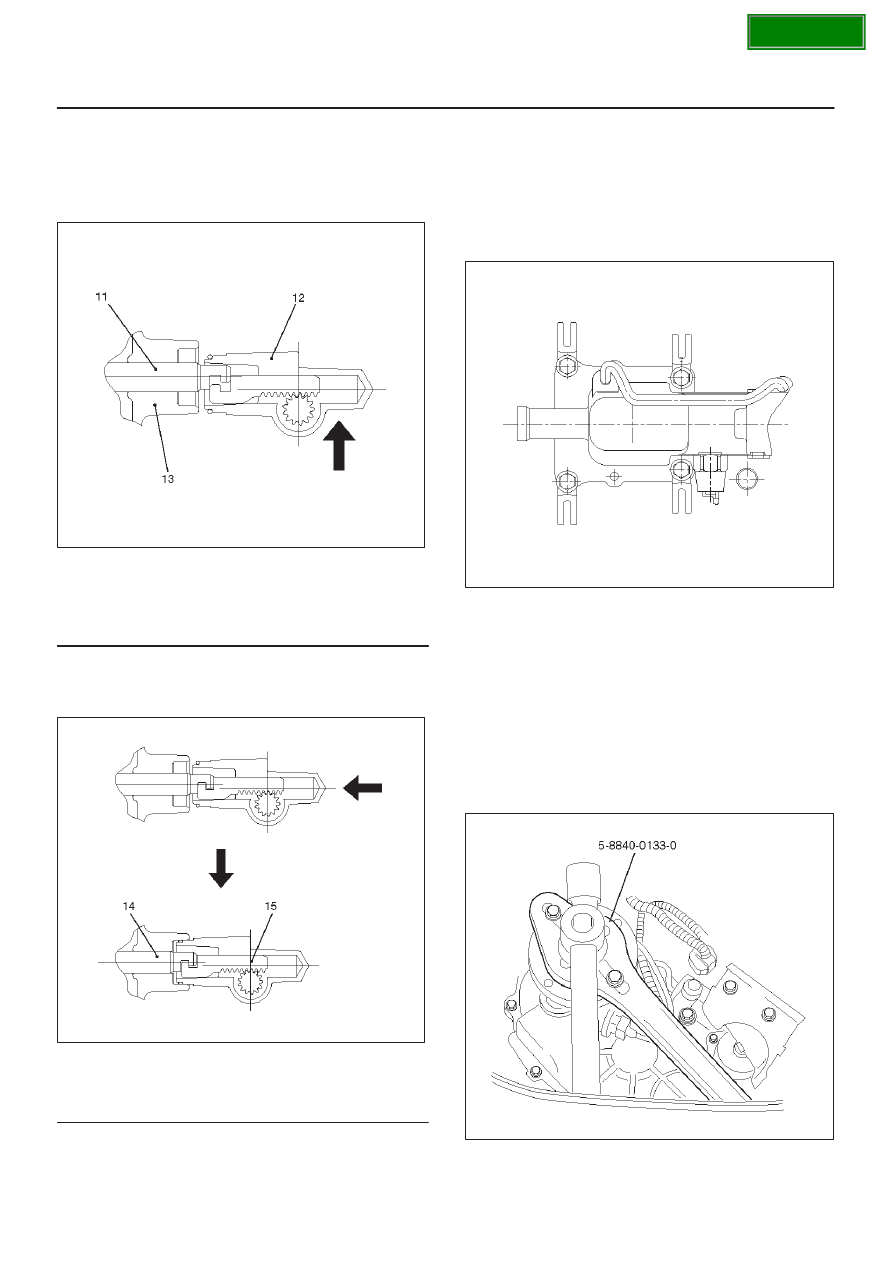

MANUAL TRANSMISSION 7B–17 18. Install 2WD–4WD actuator assembly(11) by performing the following steps. 2. Join the rod grooves of 2WD–4WD actuator assembly and shift rod. 220RW030 Legend (11) Shift Rod: 2WD–4WD (Position: 4WD) (12) 2WD–4WD Actuator Assembly (Mode: 2WD) 3. Push the 2WD–4WD actuator assembly with 2WD–4WD shift rod till the shift rod reaches the 220RW031 Legend (14) Position: 2WD 4. Tighten the 2WD–4WD actuator bolts to the specified torque. Torque: 19 N·m (1.9 kg·m/14 lb ft) 5. Connect the actuator breather hose to actuator. 19. Install a new packing and gear control box assembly(10). Torque: 20 N·m (2.0 kg·m/14 lb ft) 261RW043 20. Install the rear and front companion flange(9) (8). Install the O-ring(9). Rear Companion Flange Torque: 167 N·m (17.0 kg·m/123 lb ft) Front Companion Flange Torque: 137 N·m (14.0 kg·m/101 lb ft) 266RW026 |
