7A–42

AUTOMATIC TRANSMISSION (4L30–E)

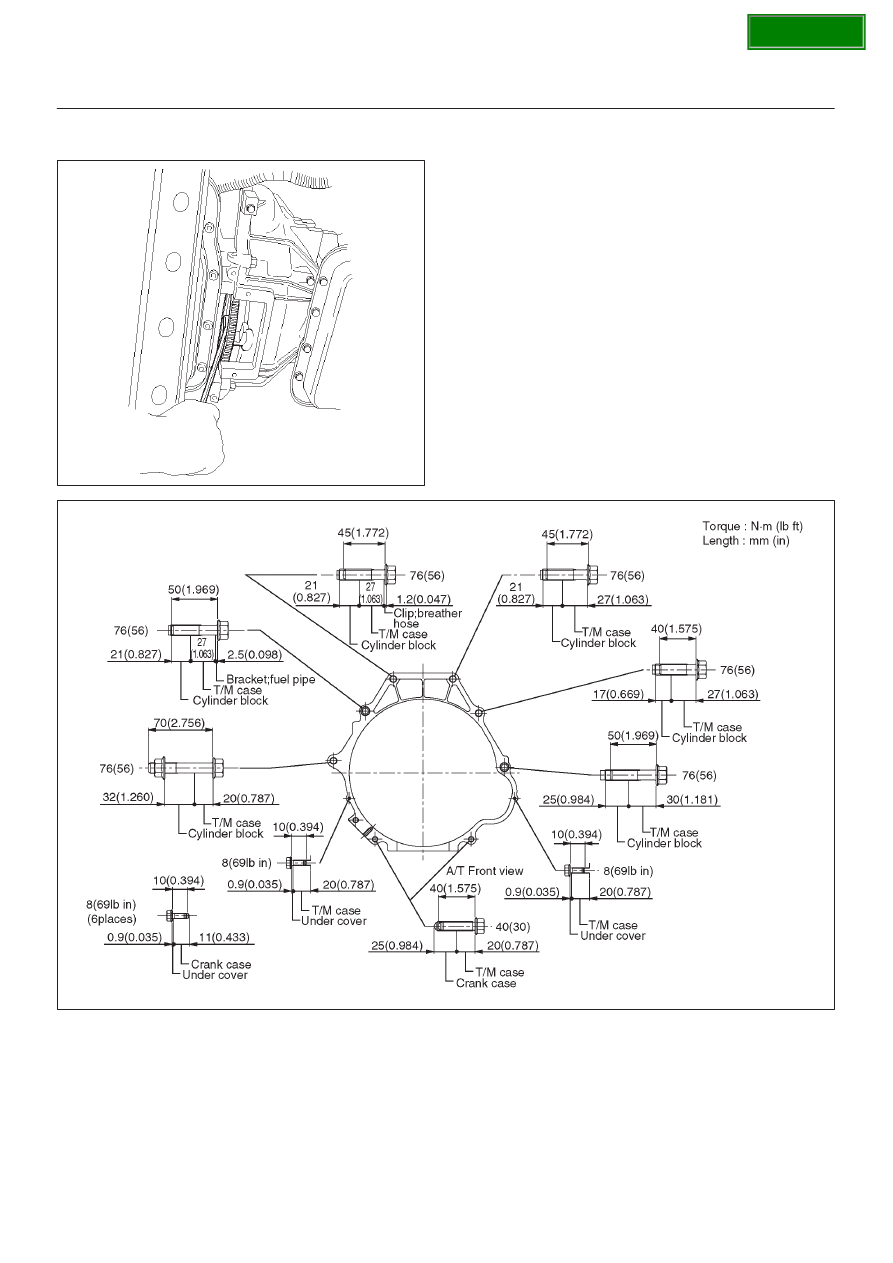

17. Remove flex plate torque converter fixing bolts (6

pieces) by turning crankshaft.

240RX010

18. Remove engine-transmission fixing bolts.
19. Pull out transmission from the engine.

Installation

1. Slowly raise transmission jack until front of the

transmission is aligned with rear of the engine. Join
the transmission to the engine.

2. Tighten engine-transmission bolts as shown in the

figure.

F07R200004

SECTION

7A–43

AUTOMATIC TRANSMISSION (4L30–E)

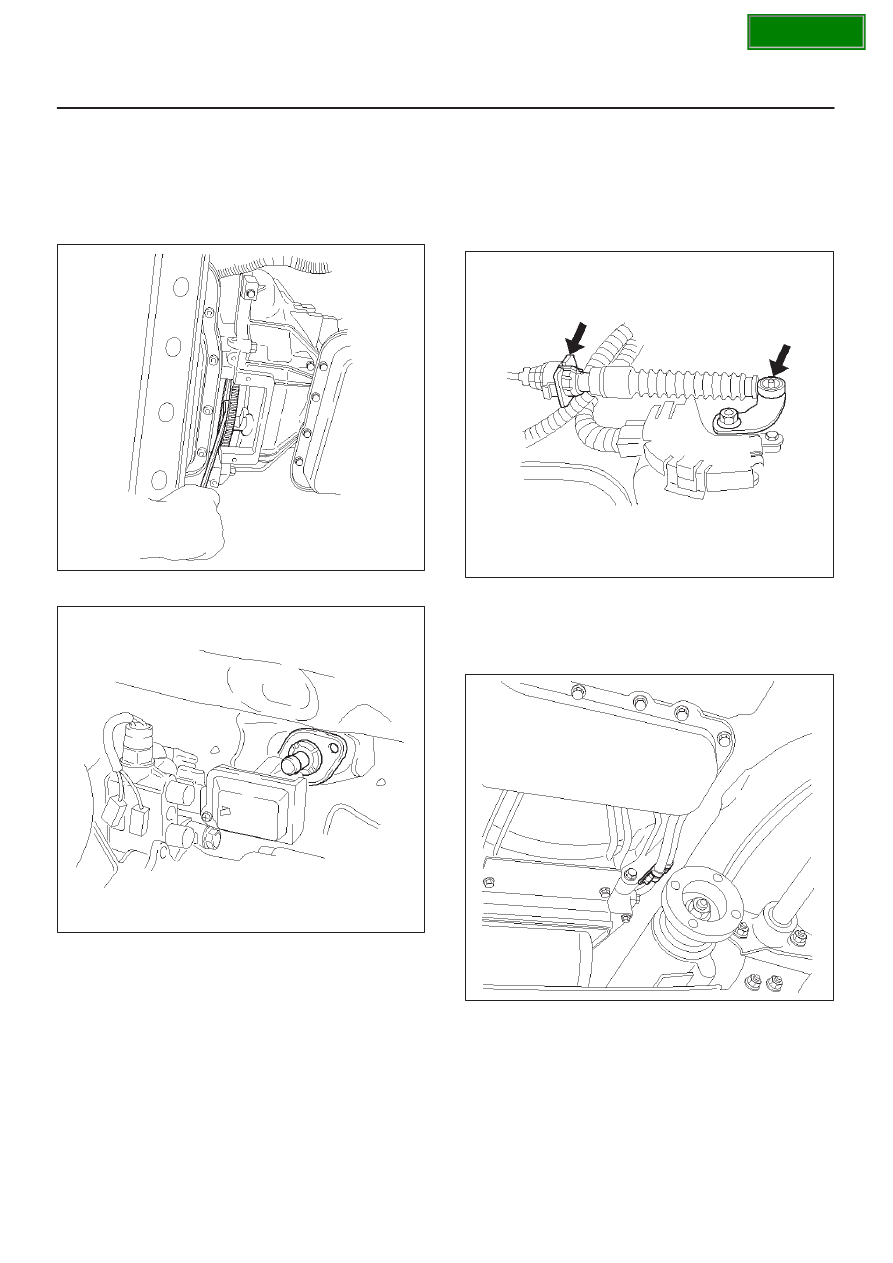

3. Align the flex plate torque converter bolt boss with flex

plate hole by turning the torque converter. Install flex
plate torque converter bolts (6 pieces) by turning the
crankshaft.

Torque: 54 N

•

m (40 lb ft)

NOTE: Do not reuse the flex plate torque converter bolt.

240RX010

4. Install transfer control lever on the transfer case.

262RW015

5. Install under covers to the transmission and engine.

Torque: 8 N

•

m (69 lb in)

6. Install starter.

Torque: 40 N

•

m (30 lb ft)

7. Install select cable by connecting inner cable to select

lever and installing outer cable with bracket.

256RW025

8. Connect transmission oil cooler pipes to A/T.

Torque: 44 N

•

m (33 lb ft)

9. Install oil cooler pipe clamp and bracket to the

converter housing.

253RX002

SECTION

7A–44

AUTOMATIC TRANSMISSION (4L30–E)

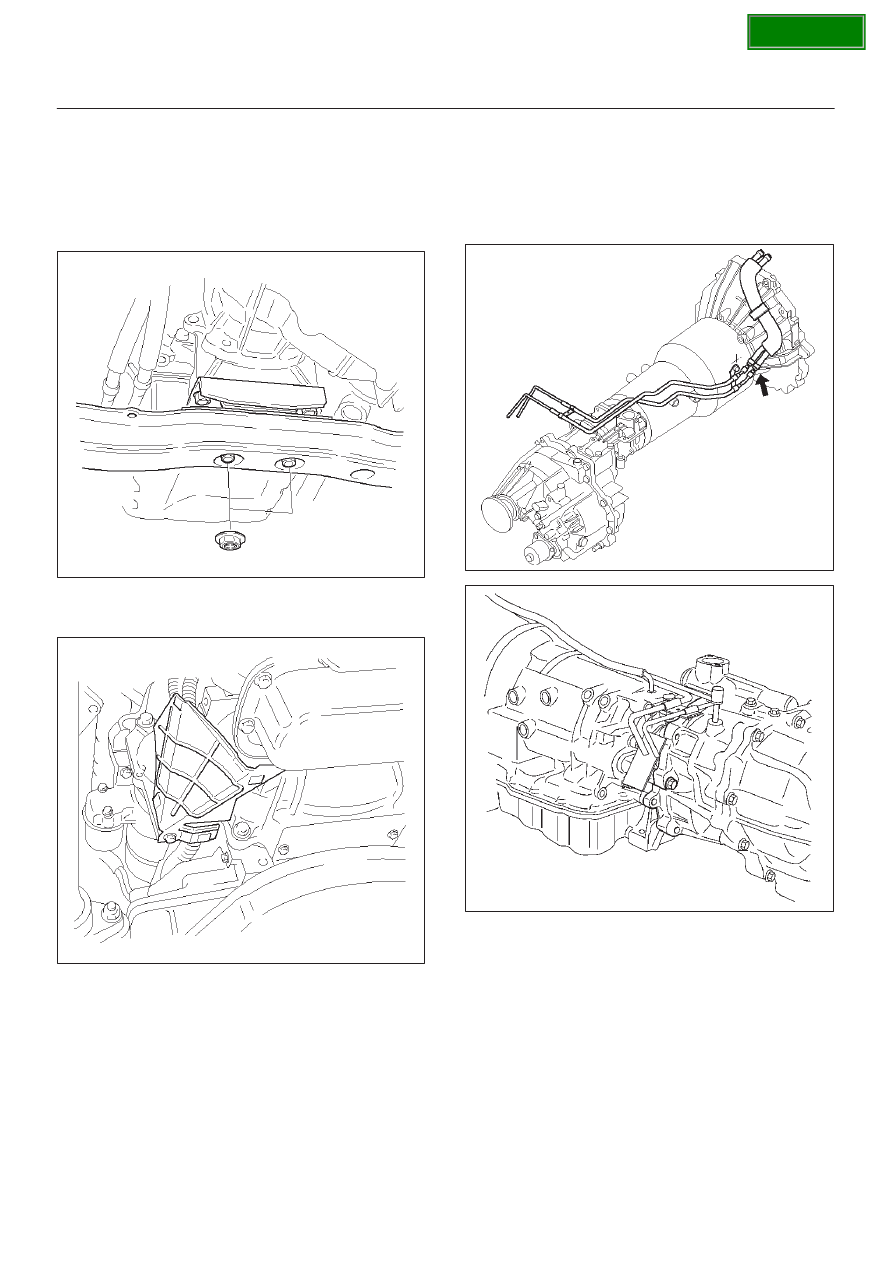

10. Tighten oil cooler pipe clamp bolt at the engine mount

side and install skid plate.

11. Install third crossmember.

Torque: 116 N

•

m (85 lb ft)

12. Install rear mount nuts.

Torque: 50 N

•

m (37 lb ft)

F07RW008

13. Install harness heat protector.

Torque: 6 N

•

m (52 lb in)

815RW002

14. Connect transmission harness connector and clip.

Connector : Adapter case, mode switch, main case,
magnetic sensor, transfer switch, 2–4 actuator and
car speed sensor.

15. Connect fuel pipe to transmission side.

NOTE: See “NOTE” of removal steps.

141RY00007

240RW014

SECTION

7A–45

AUTOMATIC TRANSMISSION (4L30–E)

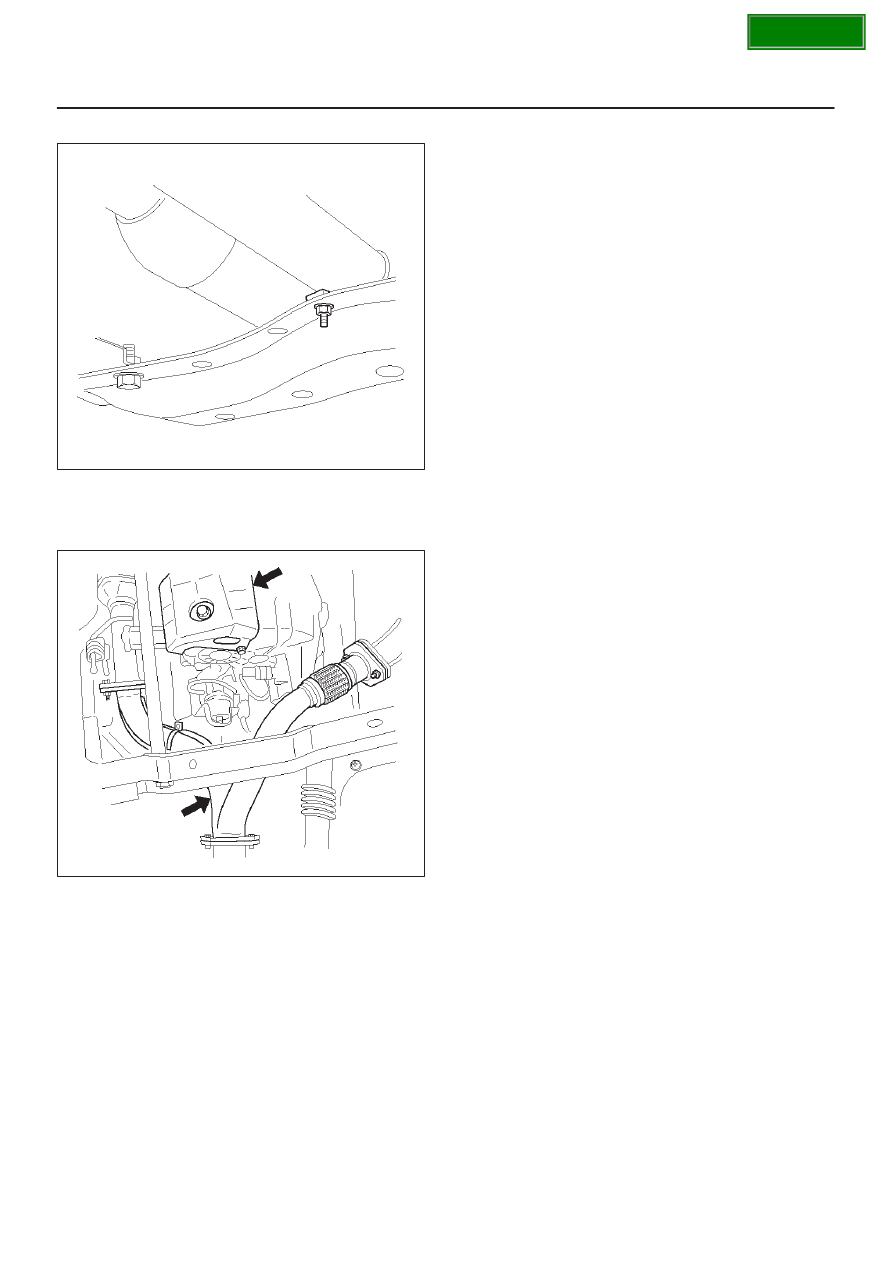

16. Install fuel pipe bracket to the third crossmember.

141RX004

17. Install center exhaust pipe.

Torque: 43 N

•

m (32 lb ft)

18. Install transfer protector.

150RX008

19. Install front propeller shaft and rear propeller shaft.

Torque: 63 N

•

m (46 lb ft)

20. Connect battery ground cable.
