7A–30

AUTOMATIC TRANSMISSION (4L30–E)

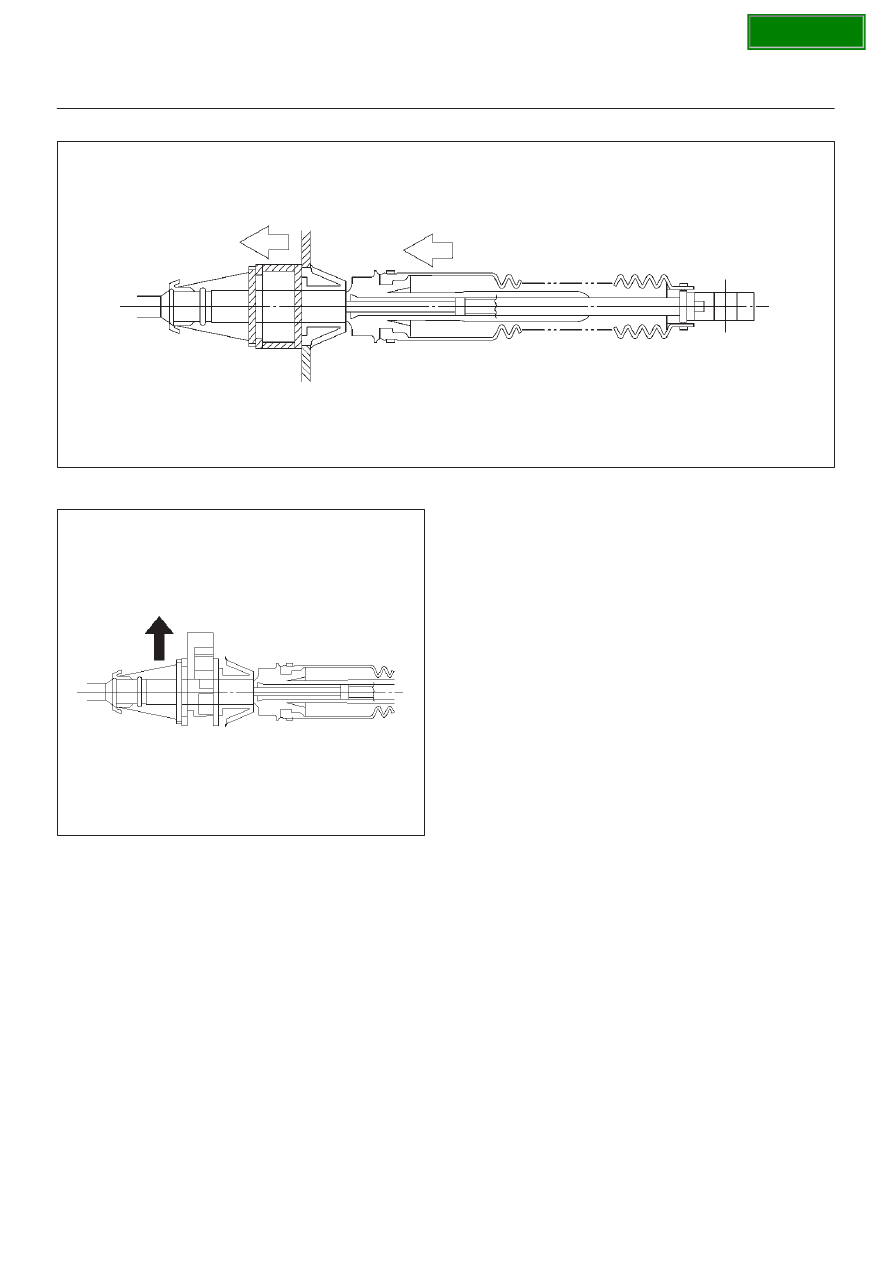

7. Slide sleeve and disconnect cable assembly.

A07RW082

8. Pull lock.

A07RW015

9. Draw select cable assembly into the interior side.

SECTION

7A–31

AUTOMATIC TRANSMISSION (4L30–E)

Installation

1. Set selector lever in “P” position.

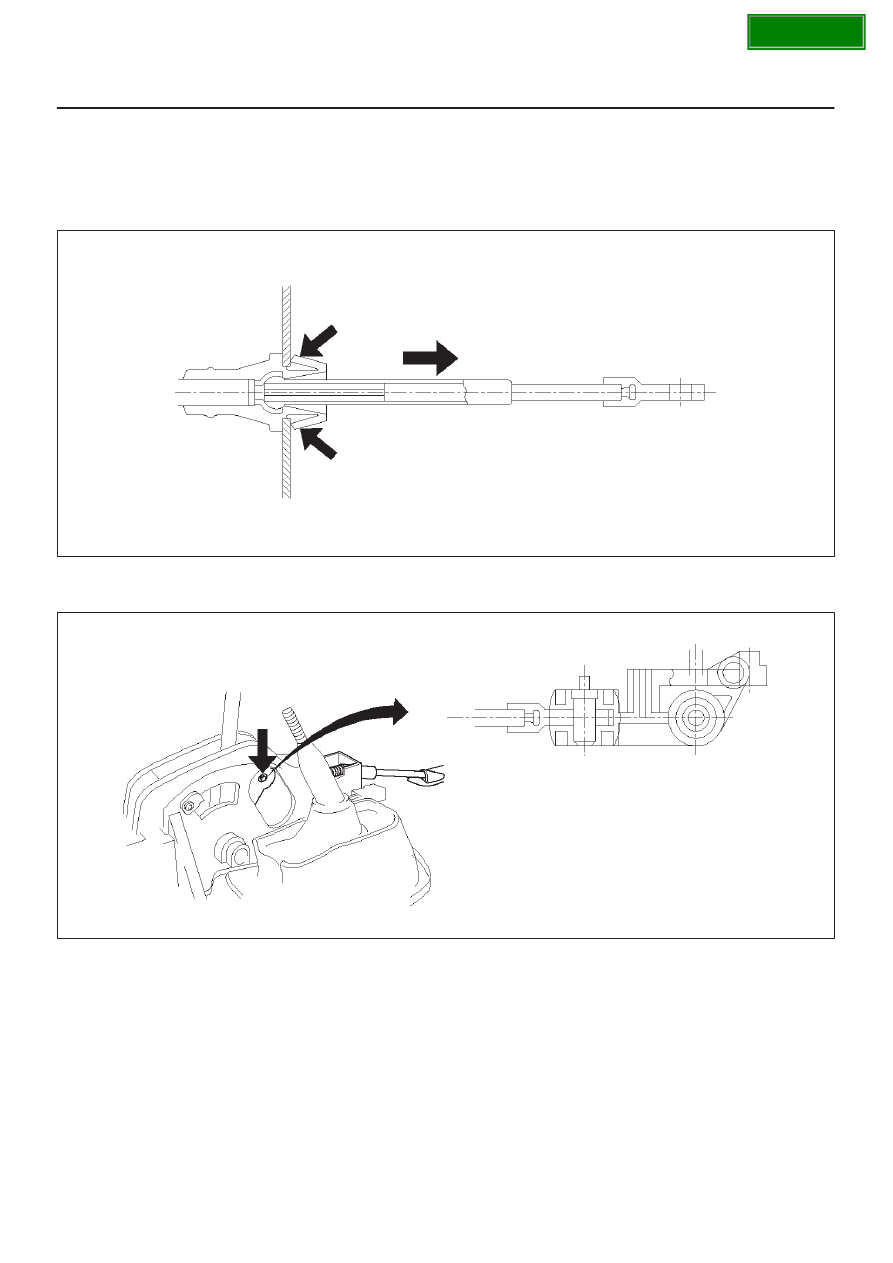

2. Let out select cable transmission side end from floor

hole.

3. Fit outer cable into bracket in selector lever assembly.

A07RW016

4. Set inner cable end in selector lever and push pin into

selector lever hole and inner cable end.

256RW023

SECTION

7A–32

AUTOMATIC TRANSMISSION (4L30–E)

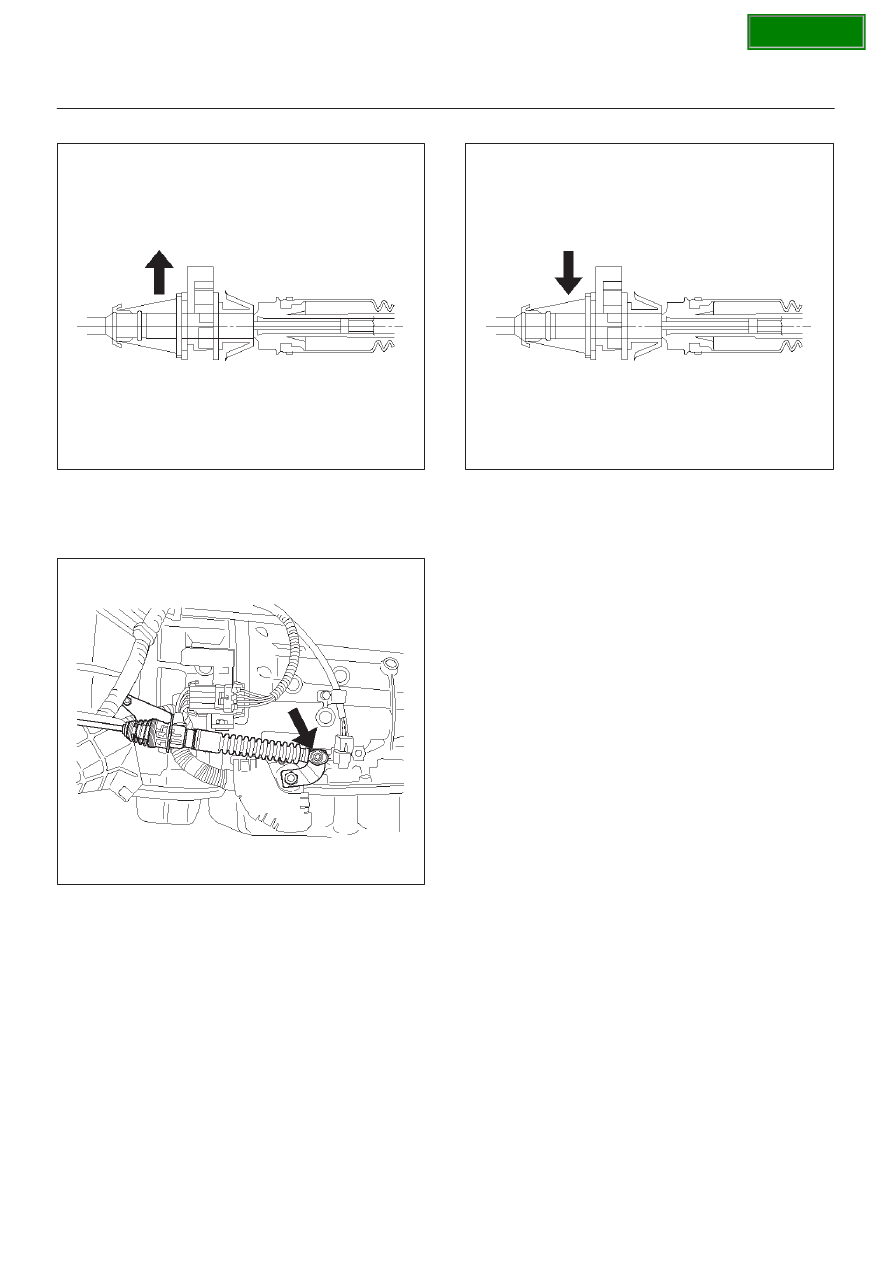

5. Check that lock projects.

A07RW015

6. Connect adjust end fitting attachment to the bracket

on transmission.

7. Set selector lever “P” position and connect inner

cable to selector lever.

210RW013

8. Push lock into adjust end fitting attachment.

A07RW014

9. Install grommet.

10. About following installation steps, refer to

Selector

Lever in this section.

SECTION

7A–33

AUTOMATIC TRANSMISSION (4L30–E)

Shift Lock Cable

Removal

1. Set ignition key in “LOCK” position and selector lever

in “P” position.

2. Remove transfer control lever knob, lower cluster

assembly, rear console, center console, selector
lever knob and cover.

D

Refer to

Selector Lever in this section.

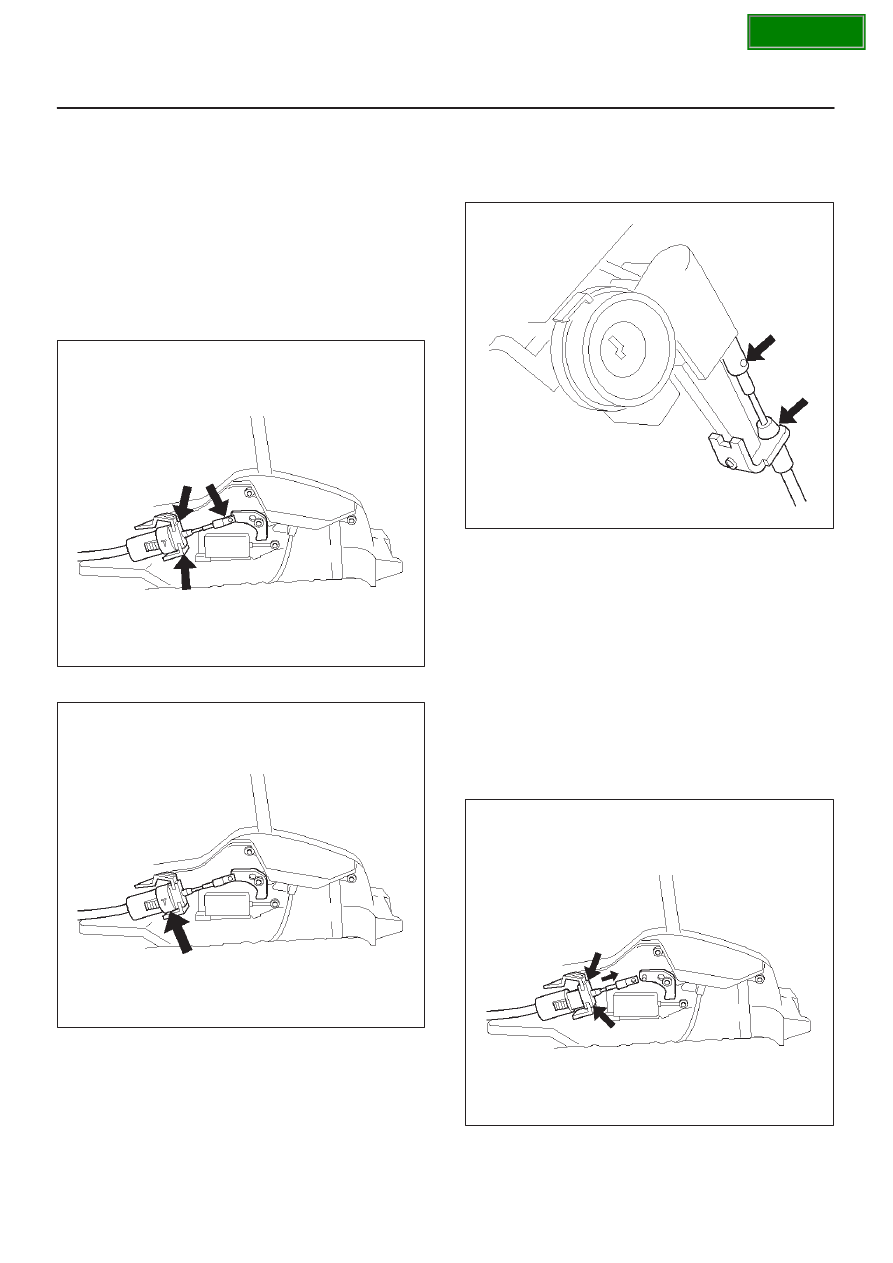

3. Disconnect inner cable from selector lever assembly

then push claw and disconnect cable assembly.

256RW016

4. Disconnect lock adjust.

256RW017

5. Remove instrument panel lower cover and steering

column cover.

6. Remove spring pin and disconnect inner cable.

D

Disconnect outer cable from bracket.

256RW008

Installation

1. Set ignition key in “LOCK” position and selector lever

in “P” position.

2. Connect outer cable to bracket near steering lock.

D

Connect inner cable to steering lock and install
spring pin.

3. Install steering column cover and instrument lower

cover.

4. Install adjust body of cable assembly to bracket in

selector lever assembly.

D

Install inner cable to lever, pulling inner cable with
outer cable.

256RW018
