6A–44

ENGINE MECHANICAL (X22SE 2.2L)

3. Remove cylinder head.

Use 5–8840–2600–0.

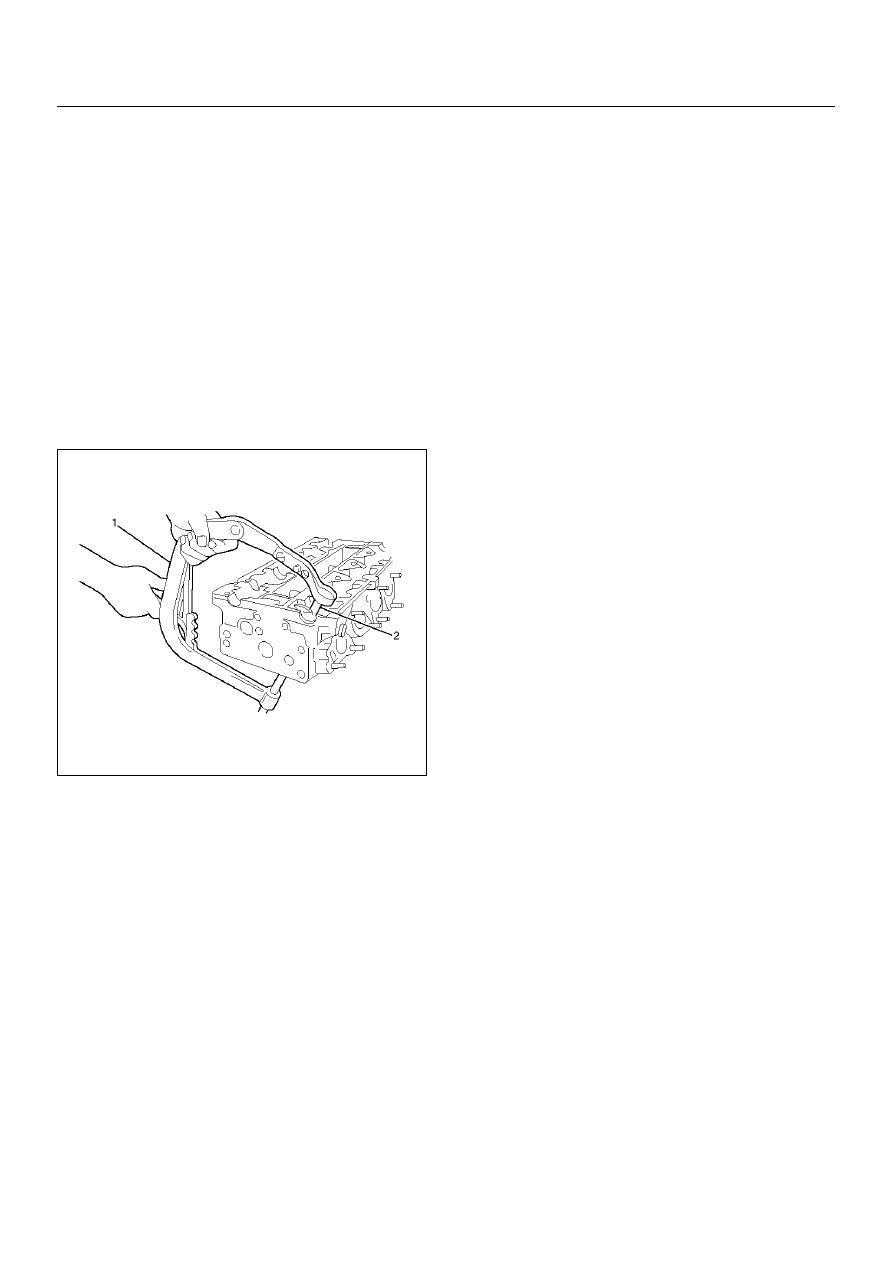

4. Valve spring, valve spring caps, compress valve

spring — use 5–8840–2546–0 (1) and Adapter 5–
8840–2662–0 (2).
Valve keepers.

011RW014

5. Valves, valve stem seals — use commercially

available remover pliers. Valve spring seats from
cylinder head.

011RW013

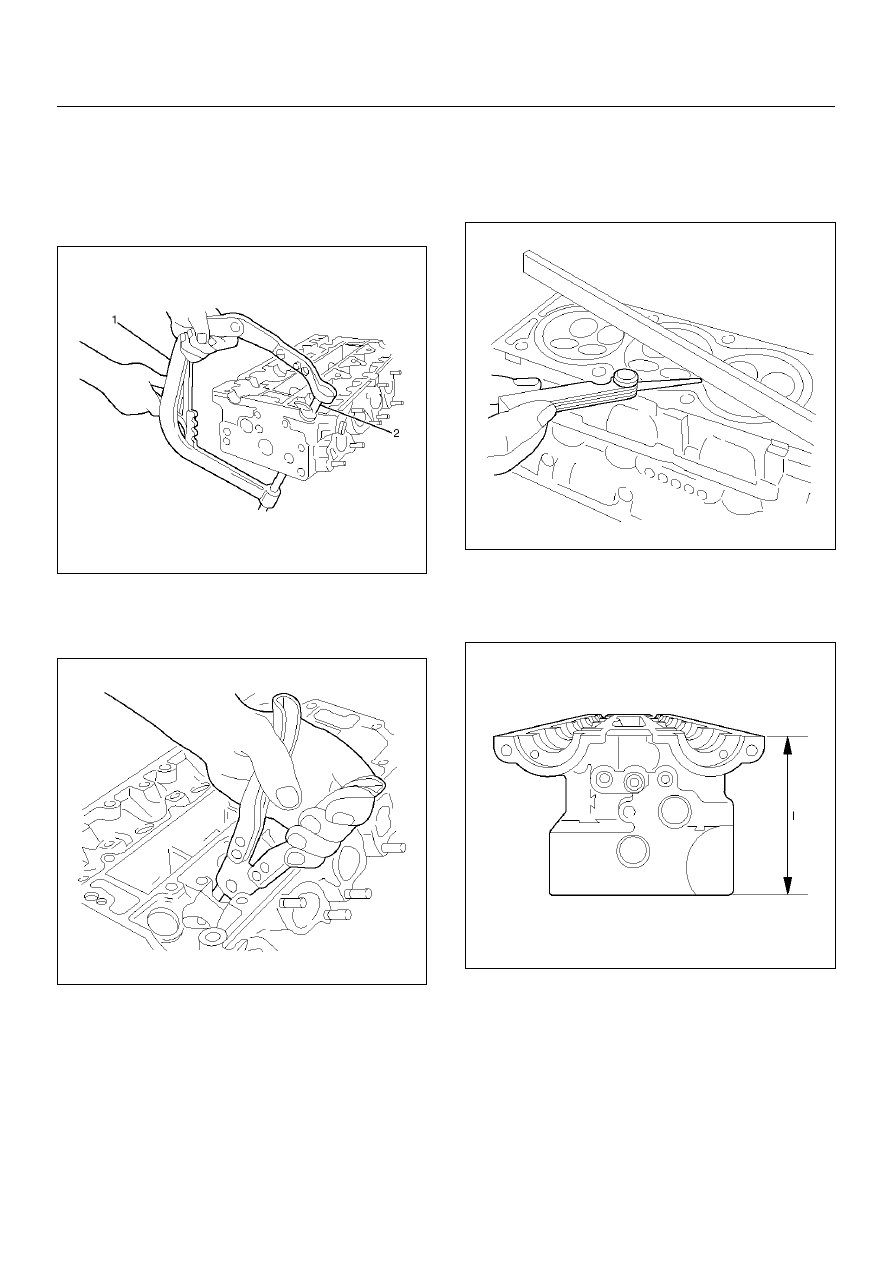

Inspection and Repair

1. Check length and width of cylinder head sealing

surfaces for deformation and diagonals for warpage
— use straight edge and feeler gauge.

011RW011

2. Height of cylinder head (sealing surface to sealing

surface).

Dimension (I) – 134 mm

011RW012

ENGINE MECHANICAL (X22SE 2.2L)

6A–45

Reassembly

1. Valves, valve stem seals. Refer to Valve Spring, Oil

Controller, Valve, Valve Guide in this section.

2. Valve spring, valve spring caps. Refer to Valve

Spring, Oil Controller, Valve, Valve Guide in this
section.

3. Install tappet (HLA).

4. Cylinder head with new cylinder head bolts to

cylinder block.
Tighten the bolts in 4 steps.

1st step: 25 N·m (2.5Kg·m/18lbft)

2nd step: 90

°°°°

3rd step: 90

°°°°

4th step: 90

°°°°

011RW014

5. Camshaft in cylinder head. Refer to Camshaft in this

section.

6. Camshaft pulley. Refer to Camshaft in this section.

6A–46

ENGINE MECHANICAL (X22SE 2.2L)

Valve Spring, Valve, Valve Guide

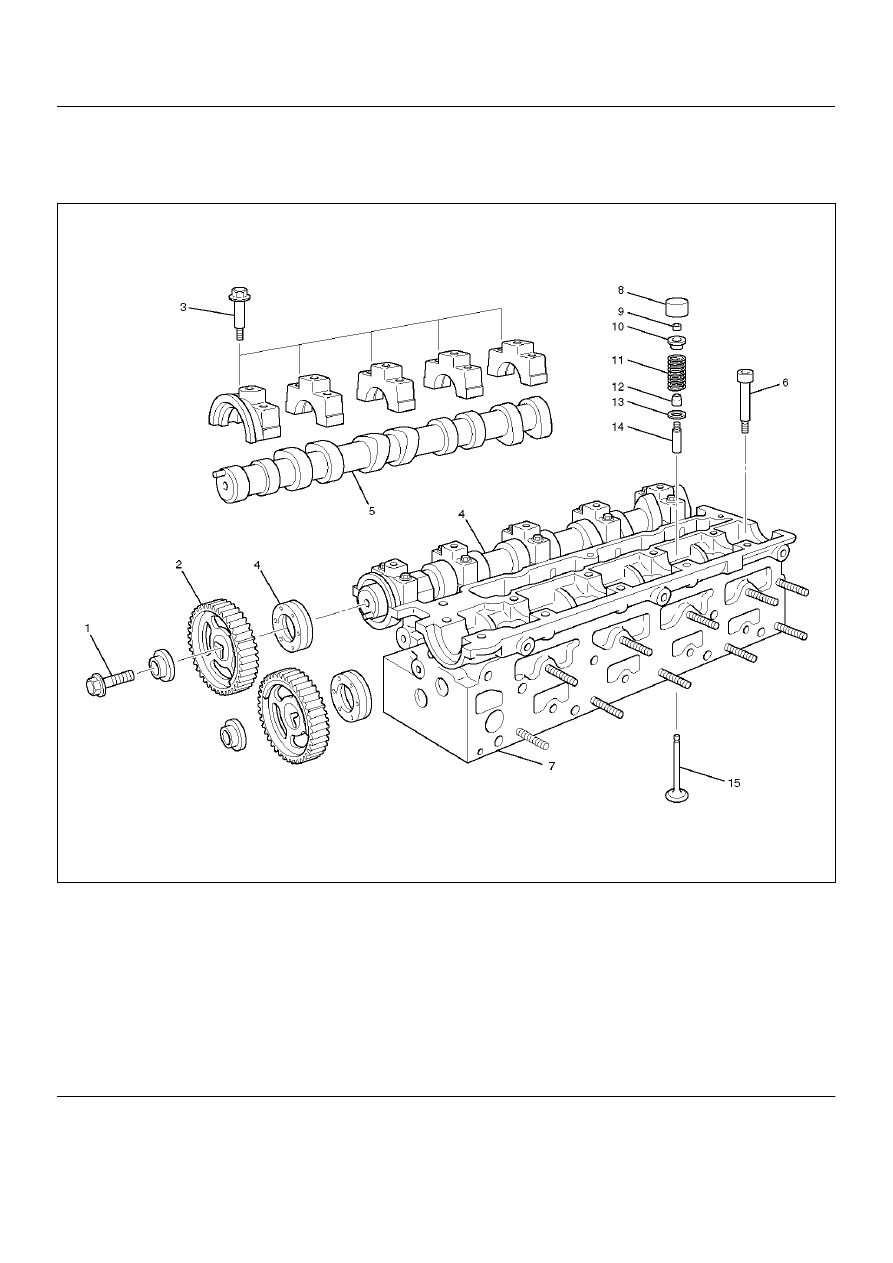

Valve Spring, Valve, Valve Guide and Associated Parts

011RW024

Legend

EndOFCallout

(1) Camshaft Pulley Fixing Bolts
(2) Camshaft Pulley
(3) Camshaft Bracket Fixing Bolt
(4) Camshaft Assembly Intake
(5) Camshaft Assembly Exhaust
(6) Cylinder Head Bolt
(7) Cylinder Head
(8) Tappet

(9) Split Collar

(10) Spring Upper Seat
(11) Valve Spring
(12) Oil Seal
(13) Spring Lower Seat
(14) Valve Guide
(15) Valve

ENGINE MECHANICAL (X22SE 2.2L)

6A–47

Disassembly

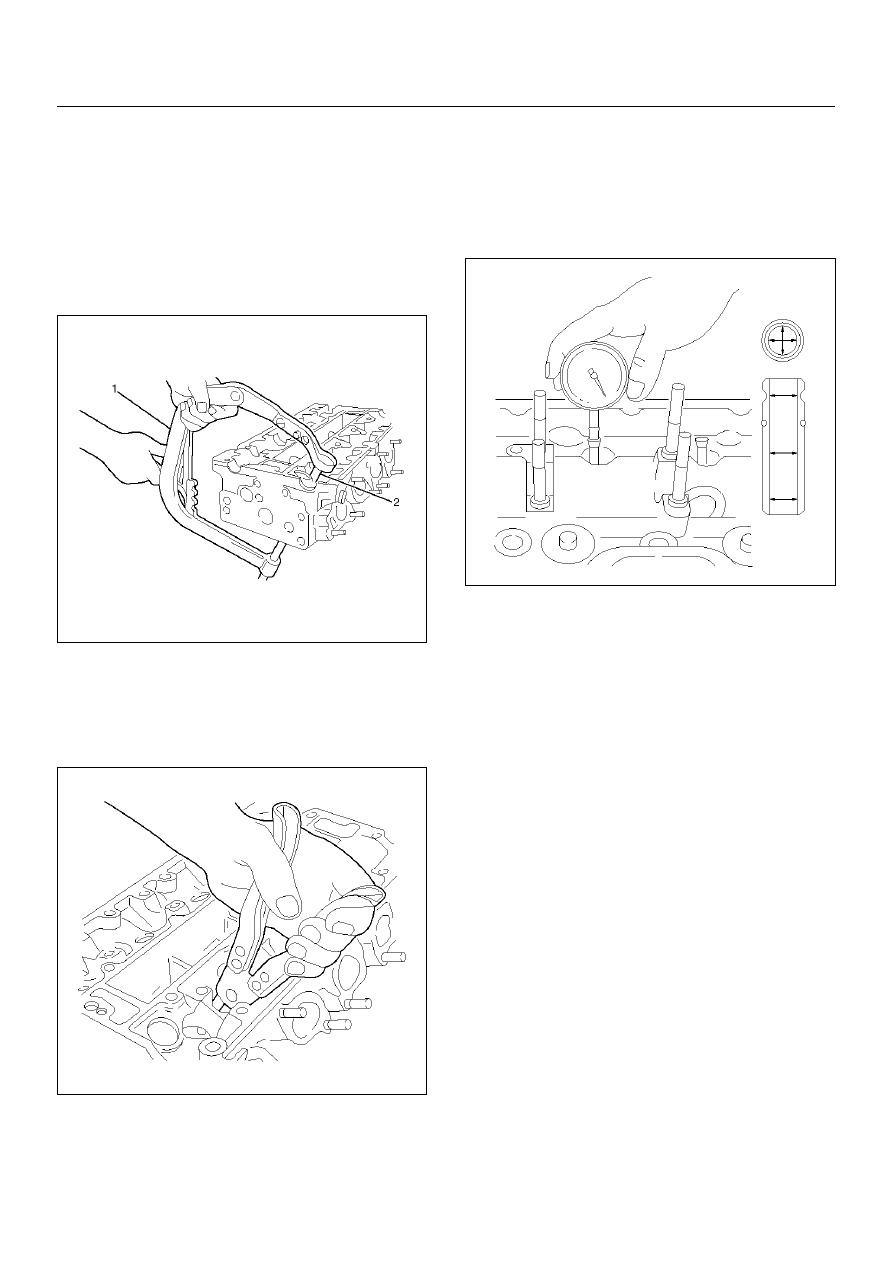

1. Remove camshaft pulley (1), (2).

2. Remove camshaft assembly (Intake) (3), (4).

3. Remove camshaft assembly (Exhaust side) (5).

4. Remove cylinder head (6), (7).

5. Remove tappet (8).

6. Use 5–8840–2546–0 valve spring compressor and

5–8840–2662–0 adapter to remove split collar (9).

011RW014

7. Remove spring upper seat and valve spring (10),

(11).

8. Valve, valve guide – use commercially available

remover pliers.
Valve spring lower seat from cylinder head.

011RW013

Inspection and Repair

1. Use a internal micrometer to measure the diameter

valve guide.
Valve stem play
Intake : 0.03 to 0.057 mm (0.0012 to 0.0022in)
Exhaust : 0.04 to 0.067 mm (0.0016 to 0.0026in)

011RW020

Valve Guide

CAUTION:  Taking care not to damage the valve seat
contact surface, when removing carbon adhering to
the valve head. Carefully inspect the valve stem for
scratching or abnormal wear. If these conditions are
present, the valve and the valve guide must be
replaced as a set.

Valve Seat

Valve seat width in cylinder head

Intake: 1.0 to 1.5 mm (0.039 to 0.0585 in)

Exhaust: 1.7 to 2.2 mm (0.0663 to 0.0858 in)

Valve Seat Insert Correction

Remove the carbon from the valve seat insert surface.

Valve Seat Insert Replacement

1. Arc weld the rod at several points. Be careful not to

damage the aluminum section.

2. Allow the rod to cool for a few minutes. This will

cause the valve seat to shrink.
