Opel Frontera UE. Manual - part 1532





6E–343

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

DTC P1299 - ETC Forced Engine Shutdown Mode



Step

Action

Value(s)

Yes

No

1

Was the “On-Board (OBD) System Check” performed?

Go to

 Step 2

Go to

 OBD

System

Check

2

Was the “Electric Throttle Control (ETC) System
Check” performed?

Go to

Step 3

Go to

ETC

System

Check

3

Observe the TP angle reading on the Tech 2 while
slowly opening the throttle.

Does the TP angle increase steadily and evenly from
the closed throttle value to the wide open  throttle
value?

Closed

throttle TP

sensor 1 =8

10 % TP

sensor 2 =90

 92 % Wide

open throttle

TP sensor 1

=90

 92 %

TP sensor 2

=8

 10 %

Go to

 Step 8

Go to

 Step 4

4

1. Ignition  “OFF”.
2. Disconnect the DC motor.

Is the DC motor reading near the specified value?

0.3

 100

m

Go to

 Step 5

Go to

 Step 7

5

Check the DC motor harness between the PCM and
DC Motor circuit at the DC motor harness connector.

Was a problem found?

Verify repair

Go to

 Step 6

6

Check the throttle valve assembly.

Was a problem found?

Verify repair

Go to

 Step 7

7

Replace the DC motor. (Replace the Throttle valve
assembly)

Is the action complete?

Verify repair

Go to

 Step 8

8

1. Disconnect the TP sensor.
2. Observe the TP sensor reading on the Tech 2.

Is the TP sensor reading near the specified value?

0V

Go to

 Step 9

Go to

 Step 10

9

1. Connect a test light between the 5 Volt reference

circuit and the TP1 and TP2 sensor signal circuit  at
the TP sensor harness connector.

2. Observe the TP sensor reading on the Tech 2.

Is the TP sensor reading near the specified value?

5V

Go to

 Step 12

Go to

 Step 11

10

Check the following items;

1. TP1 and TP2 signal circuit for a short to voltage.
2. TP1 and TP2 sensor ground circuit for high

resistance between the PCM and the TP sensor.

3. TP1and TP2  sensor ground circuit for a poor

connection.

4. If a problem is found, repair wiring harness as

necessary.

Was a problem found?

Verify repair

Go to

 Step 13

SECTION

6E–344

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

DTC P1299 - ETC Forced Engine Shutdown Mode

  (Cont'd)

Step

No

Yes

Value(s)

Action

11

Check the following items;

1. TP1and TP2  signal circuit or 5 volt reference circuit

for a poor connection.

2. TP1 and TP2 signal circuit or 5 volt reference circuit

for high resistance between the PCM and the
TP1and TP2 sensor.

3. If a problem is found, repair wiring harness as

necessary.

Was a problem found?

Verify repair

Go to

 Step 13

12

Replace the TP sensor.

Is the action complete?

Verify repair

13

1.  Start the engine.
2.  With the engine idling, monitor “MAF Frequency”

display on the Tech 2.

Is the “MAF Frequency” below the specified value?

 10 g/s

Go to

 Step 16

Go to

 Step 17

14

1.  Ignition “OFF”.
2.  Disconnect the MAF sensor connector.
3.  Ignition “ON”, engine idling.
4.  Using a Tech 2, monitor “MAF Frequency”.

Does the Tech 2 indicate a “MAF Frequency” at the
specified value?

0g/s

Go to

 Step 15

Go to

 Step 16

15

Replace the MAF sensor.

Is the action complete?

Verify repair

Go to

 Step 18

16

1.  Check the MAF harness for incorrect routing near

high voltage components (solenoids, relays,
motors).

2.  If incorrect routing is found, correct the harness

routing.

Was a problem found?

Verify repair

Go to

 Step 16

17

1.  With the engine idling, monitor “MAF Frequency”

display on the Tech 2.

2.  Quickly snap open throttle to wide open throttle

while under a road load and record value.

Does the Tech 2 indicate a “MAF Frequency” at the
specified value?

 10 g/s

Go to

 Step 15

Go to

 Step 18

18

1. Ignition “ON”, engine not running.
2. Observe the MAP reading on the Tech 2.

Is the MAP reading less than the specified value?

65kPa

Go to

 Step 19

Go to

 Step 22

19

1. Disconnect the MAP sensor.
2. Connect a test 5 volt reference circuit and the MAP

signal at the MAP sensor harness connector.

3. Observe the MAP reading on the Tech 2.

Is the MAP reading less than the specified value?(If no,
start with diagnosis chart for other sensors in the circuit
and see if 5V returns.)

Go to

 Step 21

Go to

 Step 20

SECTION

6E–345

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

DTC P1299 - ETC Forced Engine Shutdown Mode

  (Cont'd)

Step

No

Yes

Value(s)

Action

20

1. Check the MAP signal circuit between the PCM and

MAP ground circuit.

2. If the MAP signal circuit is open or shorted ,repair it

as necessary.

Was the MAP signal circuit open or shorted?

Verify repair

Go to

 Step 22

21

Replace the MAP sensor.

Is the action complete?

Verify repair

22

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed.

Refer to

 ON-Vehicle Service in Power Control Module

and Sensors for procedures.

And also refer to latest Service Bulletin.

Check to see if the latest software is released or not.

And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Is the action complete?

Verify repair

SECTION

6E–346

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

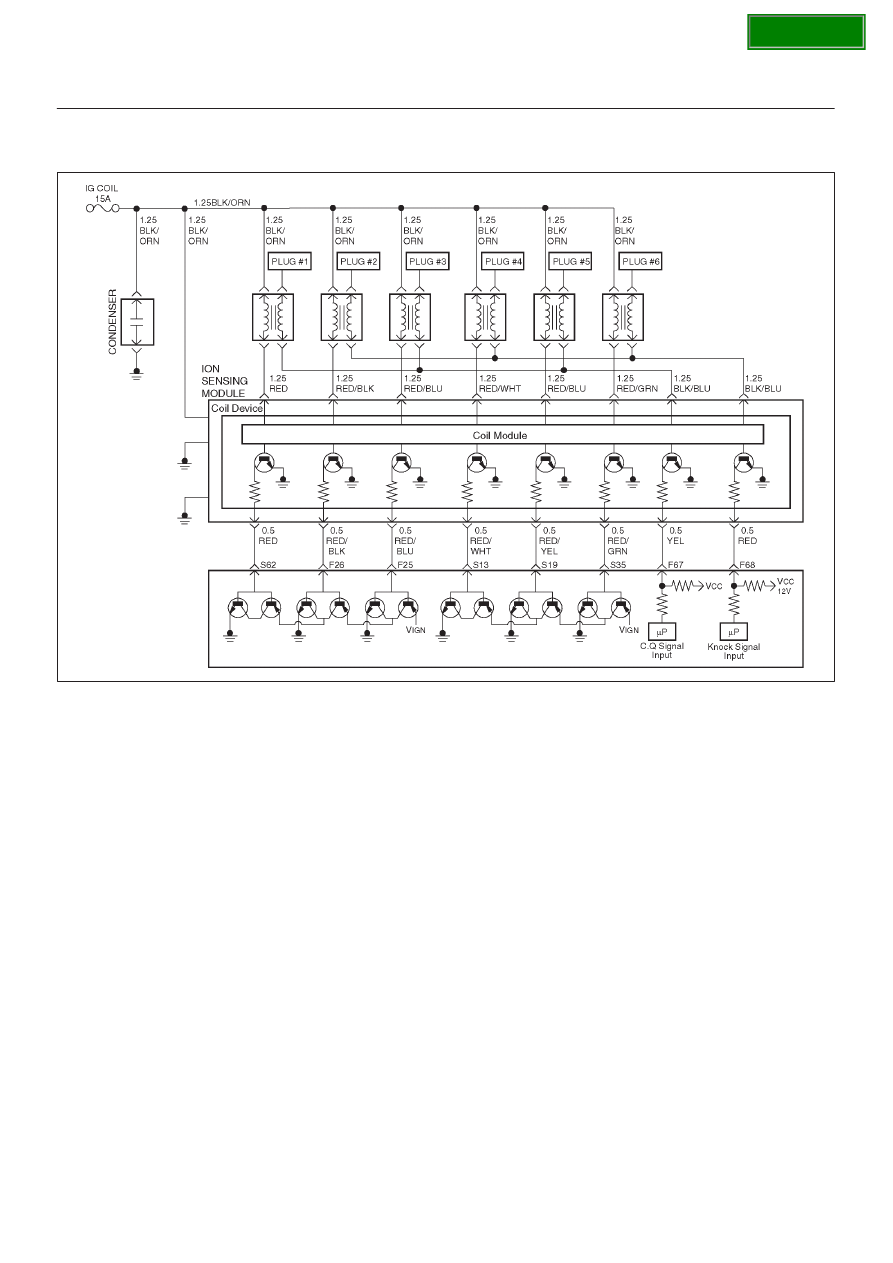

Diagnostic Trouble Code (DTC)

P1310  ION Sensing Module Diagnosis

060R100135

Circuit Description

The Power Control Module (PCM) checks the validity of
the signals used in the ION Sensing module at the
following engine operating conditions.

D

The Deceleration Fuel Cut Off (DFCO) test is
performed to evaluate the Combustion Quality (CQ)
signal pulse width. If it is below a predetermined value,
the value it is expected to be during DFCO conditions.
If the CQ signal pilse width is above the predetermined
threshold, the fail counter will be incremented. If the
failure counter exceeds the calibration, then the test is
complete and a failure will be reported.

D

The Power Enrichment (PE) test is performed to
evaluate the Combustion Quality (CQ) signal pulse
width. If it is below a predetermined value, the value it
is expected to be during PE conditions.
If the CQ signal pulse width is above the
predetermined  threshold, the fail counter will be
incremented. If the failure counter exceeds the
calibration, then the test is complete and a failure will
be reported.

D

The Combustion Quality (CQ) test is performed to
check if inappropriate (CQ) signal status were
detected. If missing CQ pulses or multiple CQ pulses
or CQ pulse width calculation errors were detected, the
fail counter will be incremented. If the failure counter
exceeds the calibration, then the test is complete and
a failure will be reported.

Conditions for setting the DTC

D

Ignition voltage is between 10volt and 16 volts.

D

MAP sensor signal  is between 26kPa and 100 kPa.

D

Fuel level is more than 19%.

D

Engine speed  is between 650rpm and 6250rpm.

D

No Crank DTCs set.

D

No System voltage DTCs set.

D

CQ pulse width is less than 30

m

s or more than 1070

m

s.

Action Taken When the DTC Sets

D

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

D

The PCM calculates an air flow value based on idle air
control valve position, throttle position, RPM and
barometric pressure.

D

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

Conditions for Clearing the MIL/DTC

D

The PCM will turn the MIL “OFF” on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

D

A history DTC P1310 will clear after 40 consecutive trip
cycle during which the warm up cycles have occurred
without a fault.

SECTION
