6A–32

ENGINE MECHANICAL (X22SE 2.2L)

Timing Belt

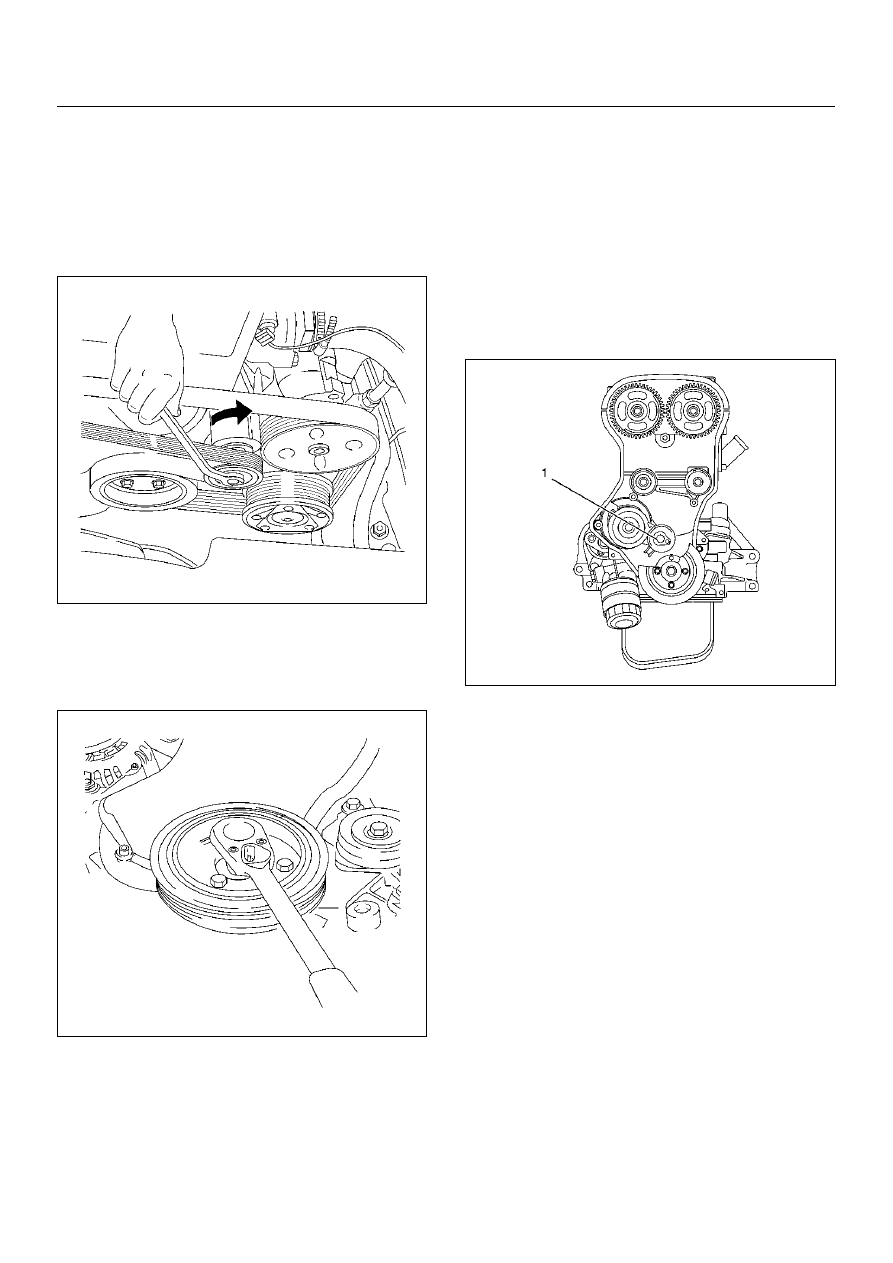

Removal

1. Disconnect battery ground cable.

2. Move drive belt tensioner to loose side using wrench

then remove drive belt.

033RW001

3. Remove engine harness cover and disconnect three

connectors from left rear side of engine
compartment.

4. Remove four bolts and remove crankshaft pulley.

020RW014

5. Disconnect three connectors of engine harness

from chassis harness of left rear side of engine
compartment.

6. Remove nut and remove engine harness cover from

front of engine.

7. Remove two bolts then remove timing belt front

cover.

8. Remove fixing bolt of timing belt tensioner then

remove timing belt tensioner (1).

020RW010

9. Remove timing belt.

CAUTION:

• Do not bend or twist belt, otherwise its core could

be damaged.  The belt should not be bent at a
radius less than 30 mm.

• Timing belt drive gear counterhold with 5–8840–

2598–0.

• Do not allow oil or other chemical substances to

come in contact  with the belt. They will shorten
the life.

• Do not attempt to pry or stretch the belt with a

screw driver or any other tool during installation.

• Store timing belt in cool and dark place. Never

expose the belt direct sunlight or heat.

ENGINE MECHANICAL (X22SE 2.2L)

6A–33

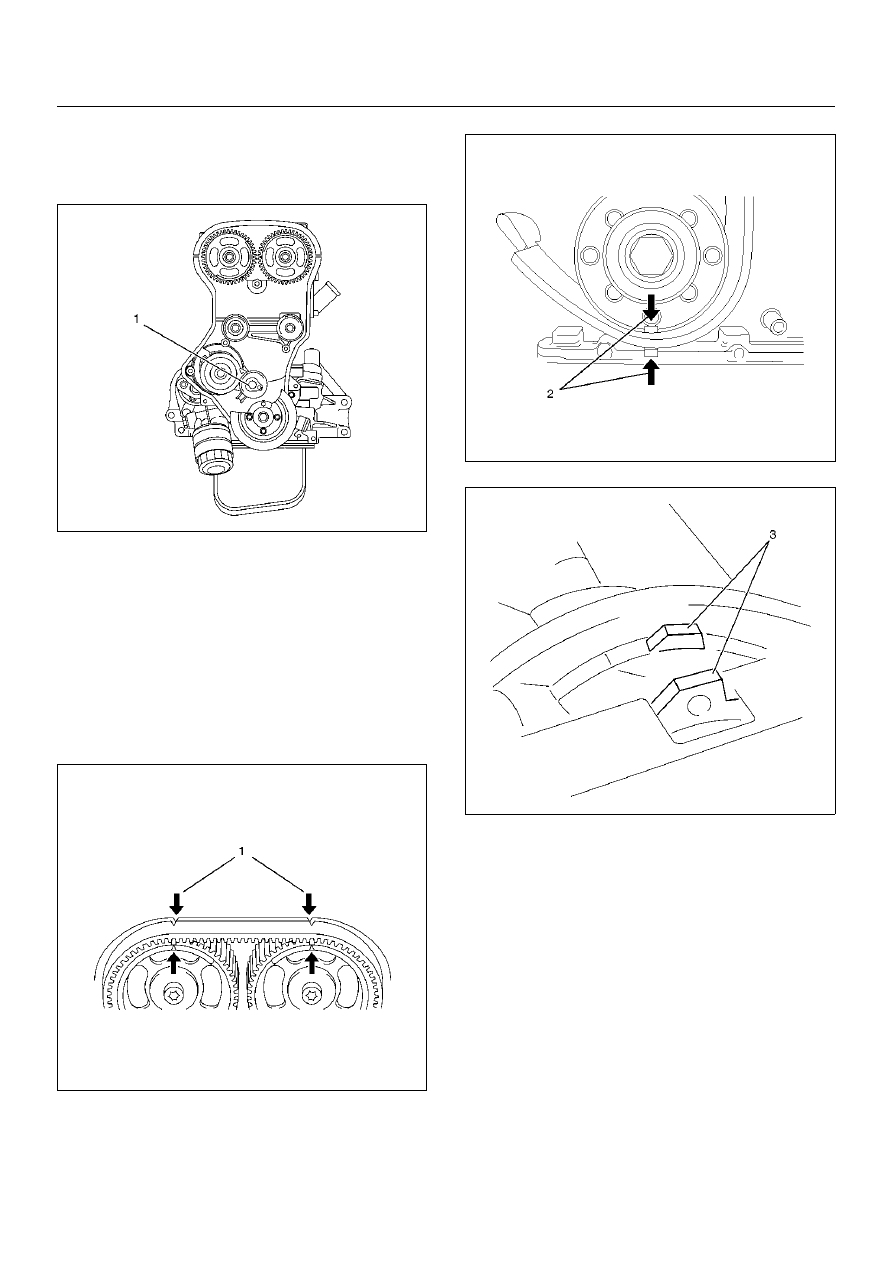

Installation

1. Install timing belt tensioner then tighten it

temporarily until make alignment timing belt.

020RW010

2. Install the timing belt and perform timing belt setting

procedure as follows:

1. Bring the engine top dead center No.1 cylinder

compression stroke by rotating the engine in the
direction of normal operation.
The engine is in this position when the notches
on the camshaft pulleys align with the marks on
the cylinder head cover(1),  Check the
crankshaft pulley timing mark is aligned (2) also
check for water pump positioning ensure tabs
are aligned (3).

014RW067

014RW066

014RW063

6A–34

ENGINE MECHANICAL (X22SE 2.2L)

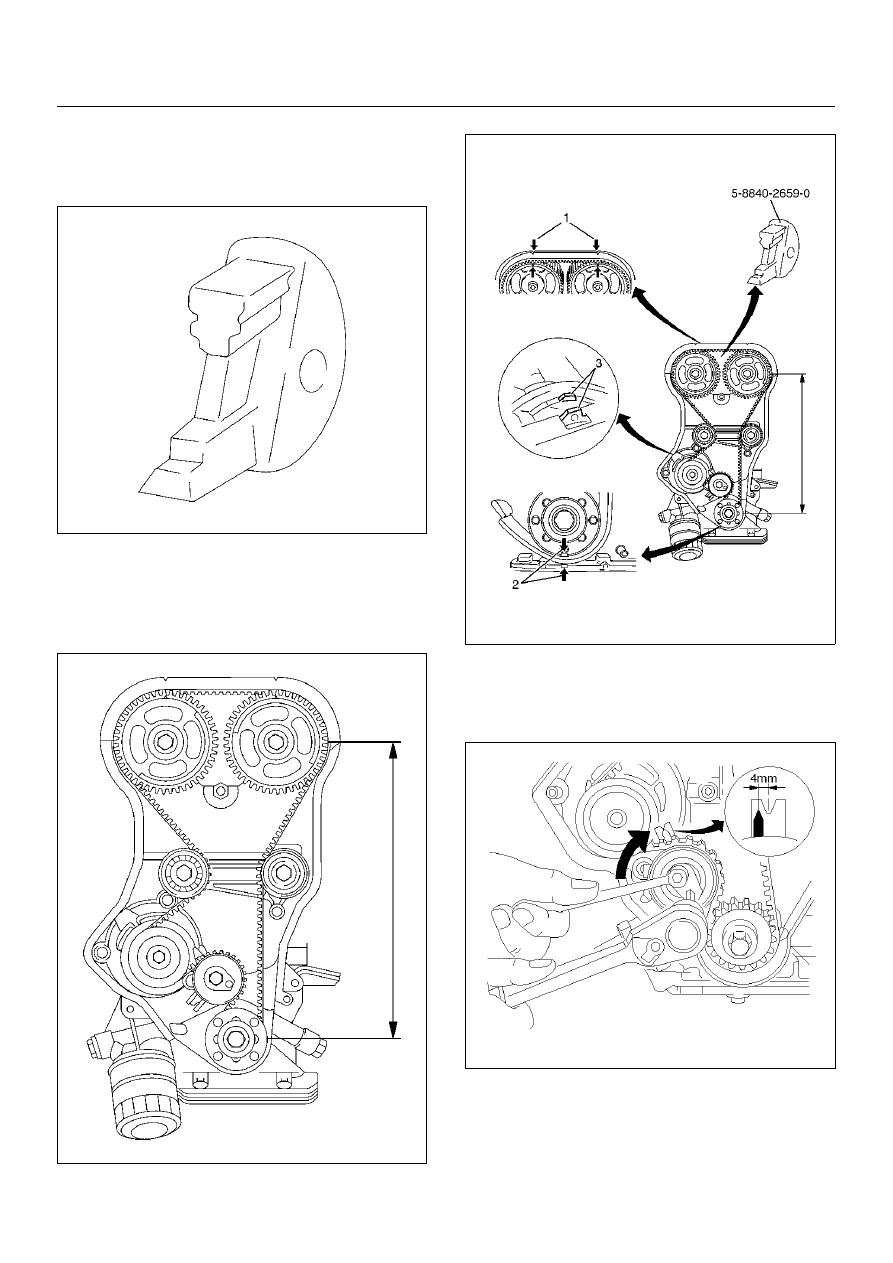

2. Place 5–8840–2659–0 between intake and

exhaust of camshaft drive gear for prevent to
camshaft drive gear movement during timing
belt setting.

014RW065

3. Set the timing belt shown in the illustration,

ensure that tension side of the timing belt is taut
and move the timing belt t ension adjustment
lever clockwise, until the pointer of the tensioner
is flowing.

014RW064

014RX061

For used timing belt(over 60 minutes from new):
The pointer will be approx. 4 mm(0.16 in) to the
left of the center of  the “V" notch when viewed
from the front of the engine.

014RW069

ENGINE MECHANICAL (X22SE 2.2L)

6A–35

For new timing belt: The pointer must be at the
center of “V" notch when viewed from the front
of the engine.

014RW062

3. Tighten fixing bolt (1) of timing belt tensioner to the

specified torque.

Torque: 25 N·m (2.5Kg·m/18lbft)

020RW010

4. Install timing belt front cover and tighten two bolts to

the specified torque.

Torque: 6 N·m (0.6Kg·m/4.4lbft)

5. Install engine harness cover to front top of engine

and tighten nut to the specified torque.

Torque: 6 N·m (0.6Kg·m/4.4lbft)

6. Install crankshaft pulley and tighten four bolts.

Torque: 20 N·m (2.0Kg·m/14lbft)

020RW014

7. Move drive belt tensioner to loose side using wrench

then install drive belt to normal position.

033RW001

8. Connect engine harness three connector to chassis

harness of left rear side of engine compartment.

9. Connect battery ground cable.
